ECLIP STANDARD 220-240VAC 2 300lm 5W 830 103 SS IP67
Item No. MI1549987
ECLIP STANDARD 220-240VAC

ECLIP STANDARD 220-240VAC 2 300lm 5W 830 103 SS IP67

MI1549987

General data
Key Advantages

Variety of light distribution beam angles, power options W, shape designs and dimming options.

Product ShapeRound
TypeIllumination
MountingIn-ground
Electrical data
Main Feed AC [V]220-240VAC
Main Feed Frequency [Hz]50-60
Total Consumption [W]5
IEC Protection ClassI
Connector Type0.5m
WiringH07RN-F 3G1
Optics
Diffuser2
LED LIFETIME Ta25 [h]≥ 60 000h
Technical data
Total Consumption [W]5
Lumen Output [LM]300
Efficacy [lm/W]60
Diffuser2
Housing MaterialSS316L
Beam Angle [°]180
Light distributionSYM
CCT [K]3000
CRI80
MacAdam step<3
LED LIFETIME Ta25 [h]≥ 60 000h
Housing colorSST
IP67
Mechanical Protection [IK]10
Main Feed AC [V]220-240VAC
Diameter ø [mm]103
Description:

ECLIP STANDARD 5W 220-240VAC is made of the highest quality materials such as marine steel and/or aluminum. The power is 5W and the load pressure is 1100kg. ECLIP STANDARD can be used to illuminate many places and objects, such as recreational areas, gardens, terraces, commercial parking lots, skate parks, etc.

Key Advantages:

Variety of light distribution beam angles, power options W, shape designs and dimming options.

Downloads:
Datasheet:
1
Technical illustrations:
1
Mounting instructions:
1
Certificates:
1
Photometric data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AD - IP/67.svg
/soft4net/img/project/icons/BB - IK/10.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_80.svg
ECLIP STANDARD 220-240VAC
General data
Key Advantages

Variety of light distribution beam angles, power options W, shape designs and dimming options.

Product ShapeRound
TypeIllumination
MountingIn-ground
Electrical data
Main Feed AC [V]220-240VAC
Main Feed Frequency [Hz]50-60
Total Consumption [W]5
IEC Protection ClassI
Connector Type0.5m
WiringH07RN-F 3G1
Optics
Diffuser2
LED LIFETIME Ta25 [h]≥ 60 000h
Technical data
Total Consumption [W]5
Lumen Output [LM]300
Efficacy [lm/W]60
Diffuser2
Housing MaterialSS316L
Beam Angle [°]180
Light distributionSYM
CCT [K]3000
CRI80
MacAdam step<3
LED LIFETIME Ta25 [h]≥ 60 000h
Housing colorSST
IP67
Mechanical Protection [IK]10
Main Feed AC [V]220-240VAC
Diameter ø [mm]103
Housing
Housing MaterialSS316L
Housing colorSST
Light technical data
Light SourceLED
Total Consumption [W]5
Lumen Output [LM]300
Efficacy [lm/W]60
CCT [K]3000
CRI80
MacAdam step<3
Beam Angle [°]180
Light distributionSYM
Technical data
IP67
Mechanical Protection [IK]10
Corrosion ClassC3, C4
Dimensions
Diameter ø [mm]103
Generating PDF...

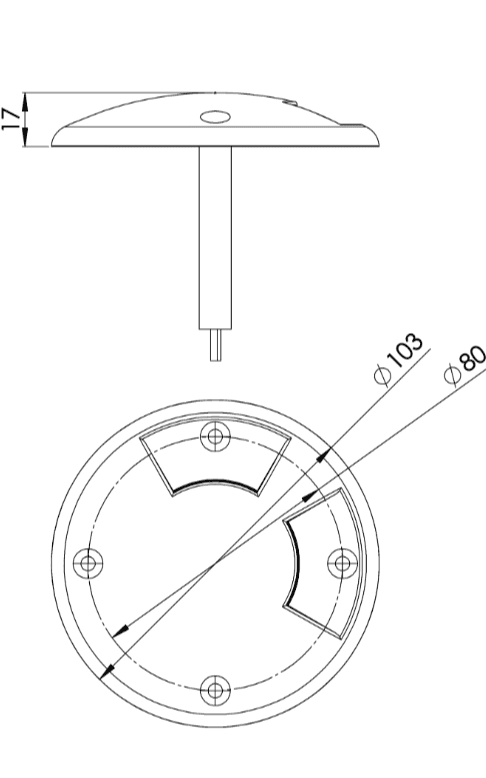

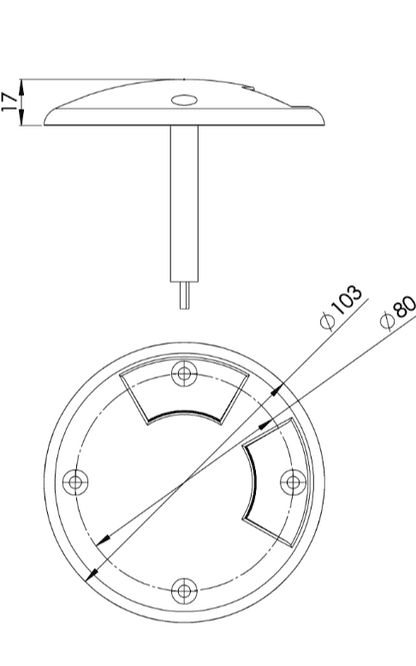

Technical illustrations

ECLIP STANDARD 220-240VAC
