ERA 80 TRACK
ERA 80 TRACK

General data

Application	Mounting to 3-circuit track that has to be ordered separately.
Product Shape	Tube
Mounting	Track, Surface, Pendant

Electrical data

Main Feed AC [V]	220-240
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	10 - 28
IEC Protection Class	I

Optics

Diffuser Material	TRANSPARENT, FROST, MPR, HONEYCOMB
Diffuser Material Design	Transparent, MPR, Honeycomb
TYPE OF CONTROL	ON/OFF, DALI
CONTROL SYSTEM	ON/OFF, DALI
LED LIFETIME Ta25 [h]	L80B10 60.000h

Technical data

Total Consumption [W]	10 - 28
Lumen Output [LM]	390 - 2500
Efficacy lm/W	up to 90
Diffuser Material	TRANSPARENT, FROST, MPR, HONEYCOMB
Body Material	Anodized, Alu
Beam Angle [°]	18° to 48°
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	3000, 4000
Color Rendering Index [CRI]	90
MacAdam step	3
LED LIFETIME Ta25 [h]	L80B10 60.000h
TYPE OF CONTROL	ON/OFF, DALI
Body Color	White 9016, Black 9005, Gray 9006
Ingress Protection [IP]	20
Mechanical Protection [IK]	01
Main Feed AC [V]	220-240
Diameter ø [mm]	76

Description:

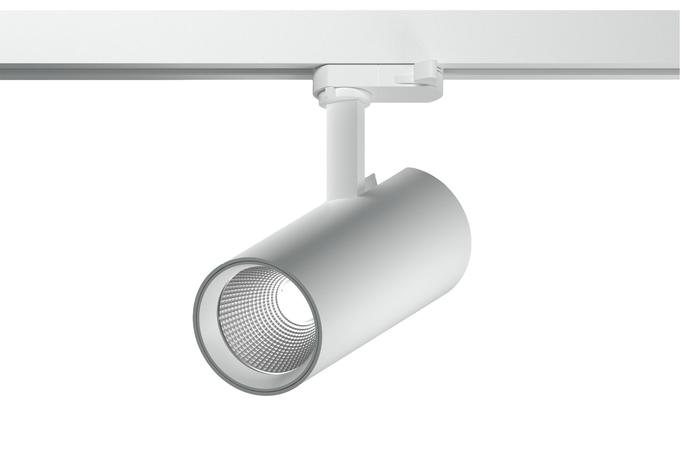

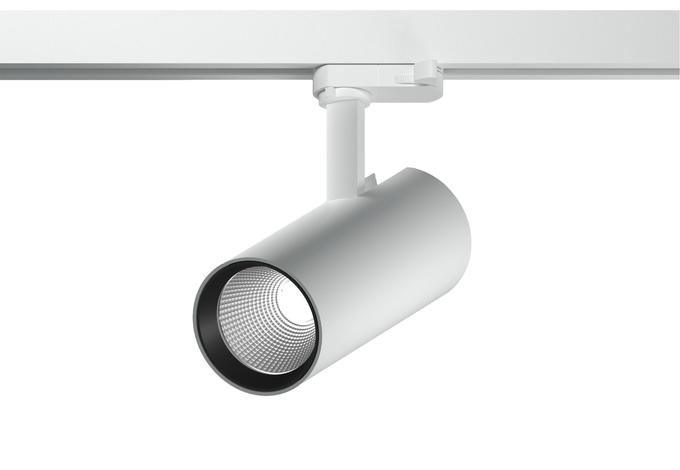

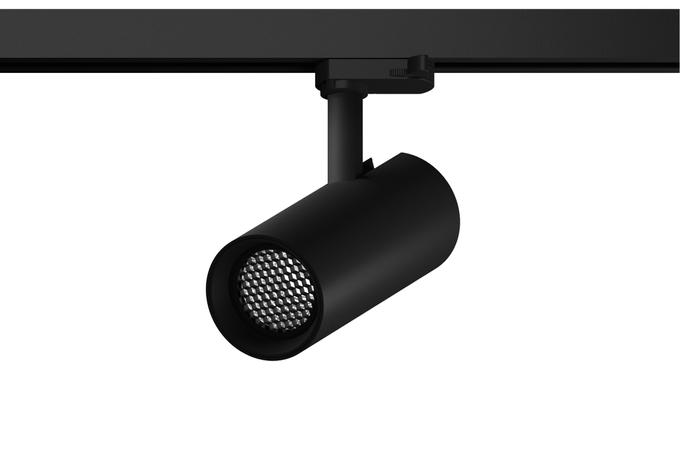

Subtle LED spotlight with driver integrated in track mount delivering an extreme slim design without compromises.

Downloads:

Datasheet:

Technical illustrations:

Mounting instructions:

Certificates:

Photometric data:

General data

Application	Mounting to 3-circuit track that has to be ordered separately.
Product Shape	Tube
Mounting	Track, Surface, Pendant

Electrical data

Main Feed AC [V]	220-240
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	10 - 28
IEC Protection Class	I

Optics

Diffuser Material	TRANSPARENT, FROST, MPR, HONEYCOMB
Diffuser Material Design	Transparent, MPR, Honeycomb
TYPE OF CONTROL	ON/OFF, DALI
CONTROL SYSTEM	ON/OFF, DALI
LED LIFETIME Ta25 [h]	L80B10 60.000h

Technical data

Total Consumption [W]	10 - 28
Lumen Output [LM]	390 - 2500
Efficacy lm/W	up to 90
Diffuser Material	TRANSPARENT, FROST, MPR, HONEYCOMB
Body Material	Anodized, Alu
Beam Angle [°]	18° to 48°
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	3000, 4000
Color Rendering Index [CRI]	90
MacAdam step	3
LED LIFETIME Ta25 [h]	L80B10 60.000h
TYPE OF CONTROL	ON/OFF, DALI
Body Color	White 9016, Black 9005, Gray 9006
Ingress Protection [IP]	20
Mechanical Protection [IK]	01
Main Feed AC [V]	220-240
Diameter ø [mm]	76

Housing

Body Material	Anodized, Alu
Body Color	White 9016, Black 9005, Gray 9006
RAL	Any upon request
Finish	Matt, Gloss

Light technical data

Light Source	COB LED
Total Consumption [W]	10 - 28
Lumen Output [LM]	390 - 2500
Efficacy lm/W	up to 90
LED Color Temperature CCT [K]	3000, 4000
Color Rendering Index [CRI]	90
UGR	<19
MacAdam step	3
Beam Angle [°]	18° to 48°
Light Distribution DIR/IND	DIR

Technical data

TA [°C]	0-25
Ingress Protection [IP]	20
Mechanical Protection [IK]	01
Corrosion Class	C3

Dimensions

Diameter ø [mm]	76

Variations

Item	Code	Lenght	Height	W	Lumen Output lm	Efficacy lm/W	Diffuser	Beam Angle	CRI	Color K	Type of Control	IP	Color
ERA 80 TRACK TRANSPARENT 870lm 10W 930 WH IP20 ON/OFF	MI105842651	185	120	10	870	87	TRANSPARENT	23°	90	3000	ON/OFF	20	WHITE
ERA 80 TRACK TRANSPARENT 870lm 10W 930 WH IP20 DALI	MI107256365	185	120	10	870	87	TRANSPARENT	23°	90	3000	DALI	20	WHITE
ERA 80 TRACK TRANSPARENT 1150lm 14W 930 WH IP20 ON/OFF	MI109081529	185	120	14	1150	82	TRANSPARENT	23°	90	3000	ON/OFF	20	WHITE
ERA 80 TRACK TRANSPARENT 1250lm 14W 930 WH IP20 DALI	MI109751476	185	120	14	1250	89	TRANSPARENT	23°	90	3000	DALI	20	WHITE
ERA 80 TRACK TRANSPARENT 1500lm 18W 930 WH IP20 ON/OFF	MI108296556	185	120	18	1500	83	TRANSPARENT	23°	90	3000	ON/OFF	20	WHITE
ERA 80 TRACK TRANSPARENT 1500lm 18W 930 WH IP20 DALI	MI101476448	185	120	18	1500	83	TRANSPARENT	23°	90	3000	DALI	20	WHITE
ERA 80 TRACK TRANSPARENT 1650lm 20W 930 WH IP20 ON/OFF	MI107297006	185	120	20	1650	83	TRANSPARENT	23°	90	3000	ON/OFF	20	WHITE
ERA 80 TRACK TRANSPARENT 1650lm 20W 930 WH IP20 DALI	MI106921884	185	120	20	1650	83	TRANSPARENT	23°	90	3000	DALI	20	WHITE
ERA 80 TRACK TRANSPARENT 1950lm 24W 930 WH IP20 ON/OFF	MI106200564	185	120	24	1950	81	TRANSPARENT	23°	90	3000	ON/OFF	20	WHITE
ERA 80 TRACK TRANSPARENT 1950lm 24W 930 WH IP20 DALI	MI106970668	185	120	24	1950	81	TRANSPARENT	23°	90	3000	DALI	20	WHITE
ERA 80 TRACK TRANSPARENT 2050lm 26W 930 WH IP20 ON/OFF	MI106868483	185	120	26	2050	79	TRANSPARENT	23°	90	3000	ON/OFF	20	WHITE
ERA 80 TRACK TRANSPARENT 2050lm 26W 930 WH IP20 DALI	MI100437973	185	120	26	2050	79	TRANSPARENT	23°	90	3000	DALI	20	WHITE
ERA 80 TRACK TRANSPARENT 2350lm 28W 930 WH IP20 ON/OFF	MI101340545	185	120	28	2350	84	TRANSPARENT	23°	90	3000	ON/OFF	20	WHITE
ERA 80 TRACK TRANSPARENT 2350lm 28W 930 WH IP20 DALI	MI109442797	185	120	28	2350	84	TRANSPARENT	23°	90	3000	DALI	20	WHITE
ERA 80 TRACK TRANSPARENT 910lm 10W 940 WH IP20 ON/OFF	MI102308371	185	120	10	910	91	TRANSPARENT	23°	90	4000	ON/OFF	20	WHITE
ERA 80 TRACK TRANSPARENT 910lm 10W 940 WH IP20 DALI	MI108946491	185	120	10	910	91	TRANSPARENT	23°	90	4000	DALI	20	WHITE
ERA 80 TRACK TRANSPARENT 1200lm 14W 940 WH IP20 ON/OFF	MI104389706	185	120	14	1200	86	TRANSPARENT	23°	90	4000	ON/OFF	20	WHITE
ERA 80 TRACK TRANSPARENT 1200lm 14W 940 WH IP20 DALI	MI107608721	185	120	14	1200	86	TRANSPARENT	23°	90	4000	DALI	20	WHITE
ERA 80 TRACK TRANSPARENT 1600lm 18W 940 WH IP20 ON/OFF	MI103727790	185	120	18	1600	89	TRANSPARENT	23°	90	4000	ON/OFF	20	WHITE
ERA 80 TRACK TRANSPARENT 1600lm 18W 940 WH IP20 DALI	MI108172388	185	120	18	1600	89	TRANSPARENT	23°	90	4000	DALI	20	WHITE
ERA 80 TRACK TRANSPARENT 1750lm 20W 940 WH IP20 ON/OFF	MI103754412	185	120	20	1750	88	TRANSPARENT	23°	90	4000	ON/OFF	20	WHITE
ERA 80 TRACK TRANSPARENT 1750lm 20W 940 WH IP20 DALI	MI108110375	185	120	20	1750	88	TRANSPARENT	23°	90	4000	DALI	20	WHITE
ERA 80 TRACK TRANSPARENT 2050lm 24W 940 WH IP20 ON/OFF	MI100259995	185	120	24	2050	85	TRANSPARENT	23°	90	4000	ON/OFF	20	WHITE
ERA 80 TRACK TRANSPARENT 2050lm 24W 940 WH IP20 DALI	MI108659210	185	120	24	2050	85	TRANSPARENT	23°	90	4000	DALI	20	WHITE
ERA 80 TRACK TRANSPARENT 2200lm 26W 940 WH IP20 ON/OFF	MI100806905	185	120	26	2200	85	TRANSPARENT	23°	90	4000	ON/OFF	20	WHITE
