ESCA EC SURFACE OPAL 1750lm 16W 840 300 GR IP20 DALI
Item No. MI129488318
ESCA EC SURFACE
ESCA EC SURFACE OPAL 1750lm 16W 840 300 GR IP20 DALI
MI129488318

General data

Product Shape	Round
Type	Decorative
Mounting	S

Electrical data

Main Feed AC [V]	220-240
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	16
IEC Protection Class	I

Optics

Diffuser	OPAL
Type of Control	DALI
LED LIFETIME Ta25 [h]	L80B10 60.000h

Technical data

Total Consumption [W]	16
Lumen Output [LM]	1750
Efficacy [lm/W]	109
Diffuser	OPAL
Beam Angle [°]	100°
Light distribution	DIR
CCT [K]	4000
CRI	80
MacAdam step	3
LED LIFETIME Ta25 [h]	L80B10 60.000h
Type of Control	DALI
Housing color	GREY
IP	20
Mechanical Protection [IK]	06
Main Feed AC [V]	220-240
Diameter ø [mm]	300

Description:

A surface luminaire that can make a striking impression with its bold flat cylinder shape made of aluminium in white or black color with a highly permeable, evenly illuminated opal diffuser allow for the luminaire to suit many different applications.

Downloads:

Datasheet:

Mounting instructions:

Certificates:

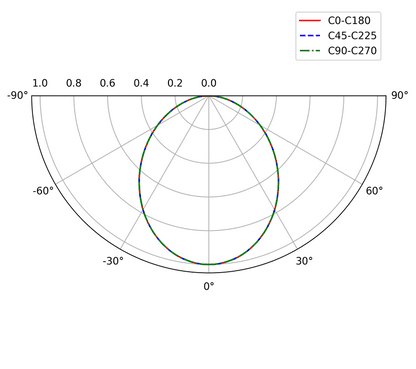

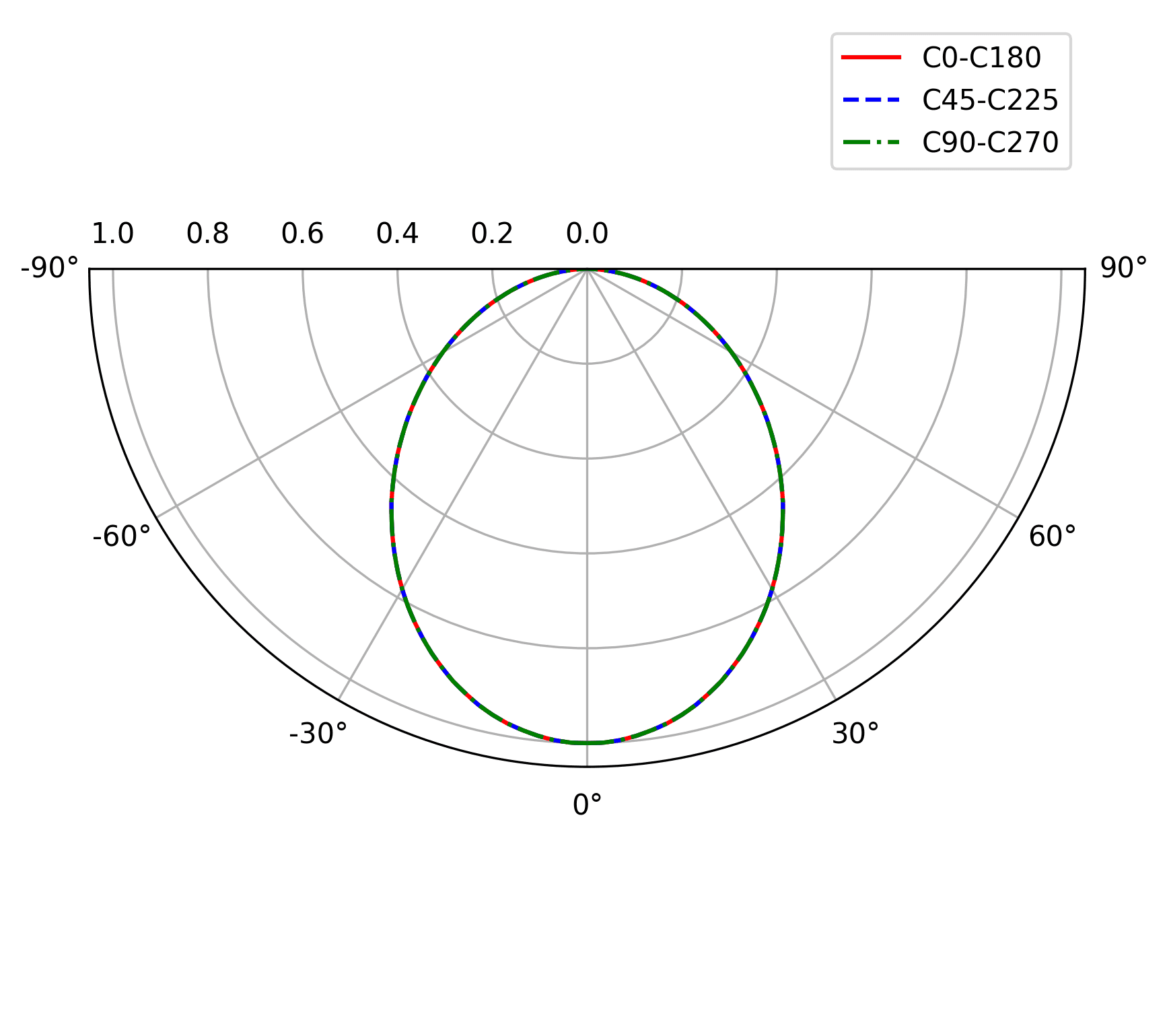

Photometric data:

General data

Product Shape	Round
Type	Decorative
Mounting	S

Electrical data

Main Feed AC [V]	220-240
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	16
IEC Protection Class	I

Optics

Diffuser	OPAL
Type of Control	DALI
LED LIFETIME Ta25 [h]	L80B10 60.000h

Technical data

Total Consumption [W]	16
Lumen Output [LM]	1750
Efficacy [lm/W]	109
Diffuser	OPAL
Beam Angle [°]	100°
Light distribution	DIR
CCT [K]	4000
CRI	80
MacAdam step	3
LED LIFETIME Ta25 [h]	L80B10 60.000h
Type of Control	DALI
Housing color	GREY
IP	20
Mechanical Protection [IK]	06
Main Feed AC [V]	220-240
Diameter ø [mm]	300

Housing

Housing color	GREY

Light technical data

Light Source	LED
Total Consumption [W]	16
Lumen Output [LM]	1750
Efficacy [lm/W]	109
CCT [K]	4000
CRI	80
UGR	<19
MacAdam step	3
Beam Angle [°]	100°
Light distribution	DIR
