ESCA EC SURFACE OPAL 1600lm 16W 830 300 GR IP20 DALI
Item No. MI129516381
ESCA EC SURFACE

ESCA EC SURFACE OPAL 1600lm 16W 830 300 GR IP20 DALI

MI129516381

General data
Product ShapeRound
TypeDecorative
MountingS
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]16
IEC Protection ClassI
Optics
DiffuserOPAL
Type of ControlDALI
LED LIFETIME Ta25 [h]L80B10 60.000h
Technical data
Total Consumption [W]16
Lumen Output [LM]1600
Efficacy [lm/W]100
DiffuserOPAL
Beam Angle [°]100°
Light distributionDIR
CCT [K]3000
CRI80
MacAdam step3
LED LIFETIME Ta25 [h]L80B10 60.000h
Type of ControlDALI
Housing colorGREY
IP20
Mechanical Protection [IK]06
Main Feed AC [V]220-240
Diameter ø [mm]300
Description:

A surface luminaire that can make a striking impression with its bold flat cylinder shape made of aluminium in white or black color with a highly permeable, evenly illuminated opal diffuser allow for the luminaire to suit many different applications.

Downloads:
Datasheet:
1
Mounting instructions:
1
Certificates:
1

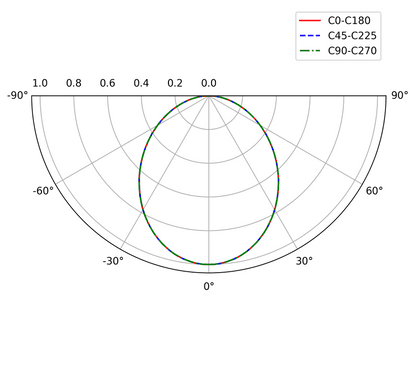

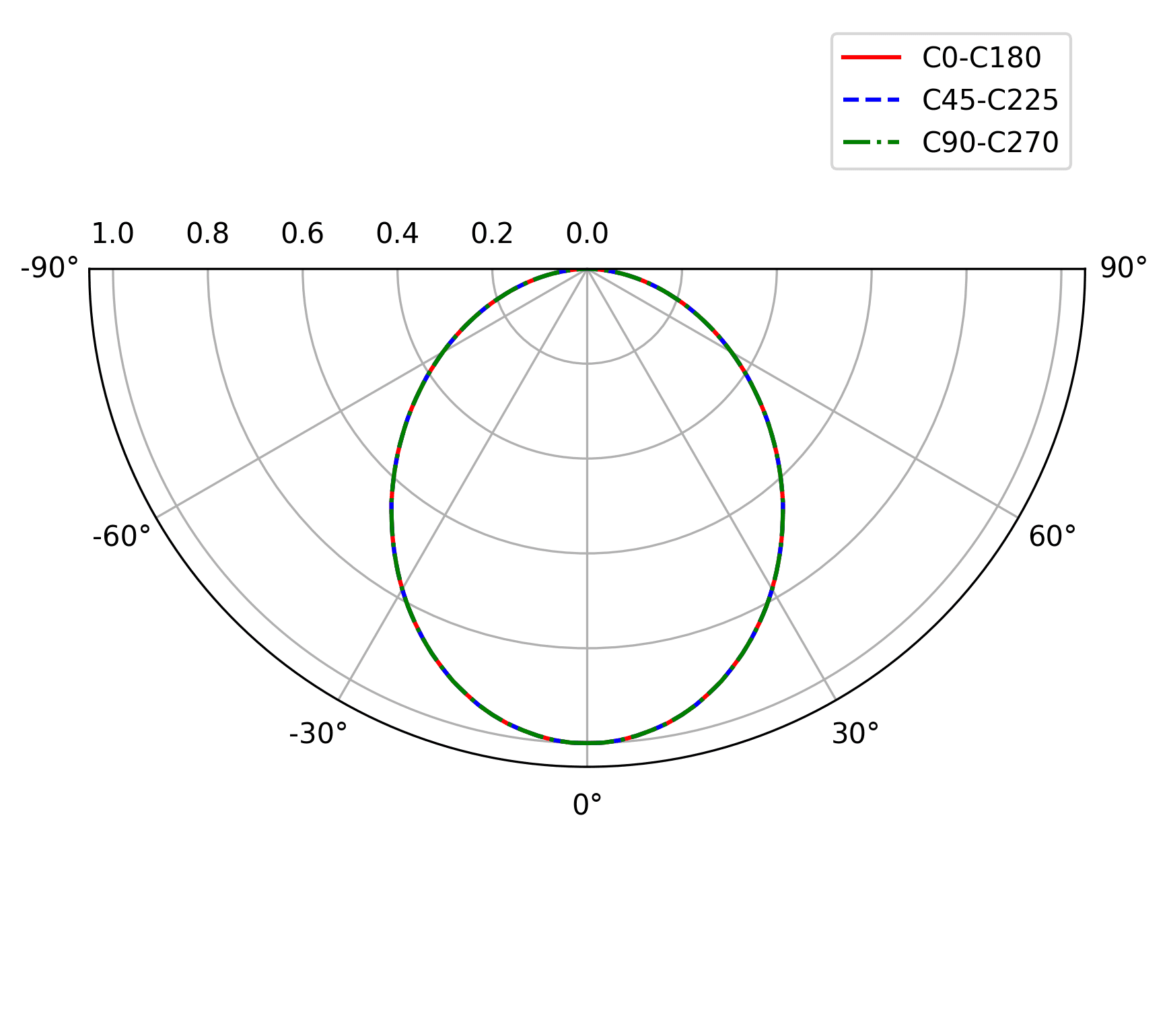

Photometric data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/DALI.svg
/soft4net/img/project/icons/AD - IP/20.svg
/soft4net/img/project/icons/J - MOUNTING/S.svg
/soft4net/img/project/icons/W - HOUSING COLOR/GREY.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_80.svg
ESCA EC SURFACE
General data
Product ShapeRound
TypeDecorative
MountingS
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]16
IEC Protection ClassI
Optics
DiffuserOPAL
Type of ControlDALI
LED LIFETIME Ta25 [h]L80B10 60.000h
Technical data
Total Consumption [W]16
Lumen Output [LM]1600
Efficacy [lm/W]100
DiffuserOPAL
Beam Angle [°]100°
Light distributionDIR
CCT [K]3000
CRI80
MacAdam step3
LED LIFETIME Ta25 [h]L80B10 60.000h
Type of ControlDALI
Housing colorGREY
IP20
Mechanical Protection [IK]06
Main Feed AC [V]220-240
Diameter ø [mm]300
Housing
Housing colorGREY
Light technical data
Light SourceLED
Total Consumption [W]16
Lumen Output [LM]1600
Efficacy [lm/W]100
CCT [K]3000
CRI80
UGR<19
MacAdam step3
Beam Angle [°]100°
Light distributionDIR
Technical data
IP20
Mechanical Protection [IK]06
Dimensions
Diameter ø [mm]300
