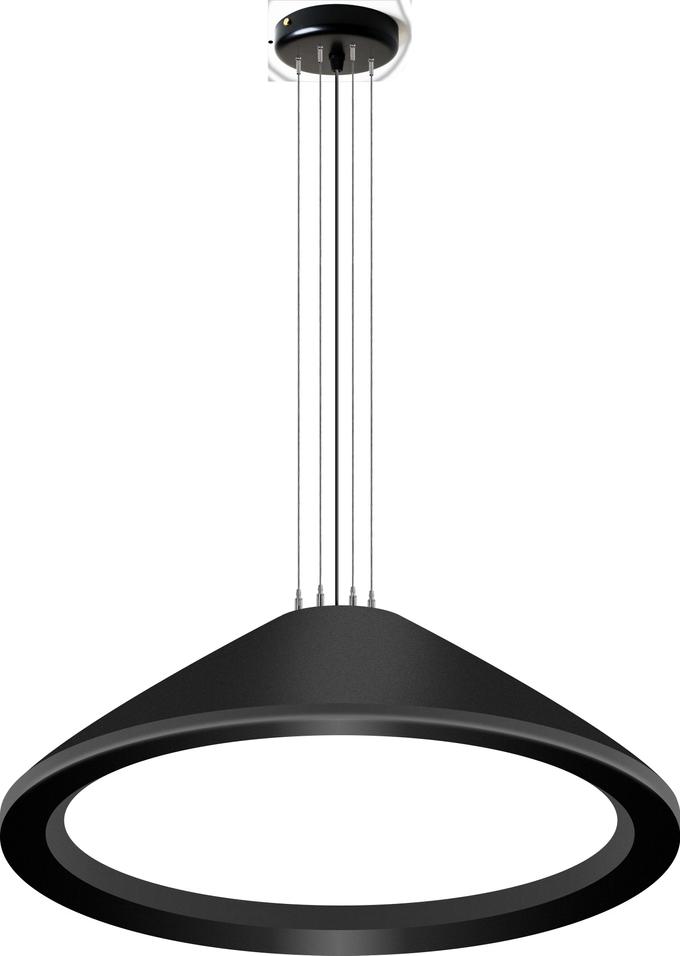

GEMA
GEMA

General data
Product ShapeRound
TypeDecorative
MountingPendant
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]30 - 100
IEC Protection ClassI
Optics
Diffuser MaterialPMMA
Diffuser Material DesignOPAL, MPR
TYPE OF CONTROLON/OFF
CONTROL SYSTEMON/OFF, DALI, 3H EMERGENCY, 1-10V, TOUCH-DIM, CASAMBI
LED LIFETIME Ta25 [h]100.000h
Technical data
Total Consumption [W]30 - 100
Lumen Output [LM]3750 - 12500
Efficacy lm/W125
Diffuser MaterialPMMA
Body MaterialAnodized aluminium
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]100.000h
TYPE OF CONTROLON/OFF
Body ColorWHITE, GRAY, BLACK
Ingress Protection [IP]44
Main Feed AC [V]220-240
Diameter ø [mm]482
Description:

Elegant design and exceptional versatility make these lighting fixtures ideal for a broad spectrum of applications, such as modern office spaces, retail environments, school gymnasiums, expansive conference halls, or any large open areas. Moreover, with diverse installation options to choose from, they can effortlessly blend into any architectural style or building design.

Downloads:
Datasheet:
1
Mounting instructions:
1
Certificates:
1
Photometric data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/CASAMBI.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/DALI.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/ON_OFF.svg
/soft4net/img/project/icons/AD - IP/44.svg
/soft4net/img/project/icons/W - HOUSING COLOR/BLACK.svg
/soft4net/img/project/icons/W - HOUSING COLOR/GREY.svg
/soft4net/img/project/icons/W - HOUSING COLOR/WHITE.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_90.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_90.svg
General data
Product ShapeRound
TypeDecorative
MountingPendant
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]30 - 100
IEC Protection ClassI
Optics
Diffuser MaterialPMMA
Diffuser Material DesignOPAL, MPR
TYPE OF CONTROLON/OFF
CONTROL SYSTEMON/OFF, DALI, 3H EMERGENCY, 1-10V, TOUCH-DIM, CASAMBI
LED LIFETIME Ta25 [h]100.000h
Technical data
Total Consumption [W]30 - 100
Lumen Output [LM]3750 - 12500
Efficacy lm/W125
Diffuser MaterialPMMA
Body MaterialAnodized aluminium
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]100.000h
TYPE OF CONTROLON/OFF
Body ColorWHITE, GRAY, BLACK
Ingress Protection [IP]44
Main Feed AC [V]220-240
Diameter ø [mm]482
Housing
Body MaterialAnodized aluminium
Body ColorWHITE, GRAY, BLACK
Light technical data
Light SourceLED
Total Consumption [W]30 - 100
Lumen Output [LM]3750 - 12500
Efficacy lm/W125
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
UGR<19
MacAdam step3
Light Distribution DIR/INDDIR
Technical data
TA [°C]-20 to +35
Ingress Protection [IP]44
Dimensions
Diameter ø [mm]482
Generating PDF...

Variations

Item
Code
Lenght
Width
Height
Diameter
W
Lumen
Output lm
Efficacy
lm/W
Diffuser
Beam
Angle
CRI
Color K
Type of
Control
IP
Color
GEMAMI25250308150482303750125OPAL803000ON/OFF44BLACK
GEMAMI29239865150482303750125OPAL803000ON/OFF44GREY
GEMAMI25918831150482303750125OPAL803000ON/OFF44WHITE
GEMAMI25873281150482303750125OPAL804000ON/OFF44BLACK
GEMAMI23510761150482303750125OPAL804000ON/OFF44GREY
GEMAMI2592322150482303750125OPAL804000ON/OFF44WHITE
GEMAMI26651141150482506250125OPAL803000ON/OFF44BLACK
GEMAMI29869742150482506250125OPAL803000ON/OFF44GREY
GEMAMI29660329150482506250125OPAL803000ON/OFF44WHITE
GEMAMI23343057150482506250125OPAL804000ON/OFF44BLACK
GEMAMI28134655150482506250125OPAL804000ON/OFF44GREY
GEMAMI23208211150482506250125OPAL804000ON/OFF44WHITE
GEMAMI22523294150482708750125OPAL803000ON/OFF44BLACK
GEMAMI24875301150482708750125OPAL803000ON/OFF44GREY
GEMAMI22853068150482708750125OPAL803000ON/OFF44WHITE
GEMAMI23940913150482708750125OPAL804000ON/OFF44BLACK
GEMAMI253332150482708750125OPAL804000ON/OFF44GREY
GEMAMI27716979150482708750125OPAL804000ON/OFF44WHITE
GEMAMI243733561504829011250125OPAL803000ON/OFF44BLACK
GEMAMI282894771504829011250125OPAL803000ON/OFF44GREY
GEMAMI212082751504829011250125OPAL803000ON/OFF44WHITE
GEMAMI245617011504829011250125OPAL804000ON/OFF44BLACK
GEMAMI268105791504829011250125OPAL804000ON/OFF44GREY
GEMAMI246867401504829011250125OPAL804000ON/OFF44WHITE
GEMAMI2645479415048210012500125OPAL803000ON/OFF44BLACK
