HAL R 175
HAL R 175

General data
Application

HAL R is perfect for various applications, including: residential spaces, offices and commercial areas, retails and showrooms, restaurants, hotels, public spaces and as accent lighting.

Product ShapeRound
MountingRecessed
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]15
IEC Protection ClassI
Optics
Diffuser MaterialPMMA
Diffuser Material DesignPMMA
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 50.000h
Technical data
Total Consumption [W]15
Lumen Output [LM]1595
Efficacy lm/W106
Diffuser MaterialPMMA
Body MaterialAluminium
Beam Angle [°]100°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 50.000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWHITE, BLACK, GRAY
Ingress Protection [IP]44
Mechanical Protection [IK]1
Main Feed AC [V]220-240
Diameter ø [mm]175
Description:

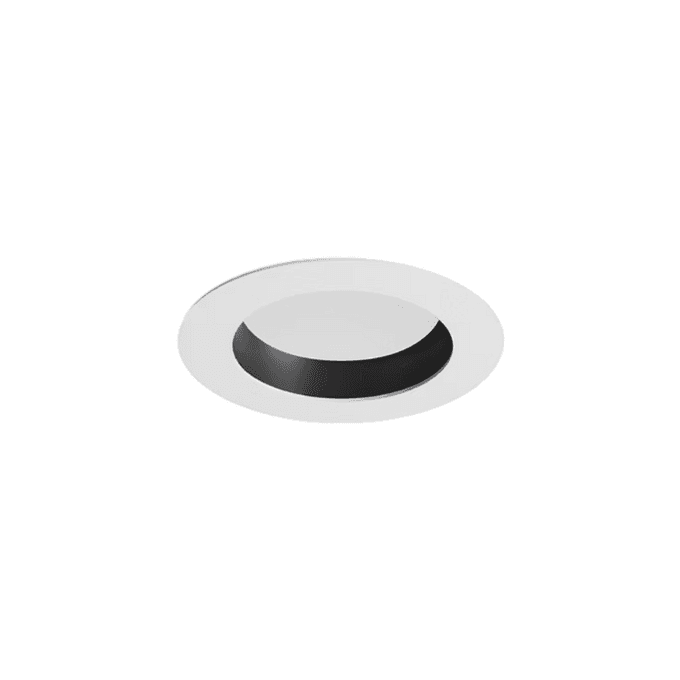

HAL R is a modern recessed luminaire. With its sleek circular design, the HAL R offers a perfect balance of elegance and functionality, making it a versatile choice for contemporary interiors. Available in six dimensions – ø97mm, ø117mm, ø147mm, ø175mm, ø192mm, ø227mm.

Downloads:
Datasheet:
1
Technical illustrations:
1
Mounting instructions:
1
Certificates:
1
Photometric data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/DALI.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/ON_OFF.svg
/soft4net/img/project/icons/AD - IP/44.svg
/soft4net/img/project/icons/W - HOUSING COLOR/BLACK.svg
/soft4net/img/project/icons/W - HOUSING COLOR/GREY.svg
/soft4net/img/project/icons/W - HOUSING COLOR/WHITE.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_90.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_90.svg
General data
Application

HAL R is perfect for various applications, including: residential spaces, offices and commercial areas, retails and showrooms, restaurants, hotels, public spaces and as accent lighting.

Product ShapeRound
MountingRecessed
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]15
IEC Protection ClassI
Optics
Diffuser MaterialPMMA
Diffuser Material DesignPMMA
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 50.000h
Technical data
Total Consumption [W]15
Lumen Output [LM]1595
Efficacy lm/W106
Diffuser MaterialPMMA
Body MaterialAluminium
Beam Angle [°]100°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 50.000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWHITE, BLACK, GRAY
Ingress Protection [IP]44
Mechanical Protection [IK]1
Main Feed AC [V]220-240
Diameter ø [mm]175
Housing
Body MaterialAluminium
Body ColorWHITE, BLACK, GRAY
Light technical data
Light SourceLED
Total Consumption [W]15
Lumen Output [LM]1595
Efficacy lm/W106
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
Beam Angle [°]100°
Light Distribution DIR/INDDIR
Technical data
TA [°C]-20C° / +40C°
Ingress Protection [IP]44
Mechanical Protection [IK]1
Dimensions
Diameter ø [mm]175
Generating PDF...

Variations

Item
Code
Lenght
Width
Height
Diameter
W
Lumen
Output lm
Efficacy
lm/W
Diffuser
Beam
Angle
CRI
Color K
Type of
Control
IP
Color
HAL R PMMA 1595lm 15W 830 175 WH IP44 ON/OFFMI734792085175151595106PMMA100°803000ON/OFF44WHITE
HAL R PMMA 1595lm 15W 830 175 BL IP44 ON/OFFMI134569085175151595106PMMA100°803000ON/OFF44BLACK
HAL R PMMA 1595lm 15W 830 175 GR IP44 ON/OFFMI513810785175151595106PMMA100°803000ON/OFF44GREY
HAL R PMMA 1595lm 15W 830 175 WH IP44 DALIMI349955585175151595106PMMA100°803000DALI44WHITE
HAL R PMMA 1595lm 15W 830 175 BL IP44 DALIMI613274185175151595106PMMA100°803000DALI44BLACK
HAL R PMMA 1595lm 15W 830 175 GR IP44 DALIMI701783285175151595106PMMA100°803000DALI44GREY
HAL R PMMA 1595lm 15W 840 175 WH IP44 ON/OFFMI360187585175151595106PMMA100°804000ON/OFF44WHITE
HAL R PMMA 1595lm 15W 840 175 BL IP44 ON/OFFMI412538285175151595106PMMA100°804000ON/OFF44BLACK
HAL R PMMA 1595lm 15W 840 175 GR IP44 ON/OFFMI95766685175151595106PMMA100°804000ON/OFF44GREY
HAL R PMMA 1595lm 15W 840 175 WH IP44 DALIMI615119885175151595106PMMA100°804000DALI44WHITE
HAL R PMMA 1595lm 15W 840 175 BL IP44 DALIMI195560585175151595106PMMA100°804000DALI44BLACK
HAL R PMMA 1595lm 15W 840 175 GR IP44 DALIMI907282285175151595106PMMA100°804000DALI44GREY
HAL R PMMA 1595lm 15W 930 175 WH IP44 ON/OFFMI927325085175151595106PMMA100°903000ON/OFF44WHITE
HAL R PMMA 1595lm 15W 930 175 BL IP44 ON/OFFMI700463485175151595106PMMA100°903000ON/OFF44BLACK
HAL R PMMA 1595lm 15W 930 175 GR IP44 ON/OFFMI233048085175151595106PMMA100°903000ON/OFF44GREY
HAL R PMMA 1595lm 15W 930 175 WH IP44 DALIMI417708285175151595106PMMA100°903000DALI44WHITE
HAL R PMMA 1595lm 15W 930 175 BL IP44 DALIMI953819085175151595106PMMA100°903000DALI44BLACK
HAL R PMMA 1595lm 15W 930 175 GR IP44 DALIMI805136485175151595106PMMA100°903000DALI44GREY
HAL R PMMA 1595lm 15W 940 175 WH IP44 ON/OFFMI396714285175151595106PMMA100°904000ON/OFF44WHITE
HAL R PMMA 1595lm 15W 940 175 BL IP44 ON/OFFMI621159785175151595106PMMA100°904000ON/OFF44BLACK
HAL R PMMA 1595lm 15W 940 175 GR IP44 ON/OFFMI884731885175151595106PMMA100°904000ON/OFF44GREY
HAL R PMMA 1595lm 15W 940 175 WH IP44 DALIMI78650785175151595106PMMA100°904000DALI44WHITE
HAL R PMMA 1595lm 15W 940 175 BL IP44 DALIMI77527885175151595106PMMA100°904000DALI44BLACK
HAL R PMMA 1595lm 15W 940 175 GR IP44 DALIMI222320385175151595106PMMA100°904000DALI44GREY
