HAL S 100
HAL S 100

General data
Application

Ideal for residential, commercial, and hospitality spaces, including hallways, kitchens, offices, and bathrooms.

Product ShapeRound
MountingSurface
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]8
IEC Protection ClassI
Optics
Diffuser MaterialPMMA
Diffuser Material DesignPMMA
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 50.000h
Technical data
Total Consumption [W]8
Lumen Output [LM]850
Efficacy lm/W106
Diffuser MaterialPMMA
Body MaterialAluminium
Beam Angle [°]100°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 50.000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWHITE, BLACK, GRAY
Ingress Protection [IP]44
Mechanical Protection [IK]1
Main Feed AC [V]220-240
Diameter ø [mm]100
Description:

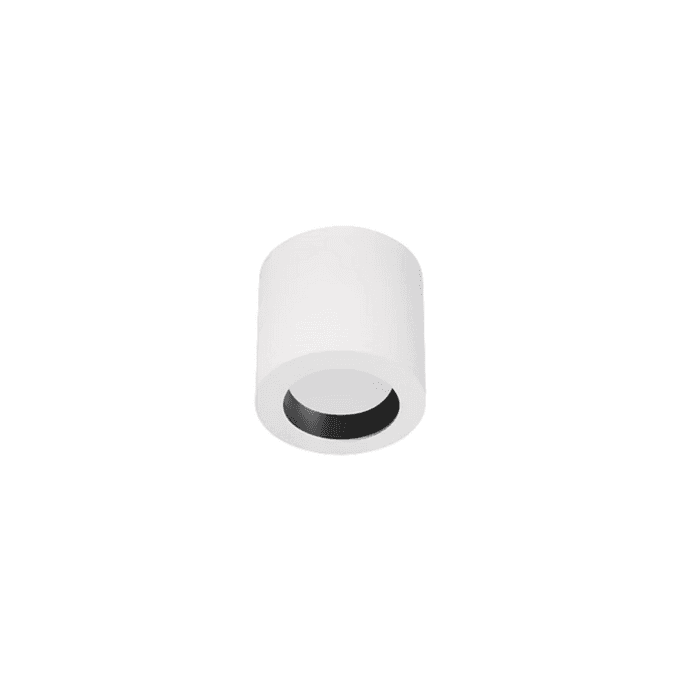

Hal S is a surface-mounted fixed downlight designed for modern interiors. It comes equipped with an integrated LED module, diffuser, and driver, ensuring energy-efficient and high-quality lighting. With its sleek cylindrical design and durable construction, it is ideal for various settings, including residential and commercial spaces. The fixture offers an IP44 rating, making it suitable for areas with moderate moisture levels. Available in six dimensions – ø100mm, ø120mm, ø150mm, ø180mm, ø200mm, ø240mm.

Downloads:
Datasheet:
1
Technical illustrations:
1
Mounting instructions:
1
Certificates:
1
Photometric data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/DALI.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/ON_OFF.svg
/soft4net/img/project/icons/AD - IP/44.svg
/soft4net/img/project/icons/W - HOUSING COLOR/BLACK.svg
/soft4net/img/project/icons/W - HOUSING COLOR/GREY.svg
/soft4net/img/project/icons/W - HOUSING COLOR/WHITE.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_90.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_90.svg
General data
Application

Ideal for residential, commercial, and hospitality spaces, including hallways, kitchens, offices, and bathrooms.

Product ShapeRound
MountingSurface
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]8
IEC Protection ClassI
Optics
Diffuser MaterialPMMA
Diffuser Material DesignPMMA
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 50.000h
Technical data
Total Consumption [W]8
Lumen Output [LM]850
Efficacy lm/W106
Diffuser MaterialPMMA
Body MaterialAluminium
Beam Angle [°]100°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 50.000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWHITE, BLACK, GRAY
Ingress Protection [IP]44
Mechanical Protection [IK]1
Main Feed AC [V]220-240
Diameter ø [mm]100
Housing
Body MaterialAluminium
Body ColorWHITE, BLACK, GRAY
Light technical data
Light SourceLED
Total Consumption [W]8
Lumen Output [LM]850
Efficacy lm/W106
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
Beam Angle [°]100°
Light Distribution DIR/INDDIR
Technical data
TA [°C]-20C° / +40C°
Ingress Protection [IP]44
Mechanical Protection [IK]1
Dimensions
Diameter ø [mm]100
Generating PDF...

Variations

Item
Code
Lenght
Width
Height
Diameter
W
Lumen
Output lm
Efficacy
lm/W
Diffuser
Beam
Angle
CRI
Color K
Type of
Control
IP
Color
HAL S PMMA 850lm 8W 830 100 WH IP44 ON/OFFMI14211131201008850106PMMA100°803000ON/OFF44WHITE
HAL S PMMA 850lm 8W 830 100 BL IP44 ON/OFFMI52244271201008850106PMMA100°803000ON/OFF44BLACK
HAL S PMMA 850lm 8W 830 100 GR IP44 ON/OFFMI33604051201008850106PMMA100°803000ON/OFF44GREY
HAL S PMMA 850lm 8W 830 100 WH IP44 DALIMI83489591201008850106PMMA100°803000DALI44WHITE
HAL S PMMA 850lm 8W 830 100 BL IP44 DALIMI75100931201008850106PMMA100°803000DALI44BLACK
HAL S PMMA 850lm 8W 830 100 GR IP44 DALIMI63072251201008850106PMMA100°803000DALI44GREY
HAL S PMMA 850lm 8W 840 100 WH IP44 ON/OFFMI34860561201008850106PMMA100°804000ON/OFF44WHITE
HAL S PMMA 850lm 8W 840 100 BL IP44 ON/OFFMI48219431201008850106PMMA100°804000ON/OFF44BLACK
HAL S PMMA 850lm 8W 840 100 GR IP44 ON/OFFMI71076901201008850106PMMA100°804000ON/OFF44GREY
HAL S PMMA 850lm 8W 840 100 WH IP44 DALIMI42743851201008850106PMMA100°804000DALI44WHITE
HAL S PMMA 850lm 8W 840 100 BL IP44 DALIMI66639181201008850106PMMA100°804000DALI44BLACK
HAL S PMMA 850lm 8W 840 100 GR IP44 DALIMI64523161201008850106PMMA100°804000DALI44GREY
HAL S PMMA 850lm 8W 930 100 WH IP44 ON/OFFMI96781371201008850106PMMA100°903000ON/OFF44WHITE
HAL S PMMA 850lm 8W 930 100 BL IP44 ON/OFFMI8856551201008850106PMMA100°903000ON/OFF44BLACK
HAL S PMMA 850lm 8W 930 100 GR IP44 ON/OFFMI36804861201008850106PMMA100°903000ON/OFF44GREY
HAL S PMMA 850lm 8W 930 100 WH IP44 DALIMI9820721201008850106PMMA100°903000DALI44WHITE
HAL S PMMA 850lm 8W 930 100 BL IP44 DALIMI59469661201008850106PMMA100°903000DALI44BLACK
HAL S PMMA 850lm 8W 930 100 GR IP44 DALIMI62665841201008850106PMMA100°903000DALI44GREY
HAL S PMMA 850lm 8W 940 100 WH IP44 ON/OFFMI79084161201008850106PMMA100°904000ON/OFF44WHITE
HAL S PMMA 850lm 8W 940 100 BL IP44 ON/OFFMI67301001201008850106PMMA100°904000ON/OFF44BLACK
HAL S PMMA 850lm 8W 940 100 GR IP44 ON/OFFMI77955081201008850106PMMA100°904000ON/OFF44GREY
HAL S PMMA 850lm 8W 940 100 WH IP44 DALIMI45623031201008850106PMMA100°904000DALI44WHITE
HAL S PMMA 850lm 8W 940 100 BL IP44 DALIMI11885261201008850106PMMA100°904000DALI44BLACK
HAL S PMMA 850lm 8W 940 100 GR IP44 DALIMI16639691201008850106PMMA100°904000DALI44GREY
