HAL S 150
HAL S 150

General data
Application

Ideal for residential, commercial, and hospitality spaces, including hallways, kitchens, offices, and bathrooms.

Product ShapeRound
MountingSurface
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]12
IEC Protection ClassI
Optics
Diffuser MaterialPMMA
Diffuser Material DesignPMMA
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 50.000h
Technical data
Total Consumption [W]12
Lumen Output [LM]1276
Efficacy lm/W106
Diffuser MaterialPMMA
Body MaterialAluminium
Beam Angle [°]100°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 50.000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWHITE, BLACK, GRAY
Ingress Protection [IP]44
Mechanical Protection [IK]1
Main Feed AC [V]220-240
Diameter ø [mm]150
Description:

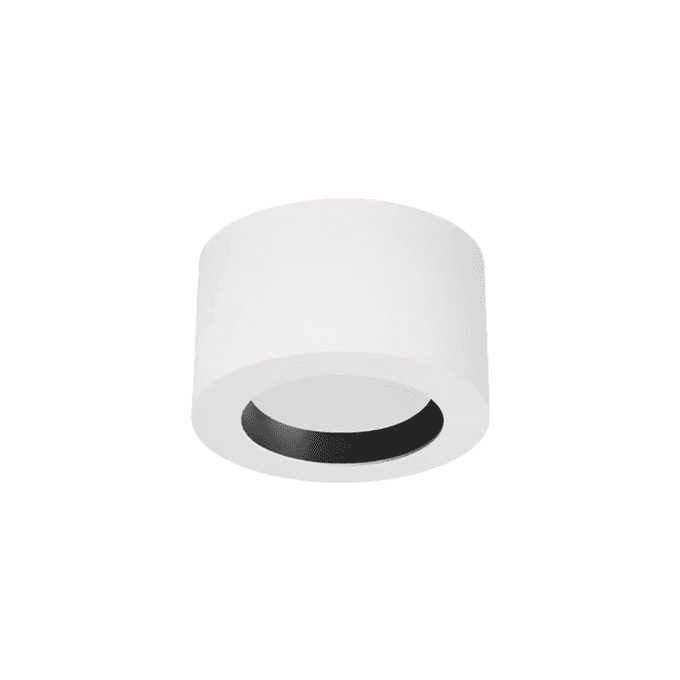

Hal S is a surface-mounted fixed downlight designed for modern interiors. It comes equipped with an integrated LED module, diffuser, and driver, ensuring energy-efficient and high-quality lighting. With its sleek cylindrical design and durable construction, it is ideal for various settings, including residential and commercial spaces. The fixture offers an IP44 rating, making it suitable for areas with moderate moisture levels. Available in six dimensions – ø100mm, ø120mm, ø150mm, ø180mm, ø200mm, ø240mm.

Downloads:
Datasheet:
1
Technical illustrations:
1
Mounting instructions:
1
Certificates:
1
Photometric data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/DALI.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/ON_OFF.svg
/soft4net/img/project/icons/AD - IP/44.svg
/soft4net/img/project/icons/W - HOUSING COLOR/BLACK.svg
/soft4net/img/project/icons/W - HOUSING COLOR/GREY.svg
/soft4net/img/project/icons/W - HOUSING COLOR/WHITE.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_90.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_90.svg
General data
Application

Ideal for residential, commercial, and hospitality spaces, including hallways, kitchens, offices, and bathrooms.

Product ShapeRound
MountingSurface
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]12
IEC Protection ClassI
Optics
Diffuser MaterialPMMA
Diffuser Material DesignPMMA
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 50.000h
Technical data
Total Consumption [W]12
Lumen Output [LM]1276
Efficacy lm/W106
Diffuser MaterialPMMA
Body MaterialAluminium
Beam Angle [°]100°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 50.000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWHITE, BLACK, GRAY
Ingress Protection [IP]44
Mechanical Protection [IK]1
Main Feed AC [V]220-240
Diameter ø [mm]150
Housing
Body MaterialAluminium
Body ColorWHITE, BLACK, GRAY
Light technical data
Light SourceLED
Total Consumption [W]12
Lumen Output [LM]1276
Efficacy lm/W106
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
Beam Angle [°]100°
Light Distribution DIR/INDDIR
Technical data
TA [°C]-20C° / +40C°
Ingress Protection [IP]44
Mechanical Protection [IK]1
Dimensions
Diameter ø [mm]150
Generating PDF...

Variations

Item
Code
Lenght
Width
Height
Diameter
W
Lumen
Output lm
Efficacy
lm/W
Diffuser
Beam
Angle
CRI
Color K
Type of
Control
IP
Color
HAL S PMMA 1276lm 12W 830 150 WH IP44 ON/OFFMI8397568120150121276106PMMA100°803000ON/OFF44WHITE
HAL S PMMA 1276lm 12W 830 150 BL IP44 ON/OFFMI5019412120150121276106PMMA100°803000ON/OFF44BLACK
HAL S PMMA 1276lm 12W 830 150 GR IP44 ON/OFFMI8423288120150121276106PMMA100°803000ON/OFF44GREY
HAL S PMMA 1276lm 12W 830 150 WH IP44 DALIMI1502423120150121276106PMMA100°803000DALI44WHITE
HAL S PMMA 1276lm 12W 830 150 BL IP44 DALIMI3500677120150121276106PMMA100°803000DALI44BLACK
HAL S PMMA 1276lm 12W 830 150 GR IP44 DALIMI5045010120150121276106PMMA100°803000DALI44GREY
HAL S PMMA 1276lm 12W 840 150 WH IP44 ON/OFFMI4133144120150121276106PMMA100°804000ON/OFF44WHITE
HAL S PMMA 1276lm 12W 840 150 BL IP44 ON/OFFMI6078304120150121276106PMMA100°804000ON/OFF44BLACK
HAL S PMMA 1276lm 12W 840 150 GR IP44 ON/OFFMI3732406120150121276106PMMA100°804000ON/OFF44GREY
HAL S PMMA 1276lm 12W 840 150 WH IP44 DALIMI4193807120150121276106PMMA100°804000DALI44WHITE
HAL S PMMA 1276lm 12W 840 150 BL IP44 DALIMI7236147120150121276106PMMA100°804000DALI44BLACK
HAL S PMMA 1276lm 12W 840 150 GR IP44 DALIMI9251094120150121276106PMMA100°804000DALI44GREY
HAL S PMMA 1276lm 12W 930 150 WH IP44 ON/OFFMI6414303120150121276106PMMA100°903000ON/OFF44WHITE
HAL S PMMA 1276lm 12W 930 150 BL IP44 ON/OFFMI9004059120150121276106PMMA100°903000ON/OFF44BLACK
HAL S PMMA 1276lm 12W 930 150 GR IP44 ON/OFFMI9558203120150121276106PMMA100°903000ON/OFF44GREY
HAL S PMMA 1276lm 12W 930 150 WH IP44 DALIMI949571120150121276106PMMA100°903000DALI44WHITE
HAL S PMMA 1276lm 12W 930 150 BL IP44 DALIMI3455073120150121276106PMMA100°903000DALI44BLACK
HAL S PMMA 1276lm 12W 930 150 GR IP44 DALIMI7946869120150121276106PMMA100°903000DALI44GREY
HAL S PMMA 1276lm 12W 940 150 WH IP44 ON/OFFMI3889896120150121276106PMMA100°904000ON/OFF44WHITE
HAL S PMMA 1276lm 12W 940 150 BL IP44 ON/OFFMI713895120150121276106PMMA100°904000ON/OFF44BLACK
HAL S PMMA 1276lm 12W 940 150 GR IP44 ON/OFFMI5200221120150121276106PMMA100°904000ON/OFF44GREY
HAL S PMMA 1276lm 12W 940 150 WH IP44 DALIMI4757219120150121276106PMMA100°904000DALI44WHITE
HAL S PMMA 1276lm 12W 940 150 BL IP44 DALIMI4255432120150121276106PMMA100°904000DALI44BLACK
HAL S PMMA 1276lm 12W 940 150 GR IP44 DALIMI4831639120150121276106PMMA100°904000DALI44GREY
