HERO R 150
HERO R 150

General data
Application

Ideal for residential spaces, offices and commercial areas, retails and showrooms, restaurants, hotels, public spaces and as accent lighting.

Product ShapeRound
MountingRecessed
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]15
IEC Protection ClassI
Optics
Diffuser MaterialPMMA
Diffuser Material DesignPMMA
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 50.000h
Technical data
Total Consumption [W]15
Lumen Output [LM]1594
Efficacy lm/W107
Diffuser MaterialPMMA
Body MaterialAluminium
Beam Angle [°]100°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 50.000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWHITE, BLACK, GRAY
Ingress Protection [IP]44
Mechanical Protection [IK]1
Main Feed AC [V]220-240
Diameter ø [mm]150
Description:

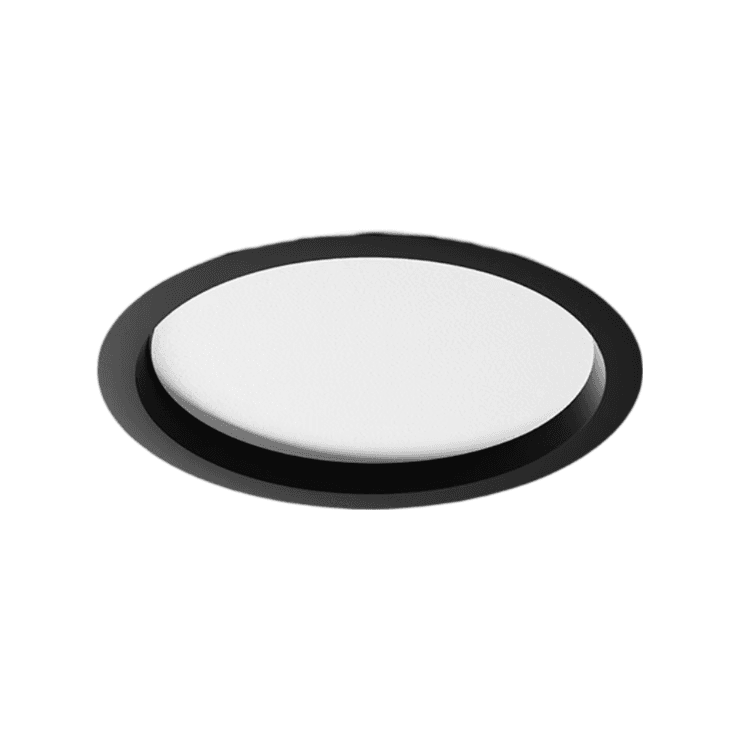

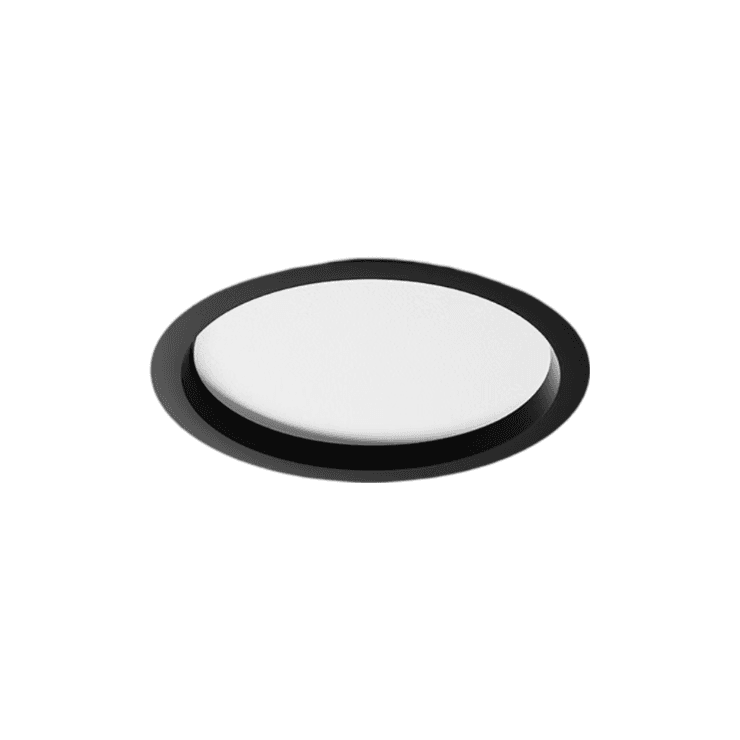

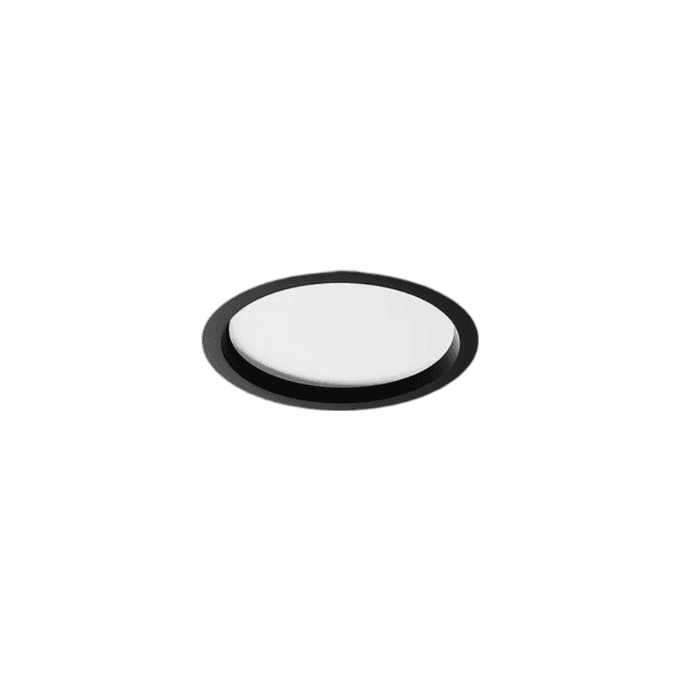

HERO R series is a ultra-modern recessed ceiling light. Featuring a sleek, low-profile frame and a high-quality diffuser, this fixture seamlessly blends style and functionality. Perfect for residential and commercial interiors, it offers uniform, glare-free illumination, enhancing the ambiance of any room. Available in six dimensions – ø108mm, ø128mm, ø150mm, ø180mm, ø200mm, ø240mm.

Downloads:
Datasheet:
1
Technical illustrations:
1
Mounting instructions:
1
Certificates:
1
Photometric data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/DALI.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/ON_OFF.svg
/soft4net/img/project/icons/AD - IP/44.svg
/soft4net/img/project/icons/W - HOUSING COLOR/BLACK.svg
/soft4net/img/project/icons/W - HOUSING COLOR/GREY.svg
/soft4net/img/project/icons/W - HOUSING COLOR/WHITE.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_90.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_90.svg
General data
Application

Ideal for residential spaces, offices and commercial areas, retails and showrooms, restaurants, hotels, public spaces and as accent lighting.

Product ShapeRound
MountingRecessed
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]15
IEC Protection ClassI
Optics
Diffuser MaterialPMMA
Diffuser Material DesignPMMA
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 50.000h
Technical data
Total Consumption [W]15
Lumen Output [LM]1594
Efficacy lm/W107
Diffuser MaterialPMMA
Body MaterialAluminium
Beam Angle [°]100°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 50.000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWHITE, BLACK, GRAY
Ingress Protection [IP]44
Mechanical Protection [IK]1
Main Feed AC [V]220-240
Diameter ø [mm]150
Housing
Body MaterialAluminium
Body ColorWHITE, BLACK, GRAY
Light technical data
Light SourceLED
Total Consumption [W]15
Lumen Output [LM]1594
Efficacy lm/W107
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
Beam Angle [°]100°
Light Distribution DIR/INDDIR
Technical data
TA [°C]-20C° / +40C°
Ingress Protection [IP]44
Mechanical Protection [IK]1
Dimensions
Diameter ø [mm]150
Generating PDF...

Variations

Item
Code
Lenght
Width
Height
Diameter
W
Lumen
Output lm
Efficacy
lm/W
Diffuser
Beam
Angle
CRI
Color K
Type of
Control
IP
Color
HERO R PMMA 1594lm 15W 830 150 WH IP44 ON/OFFMI159688755150151594106PMMA100°803000ON/OFF44WHITE
HERO R PMMA 1594lm 15W 830 150 BL IP44 ON/OFFMI307623655150151594106PMMA100°803000ON/OFF44BLACK
HERO R PMMA 1594lm 15W 830 150 GR IP44 ON/OFFMI29326655150151594106PMMA100°803000ON/OFF44GREY
HERO R PMMA 1594lm 15W 830 150 WH IP44 DALIMI600533755150151594106PMMA100°803000DALI44WHITE
HERO R PMMA 1594lm 15W 830 150 BL IP44 DALIMI191734755150151594106PMMA100°803000DALI44BLACK
HERO R PMMA 1594lm 15W 830 150 GR IP44 DALIMI555964455150151594106PMMA100°803000DALI44GREY
HERO R PMMA 1594lm 15W 840 150 WH IP44 ON/OFFMI299263655150151594106PMMA100°804000ON/OFF44WHITE
HERO R PMMA 1594lm 15W 840 150 BL IP44 ON/OFFMI477315655150151594106PMMA100°804000ON/OFF44BLACK
HERO R PMMA 1594lm 15W 840 150 GR IP44 ON/OFFMI954190655150151594106PMMA100°804000ON/OFF44GREY
HERO R PMMA 1594lm 15W 840 150 WH IP44 DALIMI365097255150151594106PMMA100°804000DALI44WHITE
HERO R PMMA 1594lm 15W 840 150 BL IP44 DALIMI549355455150151594106PMMA100°804000DALI44BLACK
HERO R PMMA 1594lm 15W 840 150 GR IP44 DALIMI643563755150151594106PMMA100°804000DALI44GREY
HERO R PMMA 1594lm 15W 930 150 WH IP44 ON/OFFMI474058955150151594106PMMA100°903000ON/OFF44WHITE
HERO R PMMA 1594lm 15W 930 150 BL IP44 ON/OFFMI303332955150151594106PMMA100°903000ON/OFF44BLACK
HERO R PMMA 1594lm 15W 930 150 GR IP44 ON/OFFMI725205755150151594106PMMA100°903000ON/OFF44GREY
HERO R PMMA 1594lm 15W 930 150 WH IP44 DALIMI122178755150151594106PMMA100°903000DALI44WHITE
HERO R PMMA 1594lm 15W 930 150 BL IP44 DALIMI578151455150151594106PMMA100°903000DALI44BLACK
HERO R PMMA 1594lm 15W 930 150 GR IP44 DALIMI155700455150151594106PMMA100°903000DALI44GREY
HERO R PMMA 1594lm 15W 940 150 WH IP44 ON/OFFMI276481855150151594106PMMA100°904000ON/OFF44WHITE
HERO R PMMA 1594lm 15W 940 150 BL IP44 ON/OFFMI684631255150151594106PMMA100°904000ON/OFF44BLACK
HERO R PMMA 1594lm 15W 940 150 GR IP44 ON/OFFMI55852155150151594106PMMA100°904000ON/OFF44GREY
HERO R PMMA 1594lm 15W 940 150 WH IP44 DALIMI959221855150151594106PMMA100°904000DALI44WHITE
HERO R PMMA 1594lm 15W 940 150 BL IP44 DALIMI462518255150151594106PMMA100°904000DALI44BLACK
HERO R PMMA 1594lm 15W 940 150 GR IP44 DALIMI328339855150151594106PMMA100°904000DALI44GREY
