HERO S 180
HERO S 180

General data
Application

Ideal for residential spaces, offices and commercial areas, retails and showrooms, restaurants, hotels, public spaces and as accent lighting.

Product ShapeRound
MountingSurface
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]20
IEC Protection ClassI
Optics
Diffuser MaterialPMMA
Diffuser Material DesignPMMA
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 50.000h
Technical data
Total Consumption [W]20
Lumen Output [LM]2126
Efficacy lm/W106
Diffuser MaterialPMMA
Body MaterialAluminium
Beam Angle [°]100°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 50.000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWHITE, BLACK, GRAY
Ingress Protection [IP]44
Mechanical Protection [IK]1
Main Feed AC [V]220-240
Diameter ø [mm]180
Description:

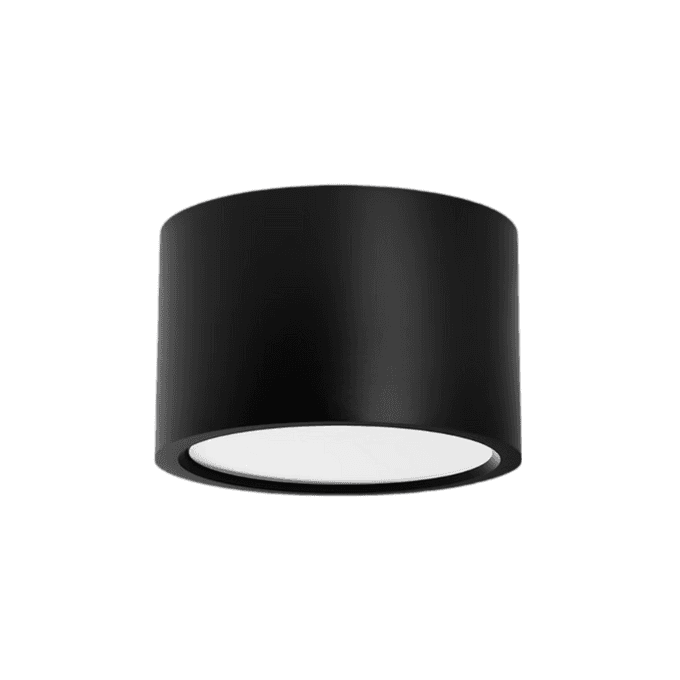

The perfect blend of modern elegance and reliable functionality with the HERO S surface-mounted LED downlight. Designed with a sleek cylindrical shape and a sophisticated finish, the HERO S effortlessly enhances any interior with its clean, minimalist aesthetic.  Available in six dimensions – ø110mm, ø130mm, ø150mm, ø180mm, ø200mm, ø240mm.

Downloads:
Datasheet:
1
Technical illustrations:
1
Mounting instructions:
1
Certificates:
1
Photometric data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/DALI.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/ON_OFF.svg
/soft4net/img/project/icons/AD - IP/44.svg
/soft4net/img/project/icons/W - HOUSING COLOR/BLACK.svg
/soft4net/img/project/icons/W - HOUSING COLOR/GREY.svg
/soft4net/img/project/icons/W - HOUSING COLOR/WHITE.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_90.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_90.svg
General data
Application

Ideal for residential spaces, offices and commercial areas, retails and showrooms, restaurants, hotels, public spaces and as accent lighting.

Product ShapeRound
MountingSurface
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]20
IEC Protection ClassI
Optics
Diffuser MaterialPMMA
Diffuser Material DesignPMMA
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 50.000h
Technical data
Total Consumption [W]20
Lumen Output [LM]2126
Efficacy lm/W106
Diffuser MaterialPMMA
Body MaterialAluminium
Beam Angle [°]100°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 50.000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWHITE, BLACK, GRAY
Ingress Protection [IP]44
Mechanical Protection [IK]1
Main Feed AC [V]220-240
Diameter ø [mm]180
Housing
Body MaterialAluminium
Body ColorWHITE, BLACK, GRAY
Light technical data
Light SourceLED
Total Consumption [W]20
Lumen Output [LM]2126
Efficacy lm/W106
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
Beam Angle [°]100°
Light Distribution DIR/INDDIR
Technical data
TA [°C]-20C° / +40C°
Ingress Protection [IP]44
Mechanical Protection [IK]1
Dimensions
Diameter ø [mm]180
Generating PDF...

Variations

Item
Code
Lenght
Width
Height
Diameter
W
Lumen
Output lm
Efficacy
lm/W
Diffuser
Beam
Angle
CRI
Color K
Type of
Control
IP
Color
HERO S PMMA 2126lm 15W 830 180 WH IP44 ON/OFFMI4996079100180202126106PMMA100°803000ON/OFF44WHITE
HERO S PMMA 2126lm 15W 830 180 BL IP44 ON/OFFMI1782644100180202126106PMMA100°803000ON/OFF44BLACK
HERO S PMMA 2126lm 15W 830 180 GR IP44 ON/OFFMI3723120100180202126106PMMA100°803000ON/OFF44GREY
HERO S PMMA 2126lm 15W 830 180 WH IP44 DALIMI6486399100180202126106PMMA100°803000DALI44WHITE
HERO S PMMA 2126lm 15W 830 180 BL IP44 DALIMI5117067100180202126106PMMA100°803000DALI44BLACK
HERO S PMMA 2126lm 15W 830 180 GR IP44 DALIMI3987741100180202126106PMMA100°803000DALI44GREY
HERO S PMMA 2126lm 15W 840 180 WH IP44 ON/OFFMI9873143100180202126106PMMA100°804000ON/OFF44WHITE
HERO S PMMA 2126lm 15W 840 180 BL IP44 ON/OFFMI8557536100180202126106PMMA100°804000ON/OFF44BLACK
HERO S PMMA 2126lm 15W 840 180 GR IP44 ON/OFFMI18441100180202126106PMMA100°804000ON/OFF44GREY
HERO S PMMA 2126lm 15W 840 180 WH IP44 DALIMI986047100180202126106PMMA100°804000DALI44WHITE
HERO S PMMA 2126lm 15W 840 180 BL IP44 DALIMI436064100180202126106PMMA100°804000DALI44BLACK
HERO S PMMA 2126lm 15W 840 180 GR IP44 DALIMI2364565100180202126106PMMA100°804000DALI44GREY
HERO S PMMA 2126lm 15W 930 180 WH IP44 ON/OFFMI8896289100180202126106PMMA100°903000ON/OFF44WHITE
HERO S PMMA 2126lm 15W 930 180 BL IP44 ON/OFFMI7630874100180202126106PMMA100°903000ON/OFF44BLACK
HERO S PMMA 2126lm 15W 930 180 GR IP44 ON/OFFMI3630540100180202126106PMMA100°903000ON/OFF44GREY
HERO S PMMA 2126lm 15W 930 180 WH IP44 DALIMI9044156100180202126106PMMA100°903000DALI44WHITE
HERO S PMMA 2126lm 15W 930 180 BL IP44 DALIMI6280245100180202126106PMMA100°903000DALI44BLACK
HERO S PMMA 2126lm 15W 930 180 GR IP44 DALIMI6661613100180202126106PMMA100°903000DALI44GREY
HERO S PMMA 2126lm 15W 940 180 WH IP44 ON/OFFMI1538553100180202126106PMMA100°904000ON/OFF44WHITE
HERO S PMMA 2126lm 15W 940 180 BL IP44 ON/OFFMI2591557100180202126106PMMA100°904000ON/OFF44BLACK
HERO S PMMA 2126lm 15W 940 180 GR IP44 ON/OFFMI8087380100180202126106PMMA100°904000ON/OFF44GREY
HERO S PMMA 2126lm 15W 940 180 WH IP44 DALIMI1979856100180202126106PMMA100°904000DALI44WHITE
HERO S PMMA 2126lm 15W 940 180 BL IP44 DALIMI238331100180202126106PMMA100°904000DALI44BLACK
HERO S PMMA 2126lm 15W 940 180 GR IP44 DALIMI6088498100180202126106PMMA100°904000DALI44GREY
