KAL R 117
KAL R 117

General data
Application

KAL R is perfect for various applications, including: residential spaces, offices and commercial areas, retails and showrooms, restaurants, hotels, public spaces and as accent lighting.



Product ShapeRound
MountingRecessed
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]10
IEC Protection ClassI
Optics
Diffuser MaterialPC GLASS
Diffuser Material DesignPC GLASS
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 50.000h
Technical data
Total Consumption [W]10
Lumen Output [LM]1108
Efficacy lm/W111
Diffuser MaterialPC GLASS
Body MaterialAluminium
Beam Angle [°]60°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 50.000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWHITE, BLACK, GRAY
Ingress Protection [IP]44
Mechanical Protection [IK]1
Main Feed AC [V]220-240
Diameter ø [mm]117
Description:

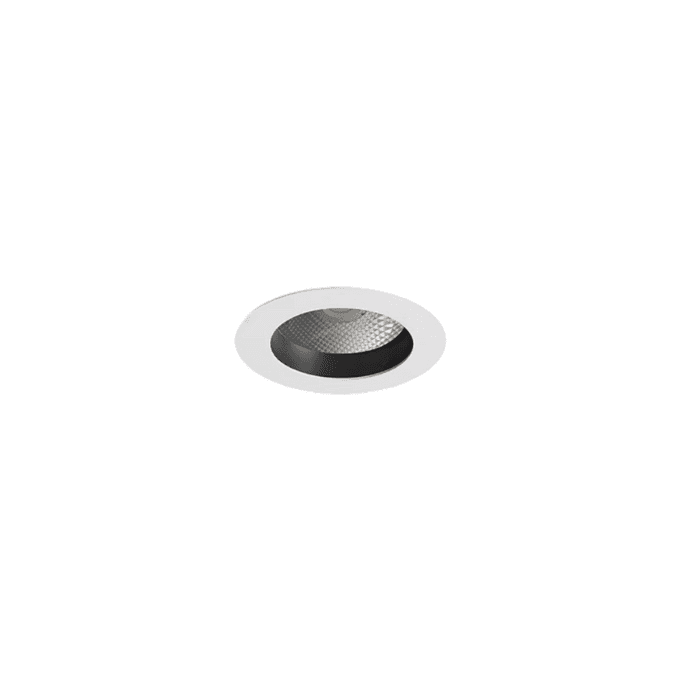

KAL R – a stylish and modern recessed luminaire designed to elevate your lighting experience. With its sleek circular design and premium black, white or grey finish, the KAL R offers a perfect balance of elegance and functionality, making it a versatile choice for contemporary interiors. Available in six dimensions – ø97mm,ø117mm, ø147mm, ø175mm, ø192mm, ø227mm.

Downloads:
Datasheet:
1
Technical illustrations:
1
Mounting instructions:
1
Certificates:
1
Photometric data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/DALI.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/ON_OFF.svg
/soft4net/img/project/icons/AD - IP/44.svg
/soft4net/img/project/icons/W - HOUSING COLOR/BLACK.svg
/soft4net/img/project/icons/W - HOUSING COLOR/GREY.svg
/soft4net/img/project/icons/W - HOUSING COLOR/WHITE.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_90.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_90.svg
General data
Application

KAL R is perfect for various applications, including: residential spaces, offices and commercial areas, retails and showrooms, restaurants, hotels, public spaces and as accent lighting.



Product ShapeRound
MountingRecessed
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]10
IEC Protection ClassI
Optics
Diffuser MaterialPC GLASS
Diffuser Material DesignPC GLASS
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 50.000h
Technical data
Total Consumption [W]10
Lumen Output [LM]1108
Efficacy lm/W111
Diffuser MaterialPC GLASS
Body MaterialAluminium
Beam Angle [°]60°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 50.000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWHITE, BLACK, GRAY
Ingress Protection [IP]44
Mechanical Protection [IK]1
Main Feed AC [V]220-240
Diameter ø [mm]117
Housing
Body MaterialAluminium
Body ColorWHITE, BLACK, GRAY
Light technical data
Light SourceLED
Total Consumption [W]10
Lumen Output [LM]1108
Efficacy lm/W111
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
Beam Angle [°]60°
Light Distribution DIR/INDDIR
Technical data
TA [°C]-20C° / +40C°
Ingress Protection [IP]44
Mechanical Protection [IK]1
Dimensions
Diameter ø [mm]117
Generating PDF...

Variations

Item
Code
Lenght
Width
Height
Diameter
W
Lumen
Output lm
Efficacy
lm/W
Diffuser
Beam
Angle
CRI
Color K
Type of
Control
IP
Color
KAL R PC GLASS 1108lm 10W 830 117 WH IP44 ON/OFFMI205633770117101108111PC GLASS60°803000ON/OFF44WHITE
KAL R PC GLASS 1108lm 10W 830 117 BL IP44 ON/OFFMI634008770117101108111PC GLASS60°803000ON/OFF44BLACK
KAL R PC GLASS 1108lm 10W 830 117 GR IP44 ON/OFFMI659799470117101108111PC GLASS60°803000ON/OFF44GREY
KAL R PC GLASS 1108lm 10W 830 117 WH IP44 DALIMI852312470117101108111PC GLASS60°803000DALI44WHITE
KAL R PC GLASS 1108lm 10W 830 117 BL IP44 DALIMI474035670117101108111PC GLASS60°803000DALI44BLACK
KAL R PC GLASS 1108lm 10W 830 117 GR IP44 DALIMI797974070117101108111PC GLASS60°803000DALI44GREY
KAL R PC GLASS 1108lm 10W 840 117 WH IP44 ON/OFFMI345972770117101108111PC GLASS60°804000ON/OFF44WHITE
KAL R PC GLASS 1108lm 10W 840 117 BL IP44 ON/OFFMI104793170117101108111PC GLASS60°804000ON/OFF44BLACK
KAL R PC GLASS 1108lm 10W 840 117 GR IP44 ON/OFFMI76951970117101108111PC GLASS60°804000ON/OFF44GREY
KAL R PC GLASS 1108lm 10W 840 117 WH IP44 DALIMI354353170117101108111PC GLASS60°804000DALI44WHITE
KAL R PC GLASS 1108lm 10W 840 117 BL IP44 DALIMI749706870117101108111PC GLASS60°804000DALI44BLACK
KAL R PC GLASS 1108lm 10W 840 117 GR IP44 DALIMI79036970117101108111PC GLASS60°804000DALI44GREY
KAL R PC GLASS 1108lm 10W 930 117 WH IP44 ON/OFFMI315402970117101108111PC GLASS60°903000ON/OFF44WHITE
KAL R PC GLASS 1108lm 10W 930 117 BL IP44 ON/OFFMI883368270117101108111PC GLASS60°903000ON/OFF44BLACK
KAL R PC GLASS 1108lm 10W 930 117 GR IP44 ON/OFFMI169980970117101108111PC GLASS60°903000ON/OFF44GREY
KAL R PC GLASS 1108lm 10W 930 117 WH IP44 DALIMI755107070117101108111PC GLASS60°903000DALI44WHITE
KAL R PC GLASS 1108lm 10W 930 117 BL IP44 DALIMI652320270117101108111PC GLASS60°903000DALI44BLACK
KAL R PC GLASS 1108lm 10W 930 117 GR IP44 DALIMI594865970117101108111PC GLASS60°903000DALI44GREY
KAL R PC GLASS 1108lm 10W 940 117 WH IP44 ON/OFFMI13079070117101108111PC GLASS60°904000ON/OFF44WHITE
KAL R PC GLASS 1108lm 10W 940 117 BL IP44 ON/OFFMI442107470117101108111PC GLASS60°904000ON/OFF44BLACK
KAL R PC GLASS 1108lm 10W 940 117 GR IP44 ON/OFFMI19960570117101108111PC GLASS60°904000ON/OFF44GREY
KAL R PC GLASS 1108lm 10W 940 117 WH IP44 DALIMI311355670117101108111PC GLASS60°904000DALI44WHITE
KAL R PC GLASS 1108lm 10W 940 117 BL IP44 DALIMI805704170117101108111PC GLASS60°904000DALI44BLACK
KAL R PC GLASS 1108lm 10W 940 117 GR IP44 DALIMI175700770117101108111PC GLASS60°904000DALI44GREY
