KAL R 192
KAL R 192

General data
Application

KAL R is perfect for various applications, including: residential spaces, offices and commercial areas, retails and showrooms, restaurants, hotels, public spaces and as accent lighting.



Product ShapeRound
MountingRecessed
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]20
IEC Protection ClassI
Optics
Diffuser MaterialPC GLASS
Diffuser Material DesignPC GLASS
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 50.000h
Technical data
Total Consumption [W]20
Lumen Output [LM]2216
Efficacy lm/W111
Diffuser MaterialPC GLASS
Body MaterialAluminium
Beam Angle [°]60°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 50.000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWHITE, BLACK, GRAY
Ingress Protection [IP]44
Mechanical Protection [IK]1
Main Feed AC [V]220-240
Diameter ø [mm]192
Description:

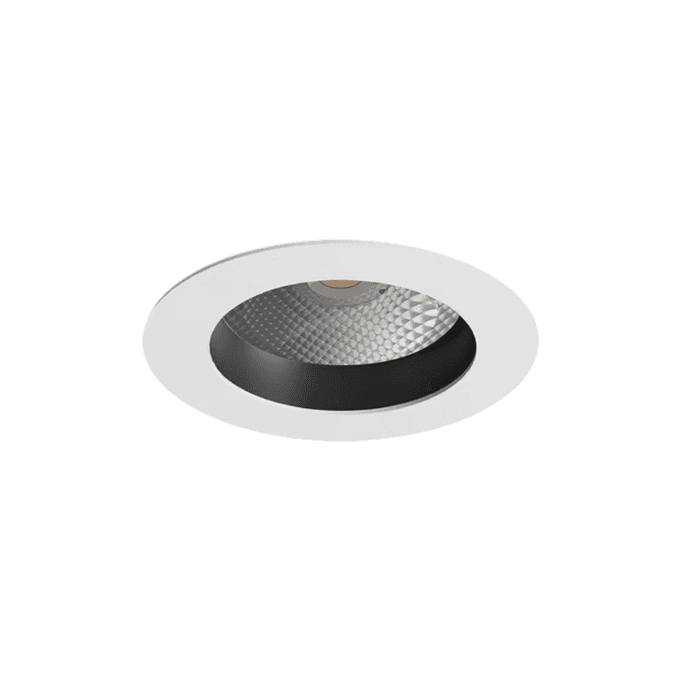

KAL R – a stylish and modern recessed luminaire designed to elevate your lighting experience. With its sleek circular design and premium black, white or grey finish, the KAL R offers a perfect balance of elegance and functionality, making it a versatile choice for contemporary interiors. Available in six dimensions – ø97mm,ø117mm, ø147mm, ø175mm, ø192mm, ø227mm.

Downloads:
Datasheet:
1
Technical illustrations:
1
Mounting instructions:
1
Certificates:
1
Photometric data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/DALI.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/ON_OFF.svg
/soft4net/img/project/icons/AD - IP/44.svg
/soft4net/img/project/icons/W - HOUSING COLOR/BLACK.svg
/soft4net/img/project/icons/W - HOUSING COLOR/GREY.svg
/soft4net/img/project/icons/W - HOUSING COLOR/WHITE.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_90.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_90.svg
General data
Application

KAL R is perfect for various applications, including: residential spaces, offices and commercial areas, retails and showrooms, restaurants, hotels, public spaces and as accent lighting.



Product ShapeRound
MountingRecessed
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]20
IEC Protection ClassI
Optics
Diffuser MaterialPC GLASS
Diffuser Material DesignPC GLASS
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 50.000h
Technical data
Total Consumption [W]20
Lumen Output [LM]2216
Efficacy lm/W111
Diffuser MaterialPC GLASS
Body MaterialAluminium
Beam Angle [°]60°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 50.000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWHITE, BLACK, GRAY
Ingress Protection [IP]44
Mechanical Protection [IK]1
Main Feed AC [V]220-240
Diameter ø [mm]192
Housing
Body MaterialAluminium
Body ColorWHITE, BLACK, GRAY
Light technical data
Light SourceLED
Total Consumption [W]20
Lumen Output [LM]2216
Efficacy lm/W111
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
Beam Angle [°]60°
Light Distribution DIR/INDDIR
Technical data
TA [°C]-20C° / +40C°
Ingress Protection [IP]44
Mechanical Protection [IK]1
Dimensions
Diameter ø [mm]192
Generating PDF...

Variations

Item
Code
Lenght
Width
Height
Diameter
W
Lumen
Output lm
Efficacy
lm/W
Diffuser
Beam
Angle
CRI
Color K
Type of
Control
IP
Color
KAL R PC GLASS 2216lm 20W 830 192 WH IP44 ON/OFFMI920438485192202216111PC GLASS60°803000ON/OFF44WHITE
KAL R PC GLASS 2216lm 20W 830 192 BL IP44 ON/OFFMI348219185192202216111PC GLASS60°803000ON/OFF44BLACK
KAL R PC GLASS 2216lm 20W 830 192 GR IP44 ON/OFFMI499300685192202216111PC GLASS60°803000ON/OFF44GREY
KAL R PC GLASS 2216lm 20W 830 192 WH IP44 DALIMI150363385192202216111PC GLASS60°803000DALI44WHITE
KAL R PC GLASS 2216lm 20W 830 192 BL IP44 DALIMI623210085192202216111PC GLASS60°803000DALI44BLACK
KAL R PC GLASS 2216lm 20W 830 192 GR IP44 DALIMI613928985192202216111PC GLASS60°803000DALI44GREY
KAL R PC GLASS 2216lm 20W 840 192 WH IP44 ON/OFFMI701538185192202216111PC GLASS60°804000ON/OFF44WHITE
KAL R PC GLASS 2216lm 20W 840 192 BL IP44 ON/OFFMI48396385192202216111PC GLASS60°804000ON/OFF44BLACK
KAL R PC GLASS 2216lm 20W 840 192 GR IP44 ON/OFFMI777781885192202216111PC GLASS60°804000ON/OFF44GREY
KAL R PC GLASS 2216lm 20W 840 192 WH IP44 DALIMI218550485192202216111PC GLASS60°804000DALI44WHITE
KAL R PC GLASS 2216lm 20W 840 192 BL IP44 DALIMI563395085192202216111PC GLASS60°804000DALI44BLACK
KAL R PC GLASS 2216lm 20W 840 192 GR IP44 DALIMI990877585192202216111PC GLASS60°804000DALI44GREY
KAL R PC GLASS 2216lm 20W 930 192 WH IP44 ON/OFFMI851440785192202216111PC GLASS60°903000ON/OFF44WHITE
KAL R PC GLASS 2216lm 20W 930 192 BL IP44 ON/OFFMI499581385192202216111PC GLASS60°903000ON/OFF44BLACK
KAL R PC GLASS 2216lm 20W 930 192 GR IP44 ON/OFFMI709368285192202216111PC GLASS60°903000ON/OFF44GREY
KAL R PC GLASS 2216lm 20W 930 192 WH IP44 DALIMI463865285192202216111PC GLASS60°903000DALI44WHITE
KAL R PC GLASS 2216lm 20W 930 192 BL IP44 DALIMI823755485192202216111PC GLASS60°903000DALI44BLACK
KAL R PC GLASS 2216lm 20W 930 192 GR IP44 DALIMI401071885192202216111PC GLASS60°903000DALI44GREY
KAL R PC GLASS 2216lm 20W 940 192 WH IP44 ON/OFFMI60915185192202216111PC GLASS60°904000ON/OFF44WHITE
KAL R PC GLASS 2216lm 20W 940 192 BL IP44 ON/OFFMI486327985192202216111PC GLASS60°904000ON/OFF44BLACK
KAL R PC GLASS 2216lm 20W 940 192 GR IP44 ON/OFFMI589834485192202216111PC GLASS60°904000ON/OFF44GREY
KAL R PC GLASS 2216lm 20W 940 192 WH IP44 DALIMI149188385192202216111PC GLASS60°904000DALI44WHITE
KAL R PC GLASS 2216lm 20W 940 192 BL IP44 DALIMI71864485192202216111PC GLASS60°904000DALI44BLACK
KAL R PC GLASS 2216lm 20W 940 192 GR IP44 DALIMI937484685192202216111PC GLASS60°904000DALI44GREY
