KAL S 100
KAL S 100

General data
Application

Minimalist design seamlessly integrates into various environments, from contemporary homes to stylish commercial interiors.

Product ShapeRound
MountingSurface
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]8
IEC Protection ClassI
Optics
Diffuser MaterialPC GLASS
Diffuser Material DesignPC GLASS
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 50.000h
Technical data
Total Consumption [W]8
Lumen Output [LM]886
Efficacy lm/W111
Diffuser MaterialPC GLASS
Body MaterialAluminium
Beam Angle [°]60°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 50.000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWHITE, BLACK, GRAY, TEST
Ingress Protection [IP]44
Mechanical Protection [IK]1
Main Feed AC [V]220-240
Diameter ø [mm]100
Description:

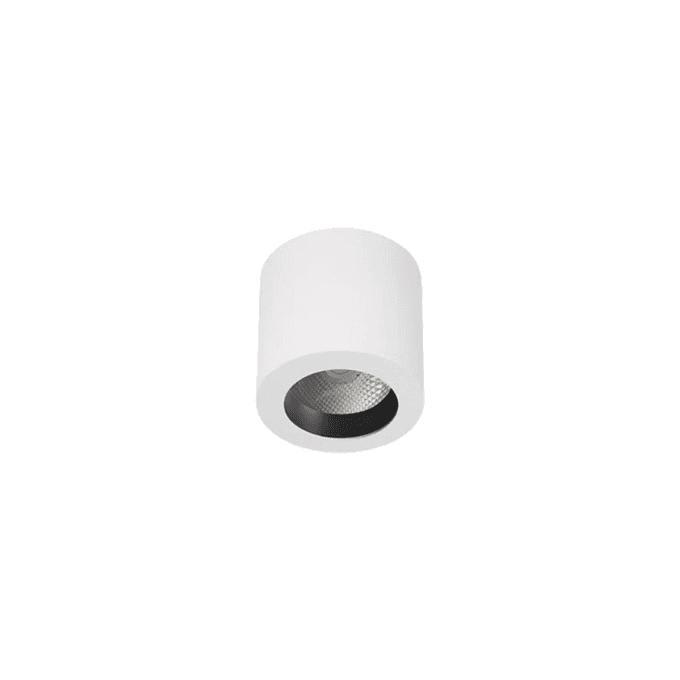

KAL S is a surface-mounted luminaire that combines modern design with exceptional functionality. Featuring a clean, cylindrical form in a pristine white, black and grey finish and a contrasting black inner detail. Crafted with high-quality materials and advanced LED technology, the KAL S ensures energy-efficient performance and superior lighting output. Available in six dimensions – ø100mm, ø120mm, ø150mm, ø180mm, ø200mm, ø240mm.

Downloads:
Datasheet:
1
Technical illustrations:
1
Mounting instructions:
1
Certificates:
1
Photometric data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/DALI.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/ON_OFF.svg
/soft4net/img/project/icons/AD - IP/44.svg
/soft4net/img/project/icons/W - HOUSING COLOR/BLACK.svg
/soft4net/img/project/icons/W - HOUSING COLOR/GREY.svg
/soft4net/img/project/icons/W - HOUSING COLOR/WHITE.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_90.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_90.svg
General data
Application

Minimalist design seamlessly integrates into various environments, from contemporary homes to stylish commercial interiors.

Product ShapeRound
MountingSurface
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]8
IEC Protection ClassI
Optics
Diffuser MaterialPC GLASS
Diffuser Material DesignPC GLASS
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 50.000h
Technical data
Total Consumption [W]8
Lumen Output [LM]886
Efficacy lm/W111
Diffuser MaterialPC GLASS
Body MaterialAluminium
Beam Angle [°]60°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 50.000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWHITE, BLACK, GRAY, TEST
Ingress Protection [IP]44
Mechanical Protection [IK]1
Main Feed AC [V]220-240
Diameter ø [mm]100
Housing
Body MaterialAluminium
Body ColorWHITE, BLACK, GRAY, TEST
Light technical data
Light SourceLED
Total Consumption [W]8
Lumen Output [LM]886
Efficacy lm/W111
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
Beam Angle [°]60°
Light Distribution DIR/INDDIR
Technical data
TA [°C]-20C° / +40C°
Ingress Protection [IP]44
Mechanical Protection [IK]1
Dimensions
Diameter ø [mm]100
Generating PDF...

Variations

Item
Code
Lenght
Width
Height
Diameter
W
Lumen
Output lm
Efficacy
lm/W
Diffuser
Beam
Angle
CRI
Color K
Type of
Control
IP
Color
KAL S PC GLASS 886lm 8W 830 100 WH IP44 ON/OFFMI56610291201008886111PC GLASS60°803000ON/OFF44WHITE
KAL S PC GLASS 886lm 8W 830 100 BL IP44 ON/OFFMI87766491201008886111PC GLASS60°803000ON/OFF44BLACK
KAL S PC GLASS 886lm 8W 830 100 GR IP44 ON/OFFMI92673811201008886111PC GLASS60°803000ON/OFF44GREY
KAL S PC GLASS 886lm 8W 830 100 WH IP44 DALIMI69378731201008886111PC GLASS60°803000DALI44WHITE
KAL S PC GLASS 886lm 8W 830 100 BL IP44 DALIMI80720821201008886111PC GLASS60°803000DALI44BLACK
KAL S PC GLASS 886lm 8W 830 100 GR IP44 DALIMI38802721201008886111PC GLASS60°803000DALI44GREY
KAL S PC GLASS 886lm 8W 840 100 WH IP44 ON/OFFMI56223491201008886111PC GLASS60°804000ON/OFF44WHITE
KAL S PC GLASS 886lm 8W 840 100 BL IP44 ON/OFFMI44799771201008886111PC GLASS60°804000ON/OFF44BLACK
KAL S PC GLASS 886lm 8W 840 100 GR IP44 ON/OFFMI55007331201008886111PC GLASS60°804000ON/OFF44GREY
KAL S PC GLASS 886lm 8W 840 100 WH IP44 DALIMI94263381201008886111PC GLASS60°804000DALI44WHITE
KAL S PC GLASS 886lm 8W 840 100 BL IP44 DALIMI23548281201008886111PC GLASS60°804000DALI44BLACK
KAL S PC GLASS 886lm 8W 840 100 GR IP44 DALIMI87773061201008886111PC GLASS60°804000DALI44GREY
KAL S PC GLASS 886lm 8W 930 100 WH IP44 ON/OFFMI16288241201008886111PC GLASS60°903000ON/OFF44WHITE
KAL S PC GLASS 886lm 8W 930 100 BL IP44 ON/OFFMI57014131201008886111PC GLASS60°903000ON/OFF44BLACK
KAL S PC GLASS 886lm 8W 930 100 GR IP44 ON/OFFMI79957401201008886111PC GLASS60°903000ON/OFF44GREY
KAL S PC GLASS 886lm 8W 930 100 WH IP44 DALIMI26736691201008886111PC GLASS60°903000DALI44WHITE
KAL S PC GLASS 886lm 8W 930 100 BL IP44 DALIMI31907571201008886111PC GLASS60°903000DALI44BLACK
KAL S PC GLASS 886lm 8W 930 100 GR IP44 DALIMI50081951201008886111PC GLASS60°903000DALI44GREY
KAL S PC GLASS 886lm 8W 940 100 WH IP44 ON/OFFMI67606511201008886111PC GLASS60°904000ON/OFF44WHITE
KAL S PC GLASS 886lm 8W 940 100 BL IP44 ON/OFFMI84983811201008886111PC GLASS60°904000ON/OFF44BLACK
KAL S PC GLASS 886lm 8W 940 100 GR IP44 ON/OFFMI79328601201008886111PC GLASS60°904000ON/OFF44GREY
KAL S PC GLASS 886lm 8W 940 100 WH IP44 DALIMI27686021201008886111PC GLASS60°904000DALI44WHITE
KAL S PC GLASS 886lm 8W 940 100 BL IP44 DALIMI30322821201008886111PC GLASS60°904000DALI44BLACK
KAL S PC GLASS 886lm 8W 940 100 GR IP44 DALIMI35595531201008886111PC GLASS60°904000DALI44GREY
