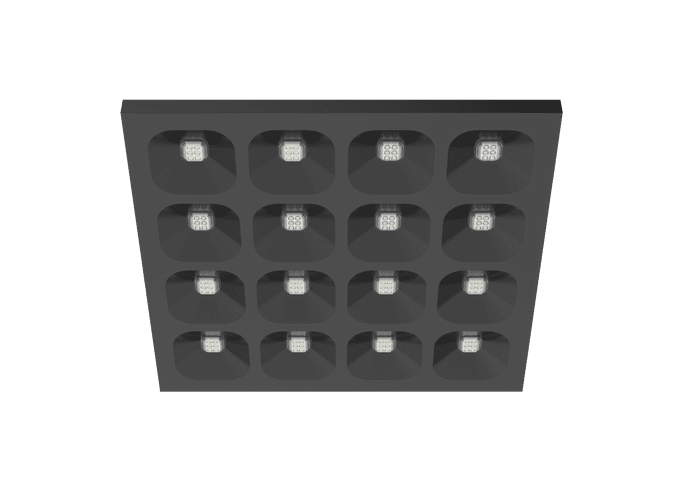

LEXO LENS 3630lm 22W 830 595 BL IP20 DALI
Item No. MI1108548030
LEXO

LEXO LENS 3630lm 22W 830 595 BL IP20 DALI

MI1108548030

General data
Key Advantages

Exceptional luminous efficiency of 175 lm/W, ensuring significant energy savings.
Innovative optical lens design that minimizes glare (UGR<12) for enhanced visual comfort.
Features a high-quality OSRAM power supply and a cascading wiring box for effortless installation.
Durable and robust lamp body, compliant with IK08 impact resistance standards.

Product ShapeSQUARE
MountingRECESSED , SURFACE, PENDANT
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]22
Optics
Optic NameLENS
DiffuserLENS
Type of ControlDALI
Technical data
Total Consumption [W]22
Lumen Output [LM]3630
Efficacy [lm/W]165
DiffuserLENS
Housing MaterialSPSS STEEL
Beam Angle [°]75
Light distributionDIR
CCT [K]3000
CRI80
MacAdam step3
Type of ControlDALI
Housing colorBLACK
IP20
Mechanical Protection [IK]08
Main Feed AC [V]220-240
Dimensions (length, width, height)595 x 595 x 28 m [LxWxH]
Description:

The LEXO LED panels combines a stylish design with high lighting efficiency. Featuring an SPCC steel base and LED lenses with polycarbonate reflectors, it provides excellent glare reduction (UGR<12) and optimal visual comfort.




Key Advantages:

Exceptional luminous efficiency of 175 lm/W, ensuring significant energy savings.
Innovative optical lens design that minimizes glare (UGR<12) for enhanced visual comfort.
Features a high-quality OSRAM power supply and a cascading wiring box for effortless installation.
Durable and robust lamp body, compliant with IK08 impact resistance standards.

Downloads:
Datasheet:
1
Mounting instructions:
1
Certificates:
1
Photometric data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/DALI.svg
/soft4net/img/project/icons/AD - IP/20.svg
/soft4net/img/project/icons/BB - IK/08.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_80.svg
General data
Key Advantages

Exceptional luminous efficiency of 175 lm/W, ensuring significant energy savings.
Innovative optical lens design that minimizes glare (UGR<12) for enhanced visual comfort.
Features a high-quality OSRAM power supply and a cascading wiring box for effortless installation.
Durable and robust lamp body, compliant with IK08 impact resistance standards.

Product ShapeSQUARE
MountingRECESSED , SURFACE, PENDANT
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]22
Optics
Optic NameLENS
DiffuserLENS
Type of ControlDALI
Technical data
Total Consumption [W]22
Lumen Output [LM]3630
Efficacy [lm/W]165
DiffuserLENS
Housing MaterialSPSS STEEL
Beam Angle [°]75
Light distributionDIR
CCT [K]3000
CRI80
MacAdam step3
Type of ControlDALI
Housing colorBLACK
IP20
Mechanical Protection [IK]08
Main Feed AC [V]220-240
Dimensions (length, width, height)595 x 595 x 28 m [LxWxH]
Housing
Housing MaterialSPSS STEEL
Housing colorBLACK
RAL9016, 9005
Light technical data
Light SourceLED
Total Consumption [W]22
Lumen Output [LM]3630
Efficacy [lm/W]165
CCT [K]3000
CRI80
UGR12
MacAdam step3
Beam Angle [°]75
Light distributionDIR
Technical data
IP20
Mechanical Protection [IK]08
Dimensions
Dimensions (length, width, height)595 x 595 x 28 m [LxWxH]
