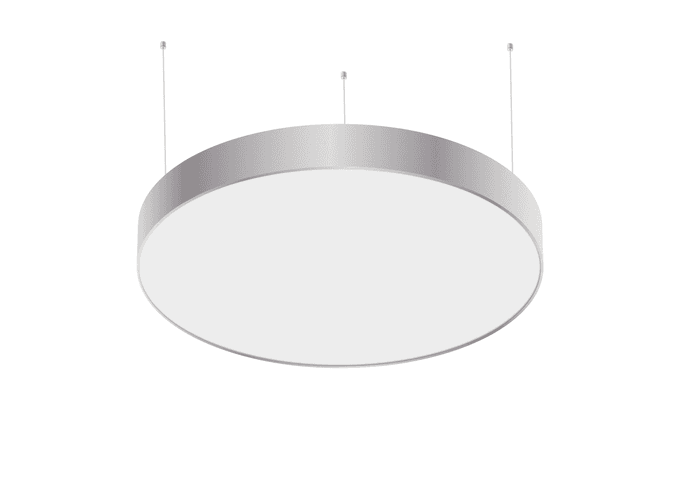

LOON P H8 UP|DOWN
LOON P H8 UP|DOWN

General data
Product ShapeRound
MountingPendant
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]18 - 125
IEC Protection ClassII
Optics
Diffuser MaterialPMMA
Diffuser Material DesignOpal
TYPE OF CONTROLON/OFF
CONTROL SYSTEMON/OFF, DALI, 1-10V, Touch-Dim, Casambi
LED LIFETIME Ta25 [h]LM80 and TM21 60 000 h
Technical data
Total Consumption [W]18 - 125
Lumen Output [LM]2160 - 15000
Efficacy lm/W120
Diffuser MaterialPMMA
Body MaterialAluminium
Beam Angle [°]105
Light Distribution DIR/INDDIR/IND
LED Color Temperature CCT [K]3000 - 6500
Color Rendering Index [CRI]80
MacAdam step3
LED LIFETIME Ta25 [h]LM80 and TM21 60 000 h
TYPE OF CONTROLON/OFF
Body ColorWhite, Grey, Black
Ingress Protection [IP]20
Mechanical Protection [IK]02
Main Feed AC [V]220-240
Diameter ø [mm]400, 600, 900, 1200
Description:

The LOON P UP|DOWN series is a modern, surface LED lighting solution designed for optimal performance and durability for indoor general lighting.
Available in four dimensions—Ø400mm, Ø600mm, Ø900mm and Ø1200mm —these fixtures are ideal for a wide range of indoor applications.

Downloads:
Datasheet:
1
Mounting instructions:
1
Certificates:
1
Photometric data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/CASAMBI.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/DALI.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/ON_OFF.svg
/soft4net/img/project/icons/AD - IP/20.svg
/soft4net/img/project/icons/W - HOUSING COLOR/BLACK.svg
/soft4net/img/project/icons/W - HOUSING COLOR/GREY.svg
/soft4net/img/project/icons/W - HOUSING COLOR/WHITE.svg
General data
Product ShapeRound
MountingPendant
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]18 - 125
IEC Protection ClassII
Optics
Diffuser MaterialPMMA
Diffuser Material DesignOpal
TYPE OF CONTROLON/OFF
CONTROL SYSTEMON/OFF, DALI, 1-10V, Touch-Dim, Casambi
LED LIFETIME Ta25 [h]LM80 and TM21 60 000 h
Technical data
Total Consumption [W]18 - 125
Lumen Output [LM]2160 - 15000
Efficacy lm/W120
Diffuser MaterialPMMA
Body MaterialAluminium
Beam Angle [°]105
Light Distribution DIR/INDDIR/IND
LED Color Temperature CCT [K]3000 - 6500
Color Rendering Index [CRI]80
MacAdam step3
LED LIFETIME Ta25 [h]LM80 and TM21 60 000 h
TYPE OF CONTROLON/OFF
Body ColorWhite, Grey, Black
Ingress Protection [IP]20
Mechanical Protection [IK]02
Main Feed AC [V]220-240
Diameter ø [mm]400, 600, 900, 1200
Housing
Body MaterialAluminium
Body ColorWhite, Grey, Black
FinishElectrostatic powder coating
Light technical data
Light SourcePCB LED
Total Consumption [W]18 - 125
Lumen Output [LM]2160 - 15000
Efficacy lm/W120
LED Color Temperature CCT [K]3000 - 6500
Color Rendering Index [CRI]80
MacAdam step3
Beam Angle [°]105
Light Distribution DIR/INDDIR/IND
Technical data
TA [°C]-20 - +35
Ingress Protection [IP]20
Mechanical Protection [IK]02
Dimensions
Diameter ø [mm]400, 600, 900, 1200
