LUMI ECO DS IP65
LUMI ECO DS IP65

General data
Application

LUMI DS ECONOMY is an ideal option to illuminate underpass areas and parking lots.
In accordance with the IP rating, it can be widely used to illuminate spaces with dusty and humid environment.
For an outdoor application the fittings should be protected against direct sunlight and adverse weather conditions

Key Advantages

Thanks to the construction principles of the gasket, the closing system and the diffuser, our LED fixtures ensure a high grade of protection (IP65) against dust, contamination and water permeation.


TypeDustproof
MountingSurface, Pendant
Electrical data
Main Feed AC [V]220-240V AC
Main Feed Frequency [Hz]50-60
Total Consumption [W]16.5/22/28/34, 25/33/42/50
IEC Protection ClassI
Optics
Diffuser MaterialPC
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L70B50 ≥ 50 000h
Technical data
Total Consumption [W]16.5/22/28/34, 25/33/42/50
Lumen Output [LM]2300 – 6000
Efficacy lm/W120 – 140
Diffuser MaterialPC
Body MaterialPC/SST latches
Beam Angle [°]120
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80
MacAdam step<3
LED LIFETIME Ta25 [h]L70B50 ≥ 50 000h
TYPE OF CONTROLON/OFF, DALI
Body ColorGrey RAL7035
Ingress Protection [IP]65
Mechanical Protection [IK]10
Main Feed AC [V]220-240V AC
Description:

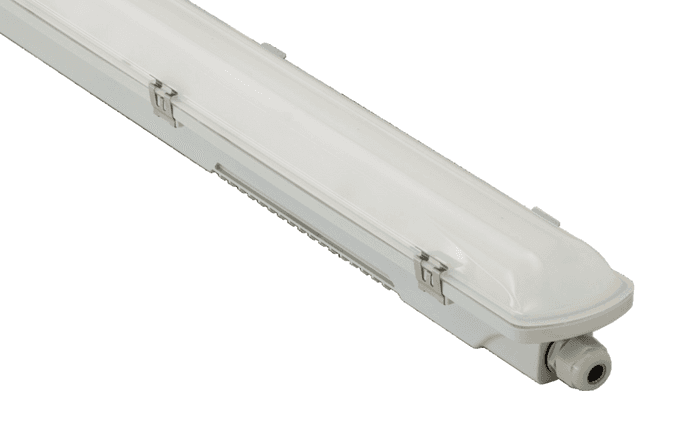

LUMI DS ECONOMY
DS stands for DIP SWITCH - four adjustable power settings, enabling four different lumen output options within a single unit.

  •  aesthetic, value-for-money, industrial weatherproof lighting fixture
  • elaborate design and first class craftsmanship
  • reliable quality at a favourable price
  • fast and safe installation – with gear tray integrated into the diffuser

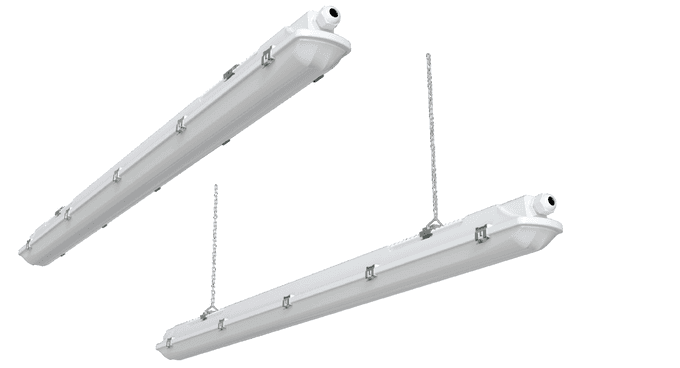

  • flexible mounting brackets – for easy fitting
  • homogenous and well-balanced light dispersion
  • uniform lighting throughout the whole luminaire
  • non-glare illumination
  • the gasket is made of extruded silicone.
  • fixing the diffuser to the body: with stainless steel clips.
  • gear tray (reflector) white powder coated steel sheet integrated into the diffuser, thus enabling a cost efficient and user-friendly installation.
  • the adequate power supply is ensured with the electronic driver
  • Optional :
    DALI
    CCT 3000-4000-5700K
    EM KIT
    MICROWAVE SENSOR
Key Advantages:

Thanks to the construction principles of the gasket, the closing system and the diffuser, our LED fixtures ensure a high grade of protection (IP65) against dust, contamination and water permeation.


Downloads:
Datasheet:
1

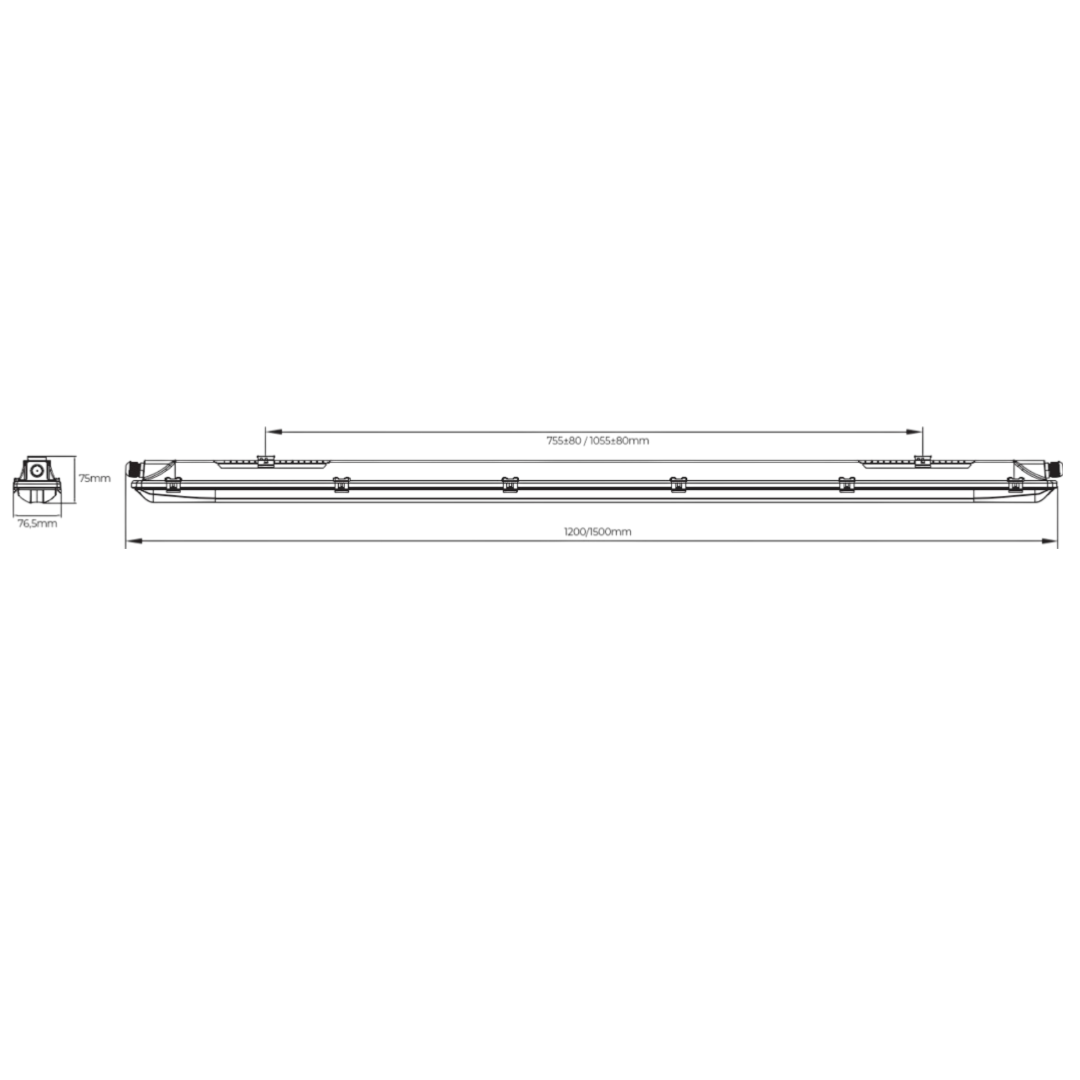

Technical illustrations:
1
Mounting instructions:
1
Certificates:
1
Photometric data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/DALI.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/ON_OFF.svg
/soft4net/img/project/icons/AD - IP/65.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_80.svg
General data
Application

LUMI DS ECONOMY is an ideal option to illuminate underpass areas and parking lots.
In accordance with the IP rating, it can be widely used to illuminate spaces with dusty and humid environment.
For an outdoor application the fittings should be protected against direct sunlight and adverse weather conditions

Key Advantages

Thanks to the construction principles of the gasket, the closing system and the diffuser, our LED fixtures ensure a high grade of protection (IP65) against dust, contamination and water permeation.


TypeDustproof
MountingSurface, Pendant
Electrical data
Main Feed AC [V]220-240V AC
Main Feed Frequency [Hz]50-60
Total Consumption [W]16.5/22/28/34, 25/33/42/50
IEC Protection ClassI
Optics
Diffuser MaterialPC
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L70B50 ≥ 50 000h
Technical data
Total Consumption [W]16.5/22/28/34, 25/33/42/50
Lumen Output [LM]2300 – 6000
Efficacy lm/W120 – 140
Diffuser MaterialPC
Body MaterialPC/SST latches
Beam Angle [°]120
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80
MacAdam step<3
LED LIFETIME Ta25 [h]L70B50 ≥ 50 000h
TYPE OF CONTROLON/OFF, DALI
Body ColorGrey RAL7035
Ingress Protection [IP]65
Mechanical Protection [IK]10
Main Feed AC [V]220-240V AC
Housing
Body MaterialPC/SST latches
Body ColorGrey RAL7035
Light technical data
Light SourceLED
Total Consumption [W]16.5/22/28/34, 25/33/42/50
Lumen Output [LM]2300 – 6000
Efficacy lm/W120 – 140
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80
MacAdam step<3
Beam Angle [°]120
Light Distribution DIR/INDDIR
Technical data
TA [°C]-20 to +45
Ingress Protection [IP]65
Mechanical Protection [IK]10
Generating PDF...

Variations

Item
Code
Lenght
Width
Height
Diameter
W
Lumen
Output lm
Efficacy
lm/W
Diffuser
Beam
Angle
CRI
Color K
Type of
Control
IP
Color
LUMI ECO DS 2300/2850/3500/4100lm 16.5/22/28/34W 840 1200 Gr IP65 ON/OFFMI83533561200777516.5/22/28/342300/2850/3500/4100140/130/125/120PC120804000ON/OFF65GREY
LUMI ECO DS 3500/4300/5250/6000lm 25/33/42/50W 840 1500 Gr IP65 ON/OFFMI47436591500777525/33/42/503500/4300/5250/6000140/130/125/120PC120804000ON/OFF65GREY
LUMI ECO DS 2300/2850/3500/4100lm 16.5/22/28/34W 830 1200 Gr IP65 ON/OFFMI45490241200777516.5/22/28/342300/2850/3500/4100140/130/125/120PC120803000ON/OFF65GREY
LUMI ECO DS 3500/4300/5250/6000lm 25/33/42/50W 830 1500 Gr IP65 ON/OFFMI92639521500777525/33/42/503500/4300/5250/6000140/130/125/120PC120803000ON/OFF65GREY
LUMI ECO DS 2300/2850/3500/4100lm 16.5/22/28/34W 840 1200 Gr IP65 DALIMI55048471200777516.5/22/28/342300/2850/3500/4100140/130/125/120PC120804000DALI65GREY
LUMI ECO DS 3500/4300/5250/6000lm 25/33/42/50W 840 1500 Gr IP65 DALIMI21688061500777525/33/42/503500/4300/5250/6000140/130/125/120PC120804000DALI65GREY
LUMI ECO DS 2300/2850/3500/4100lm 16.5/22/28/34W 830 1200 Gr IP65 DALIMI70972311200777516.5/22/28/342300/2850/3500/4100140/130/125/120PC120803000DALI65GREY
LUMI ECO DS 3500/4300/5250/6000lm 25/33/42/50W 830 1500 Gr IP65 DALIMI56468221500777525/33/42/503500/4300/5250/6000140/130/125/120PC120803000DALI65GREY
