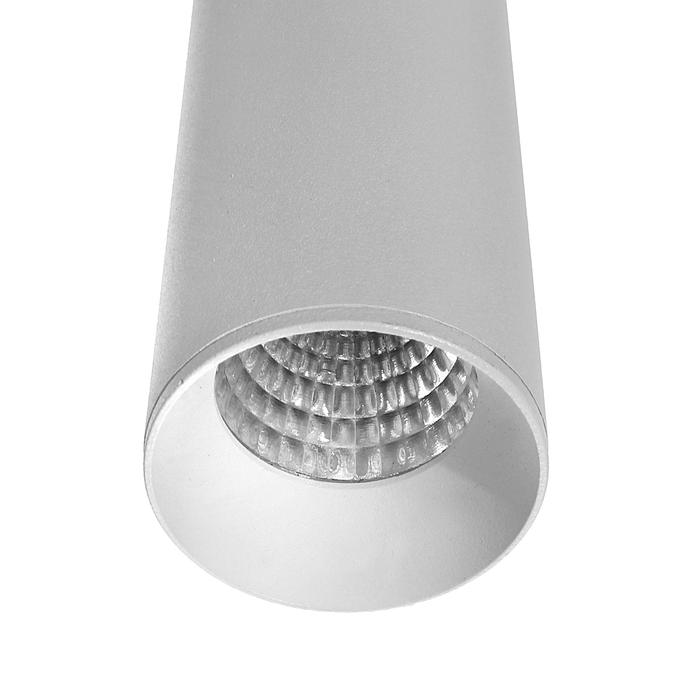

MAGNETIC ICICLE 1-3 PHASE
MAGNETIC ICICLE 1-3 PHASE

General data
ApplicationMAGNETIC TRACK 1-3 PHASE TYPE A/B
MountingSURFACE, PENDANT
Electrical data
Total Consumption [W]7, 10
Optics
TYPE OF CONTROLON/OFF
Technical data
Total Consumption [W]7, 10
Lumen Output [LM]560, 800
Efficacy lm/W80
Body MaterialALUMINIUM
Beam Angle [°]24
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80
TYPE OF CONTROLON/OFF
Body ColorBLACK, WHITE
Ingress Protection [IP]20
Downloads:
Datasheet:
1
Mounting instructions:
1
Certificates:
1
Photometric data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/ON_OFF.svg
/soft4net/img/project/icons/AD - IP/20.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_80.svg
General data
ApplicationMAGNETIC TRACK 1-3 PHASE TYPE A/B
MountingSURFACE, PENDANT
Electrical data
Total Consumption [W]7, 10
Optics
TYPE OF CONTROLON/OFF
Technical data
Total Consumption [W]7, 10
Lumen Output [LM]560, 800
Efficacy lm/W80
Body MaterialALUMINIUM
Beam Angle [°]24
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80
TYPE OF CONTROLON/OFF
Body ColorBLACK, WHITE
Ingress Protection [IP]20
Housing
Body MaterialALUMINIUM
Body ColorBLACK, WHITE
Light technical data
Total Consumption [W]7, 10
Lumen Output [LM]560, 800
Efficacy lm/W80
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80
Beam Angle [°]24
Light Distribution DIR/INDDIR
Technical data
Ingress Protection [IP]20
Generating PDF...

Variations

Item
Code
Lenght
Width
Height
Diameter
W
Lumen
Output lm
Efficacy
lm/W
Diffuser
Beam
Angle
CRI
Color K
Type of
Control
IP
Color
MAGNETIC ICICLE 7W 4000K BL 3 A/B 560lm 7W 840 400 BL IP20 ON/OFFMI1.MAG.DDCX-B.7W.BL 3A/B4004075608024804000ON/OFF20BLACK
MAGNETIC ICICLE 7W 3000K BL 3 A/B 560lm 7W 830 400 BL IP20 ON/OFFMI1.MAG.DDCX-B.7W.BL 3 A/B4004075608024803000ON/OFF20BLACK
MAGNETIC ICICLE 10W 4000K BL 3 A/B 800lm 10W 840 400 BL IP20 ON/OFFMI1.MAG.DDCX-B.10W.BL 3 A/B40040108008024804000ON/OFF20BLACK
MAGNETIC ICICLE 10W 3000K BL 3 A/B 800lm 10W 830 400 BL IP20 ON/OFFMI1.MAG.DDCX-B.10W.BL3 A/B40040108008024803000ON/OFF20BLACK
MAGNETIC ICICLE 10W 3000K BL 3 A/B 800lm 10W 830 400 WH IP20 ON/OFFMI1.MAG.DDCX-B.10W.WH3 A/B40040108008024803000ON/OFF20WHITE
MAGNETIC ICICLE 10W 4000K BL 3 A/B 800lm 10W 830 400 WH IP20 ON/OFFMI1.MAG.DDCX-B.10W.WH4 A/B40040108008024804000ON/OFF20WHITE
