MIDA 1-SINGLE DIFFUSER

MIDA 1-SINGLE DIFFUSER

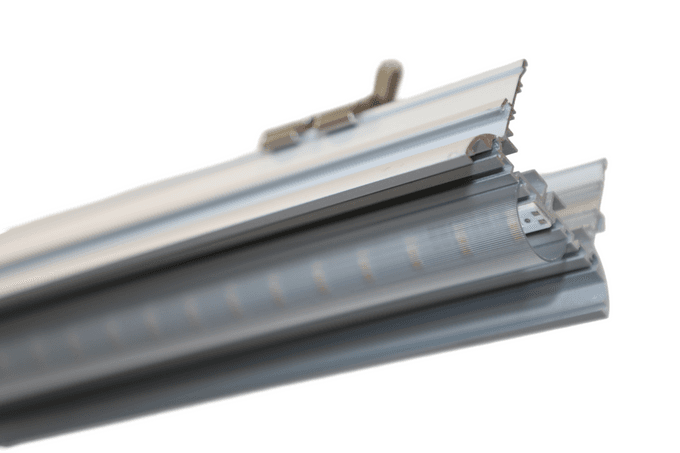

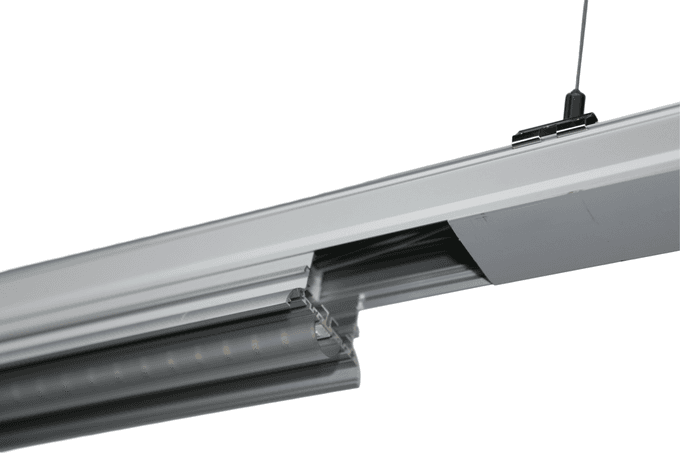

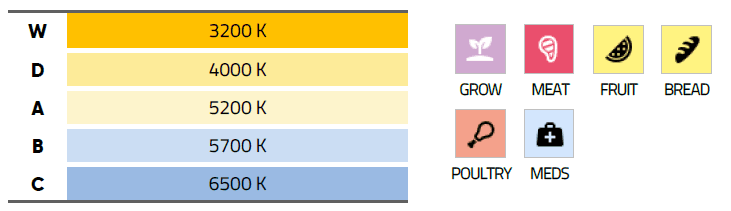

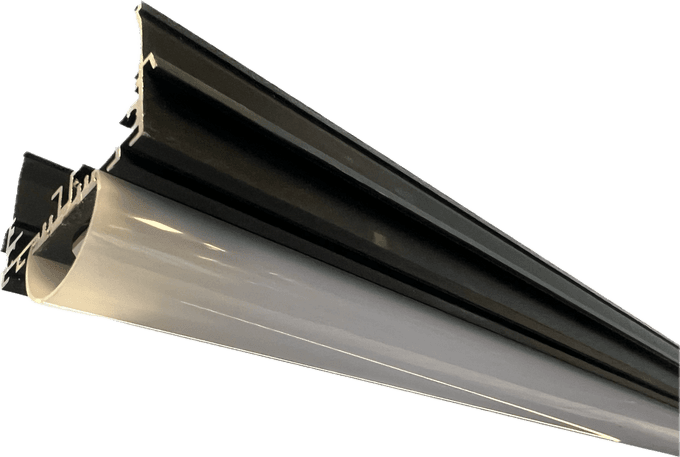

SINGLE UNIT INSTALATIONS MID luminaires can be mounted individually as suspended or surface-mounted lamps. The parameters of the fittings are each time fully optimized for the project purposes. This applies to: luminous flux, beam angles, color temperature or color rendering index, management, UGR, and even housing colors. CONTINUOUS LIGHTING LINES All luminaires from the MIC, MID, MIG, MIF families can be combined into continuous light lines for quick installation. This solution is most often used in commercial spaces and wherever high light intensity and/or uniformity are required. The cable harness (up to 15 wires) allows, similarly to the bus system, to power any supporting devices (emergency luminaires, sensors, controllers, cameras, etc.). The use of a specially developed main profile with a separate SWG cable chamber for the construction of a modular installation allows for the installation of a telecommunications, signal or control installation. Our linear system is the fastest assembled solution on the market, mainly due to the plug and play assembly solutions, the weight of the system (aluminum), the length of the sections (up to 5.8 m), the variety of accessories and supporting elements. The system is built on over 30 types of aluminum profiles developed from scratch. TRUNKING RAILS INSTALLATION Installation of lighting fittings and other devices into trunking rails is one of the basic and most popular assembly methods on storage objects, logistics places, production facilities or commercial zones. The system gives a lot of possibilities, which are: 1.5 and 2.5mm2 up to 11 wiring; delivery of rails up to 6m long which significantly speeds up the installation time; quick and plug and play installation; powering of any system components, of any manufacturer, directly from Euroline trunking.
