MIDSD 3-ROW OPTICS SQUARE
MIDSD 3-ROW OPTICS SQUARE

General data

Application	SINGLE UNIT INSTALATIONS MID luminaires can be mounted individually as suspended or surface-mounted lamps. The parameters of the fittings are each time fully optimized for the project purposes. This applies to: luminous flux, beam angles, color temperature or color rendering index, management, UGR, and even housing colors. CONTINUOUS LIGHTING LINES All luminaires from the MIC, MID, MIG, MIF families can be combined into continuous light lines for quick installation. This solution is most often used in commercial spaces and wherever high light intensity and/or uniformity are required. The cable harness (up to 15 wires) allows, similarly to the bus system, to power any supporting devices (emergency luminaires, sensors, controllers, cameras, etc.). The use of a specially developed main profile with a separate SWG cable chamber for the construction of a modular installation allows for the installation of a telecommunications, signal or control installation. Our linear system is the fastest assembled solution on the market, mainly due to the plug and play assembly solutions, the weight of the system (aluminum), the length of the sections (up to 5.8 m), the variety of accessories and supporting elements. The system is built on over 30 types of aluminum profiles developed from scratch. TRUNKING RAILS INSTALLATION Installation of lighting fittings and other devices into trunking rails is one of the basic and most popular assembly methods on storage objects, logistics places, production facilities or commercial zones. The system gives a lot of possibilities, which are: 1.5 and 2.5mm2 up to 11 wiring; delivery of rails up to 6m long which significantly speeds up the installation time; quick and plug and play installation; powering of any system components, of any manufacturer, directly from Euroline trunking.
Key Advantages	TRUNKING RAILS INSTALLATION Installation of lighting fittings and other devices into trunking rails is one of the basic and most popular assembly methods on storage objects, logistics places, production facilities or commercial zones. The system gives a lot of possibilities, which are: 1.5 and 2.5mm2 up to 11 wiring; delivery of rails up to 6m long which significantly speeds up the installation time; quick and plug and play installation; powering of any system components, of any manufacturer, directly from MILLIA trunking.
Product Shape	LINEAR, TRUNKING
Type	SINGLE, LINEAR, MODULAR
Mounting	CEILING, SURFACE, PENDANT

Electrical data

Main Feed AC [V]	220-240
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	20-300, 45-160
IEC Protection Class	I
Connector Type	WAGO
Wiring	TABLE BELOW

Optics

Diffuser Material	PMMA
Diffuser Material Design	CLEAR
TYPE OF CONTROL	ON/OFF, DALI, DIMM
CONTROL SYSTEM	EMERGENCY
LED LIFETIME Ta25 [h]	L80B10 100 000h

Technical data

Total Consumption [W]	20-300, 45-160
Lumen Output [LM]	6916 - 28224
Efficacy lm/W	Up to 190
Diffuser Material	PMMA
Body Material	ALUMINIUM

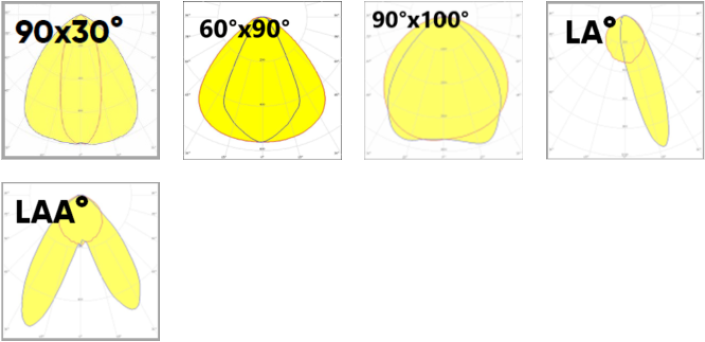

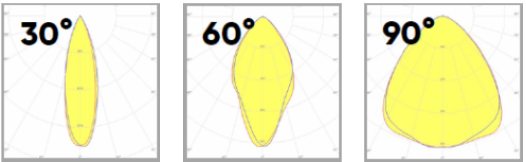

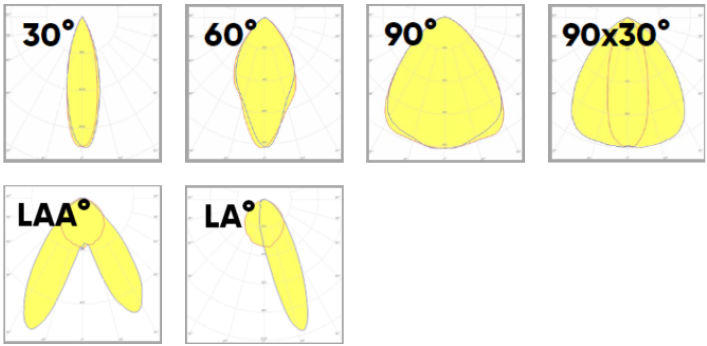

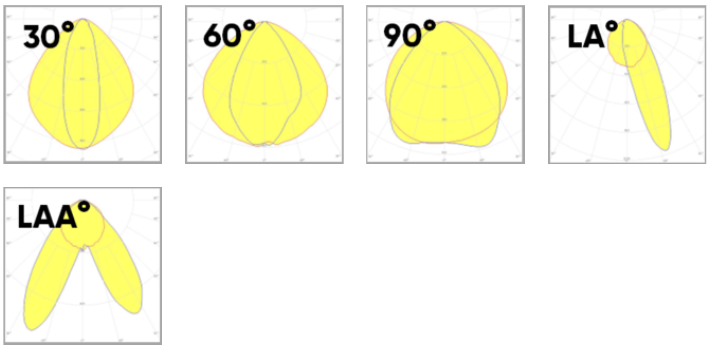

Beam Angle [°]	30°, 60°, 90°, 30°x90°, LA, LAA
Light Distribution DIR/IND	DIR

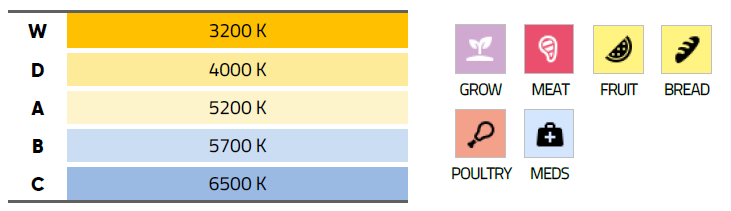

LED Color Temperature CCT [K]	3200, 4000, 5200, 5700, 6500
Color Rendering Index [CRI]	80, 90
MacAdam step	3
LED LIFETIME Ta25 [h]	L80B10 100 000h
TYPE OF CONTROL	ON/OFF, DALI, DIMM
Body Color	WHITE, SILVER, BLACK
Ingress Protection [IP]	20, 44
Mechanical Protection [IK]	09
Main Feed AC [V]	220-240

Description:

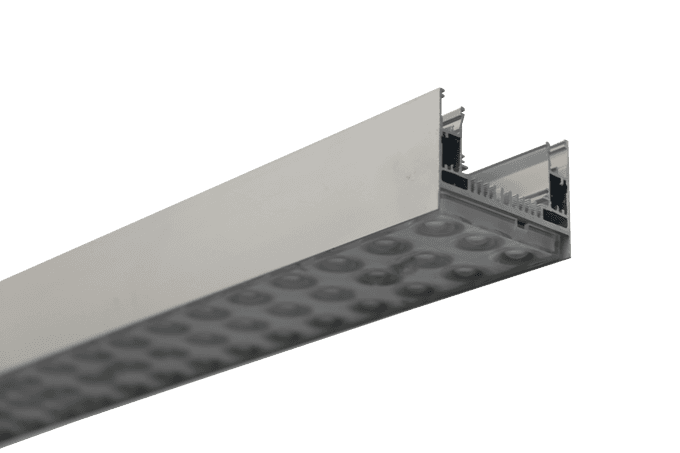

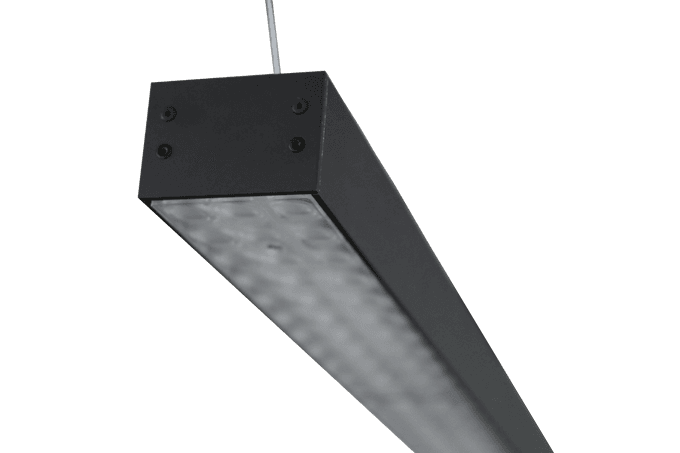

Luminaires for single installation, as a continuous quick assembly line or for installation in MIE mounting and power supply busbars. Fixtures from this product group are based on an aluminum main profile with a rectangular cross-section (straight boli). Integrated linear LED luminaire, where the diffuser is a three-row optics (sealed for IP54-IP65 classes). A wide selection of optics with different distribution angles (light bodies) allows for optimal adjustment of the direction of light incidence. A luminaire for versatile use. The parameters of the luminaires range from: length 0.58-5.8m (every 0.29m), light flux up to 48,000lm, efficiency up to 190lm/W. Depending on the configuration and equipment of the luminaire, a possible service life of up to 100,000 hours for L80B10, and operating temperature parameters -40° … +65°. Luminaires from this group can be made with tightness classes up to IP65. Luminaires configured, equipped and manufactured in accordance with the customer’s guidelines and the needs of a specific project (installation).

Key Advantages:

TRUNKING RAILS INSTALLATION Installation of lighting fittings and other devices into trunking rails is one of the basic and most popular assembly methods on storage objects, logistics places, production facilities or commercial zones. The system gives a lot of possibilities, which are: 1.5 and 2.5mm2 up to 11 wiring; delivery of rails up to 6m long which significantly speeds up the installation time; quick and plug and play installation; powering of any system components, of any manufacturer, directly from MILLIA trunking.

Downloads:

Datasheet:

Mounting instructions:

Photometric photo:

Certificates:

Photometric data:

General data

Application	SINGLE UNIT INSTALATIONS MID luminaires can be mounted individually as suspended or surface-mounted lamps. The parameters of the fittings are each time fully optimized for the project purposes. This applies to: luminous flux, beam angles, color temperature or color rendering index, management, UGR, and even housing colors. CONTINUOUS LIGHTING LINES All luminaires from the MIC, MID, MIG, MIF families can be combined into continuous light lines for quick installation. This solution is most often used in commercial spaces and wherever high light intensity and/or uniformity are required. The cable harness (up to 15 wires) allows, similarly to the bus system, to power any supporting devices (emergency luminaires, sensors, controllers, cameras, etc.). The use of a specially developed main profile with a separate SWG cable chamber for the construction of a modular installation allows for the installation of a telecommunications, signal or control installation. Our linear system is the fastest assembled solution on the market, mainly due to the plug and play assembly solutions, the weight of the system (aluminum), the length of the sections (up to 5.8 m), the variety of accessories and supporting elements. The system is built on over 30 types of aluminum profiles developed from scratch. TRUNKING RAILS INSTALLATION Installation of lighting fittings and other devices into trunking rails is one of the basic and most popular assembly methods on storage objects, logistics places, production facilities or commercial zones. The system gives a lot of possibilities, which are: 1.5 and 2.5mm2 up to 11 wiring; delivery of rails up to 6m long which significantly speeds up the installation time; quick and plug and play installation; powering of any system components, of any manufacturer, directly from Euroline trunking.
Key Advantages	TRUNKING RAILS INSTALLATION Installation of lighting fittings and other devices into trunking rails is one of the basic and most popular assembly methods on storage objects, logistics places, production facilities or commercial zones. The system gives a lot of possibilities, which are: 1.5 and 2.5mm2 up to 11 wiring; delivery of rails up to 6m long which significantly speeds up the installation time; quick and plug and play installation; powering of any system components, of any manufacturer, directly from MILLIA trunking.
Product Shape	LINEAR, TRUNKING
Type	SINGLE, LINEAR, MODULAR
Mounting	CEILING, SURFACE, PENDANT

Electrical data

Main Feed AC [V]	220-240
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	20-300, 45-160
IEC Protection Class	I
Connector Type	WAGO
Wiring	TABLE BELOW

Optics

Diffuser Material	PMMA
Diffuser Material Design	CLEAR
TYPE OF CONTROL	ON/OFF, DALI, DIMM
CONTROL SYSTEM	EMERGENCY
LED LIFETIME Ta25 [h]	L80B10 100 000h

Technical data

Total Consumption [W]	20-300, 45-160
Lumen Output [LM]	6916 - 28224
Efficacy lm/W	Up to 190
Diffuser Material	PMMA
Body Material	ALUMINIUM
Beam Angle [°]	30°, 60°, 90°, 30°x90°, LA, LAA
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	3200, 4000, 5200, 5700, 6500
Color Rendering Index [CRI]	80, 90
MacAdam step	3
LED LIFETIME Ta25 [h]	L80B10 100 000h
TYPE OF CONTROL	ON/OFF, DALI, DIMM
Body Color	WHITE, SILVER, BLACK
Ingress Protection [IP]	20, 44
Mechanical Protection [IK]	09
Main Feed AC [V]	220-240

Housing

Body Material	ALUMINIUM
Body Color	WHITE, SILVER, BLACK
RAL	ANY ON REQUEST
Finish	POWDER COATING

Light technical data

Light Source	LED
Total Consumption [W]	20-300, 45-160
Lumen Output [LM]	6916 - 28224
Efficacy lm/W	Up to 190
LED Color Temperature CCT [K]	3200, 4000, 5200, 5700, 6500
Color Rendering Index [CRI]	80, 90
UGR	<22
MacAdam step	3
Beam Angle [°]	30°, 60°, 90°, 30°x90°, LA, LAA
Light Distribution DIR/IND	DIR

Technical data

TA [°C]	-25 to +35
Ingress Protection [IP]	20, 44
Mechanical Protection [IK]	09

Variations

Item	Code	Lenght	Width	Height	W	Lumen Output lm	Efficacy lm/W	Diffuser	Beam Angle	CRI	Color K	Type of Control	IP	Color
MIDSD.3.17.09 3-ROW OPTICS SQUARE PC 3400-48000lm 20-300W 827 860 si bl wh IP20 - 44 ON/OFF	MIDSD.3.17.09	860	80	48	20-300	3400-48000	UP TO 190	PC	30°	80	2700 - 6500 / SP	ON/OFF DALI	20 - 44	SILVER BLACK WHITE
MIDSD.3.17.12 3-ROW OPTICS SQUARE PC 6916-28224lm 45-160W 827 1145 si bl wh IP20 - 44 ON/OFF	MIDSD.3.17.12	1145	80	48	45-160	6916-28224	UP TO 190	PC	30°	80	2700 - 6500 / SP	ON/OFF DALI	20 - 44	SILVER BLACK WHITE
MIDSD.3.17.14 3-ROW OPTICS SQUARE PC 6916-28224lm 45-160W 827 1440 si bl wh IP20 - 44 ON/OFF	MIDSD.3.17.14	1440	80	48	45-160	6916-28224	UP TO 190	PC	30°	80	2700 - 6500 / SP	ON/OFF DALI	20 - 44	SILVER BLACK WHITE
MIDSD.3.17.17 3-ROW OPTICS SQUARE PC 6916-28224lm 45-160W 827 1720 si bl wh IP20 - 44 ON/OFF	MIDSD.3.17.17	1720	80	48	45-160	6916-28224	UP TO 190	PC	30°	80	2700 - 6500 / SP	ON/OFF DALI	20 - 44	SILVER BLACK WHITE
MIDSD.3.17.20 3-ROW OPTICS SQUARE PC 6916-28224lm 45-160W 827 2002 si bl wh IP20 - 44 ON/OFF	MIDSD.3.17.20	2002	80	48	45-160	6916-28224	UP TO 190	PC	30°	80	2700 - 6500 / SP	ON/OFF DALI	20 - 44	SILVER BLACK WHITE
MIDSD.3.17.23 3-ROW OPTICS SQUARE PC 6916-28224lm 45-160W 827 2290 si bl wh IP20 - 44 ON/OFF	MIDSD.3.17.23	2290	80	48	45-160	6916-28224	UP TO 190	PC	30°	80	2700 - 6500 / SP	ON/OFF DALI	20 - 44	SILVER BLACK WHITE
MIDSD.3.17.28 3-ROW OPTICS SQUARE PC 6916-28224lm 45-160W 827 2860 si bl wh IP20 - 44 ON/OFF	MIDSD.3.17.28	2860	80	48	45-160	6916-28224	UP TO 190	PC	30°	80	2700 - 6500 / SP	ON/OFF DALI	20 - 44	SILVER BLACK WHITE
MIDSD.3.17.34 3-ROW OPTICS SQUARE PC 6916-28224lm 45-160W 827 3435 si bl wh IP20 - 44 ON/OFF	MIDSD.3.17.34	3435	80	48	45-160	6916-28224	UP TO 190	PC	30°	80	2700 - 6500 / SP	ON/OFF DALI	20 - 44	SILVER BLACK WHITE
MIDSD.3.17.40 3-ROW OPTICS SQUARE PC 6916-28224lm 45-160W 827 4008 si bl wh IP20 - 44 ON/OFF	MIDSD.3.17.40	4008	80	48	45-160	6916-28224	UP TO 190	PC	30°	80	2700 - 6500 / SP	ON/OFF DALI	20 - 44	SILVER BLACK WHITE
