MS4065 OPAL
MS4065 OPAL

General data

Application	Effortless assembly and versatile installation options, unlocking endless creative possibilities for interior spaces. It's modern aesthetic and streamlined construction make it the perfect choice for both general and decorative lighting, seamlessly enhancing spaces from residential homes to public areas.
Key Advantages	PC OPAL diffuser ensures uniform light emission without shadow effect. Designed for convenience, it offers a cost-effective solution with easy transportation and compact storage. Options: CRI90 values may differ with a tolerance of ±10% Non-dimmable / 0-10V dimming / DALI dimming / Triac dimming / PUSH dimming / PWM dimming / sensor and smart control Emergency version available Temperature [K] available on request 2700\|3000\|4000\|5000\|5700\|6500 Interchangeable CCT between 2700K to 6500K with slide switch available on request Choose mounting accessories SURFACE, PENDANT, RECESSED-TRIMLESS
Product Shape	Linear
Type	Linear
Mounting	Surface, Pendant

Electrical data

Main Feed AC [V]	220-240V AC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	15 – 45
IEC Protection Class	I

Optics

Diffuser Material	PMMA
Diffuser Material Design	OPAL
TYPE OF CONTROL	ON/OFF, DALI
CONTROL SYSTEM	ON/OFF, DALI
LED LIFETIME Ta25 [h]	L80B50 ≥ 75 000h

Technical data

Total Consumption [W]	15 – 45
Lumen Output [LM]	1800 – 5400
Efficacy lm/W	120
Diffuser Material	PMMA
Body Material	AL6063-T5
Beam Angle [°]	110
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	3000, 4000
Color Rendering Index [CRI]	80, 90
MacAdam step	<3
LED LIFETIME Ta25 [h]	L80B50 ≥ 75 000h
TYPE OF CONTROL	ON/OFF, DALI
Body Color	WHITE, BLACK, SILVER
Ingress Protection [IP]	20
Mechanical Protection [IK]	7
Main Feed AC [V]	220-240V AC

Description:

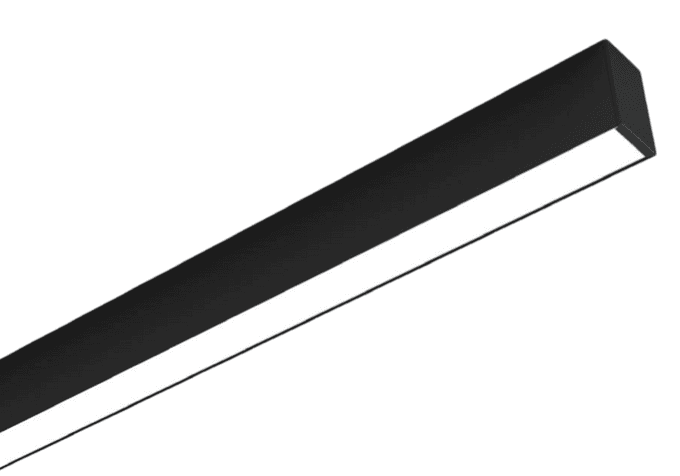

MS40 OPAL linear is an elegant and timeless linear system designed to create stunning arrangements in any interior.
The modular linear system features versatile connection options, allowing endless installation possibilities for the end user.

Key Advantages:

PC OPAL diffuser ensures uniform light emission without shadow effect.
Designed for convenience, it offers a cost-effective solution with easy transportation and compact storage.

Options:

CRI90 values may differ with a tolerance of ±10%
Non-dimmable / 0-10V dimming / DALI dimming / Triac dimming / PUSH dimming / PWM dimming / sensor and smart control
Emergency version available
Temperature [K] available on request 2700|3000|4000|5000|5700|6500
Interchangeable CCT between 2700K to 6500K with slide switch available on request
Choose mounting accessories SURFACE, PENDANT, RECESSED-TRIMLESS

Downloads:

Datasheet:

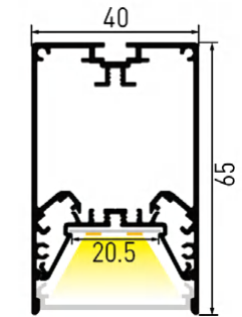

Technical illustrations:

Mounting instructions:

Certificates:

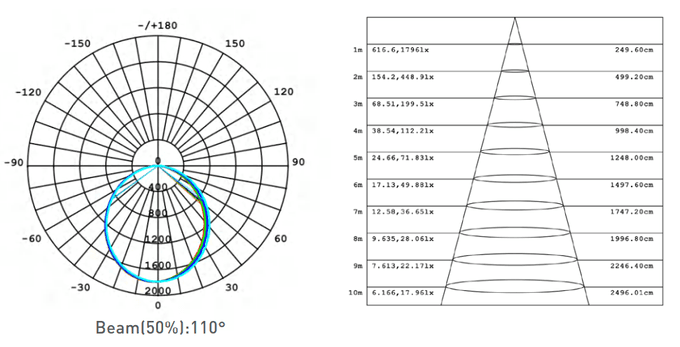

Photometric data:

General data

Application	Effortless assembly and versatile installation options, unlocking endless creative possibilities for interior spaces. It's modern aesthetic and streamlined construction make it the perfect choice for both general and decorative lighting, seamlessly enhancing spaces from residential homes to public areas.
Key Advantages	PC OPAL diffuser ensures uniform light emission without shadow effect. Designed for convenience, it offers a cost-effective solution with easy transportation and compact storage. Options: CRI90 values may differ with a tolerance of ±10% Non-dimmable / 0-10V dimming / DALI dimming / Triac dimming / PUSH dimming / PWM dimming / sensor and smart control Emergency version available Temperature [K] available on request 2700\|3000\|4000\|5000\|5700\|6500 Interchangeable CCT between 2700K to 6500K with slide switch available on request Choose mounting accessories SURFACE, PENDANT, RECESSED-TRIMLESS
Product Shape	Linear
Type	Linear
Mounting	Surface, Pendant

Electrical data

Main Feed AC [V]	220-240V AC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	15 – 45
IEC Protection Class	I

Optics

Diffuser Material	PMMA
Diffuser Material Design	OPAL
TYPE OF CONTROL	ON/OFF, DALI
CONTROL SYSTEM	ON/OFF, DALI
LED LIFETIME Ta25 [h]	L80B50 ≥ 75 000h

Technical data

Total Consumption [W]	15 – 45
Lumen Output [LM]	1800 – 5400
Efficacy lm/W	120
Diffuser Material	PMMA
Body Material	AL6063-T5
Beam Angle [°]	110
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	3000, 4000
Color Rendering Index [CRI]	80, 90
MacAdam step	<3
LED LIFETIME Ta25 [h]	L80B50 ≥ 75 000h
TYPE OF CONTROL	ON/OFF, DALI
Body Color	WHITE, BLACK, SILVER
Ingress Protection [IP]	20
Mechanical Protection [IK]	7
Main Feed AC [V]	220-240V AC

Housing

Body Material	AL6063-T5
Body Color	WHITE, BLACK, SILVER

Light technical data

Light Source	LED
Total Consumption [W]	15 – 45
Lumen Output [LM]	1800 – 5400
Efficacy lm/W	120
LED Color Temperature CCT [K]	3000, 4000
Color Rendering Index [CRI]	80, 90
UGR	<24
MacAdam step	<3
Beam Angle [°]	110
Light Distribution DIR/IND	DIR

Technical data

TA [°C]	-20 to +45
Ingress Protection [IP]	20
Mechanical Protection [IK]	7

Variations

Item	Code	Lenght	Width	Height	W	Lumen Output lm	Efficacy lm/W	Diffuser	Beam Angle	CRI	Color K	Type of Control	IP	Color
MS4065S-NO OPAL 1800lm 15W 840 600 Wh IP20 ON/OFF	MI8907494	600	40	65	15	1800	120	OPAL	110	80	4000	ON/OFF	20	WHITE
MS4065S-NO OPAL 1800lm 15W 830 600 Wh IP20 ON/OFF	MI3652680	600	40	65	15	1800	120	OPAL	110	80	3000	ON/OFF	20	WHITE
MS4065S-NO OPAL 1800lm 15W 840 600 Wh IP20 DALI	MI9415575	600	40	65	15	1800	120	OPAL	110	80	4000	DALI	20	WHITE
MS4065S-NO OPAL 1800lm 15W 830 600 Wh IP20 DALI	MI9045662	600	40	65	15	1800	120	OPAL	110	80	3000	DALI	20	WHITE
MS4065S-NO OPAL 1800lm 15W 840 600 Bl IP20 ON/OFF	MI5144396	600	40	65	15	1800	120	OPAL	110	80	4000	ON/OFF	20	BLACK
MS4065S-NO OPAL 1800lm 15W 830 600 Bl IP20 ON/OFF	MI3957780	600	40	65	15	1800	120	OPAL	110	80	3000	ON/OFF	20	BLACK
MS4065S-NO OPAL 1800lm 15W 840 600 Bl IP20 DALI	MI632368	600	40	65	15	1800	120	OPAL	110	80	4000	DALI	20	BLACK
MS4065S-NO OPAL 1800lm 15W 830 600 Bl IP20 DALI	MI7725646	600	40	65	15	1800	120	OPAL	110	80	3000	DALI	20	BLACK
MS4065S-NO OPAL 1800lm 15W 840 600 Si IP20 ON/OFF	MI9314669	600	40	65	15	1800	120	OPAL	110	80	4000	ON/OFF	20	SILVER
MS4065S-NO OPAL 1800lm 15W 830 600 Si IP20 ON/OFF	MI7836723	600	40	65	15	1800	120	OPAL	110	80	3000	ON/OFF	20	SILVER
MS4065S-NO OPAL 1800lm 15W 840 600 Si IP20 DALI	MI5804391	600	40	65	15	1800	120	OPAL	110	80	4000	DALI	20	SILVER
MS4065S-NO OPAL 1800lm 15W 830 600 Si IP20 DALI	MI8183999	600	40	65	15	1800	120	OPAL	110	80	3000	DALI	20	SILVER
MS4065S-NO OPAL 2400lm 20W 840 800 Wh IP20 ON/OFF	MI1691979	800	40	65	20	2400	120	OPAL	110	80	4000	ON/OFF	20	WHITE
MS4065S-NO OPAL 2400lm 20W 830 800 Wh IP20 ON/OFF	MI2909998	800	40	65	20	2400	120	OPAL	110	80	3000	ON/OFF	20	WHITE
MS4065S-NO OPAL 2400lm 20W 840 800 Wh IP20 DALI	MI4250690	800	40	65	20	2400	120	OPAL	110	80	4000	DALI	20	WHITE
MS4065S-NO OPAL 2400lm 20W 830 800 Wh IP20 DALI	MI520975	800	40	65	20	2400	120	OPAL	110	80	3000	DALI	20	WHITE
MS4065S-NO OPAL 2400lm 20W 840 800 Bl IP20 ON/OFF	MI3336124	800	40	65	20	2400	120	OPAL	110	80	4000	ON/OFF	20	BLACK
MS4065S-NO OPAL 2400lm 20W 830 800 Bl IP20 ON/OFF	MI6906204	800	40	65	20	2400	120	OPAL	110	80	3000	ON/OFF	20	BLACK
MS4065S-NO OPAL 2400lm 20W 840 800 Bl IP20 DALI	MI8359534	800	40	65	20	2400	120	OPAL	110	80	4000	DALI	20	BLACK
MS4065S-NO OPAL 2400lm 20W 830 800 Bl IP20 DALI	MI793652	800	40	65	20	2400	120	OPAL	110	80	3000	DALI	20	BLACK
MS4065S-NO OPAL 2400lm 20W 840 800 Si IP20 ON/OFF	MI4211530	800	40	65	20	2400	120	OPAL	110	80	4000	ON/OFF	20	SILVER
MS4065S-NO OPAL 2400lm 20W 830 800 Si IP20 ON/OFF	MI9297341	800	40	65	20	2400	120	OPAL	110	80	3000	ON/OFF	20	SILVER
MS4065S-NO OPAL 2400lm 20W 840 800 Si IP20 DALI	MI1025379	800	40	65	20	2400	120	OPAL	110	80	4000	DALI	20	SILVER
MS4065S-NO OPAL 2400lm 20W 830 800 Si IP20 DALI	MI1661661	800	40	65	20	2400	120	OPAL	110	80	3000	DALI	20	SILVER
MS4065S-NO OPAL 3000lm 25W 840 1000 Wh IP20 ON/OFF	MI2181182	1000	40	65	25	3000	120	OPAL	110	80	4000	ON/OFF	20	WHITE
