MS4065 RF
MS4065 RF

General data

Application	Effortless assembly and versatile installation options, unlocking endless creative possibilities for interior spaces. It's modern aesthetic and streamlined construction make it the perfect choice for both general and decorative lighting, seamlessly enhancing spaces from residential homes to public areas.
Key Advantages	Reflector cup design for low <19 UGR. Designed for convenience, it offers a cost-effective solution with easy transportation and compact storage. Options: CRI90 values may differ with a tolerance of ±10% Non-dimmable / 0-10V dimming / DALI dimming / Triac dimming / PUSH dimming / PWM dimming / sensor and smart control Emergency version available Temperature [K] available on request 2700\|3000\|4000\|5000\|5700\|6500 Interchangeable CCT between 2700K to 6500K with slide switch available on request Choose mounting accessories SURFACE, PENDANT, RECESSED-TRIMLESS
Product Shape	Linear
Type	Linear
Mounting	Surface, Pendant

Electrical data

Main Feed AC [V]	220-240V AC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	5 – 38
IEC Protection Class	I

Optics

Diffuser Material	PMMA
Diffuser Material Design	REFLECTOR-CUP
TYPE OF CONTROL	ON/OFF, DALI
CONTROL SYSTEM	ON/OFF, DALI
LED LIFETIME Ta25 [h]	L80B50 ≥ 75 000h

Technical data

Total Consumption [W]	5 – 38
Lumen Output [LM]	450 – 3420
Efficacy lm/W	90
Diffuser Material	PMMA
Body Material	AL6063-T5
Beam Angle [°]	24°, 38°, 50°, 90°x90°, 35°x75°
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	3000, 4000
Color Rendering Index [CRI]	80, 90
MacAdam step	<3
LED LIFETIME Ta25 [h]	L80B50 ≥ 75 000h
TYPE OF CONTROL	ON/OFF, DALI
Body Color	WHITE, BLACK, SILVER
Ingress Protection [IP]	20
Mechanical Protection [IK]	7
Main Feed AC [V]	220-240V AC

Description:

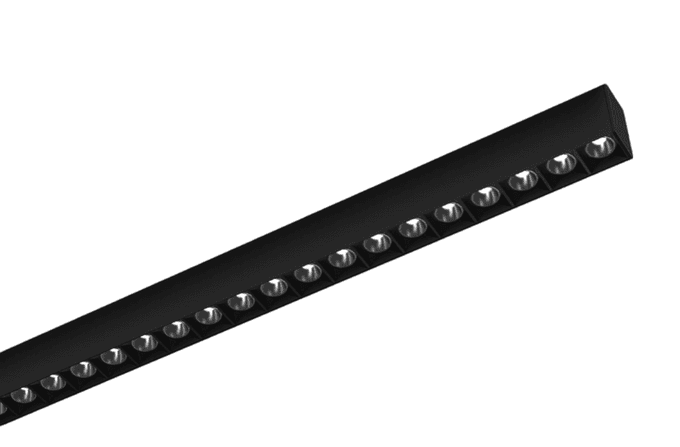

MS40 RF LINEAR with a reflector cup design to ensure low <19 UGR.
An elegant and timeless linear system designed to create stunning arrangements in any interior.
The modular linear system features versatile connection options, allowing endless installation possibilities for the end user.

Key Advantages:

Reflector cup design for low <19 UGR.
Designed for convenience, it offers a cost-effective solution with easy transportation and compact storage.

Options:

CRI90 values may differ with a tolerance of ±10%
Non-dimmable / 0-10V dimming / DALI dimming / Triac dimming / PUSH dimming / PWM dimming / sensor and smart control
Emergency version available
Temperature [K] available on request 2700|3000|4000|5000|5700|6500
Interchangeable CCT between 2700K to 6500K with slide switch available on request
Choose mounting accessories SURFACE, PENDANT, RECESSED-TRIMLESS

Downloads:

Datasheet:

Technical illustrations:

Mounting instructions:

Certificates:

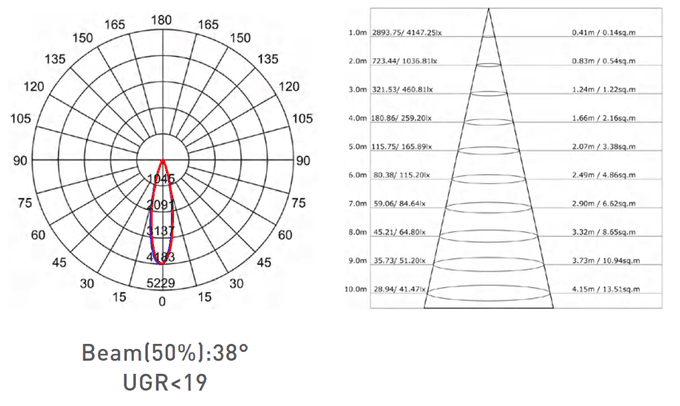

Photometric data:

General data

Application	Effortless assembly and versatile installation options, unlocking endless creative possibilities for interior spaces. It's modern aesthetic and streamlined construction make it the perfect choice for both general and decorative lighting, seamlessly enhancing spaces from residential homes to public areas.
Key Advantages	Reflector cup design for low <19 UGR. Designed for convenience, it offers a cost-effective solution with easy transportation and compact storage. Options: CRI90 values may differ with a tolerance of ±10% Non-dimmable / 0-10V dimming / DALI dimming / Triac dimming / PUSH dimming / PWM dimming / sensor and smart control Emergency version available Temperature [K] available on request 2700\|3000\|4000\|5000\|5700\|6500 Interchangeable CCT between 2700K to 6500K with slide switch available on request Choose mounting accessories SURFACE, PENDANT, RECESSED-TRIMLESS
Product Shape	Linear
Type	Linear
Mounting	Surface, Pendant

Electrical data

Main Feed AC [V]	220-240V AC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	5 – 38
IEC Protection Class	I

Optics

Diffuser Material	PMMA
Diffuser Material Design	REFLECTOR-CUP
TYPE OF CONTROL	ON/OFF, DALI
CONTROL SYSTEM	ON/OFF, DALI
LED LIFETIME Ta25 [h]	L80B50 ≥ 75 000h

Technical data

Total Consumption [W]	5 – 38
Lumen Output [LM]	450 – 3420
Efficacy lm/W	90
Diffuser Material	PMMA
Body Material	AL6063-T5
Beam Angle [°]	24°, 38°, 50°, 90°x90°, 35°x75°
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	3000, 4000
Color Rendering Index [CRI]	80, 90
MacAdam step	<3
LED LIFETIME Ta25 [h]	L80B50 ≥ 75 000h
TYPE OF CONTROL	ON/OFF, DALI
Body Color	WHITE, BLACK, SILVER
Ingress Protection [IP]	20
Mechanical Protection [IK]	7
Main Feed AC [V]	220-240V AC

Housing

Body Material	AL6063-T5
Body Color	WHITE, BLACK, SILVER

Light technical data

Light Source	LED
Total Consumption [W]	5 – 38
Lumen Output [LM]	450 – 3420
Efficacy lm/W	90
LED Color Temperature CCT [K]	3000, 4000
Color Rendering Index [CRI]	80, 90
UGR	<19
MacAdam step	<3
Beam Angle [°]	24°, 38°, 50°, 90°x90°, 35°x75°
Light Distribution DIR/IND	DIR

Technical data

TA [°C]	-20 to +45
Ingress Protection [IP]	20
Mechanical Protection [IK]	7

Variations

Item	Code	Lenght	Width	Height	W	Lumen Output lm	Efficacy lm/W	Diffuser	Beam Angle	CRI	Color K	Type of Control	IP	Color
MS4065S-RF RF 450lm 5W 840 190 Wh IP20 ON/OFF	MI9934958	190	40	65	5	450	90	RF	24	80	4000	ON/OFF	20	WHITE
MS4065S-RF RF 450lm 5W 830 190 Wh IP20 ON/OFF	MI9860076	190	40	65	5	450	90	RF	24	80	3000	ON/OFF	20	WHITE
MS4065S-RF RF 450lm 5W 840 190 Wh IP20 DALI	MI4423994	190	40	65	5	450	90	RF	24	80	4000	DALI	20	WHITE
MS4065S-RF RF 450lm 5W 830 190 Wh IP20 DALI	MI1094791	190	40	65	5	450	90	RF	24	80	3000	DALI	20	WHITE
MS4065S-RF RF 450lm 5W 840 190 Bl IP20 ON/OFF	MI8582448	190	40	65	5	450	90	RF	24	80	4000	ON/OFF	20	BLACK
MS4065S-RF RF 450lm 5W 830 190 Bl IP20 ON/OFF	MI4963572	190	40	65	5	450	90	RF	24	80	3000	ON/OFF	20	BLACK
MS4065S-RF RF 450lm 5W 840 190 Bl IP20 DALI	MI5589265	190	40	65	5	450	90	RF	24	80	4000	DALI	20	BLACK
MS4065S-RF RF 450lm 5W 830 190 Bl IP20 DALI	MI9764433	190	40	65	5	450	90	RF	24	80	3000	DALI	20	BLACK
MS4065S-RF RF 450lm 5W 840 190 Si IP20 ON/OFF	MI3678609	190	40	65	5	450	90	RF	24	80	4000	ON/OFF	20	SILVER
MS4065S-RF RF 450lm 5W 830 190 Si IP20 ON/OFF	MI3511430	190	40	65	5	450	90	RF	24	80	3000	ON/OFF	20	SILVER
MS4065S-RF RF 450lm 5W 840 190 Si IP20 DALI	MI4349122	190	40	65	5	450	90	RF	24	80	4000	DALI	20	SILVER
MS4065S-RF RF 450lm 5W 830 190 Si IP20 DALI	MI8982138	190	40	65	5	450	90	RF	24	80	3000	DALI	20	SILVER
MS4065S-RF RF 1350lm 15W 840 570 Wh IP20 ON/OFF	MI9639355	570	40	65	15	1350	90	RF	24	80	4000	ON/OFF	20	WHITE
MS4065S-RF RF 1350lm 15W 830 570 Wh IP20 ON/OFF	MI5908188	570	40	65	15	1350	90	RF	24	80	3000	ON/OFF	20	WHITE
MS4065S-RF RF 1350lm 15W 840 570 Wh IP20 DALI	MI5619108	570	40	65	15	1350	90	RF	24	80	4000	DALI	20	WHITE
MS4065S-RF RF 1350lm 15W 830 570 Wh IP20 DALI	MI5201173	570	40	65	15	1350	90	RF	24	80	3000	DALI	20	WHITE
MS4065S-RF RF 1350lm 15W 840 570 Bl IP20 ON/OFF	MI3570988	570	40	65	15	1350	90	RF	24	80	4000	ON/OFF	20	BLACK
MS4065S-RF RF 1350lm 15W 830 570 Bl IP20 ON/OFF	MI5295192	570	40	65	15	1350	90	RF	24	80	3000	ON/OFF	20	BLACK
MS4065S-RF RF 1350lm 15W 840 570 Bl IP20 DALI	MI8111794	570	40	65	15	1350	90	RF	24	80	4000	DALI	20	BLACK
MS4065S-RF RF 1350lm 15W 830 570 Bl IP20 DALI	MI5865056	570	40	65	15	1350	90	RF	24	80	3000	DALI	20	BLACK
MS4065S-RF RF 1350lm 15W 840 570 Si IP20 ON/OFF	MI8318508	570	40	65	15	1350	90	RF	24	80	4000	ON/OFF	20	SILVER
MS4065S-RF RF 1350lm 15W 830 570 Si IP20 ON/OFF	MI7827780	570	40	65	15	1350	90	RF	24	80	3000	ON/OFF	20	SILVER
MS4065S-RF RF 1350lm 15W 840 570 Si IP20 DALI	MI6512284	570	40	65	15	1350	90	RF	24	80	4000	DALI	20	SILVER
MS4065S-RF RF 1350lm 15W 830 570 Si IP20 DALI	MI9338905	570	40	65	15	1350	90	RF	24	80	3000	DALI	20	SILVER
MS4065S-RF RF 2250lm 25W 840 950 Wh IP20 ON/OFF	MI1206540	950	40	65	25	2250	90	RF	24	80	4000	ON/OFF	20	WHITE
