MS5475 LENS
MS5475 LENS

General data

Application	Effortless assembly and versatile installation options, unlocking endless creative possibilities for interior spaces. It's modern aesthetic and streamlined construction make it the perfect choice for both general and decorative lighting, seamlessly enhancing spaces from residential homes to public areas.
Key Advantages	LENS design for low <19 UGR. Designed for convenience, it offers a cost-effective solution with easy transportation and compact storage. Options: CRI90 values may differ with a tolerance of ±10% Non-dimmable / 0-10V dimming / DALI dimming / Triac dimming / PUSH dimming / PWM dimming / sensor and smart control Emergency version available Temperature [K] available on request 2700\|3000\|4000\|5000\|5700\|6500 Interchangeable CCT between 2700K to 6500K with slide switch available on request Choose mounting accessories SURFACE, PENDANT, RECESSED-TRIMLESS
Product Shape	Linear
Type	Linear
Mounting	Surface, Pendant

Electrical data

Main Feed AC [V]	220-240V AC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	18 – 54
IEC Protection Class	I

Optics

Diffuser Material	PMMA
Diffuser Material Design	LENS
TYPE OF CONTROL	ON/OFF, DALI
CONTROL SYSTEM	ON/OFF, DALI
LED LIFETIME Ta25 [h]	L80B50 ≥ 75 000h

Technical data

Total Consumption [W]	18 – 54
Lumen Output [LM]	2700 – 8100
Efficacy lm/W	150
Diffuser Material	PMMA
Body Material	AL6063-T5
Beam Angle [°]	80
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	3000, 4000
Color Rendering Index [CRI]	80, 90
MacAdam step	<3
LED LIFETIME Ta25 [h]	L80B50 ≥ 75 000h
TYPE OF CONTROL	ON/OFF, DALI
Body Color	WHITE, BLACK, SILVER
Ingress Protection [IP]	20
Mechanical Protection [IK]	7
Main Feed AC [V]	220-240V AC

Description:

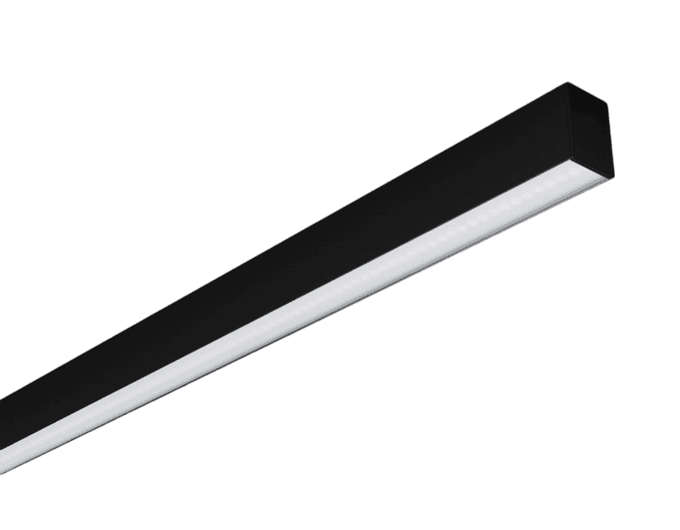

MS5475 LENS linear with lens design to ensure low <19 UGR. An elegant and timeless linear system designed to create stunning arrangements in any interior. The modular linear system features versatile connection options, allowing endless installation possibilities for the end user.

Key Advantages:

LENS design for low <19 UGR.
Designed for convenience, it offers a cost-effective solution with easy transportation and compact storage.

Options:

CRI90 values may differ with a tolerance of ±10%
Non-dimmable / 0-10V dimming / DALI dimming / Triac dimming / PUSH dimming / PWM dimming / sensor and smart control
Emergency version available
Temperature [K] available on request 2700|3000|4000|5000|5700|6500
Interchangeable CCT between 2700K to 6500K with slide switch available on request

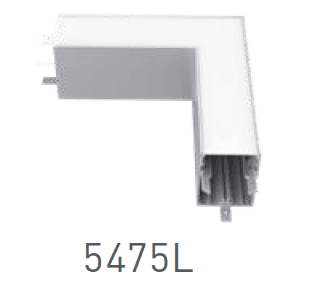

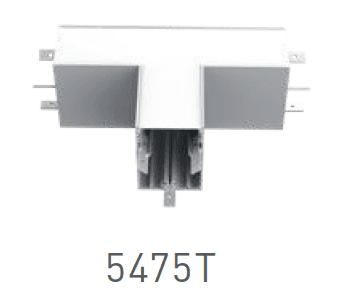

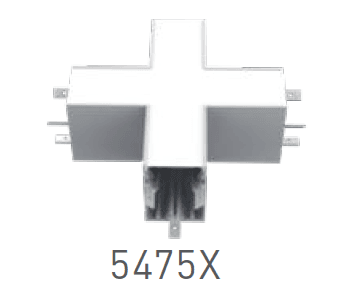

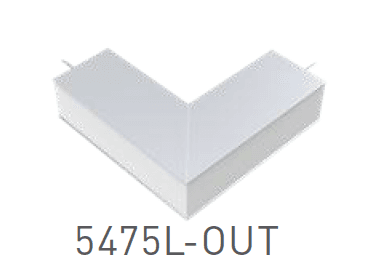

Choose mounting accessories SURFACE, PENDANT, RECESSED-TRIMLESS

Downloads:

Datasheet:

Technical illustrations:

Mounting instructions:

Certificates:

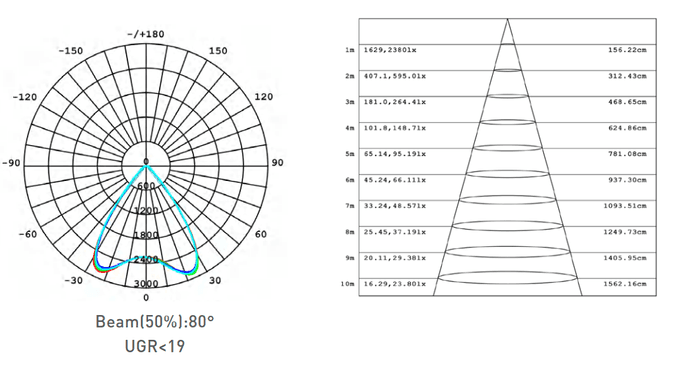

Photometric data:

General data

Application	Effortless assembly and versatile installation options, unlocking endless creative possibilities for interior spaces. It's modern aesthetic and streamlined construction make it the perfect choice for both general and decorative lighting, seamlessly enhancing spaces from residential homes to public areas.
Key Advantages	LENS design for low <19 UGR. Designed for convenience, it offers a cost-effective solution with easy transportation and compact storage. Options: CRI90 values may differ with a tolerance of ±10% Non-dimmable / 0-10V dimming / DALI dimming / Triac dimming / PUSH dimming / PWM dimming / sensor and smart control Emergency version available Temperature [K] available on request 2700\|3000\|4000\|5000\|5700\|6500 Interchangeable CCT between 2700K to 6500K with slide switch available on request Choose mounting accessories SURFACE, PENDANT, RECESSED-TRIMLESS
Product Shape	Linear
Type	Linear
Mounting	Surface, Pendant

Electrical data

Main Feed AC [V]	220-240V AC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	18 – 54
IEC Protection Class	I

Optics

Diffuser Material	PMMA
Diffuser Material Design	LENS
TYPE OF CONTROL	ON/OFF, DALI
CONTROL SYSTEM	ON/OFF, DALI
LED LIFETIME Ta25 [h]	L80B50 ≥ 75 000h

Technical data

Total Consumption [W]	18 – 54
Lumen Output [LM]	2700 – 8100
Efficacy lm/W	150
Diffuser Material	PMMA
Body Material	AL6063-T5
Beam Angle [°]	80
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	3000, 4000
Color Rendering Index [CRI]	80, 90
MacAdam step	<3
LED LIFETIME Ta25 [h]	L80B50 ≥ 75 000h
TYPE OF CONTROL	ON/OFF, DALI
Body Color	WHITE, BLACK, SILVER
Ingress Protection [IP]	20
Mechanical Protection [IK]	7
Main Feed AC [V]	220-240V AC

Housing

Body Material	AL6063-T5
Body Color	WHITE, BLACK, SILVER

Light technical data

Total Consumption [W]	18 – 54
Lumen Output [LM]	2700 – 8100
Efficacy lm/W	150
LED Color Temperature CCT [K]	3000, 4000
Color Rendering Index [CRI]	80, 90
UGR	<19
MacAdam step	<3
Beam Angle [°]	80
Light Distribution DIR/IND	DIR

Technical data

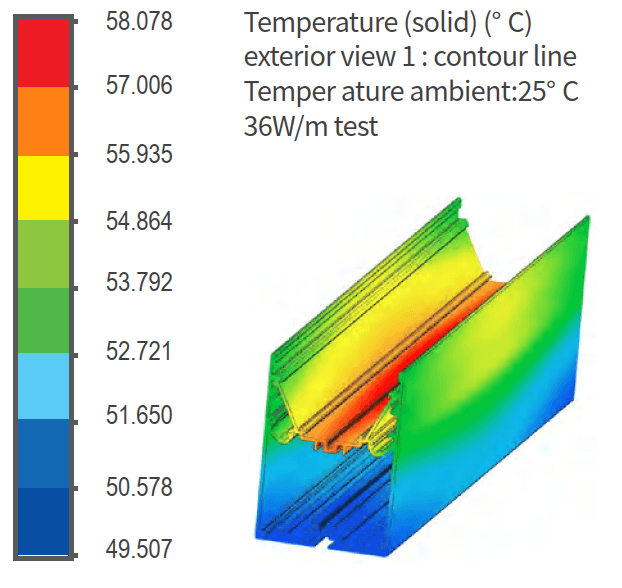

TA [°C]	-20 to +45
Ingress Protection [IP]	20
Mechanical Protection [IK]	7

Variations

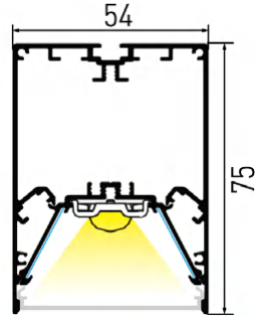

Item	Code	Lenght	Width	Height	W	Lumen Output lm	Efficacy lm/W	Diffuser	Beam Angle	CRI	Color K	Type of Control	IP	Color
MS5475S-LE LENS 2700lm 18W 840 600 Wh IP20 ON/OFF	MI4050390	600	54	75	18	2700	150	LENS	80	80	4000	ON/OFF	20	WHITE
MS5475S-LE LENS 2700lm 18W 830 600 Wh IP20 ON/OFF	MI2637565	600	54	75	18	2700	150	LENS	80	80	3000	ON/OFF	20	WHITE
MS5475S-LE LENS 2700lm 18W 840 600 Wh IP20 DALI	MI7523855	600	54	75	18	2700	150	LENS	80	80	4000	DALI	20	WHITE
MS5475S-LE LENS 2700lm 18W 830 600 Wh IP20 DALI	MI1844561	600	54	75	18	2700	150	LENS	80	80	3000	DALI	20	WHITE
MS5475S-LE LENS 2700lm 18W 840 600 Bl IP20 ON/OFF	MI4735671	600	54	75	18	2700	150	LENS	80	80	4000	ON/OFF	20	BLACK
MS5475S-LE LENS 2700lm 18W 830 600 Bl IP20 ON/OFF	MI37528	600	54	75	18	2700	150	LENS	80	80	3000	ON/OFF	20	BLACK
MS5475S-LE LENS 2700lm 18W 840 600 Bl IP20 DALI	MI9625085	600	54	75	18	2700	150	LENS	80	80	4000	DALI	20	BLACK
MS5475S-LE LENS 2700lm 18W 830 600 Bl IP20 DALI	MI5240599	600	54	75	18	2700	150	LENS	80	80	3000	DALI	20	BLACK
MS5475S-LE LENS 2700lm 18W 840 600 Si IP20 ON/OFF	MI6395858	600	54	75	18	2700	150	LENS	80	80	4000	ON/OFF	20	SILVER
MS5475S-LE LENS 2700lm 18W 830 600 Si IP20 ON/OFF	MI8940729	600	54	75	18	2700	150	LENS	80	80	3000	ON/OFF	20	SILVER
MS5475S-LE LENS 2700lm 18W 840 600 Si IP20 DALI	MI9759390	600	54	75	18	2700	150	LENS	80	80	4000	DALI	20	SILVER
MS5475S-LE LENS 2700lm 18W 830 600 Si IP20 DALI	MI5769071	600	54	75	18	2700	150	LENS	80	80	3000	DALI	20	SILVER
MS5475S-LE LENS 3600lm 24W 840 800 Wh IP20 ON/OFF	MI161973	800	54	75	24	3600	150	LENS	80	80	4000	ON/OFF	20	WHITE
MS5475S-LE LENS 3600lm 24W 830 800 Wh IP20 ON/OFF	MI8757455	800	54	75	24	3600	150	LENS	80	80	3000	ON/OFF	20	WHITE
MS5475S-LE LENS 3600lm 24W 840 800 Wh IP20 DALI	MI7414446	800	54	75	24	3600	150	LENS	80	80	4000	DALI	20	WHITE
MS5475S-LE LENS 3600lm 24W 830 800 Wh IP20 DALI	MI5095355	800	54	75	24	3600	150	LENS	80	80	3000	DALI	20	WHITE
MS5475S-LE LENS 3600lm 24W 840 800 Bl IP20 ON/OFF	MI3196741	800	54	75	24	3600	150	LENS	80	80	4000	ON/OFF	20	BLACK
MS5475S-LE LENS 3600lm 24W 830 800 Bl IP20 ON/OFF	MI907147	800	54	75	24	3600	150	LENS	80	80	3000	ON/OFF	20	BLACK
MS5475S-LE LENS 3600lm 24W 840 800 Bl IP20 DALI	MI3368438	800	54	75	24	3600	150	LENS	80	80	4000	DALI	20	BLACK
MS5475S-LE LENS 3600lm 24W 830 800 Bl IP20 DALI	MI2714457	800	54	75	24	3600	150	LENS	80	80	3000	DALI	20	BLACK
MS5475S-LE LENS 3600lm 24W 840 800 Si IP20 ON/OFF	MI4025236	800	54	75	24	3600	150	LENS	80	80	4000	ON/OFF	20	SILVER
MS5475S-LE LENS 3600lm 24W 830 800 Si IP20 ON/OFF	MI4681320	800	54	75	24	3600	150	LENS	80	80	3000	ON/OFF	20	SILVER
MS5475S-LE LENS 3600lm 24W 840 800 Si IP20 DALI	MI1561772	800	54	75	24	3600	150	LENS	80	80	4000	DALI	20	SILVER
MS5475S-LE LENS 3600lm 24W 830 800 Si IP20 DALI	MI6795169	800	54	75	24	3600	150	LENS	80	80	3000	DALI	20	SILVER
MS5475S-LE LENS 4500lm 30W 840 1000 Wh IP20 ON/OFF	MI7176883	1000	54	75	30	4500	150	LENS	80	80	4000	ON/OFF	20	WHITE
