MS5475 OPAL
MS5475 OPAL

General data
Application

Effortless assembly and versatile installation options, unlocking endless creative possibilities for interior spaces.
It's modern aesthetic and streamlined construction make it the perfect choice for both general and decorative lighting, seamlessly enhancing spaces from residential homes to public areas.

Key Advantages

PC OPAL diffuser ensures uniform light emission without shadow effect.
Designed for convenience, it offers a cost-effective solution with easy transportation and compact storage.

Options:

  • CRI90 values may differ with a tolerance of ±10%
  • Non-dimmable / 0-10V dimming / DALI dimming / Triac dimming / PUSH dimming / PWM dimming / sensor and smart control
  • Emergency version available
  • Temperature [K] available on request  2700|3000|4000|5000|5700|6500
  • Interchangeable CCT between 2700K to 6500K with slide switch available on request
  • Choose mounting accessories SURFACE, PENDANT, RECESSED-TRIMLESS
Product ShapeLinear
TypeLinear
MountingSurface, Pendant
Electrical data
Main Feed AC [V]220-240V AC
Main Feed Frequency [Hz]50-60
Total Consumption [W]18 – 54
IEC Protection ClassI
Optics
Diffuser MaterialPMMA
Diffuser Material DesignOPAL
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 ≥ 75 000h
Technical data
Total Consumption [W]18 – 54
Lumen Output [LM]2160 – 6480
Efficacy lm/W120
Diffuser MaterialPMMA
Body MaterialAL6063-T5

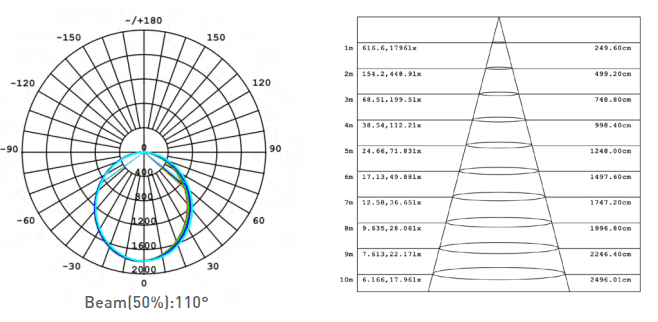

Beam Angle [°]110
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step<3
LED LIFETIME Ta25 [h]L80B50 ≥ 75 000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWHITE, BLACK, SILVER
Ingress Protection [IP]20
Mechanical Protection [IK]7
Main Feed AC [V]220-240V AC
Description:

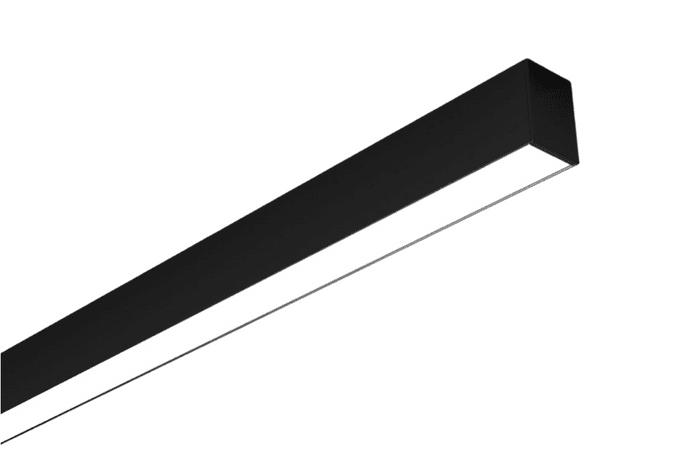

MS54 OPAL linear is an elegant and timeless linear system designed to create stunning arrangements in any interior.
The modular linear system features versatile connection options, allowing endless installation possibilities for the end user.

Key Advantages:

PC OPAL diffuser ensures uniform light emission without shadow effect.
Designed for convenience, it offers a cost-effective solution with easy transportation and compact storage.

Options:

  • CRI90 values may differ with a tolerance of ±10%
  • Non-dimmable / 0-10V dimming / DALI dimming / Triac dimming / PUSH dimming / PWM dimming / sensor and smart control
  • Emergency version available
  • Temperature [K] available on request  2700|3000|4000|5000|5700|6500
  • Interchangeable CCT between 2700K to 6500K with slide switch available on request
  • Choose mounting accessories SURFACE, PENDANT, RECESSED-TRIMLESS
Downloads:
Datasheet:
1
Technical illustrations:
1
Mounting instructions:
1
Certificates:
1
Photometric data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/DALI.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/ON_OFF.svg
/soft4net/img/project/icons/AD - IP/20.svg
/soft4net/img/project/icons/W - HOUSING COLOR/BLACK.svg
/soft4net/img/project/icons/W - HOUSING COLOR/WHITE.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_90.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_90.svg
General data
Application

Effortless assembly and versatile installation options, unlocking endless creative possibilities for interior spaces.
It's modern aesthetic and streamlined construction make it the perfect choice for both general and decorative lighting, seamlessly enhancing spaces from residential homes to public areas.

Key Advantages

PC OPAL diffuser ensures uniform light emission without shadow effect.
Designed for convenience, it offers a cost-effective solution with easy transportation and compact storage.

Options:

  • CRI90 values may differ with a tolerance of ±10%
  • Non-dimmable / 0-10V dimming / DALI dimming / Triac dimming / PUSH dimming / PWM dimming / sensor and smart control
  • Emergency version available
  • Temperature [K] available on request  2700|3000|4000|5000|5700|6500
  • Interchangeable CCT between 2700K to 6500K with slide switch available on request
  • Choose mounting accessories SURFACE, PENDANT, RECESSED-TRIMLESS
Product ShapeLinear
TypeLinear
MountingSurface, Pendant
Electrical data
Main Feed AC [V]220-240V AC
Main Feed Frequency [Hz]50-60
Total Consumption [W]18 – 54
IEC Protection ClassI
Optics
Diffuser MaterialPMMA
Diffuser Material DesignOPAL
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 ≥ 75 000h
Technical data
Total Consumption [W]18 – 54
Lumen Output [LM]2160 – 6480
Efficacy lm/W120
Diffuser MaterialPMMA
Body MaterialAL6063-T5
Beam Angle [°]110
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step<3
LED LIFETIME Ta25 [h]L80B50 ≥ 75 000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWHITE, BLACK, SILVER
Ingress Protection [IP]20
Mechanical Protection [IK]7
Main Feed AC [V]220-240V AC
Housing
Body MaterialAL6063-T5
Body ColorWHITE, BLACK, SILVER
Light technical data
Light SourceLED
Total Consumption [W]18 – 54
Lumen Output [LM]2160 – 6480
Efficacy lm/W120
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
UGR<24
MacAdam step<3
Beam Angle [°]110
Light Distribution DIR/INDDIR
Technical data
TA [°C]-20 to +45
Ingress Protection [IP]20
Mechanical Protection [IK]7
Generating PDF...

Variations

Item
Code
Lenght
Width
Height
Diameter
W
Lumen
Output lm
Efficacy
lm/W
Diffuser
Beam
Angle
CRI
Color K
Type of
Control
IP
Color
MS5475S-NO OPAL 2160lm 18W 840 600 Wh IP20 ON/OFFMI89733886005475182160120OPAL110804000ON/OFF20WHITE
MS5475S-NO OPAL 2160lm 18W 830 600 Wh IP20 ON/OFFMI85454186005475182160120OPAL110803000ON/OFF20WHITE
MS5475S-NO OPAL 2160lm 18W 840 600 Wh IP20 DALIMI35892326005475182160120OPAL110804000DALI20WHITE
MS5475S-NO OPAL 2160lm 18W 830 600 Wh IP20 DALIMI86178996005475182160120OPAL110803000DALI20WHITE
MS5475S-NO OPAL 2160lm 18W 840 600 Bl IP20 ON/OFFMI3230606005475182160120OPAL110804000ON/OFF20BLACK
MS5475S-NO OPAL 2160lm 18W 830 600 Bl IP20 ON/OFFMI88861286005475182160120OPAL110803000ON/OFF20BLACK
MS5475S-NO OPAL 2160lm 18W 840 600 Bl IP20 DALIMI20329796005475182160120OPAL110804000DALI20BLACK
MS5475S-NO OPAL 2160lm 18W 830 600 Bl IP20 DALIMI70213206005475182160120OPAL110803000DALI20BLACK
MS5475S-NO OPAL 2160lm 18W 840 600 Si IP20 ON/OFFMI12960146005475182160120OPAL110804000ON/OFF20SILVER
MS5475S-NO OPAL 2160lm 18W 830 600 Si IP20 ON/OFFMI41773466005475182160120OPAL110803000ON/OFF20SILVER
MS5475S-NO OPAL 2160lm 18W 840 600 Si IP20 DALIMI80399496005475182160120OPAL110804000DALI20SILVER
MS5475S-NO OPAL 2160lm 18W 830 600 Si IP20 DALIMI44019836005475182160120OPAL110803000DALI20SILVER
MS5475S-NO OPAL 2880lm 24W 840 800 Wh IP20 ON/OFFMI67576278005475242880120OPAL110804000ON/OFF20WHITE
MS5475S-NO OPAL 2880lm 24W 830 800 Wh IP20 ON/OFFMI92035058005475242880120OPAL110803000ON/OFF20WHITE
MS5475S-NO OPAL 2880lm 24W 840 800 Wh IP20 DALIMI27078898005475242880120OPAL110804000DALI20WHITE
MS5475S-NO OPAL 2880lm 24W 830 800 Wh IP20 DALIMI41837298005475242880120OPAL110803000DALI20WHITE
MS5475S-NO OPAL 2880lm 24W 840 800 Bl IP20 ON/OFFMI13602008005475242880120OPAL110804000ON/OFF20BLACK
MS5475S-NO OPAL 2880lm 24W 830 800 Bl IP20 ON/OFFMI79738598005475242880120OPAL110803000ON/OFF20BLACK
MS5475S-NO OPAL 2880lm 24W 840 800 Bl IP20 DALIMI2849268005475242880120OPAL110804000DALI20BLACK
MS5475S-NO OPAL 2880lm 24W 830 800 Bl IP20 DALIMI68168638005475242880120OPAL110803000DALI20BLACK
MS5475S-NO OPAL 2880lm 24W 840 800 Si IP20 ON/OFFMI11582988005475242880120OPAL110804000ON/OFF20SILVER
MS5475S-NO OPAL 2880lm 24W 830 800 Si IP20 ON/OFFMI25029038005475242880120OPAL110803000ON/OFF20SILVER
MS5475S-NO OPAL 2880lm 24W 840 800 Si IP20 DALIMI80787348005475242880120OPAL110804000DALI20SILVER
MS5475S-NO OPAL 2880lm 24W 830 800 Si IP20 DALIMI78910038005475242880120OPAL110803000DALI20SILVER
MS5475S-NO OPAL 3600lm 30W 840 1000 Wh IP20 ON/OFFMI40179510005475303600120OPAL110804000ON/OFF20WHITE
