MS6535 OPAL
MS6535 OPAL

General data

Application	Effortless assembly and versatile installation options, unlocking endless creative possibilities for interior spaces. It's modern aesthetic and streamlined construction make it the perfect choice for both general and decorative lighting, seamlessly enhancing spaces from residential homes to public areas.
Key Advantages	PC OPAL diffuser ensures uniform light emission without shadow effect. Designed for convenience, it offers a cost-effective solution with easy transportation and compact storage. Options: CRI90 values may differ with a tolerance of ±10% Non-dimmable / 0-10V dimming / DALI dimming / Triac dimming / PUSH dimming / PWM dimming / sensor and smart control Emergency version available Temperature [K] available on request 2700\|3000\|4000\|5000\|5700\|6500 Interchangeable CCT between 2700K to 6500K with slide switch available on request Choose mounting accessories SURFACE, PENDANT, RECESSED-TRIMLESS
Product Shape	Linear
Type	Linear
Mounting	Surface, Pendant

Electrical data

Main Feed AC [V]	220-240V AC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	33 – 50
IEC Protection Class	I

Optics

Diffuser Material	PMMA
Diffuser Material Design	OPAL
TYPE OF CONTROL	ON/OFF, DALI
CONTROL SYSTEM	ON/OFF, DALI
LED LIFETIME Ta25 [h]	L80B50 ≥ 75 000h

Technical data

Total Consumption [W]	33 – 50
Lumen Output [LM]	3960 – 6000
Efficacy lm/W	120
Diffuser Material	PMMA
Body Material	AL6063-T5
Beam Angle [°]	110
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	3000, 4000
Color Rendering Index [CRI]	80, 90
MacAdam step	<3
LED LIFETIME Ta25 [h]	L80B50 ≥ 75 000h
TYPE OF CONTROL	ON/OFF, DALI
Body Color	WHITE, BLACK, SILVER
Ingress Protection [IP]	20
Mechanical Protection [IK]	7
Main Feed AC [V]	220-240V AC

Description:

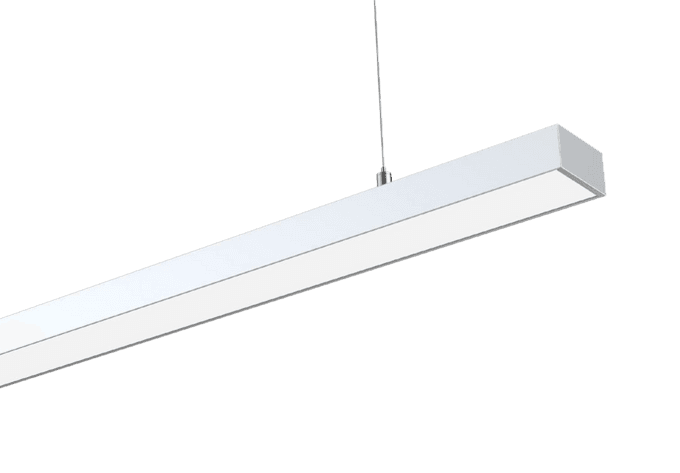

MS6535 OPAL linear slim version.
Is an elegant and timeless linear system designed to create stunning arrangements in any interior.
The modular linear system features versatile connection options, allowing endless installation possibilities for the end user.

Key Advantages:

PC OPAL diffuser ensures uniform light emission without shadow effect.
Designed for convenience, it offers a cost-effective solution with easy transportation and compact storage.

Options:

CRI90 values may differ with a tolerance of ±10%
Non-dimmable / 0-10V dimming / DALI dimming / Triac dimming / PUSH dimming / PWM dimming / sensor and smart control
Emergency version available
Temperature [K] available on request 2700|3000|4000|5000|5700|6500
Interchangeable CCT between 2700K to 6500K with slide switch available on request
Choose mounting accessories SURFACE, PENDANT, RECESSED-TRIMLESS

Downloads:

Datasheet:

Technical illustrations:

Mounting instructions:

Certificates:

Photometric data:

General data

Application	Effortless assembly and versatile installation options, unlocking endless creative possibilities for interior spaces. It's modern aesthetic and streamlined construction make it the perfect choice for both general and decorative lighting, seamlessly enhancing spaces from residential homes to public areas.
Key Advantages	PC OPAL diffuser ensures uniform light emission without shadow effect. Designed for convenience, it offers a cost-effective solution with easy transportation and compact storage. Options: CRI90 values may differ with a tolerance of ±10% Non-dimmable / 0-10V dimming / DALI dimming / Triac dimming / PUSH dimming / PWM dimming / sensor and smart control Emergency version available Temperature [K] available on request 2700\|3000\|4000\|5000\|5700\|6500 Interchangeable CCT between 2700K to 6500K with slide switch available on request Choose mounting accessories SURFACE, PENDANT, RECESSED-TRIMLESS
Product Shape	Linear
Type	Linear
Mounting	Surface, Pendant

Electrical data

Main Feed AC [V]	220-240V AC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	33 – 50
IEC Protection Class	I

Optics

Diffuser Material	PMMA
Diffuser Material Design	OPAL
TYPE OF CONTROL	ON/OFF, DALI
CONTROL SYSTEM	ON/OFF, DALI
LED LIFETIME Ta25 [h]	L80B50 ≥ 75 000h

Technical data

Total Consumption [W]	33 – 50
Lumen Output [LM]	3960 – 6000
Efficacy lm/W	120
Diffuser Material	PMMA
Body Material	AL6063-T5
Beam Angle [°]	110
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	3000, 4000
Color Rendering Index [CRI]	80, 90
MacAdam step	<3
LED LIFETIME Ta25 [h]	L80B50 ≥ 75 000h
TYPE OF CONTROL	ON/OFF, DALI
Body Color	WHITE, BLACK, SILVER
Ingress Protection [IP]	20
Mechanical Protection [IK]	7
Main Feed AC [V]	220-240V AC

Housing

Body Material	AL6063-T5
Body Color	WHITE, BLACK, SILVER

Light technical data

Light Source	LED
Total Consumption [W]	33 – 50
Lumen Output [LM]	3960 – 6000
Efficacy lm/W	120
LED Color Temperature CCT [K]	3000, 4000
Color Rendering Index [CRI]	80, 90
UGR	<24
MacAdam step	<3
Beam Angle [°]	110
Light Distribution DIR/IND	DIR

Technical data

TA [°C]	-20 to +45
Ingress Protection [IP]	20
Mechanical Protection [IK]	7

Variations

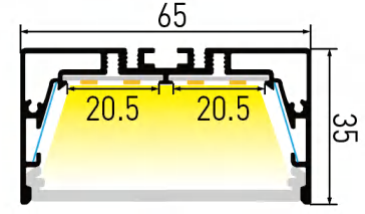

Item	Code	Lenght	Width	Height	W	Lumen Output lm	Efficacy lm/W	Diffuser	Beam Angle	CRI	Color K	Type of Control	IP	Color
MS6535S-NO OPAL 3960lm 33W 840 1000 Wh IP20 ON/OFF	MI1801903	1000	65	35	33	3960	120	OPAL	110	80	4000	ON/OFF	20	WHITE
MS6535S-NO OPAL 3960lm 33W 830 1000 Wh IP20 ON/OFF	MI2328157	1000	65	35	33	3960	120	OPAL	110	80	3000	ON/OFF	20	WHITE
MS6535S-NO OPAL 3960lm 33W 840 1000 Wh IP20 DALI	MI28531	1000	65	35	33	3960	120	OPAL	110	80	4000	DALI	20	WHITE
MS6535S-NO OPAL 3960lm 33W 830 1000 Wh IP20 DALI	MI7775164	1000	65	35	33	3960	120	OPAL	110	80	3000	DALI	20	WHITE
MS6535S-NO OPAL 3960lm 33W 840 1000 Bl IP20 ON/OFF	MI8086530	1000	65	35	33	3960	120	OPAL	110	80	4000	ON/OFF	20	BLACK
MS6535S-NO OPAL 3960lm 33W 830 1000 Bl IP20 ON/OFF	MI2992335	1000	65	35	33	3960	120	OPAL	110	80	3000	ON/OFF	20	BLACK
MS6535S-NO OPAL 3960lm 33W 840 1000 Bl IP20 DALI	MI1724035	1000	65	35	33	3960	120	OPAL	110	80	4000	DALI	20	BLACK
MS6535S-NO OPAL 3960lm 33W 830 1000 Bl IP20 DALI	MI5086976	1000	65	35	33	3960	120	OPAL	110	80	3000	DALI	20	BLACK
MS6535S-NO OPAL 3960lm 33W 840 1000 Si IP20 ON/OFF	MI3318455	1000	65	35	33	3960	120	OPAL	110	80	4000	ON/OFF	20	SILVER
MS6535S-NO OPAL 3960lm 33W 830 1000 Si IP20 ON/OFF	MI5084493	1000	65	35	33	3960	120	OPAL	110	80	3000	ON/OFF	20	SILVER
MS6535S-NO OPAL 3960lm 33W 840 1000 Si IP20 DALI	MI9816945	1000	65	35	33	3960	120	OPAL	110	80	4000	DALI	20	SILVER
MS6535S-NO OPAL 3960lm 33W 830 1000 Si IP20 DALI	MI9474911	1000	65	35	33	3960	120	OPAL	110	80	3000	DALI	20	SILVER
MS6535S-NO OPAL 4800lm 40W 840 1200 Wh IP20 ON/OFF	MI8063560	1200	65	35	40	4800	120	OPAL	110	80	4000	ON/OFF	20	WHITE
MS6535S-NO OPAL 4800lm 40W 830 1200 Wh IP20 ON/OFF	MI126903	1200	65	35	40	4800	120	OPAL	110	80	3000	ON/OFF	20	WHITE
MS6535S-NO OPAL 4800lm 40W 840 1200 Wh IP20 DALI	MI8279826	1200	65	35	40	4800	120	OPAL	110	80	4000	DALI	20	WHITE
MS6535S-NO OPAL 4800lm 40W 830 1200 Wh IP20 DALI	MI5359860	1200	65	35	40	4800	120	OPAL	110	80	3000	DALI	20	WHITE
MS6535S-NO OPAL 4800lm 40W 840 1200 Bl IP20 ON/OFF	MI3770243	1200	65	35	40	4800	120	OPAL	110	80	4000	ON/OFF	20	BLACK
MS6535S-NO OPAL 4800lm 40W 830 1200 Bl IP20 ON/OFF	MI9919169	1200	65	35	40	4800	120	OPAL	110	80	3000	ON/OFF	20	BLACK
MS6535S-NO OPAL 4800lm 40W 840 1200 Bl IP20 DALI	MI8745873	1200	65	35	40	4800	120	OPAL	110	80	4000	DALI	20	BLACK
MS6535S-NO OPAL 4800lm 40W 830 1200 Bl IP20 DALI	MI8053660	1200	65	35	40	4800	120	OPAL	110	80	3000	DALI	20	BLACK
MS6535S-NO OPAL 4800lm 40W 840 1200 Si IP20 ON/OFF	MI3917501	1200	65	35	40	4800	120	OPAL	110	80	4000	ON/OFF	20	SILVER
MS6535S-NO OPAL 4800lm 40W 830 1200 Si IP20 ON/OFF	MI6195628	1200	65	35	40	4800	120	OPAL	110	80	3000	ON/OFF	20	SILVER
MS6535S-NO OPAL 4800lm 40W 840 1200 Si IP20 DALI	MI3305483	1200	65	35	40	4800	120	OPAL	110	80	4000	DALI	20	SILVER
MS6535S-NO OPAL 4800lm 40W 830 1200 Si IP20 DALI	MI1673854	1200	65	35	40	4800	120	OPAL	110	80	3000	DALI	20	SILVER
MS6535S-NO OPAL 6000lm 50W 840 1500 Wh IP20 ON/OFF	MI3606970	1500	65	35	50	6000	120	OPAL	110	80	4000	ON/OFF	20	WHITE
