MS6580 DI MPR
MS6580 DI MPR

General data

Application	Effortless assembly and versatile installation options, unlocking endless creative possibilities for interior spaces. It's modern aesthetic and streamlined construction make it the perfect choice for both general and decorative lighting, seamlessly enhancing spaces from residential homes to public areas.
Key Advantages	Microprismatic anti-glare diffuser and diffusing film designed for low <22 UGR. Designed for convenience, it offers a cost-effective solution with easy transportation and compact storage. Options: CRI90 values may differ with a tolerance of ±10% Non-dimmable / 0-10V dimming / DALI dimming / Triac dimming / PUSH dimming / PWM dimming / sensor and smart control Emergency version available Temperature [K] available on request 2700\|3000\|4000\|5000\|5700\|6500 Interchangeable CCT between 2700K to 6500K with slide switch available on request Choose mounting accessories SURFACE, PENDANT, RECESSED-TRIMLESS
Product Shape	Linear
Type	Linear
Mounting	Surface, Pendant

Electrical data

Main Feed AC [V]	220-240V AC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	33 – 50
IEC Protection Class	I

Optics

Diffuser Material	PMMA
Diffuser Material Design	MPR
TYPE OF CONTROL	ON/OFF, DALI
CONTROL SYSTEM	ON/OFF, DALI
LED LIFETIME Ta25 [h]	L80B50 ≥ 75 000h

Technical data

Total Consumption [W]	33 – 50
Lumen Output [LM]	3300 – 5000
Efficacy lm/W	100
Diffuser Material	PMMA
Body Material	AL6063-T5
Beam Angle [°]	80
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	3000, 4000
Color Rendering Index [CRI]	80, 90
MacAdam step	<3
LED LIFETIME Ta25 [h]	L80B50 ≥ 75 000h
TYPE OF CONTROL	ON/OFF, DALI
Body Color	WHITE, BLACK, SILVER
Ingress Protection [IP]	20
Mechanical Protection [IK]	7
Main Feed AC [V]	220-240V AC

Description:

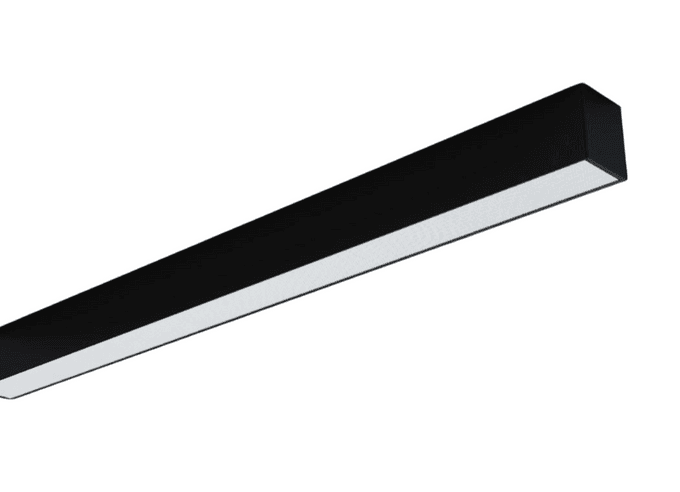

MS6580 DI MPR linear with microprismatic anti-glare diffuser and diffusing film designed for low UGR.
An elegant and timeless linear system designed to create stunning arrangements in any interior.
The modular linear system features versatile connection options, allowing endless installation possibilities for the end user.

Key Advantages:

Microprismatic anti-glare diffuser and diffusing film designed for low <22 UGR.
Designed for convenience, it offers a cost-effective solution with easy transportation and compact storage.

Options:

CRI90 values may differ with a tolerance of ±10%
Non-dimmable / 0-10V dimming / DALI dimming / Triac dimming / PUSH dimming / PWM dimming / sensor and smart control
Emergency version available
Temperature [K] available on request 2700|3000|4000|5000|5700|6500
Interchangeable CCT between 2700K to 6500K with slide switch available on request
Choose mounting accessories SURFACE, PENDANT, RECESSED-TRIMLESS

Downloads:

Datasheet:

Technical illustrations:

Mounting instructions:

Certificates:

Photometric data:

General data

Application	Effortless assembly and versatile installation options, unlocking endless creative possibilities for interior spaces. It's modern aesthetic and streamlined construction make it the perfect choice for both general and decorative lighting, seamlessly enhancing spaces from residential homes to public areas.
Key Advantages	Microprismatic anti-glare diffuser and diffusing film designed for low <22 UGR. Designed for convenience, it offers a cost-effective solution with easy transportation and compact storage. Options: CRI90 values may differ with a tolerance of ±10% Non-dimmable / 0-10V dimming / DALI dimming / Triac dimming / PUSH dimming / PWM dimming / sensor and smart control Emergency version available Temperature [K] available on request 2700\|3000\|4000\|5000\|5700\|6500 Interchangeable CCT between 2700K to 6500K with slide switch available on request Choose mounting accessories SURFACE, PENDANT, RECESSED-TRIMLESS
Product Shape	Linear
Type	Linear
Mounting	Surface, Pendant

Electrical data

Main Feed AC [V]	220-240V AC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	33 – 50
IEC Protection Class	I

Optics

Diffuser Material	PMMA
Diffuser Material Design	MPR
TYPE OF CONTROL	ON/OFF, DALI
CONTROL SYSTEM	ON/OFF, DALI
LED LIFETIME Ta25 [h]	L80B50 ≥ 75 000h

Technical data

Total Consumption [W]	33 – 50
Lumen Output [LM]	3300 – 5000
Efficacy lm/W	100
Diffuser Material	PMMA
Body Material	AL6063-T5
Beam Angle [°]	80
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	3000, 4000
Color Rendering Index [CRI]	80, 90
MacAdam step	<3
LED LIFETIME Ta25 [h]	L80B50 ≥ 75 000h
TYPE OF CONTROL	ON/OFF, DALI
Body Color	WHITE, BLACK, SILVER
Ingress Protection [IP]	20
Mechanical Protection [IK]	7
Main Feed AC [V]	220-240V AC

Housing

Body Material	AL6063-T5
Body Color	WHITE, BLACK, SILVER

Light technical data

Light Source	LED
Total Consumption [W]	33 – 50
Lumen Output [LM]	3300 – 5000
Efficacy lm/W	100
LED Color Temperature CCT [K]	3000, 4000
Color Rendering Index [CRI]	80, 90
UGR	<22
MacAdam step	<3

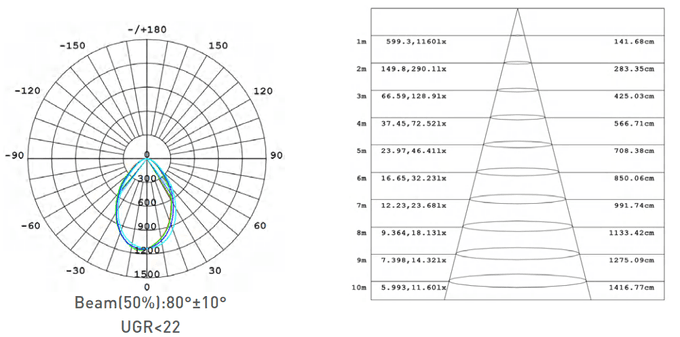

Beam Angle [°]	80
Light Distribution DIR/IND	DIR

Technical data

TA [°C]	-20 to +45
Ingress Protection [IP]	20
Mechanical Protection [IK]	7

Variations

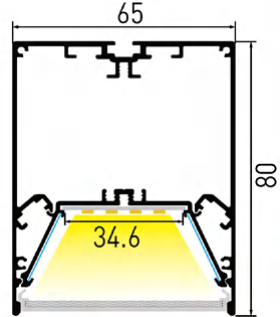

Item	Code	Lenght	Width	Height	W	Lumen Output lm	Efficacy lm/W	Diffuser	Beam Angle	CRI	Color K	Type of Control	IP	Color
MS6580S1-GM DI MPR 3300lm 33W 840 1000 Wh IP20 ON/OFF	MI4943574	1000	65	80	33	3300	100	MPR	80	80	4000	ON/OFF	20	WHITE
MS6580S1-GM DI MPR 3300lm 33W 830 1000 Wh IP20 ON/OFF	MI7078038	1000	65	80	33	3300	100	MPR	80	80	3000	ON/OFF	20	WHITE
MS6580S1-GM DI MPR 3300lm 33W 840 1000 Wh IP20 DALI	MI5615568	1000	65	80	33	3300	100	MPR	80	80	4000	DALI	20	WHITE
MS6580S1-GM DI MPR 3300lm 33W 830 1000 Wh IP20 DALI	MI1784695	1000	65	80	33	3300	100	MPR	80	80	3000	DALI	20	WHITE
MS6580S1-GM DI MPR 3300lm 33W 840 1000 Bl IP20 ON/OFF	MI2899727	1000	65	80	33	3300	100	MPR	80	80	4000	ON/OFF	20	BLACK
MS6580S1-GM DI MPR 3300lm 33W 830 1000 Bl IP20 ON/OFF	MI3235901	1000	65	80	33	3300	100	MPR	80	80	3000	ON/OFF	20	BLACK
MS6580S1-GM DI MPR 3300lm 33W 840 1000 Bl IP20 DALI	MI6158479	1000	65	80	33	3300	100	MPR	80	80	4000	DALI	20	BLACK
MS6580S1-GM DI MPR 3300lm 33W 830 1000 Bl IP20 DALI	MI1924070	1000	65	80	33	3300	100	MPR	80	80	3000	DALI	20	BLACK
MS6580S1-GM DI MPR 3300lm 33W 840 1000 Si IP20 ON/OFF	MI2857022	1000	65	80	33	3300	100	MPR	80	80	4000	ON/OFF	20	SILVER
MS6580S1-GM DI MPR 3300lm 33W 830 1000 Si IP20 ON/OFF	MI6010795	1000	65	80	33	3300	100	MPR	80	80	3000	ON/OFF	20	SILVER
MS6580S1-GM DI MPR 3300lm 33W 840 1000 Si IP20 DALI	MI4460062	1000	65	80	33	3300	100	MPR	80	80	4000	DALI	20	SILVER
MS6580S1-GM DI MPR 3300lm 33W 830 1000 Si IP20 DALI	MI8122212	1000	65	80	33	3300	100	MPR	80	80	3000	DALI	20	SILVER
MS6580S1-GM DI MPR 4000lm 40W 840 1200 Wh IP20 ON/OFF	MI6981656	1200	65	80	40	4000	100	MPR	80	80	4000	ON/OFF	20	WHITE
MS6580S1-GM DI MPR 4000lm 40W 830 1200 Wh IP20 ON/OFF	MI9363270	1200	65	80	40	4000	100	MPR	80	80	3000	ON/OFF	20	WHITE
MS6580S1-GM DI MPR 4000lm 40W 840 1200 Wh IP20 DALI	MI1169538	1200	65	80	40	4000	100	MPR	80	80	4000	DALI	20	WHITE
MS6580S1-GM DI MPR 4000lm 40W 830 1200 Wh IP20 DALI	MI389015	1200	65	80	40	4000	100	MPR	80	80	3000	DALI	20	WHITE
MS6580S1-GM DI MPR 4000lm 40W 840 1200 Bl IP20 ON/OFF	MI7477720	1200	65	80	40	4000	100	MPR	80	80	4000	ON/OFF	20	BLACK
MS6580S1-GM DI MPR 4000lm 40W 830 1200 Bl IP20 ON/OFF	MI1780589	1200	65	80	40	4000	100	MPR	80	80	3000	ON/OFF	20	BLACK
MS6580S1-GM DI MPR 4000lm 40W 840 1200 Bl IP20 DALI	MI3567644	1200	65	80	40	4000	100	MPR	80	80	4000	DALI	20	BLACK
MS6580S1-GM DI MPR 4000lm 40W 830 1200 Bl IP20 DALI	MI3379548	1200	65	80	40	4000	100	MPR	80	80	3000	DALI	20	BLACK
MS6580S1-GM DI MPR 4000lm 40W 840 1200 Si IP20 ON/OFF	MI4203915	1200	65	80	40	4000	100	MPR	80	80	4000	ON/OFF	20	SILVER
MS6580S1-GM DI MPR 4000lm 40W 830 1200 Si IP20 ON/OFF	MI9674212	1200	65	80	40	4000	100	MPR	80	80	3000	ON/OFF	20	SILVER
MS6580S1-GM DI MPR 4000lm 40W 840 1200 Si IP20 DALI	MI4944643	1200	65	80	40	4000	100	MPR	80	80	4000	DALI	20	SILVER
MS6580S1-GM DI MPR 4000lm 40W 830 1200 Si IP20 DALI	MI814909	1200	65	80	40	4000	100	MPR	80	80	3000	DALI	20	SILVER
MS6580S1-GM DI MPR 5000lm 50W 840 1500 Wh IP20 ON/OFF	MI3465151	1500	65	80	50	5000	100	MPR	80	80	4000	ON/OFF	20	WHITE
