MS6580 DI-IN OPAL
MS6580 DI-IN OPAL

General data
Application

Effortless assembly and versatile installation options, unlocking endless creative possibilities for interior spaces.
It's modern aesthetic and streamlined construction make it the perfect choice for both general and decorative lighting, seamlessly enhancing spaces from residential homes to public areas.

Key Advantages

UP/DOWN light distribution with OPAL diffuser ensures uniform light emission without shadow effect.
Designed for convenience, it offers a cost-effective solution with easy transportation and compact storage.

Options:

  • CRI90 values may differ with a tolerance of ±10%
  • Non-dimmable / 0-10V dimming / DALI dimming / Triac dimming / PUSH dimming / PWM dimming / sensor and smart control
  • Emergency version available
  • Temperature [K] available on request  2700|3000|4000|5000|5700|6500
  • Interchangeable CCT between 2700K to 6500K with slide switch available on request
  • Choose mounting accessories SURFACE, PENDANT, RECESSED-TRIMLESS
Product ShapeLinear
TypeLinear
MountingPendant
Electrical data
Main Feed AC [V]220-240V AC
Main Feed Frequency [Hz]50-60
Total Consumption [W]50 – 75
IEC Protection ClassI
Optics
Diffuser MaterialPMMA
Diffuser Material DesignOPAL
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 ≥ 75 000h
Technical data
Total Consumption [W]50 – 75
Lumen Output [LM]6000 – 9000
Efficacy lm/W120
Diffuser MaterialPMMA
Body MaterialAL6063-T5
Beam Angle [°]110/110
Light Distribution DIR/INDDIR/IND
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step<3
LED LIFETIME Ta25 [h]L80B50 ≥ 75 000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWHITE, BLACK, SILVER
Ingress Protection [IP]20
Mechanical Protection [IK]7
Main Feed AC [V]220-240V AC
Description:

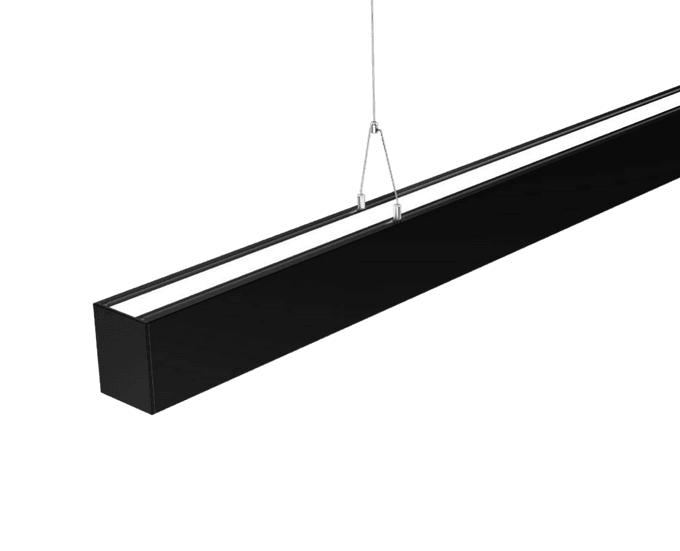

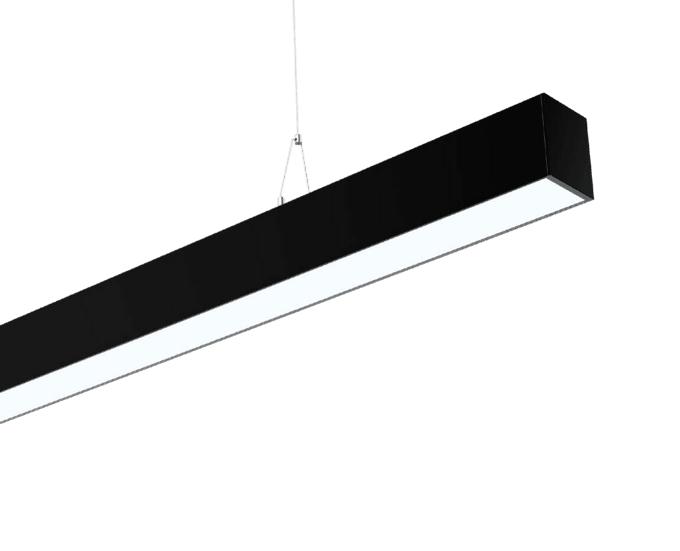

MS65 DI-IN OPAL with UP/DOWN light distribution.
An elegant and timeless linear system designed to create stunning arrangements in any interior.
The modular linear system features versatile connection options, allowing endless installation possibilities for the end user.

Key Advantages:

UP/DOWN light distribution with OPAL diffuser ensures uniform light emission without shadow effect.
Designed for convenience, it offers a cost-effective solution with easy transportation and compact storage.

Options:

  • CRI90 values may differ with a tolerance of ±10%
  • Non-dimmable / 0-10V dimming / DALI dimming / Triac dimming / PUSH dimming / PWM dimming / sensor and smart control
  • Emergency version available
  • Temperature [K] available on request  2700|3000|4000|5000|5700|6500
  • Interchangeable CCT between 2700K to 6500K with slide switch available on request
  • Choose mounting accessories SURFACE, PENDANT, RECESSED-TRIMLESS
Downloads:
Datasheet:
1
Technical illustrations:
1
Mounting instructions:
1
Certificates:
1
Photometric data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/DALI.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/ON_OFF.svg
/soft4net/img/project/icons/AD - IP/20.svg
/soft4net/img/project/icons/W - HOUSING COLOR/BLACK.svg
/soft4net/img/project/icons/W - HOUSING COLOR/WHITE.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_90.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_90.svg
General data
Application

Effortless assembly and versatile installation options, unlocking endless creative possibilities for interior spaces.
It's modern aesthetic and streamlined construction make it the perfect choice for both general and decorative lighting, seamlessly enhancing spaces from residential homes to public areas.

Key Advantages

UP/DOWN light distribution with OPAL diffuser ensures uniform light emission without shadow effect.
Designed for convenience, it offers a cost-effective solution with easy transportation and compact storage.

Options:

  • CRI90 values may differ with a tolerance of ±10%
  • Non-dimmable / 0-10V dimming / DALI dimming / Triac dimming / PUSH dimming / PWM dimming / sensor and smart control
  • Emergency version available
  • Temperature [K] available on request  2700|3000|4000|5000|5700|6500
  • Interchangeable CCT between 2700K to 6500K with slide switch available on request
  • Choose mounting accessories SURFACE, PENDANT, RECESSED-TRIMLESS
Product ShapeLinear
TypeLinear
MountingPendant
Electrical data
Main Feed AC [V]220-240V AC
Main Feed Frequency [Hz]50-60
Total Consumption [W]50 – 75
IEC Protection ClassI
Optics
Diffuser MaterialPMMA
Diffuser Material DesignOPAL
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 ≥ 75 000h
Technical data
Total Consumption [W]50 – 75
Lumen Output [LM]6000 – 9000
Efficacy lm/W120
Diffuser MaterialPMMA
Body MaterialAL6063-T5
Beam Angle [°]110/110
Light Distribution DIR/INDDIR/IND
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step<3
LED LIFETIME Ta25 [h]L80B50 ≥ 75 000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWHITE, BLACK, SILVER
Ingress Protection [IP]20
Mechanical Protection [IK]7
Main Feed AC [V]220-240V AC
Housing
Body MaterialAL6063-T5
Body ColorWHITE, BLACK, SILVER
Light technical data
Light SourceLED
Total Consumption [W]50 – 75
Lumen Output [LM]6000 – 9000
Efficacy lm/W120
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
UGR<24
MacAdam step<3
Beam Angle [°]110/110
Light Distribution DIR/INDDIR/IND
Technical data
TA [°C]-20 to +45
Ingress Protection [IP]20
Mechanical Protection [IK]7
Generating PDF...

Variations

Item
Code
Lenght
Width
Height
Diameter
W
Lumen
Output lm
Efficacy
lm/W
Diffuser
Beam
Angle
CRI
Color K
Type of
Control
IP
Color
MS6580S2-NO DI-IN OPAL 6000lm 50W 840 1000 Wh IP20 ON/OFFMI375802910006580506000120OPAL110/110804000ON/OFF20WHITE
MS6580S2-NO DI-IN OPAL 6000lm 50W 830 1000 Wh IP20 ON/OFFMI95593010006580506000120OPAL110/110803000ON/OFF20WHITE
MS6580S2-NO DI-IN OPAL 6000lm 50W 840 1000 Wh IP20 DALIMI592894110006580506000120OPAL110/110804000DALI20WHITE
MS6580S2-NO DI-IN OPAL 6000lm 50W 830 1000 Wh IP20 DALIMI742460310006580506000120OPAL110/110803000DALI20WHITE
MS6580S2-NO DI-IN OPAL 6000lm 50W 840 1000 Bl IP20 ON/OFFMI324031010006580506000120OPAL110/110804000ON/OFF20BLACK
MS6580S2-NO DI-IN OPAL 6000lm 50W 830 1000 Bl IP20 ON/OFFMI677121510006580506000120OPAL110/110803000ON/OFF20BLACK
MS6580S2-NO DI-IN OPAL 6000lm 50W 840 1000 Bl IP20 DALIMI286910910006580506000120OPAL110/110804000DALI20BLACK
MS6580S2-NO DI-IN OPAL 6000lm 50W 830 1000 Bl IP20 DALIMI587195410006580506000120OPAL110/110803000DALI20BLACK
MS6580S2-NO DI-IN OPAL 6000lm 50W 840 1000 Si IP20 ON/OFFMI603658010006580506000120OPAL110/110804000ON/OFF20SILVER
MS6580S2-NO DI-IN OPAL 6000lm 50W 830 1000 Si IP20 ON/OFFMI333407610006580506000120OPAL110/110803000ON/OFF20SILVER
MS6580S2-NO DI-IN OPAL 6000lm 50W 840 1000 Si IP20 DALIMI773381510006580506000120OPAL110/110804000DALI20SILVER
MS6580S2-NO DI-IN OPAL 6000lm 50W 830 1000 Si IP20 DALIMI956519210006580506000120OPAL110/110803000DALI20SILVER
MS6580S2-NO DI-IN OPAL 7200lm 60W 840 1200 Wh IP20 ON/OFFMI86675912006580607200120OPAL110/110804000ON/OFF20WHITE
MS6580S2-NO DI-IN OPAL 7200lm 60W 830 1200 Wh IP20 ON/OFFMI960496212006580607200120OPAL110/110803000ON/OFF20WHITE
MS6580S2-NO DI-IN OPAL 7200lm 60W 840 1200 Wh IP20 DALIMI798177212006580607200120OPAL110/110804000DALI20WHITE
MS6580S2-NO DI-IN OPAL 7200lm 60W 830 1200 Wh IP20 DALIMI88447612006580607200120OPAL110/110803000DALI20WHITE
MS6580S2-NO DI-IN OPAL 7200lm 60W 840 1200 Bl IP20 ON/OFFMI699775212006580607200120OPAL110/110804000ON/OFF20BLACK
MS6580S2-NO DI-IN OPAL 7200lm 60W 830 1200 Bl IP20 ON/OFFMI253649412006580607200120OPAL110/110803000ON/OFF20BLACK
MS6580S2-NO DI-IN OPAL 7200lm 60W 840 1200 Bl IP20 DALIMI282067612006580607200120OPAL110/110804000DALI20BLACK
MS6580S2-NO DI-IN OPAL 7200lm 60W 830 1200 Bl IP20 DALIMI902164512006580607200120OPAL110/110803000DALI20BLACK
MS6580S2-NO DI-IN OPAL 7200lm 60W 840 1200 Si IP20 ON/OFFMI758742012006580607200120OPAL110/110804000ON/OFF20SILVER
MS6580S2-NO DI-IN OPAL 7200lm 60W 830 1200 Si IP20 ON/OFFMI881483612006580607200120OPAL110/110803000ON/OFF20SILVER
MS6580S2-NO DI-IN OPAL 7200lm 60W 840 1200 Si IP20 DALIMI212403112006580607200120OPAL110/110804000DALI20SILVER
MS6580S2-NO DI-IN OPAL 7200lm 60W 830 1200 Si IP20 DALIMI442801412006580607200120OPAL110/110803000DALI20SILVER
MS6580S2-NO DI-IN OPAL 9000lm 75W 840 1500 Wh IP20 ON/OFFMI454321615006580759000120OPAL110/110804000ON/OFF20WHITE
