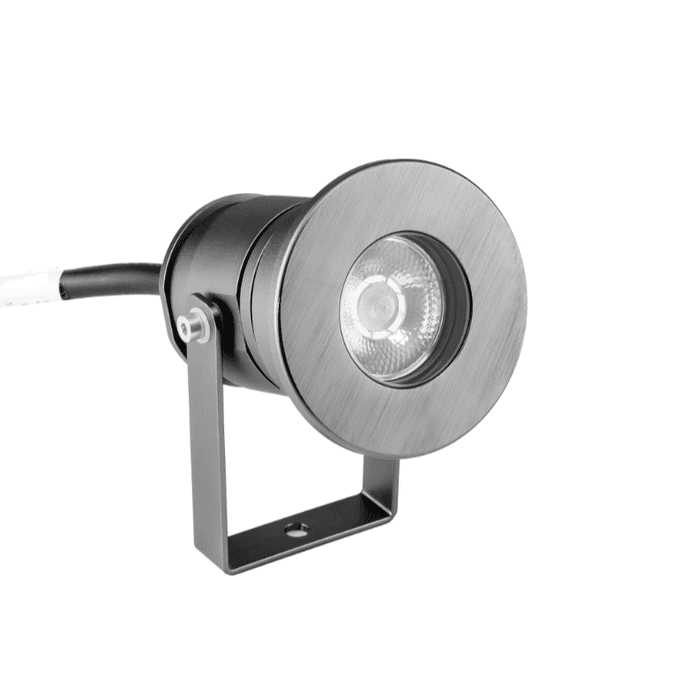

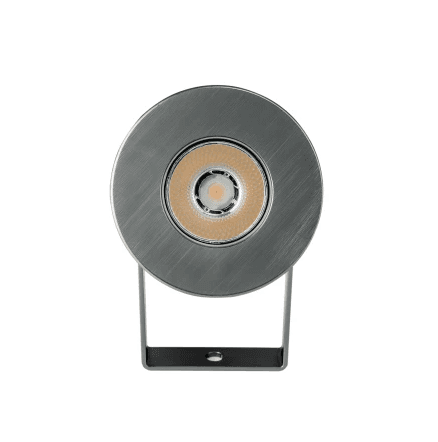

NODUS STANDARD 12V/24V DC
NODUS STANDARD 12V/24V DC

General data

Application	FLOODLIGHTS
Key Advantages	Variety of light distribution beam angles, power options W, shape designs and dimming options.
Product Shape	Round
Type	Illumination
Mounting	BRACKET

Electrical data

Main Feed AC [V]	230VAC ~ 12/24 VDC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	6
IEC Protection Class	III
Connector Type	0.5m
Wiring	H05RN-F 2X0.5

Optics

Diffuser Material	Tempered glass
CONTROL SYSTEM	ON-OFF, PWM
LED LIFETIME Ta25 [h]	≥ 60 000h

Technical data

Total Consumption [W]	6
Lumen Output [LM]	460 – 700
Efficacy lm/W	77 – 117
Diffuser Material	Tempered glass
Body Material	SS316L,Aluminium
Beam Angle [°]	10, 20, 45
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2700/3000/4000/5000
Color Rendering Index [CRI]	80
MacAdam step	<3
LED LIFETIME Ta25 [h]	≥ 60 000h
Body Color	SST
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Main Feed AC [V]	230VAC ~ 12/24 VDC

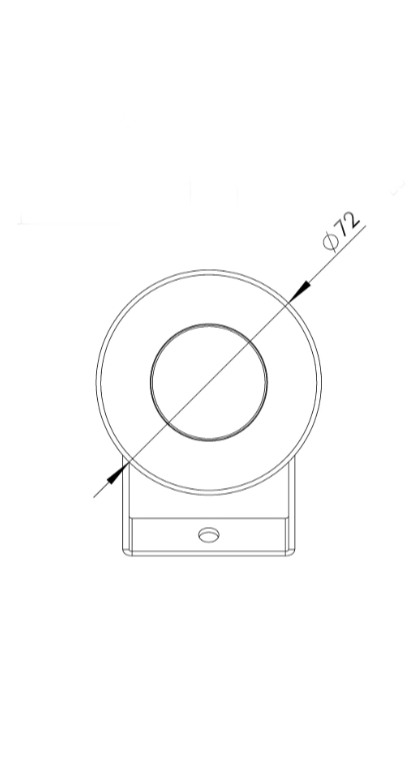

Diameter ø [mm]	72

Description:

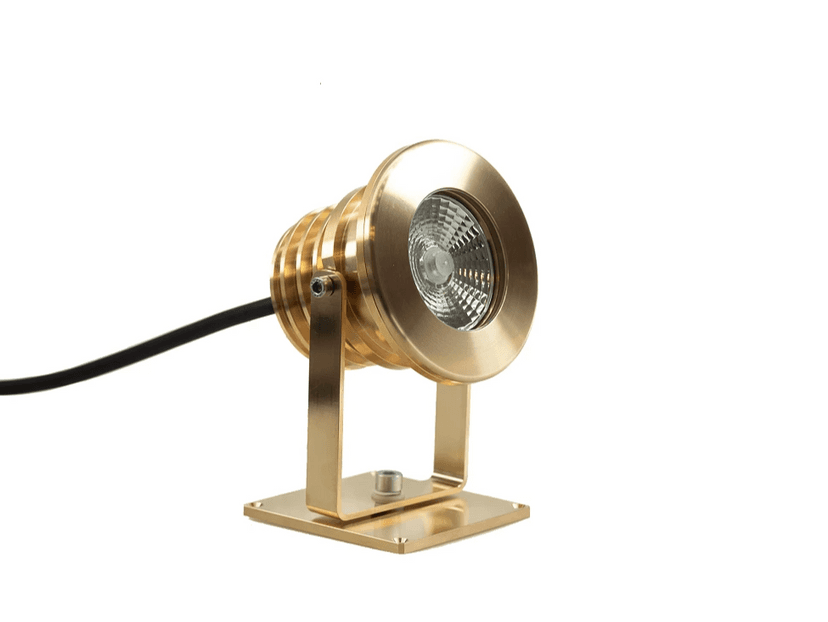

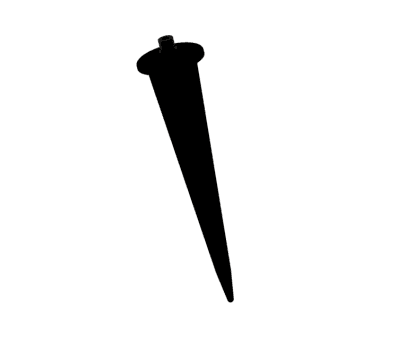

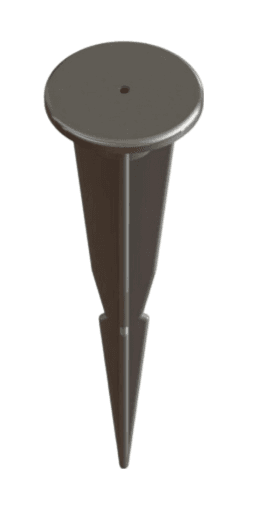

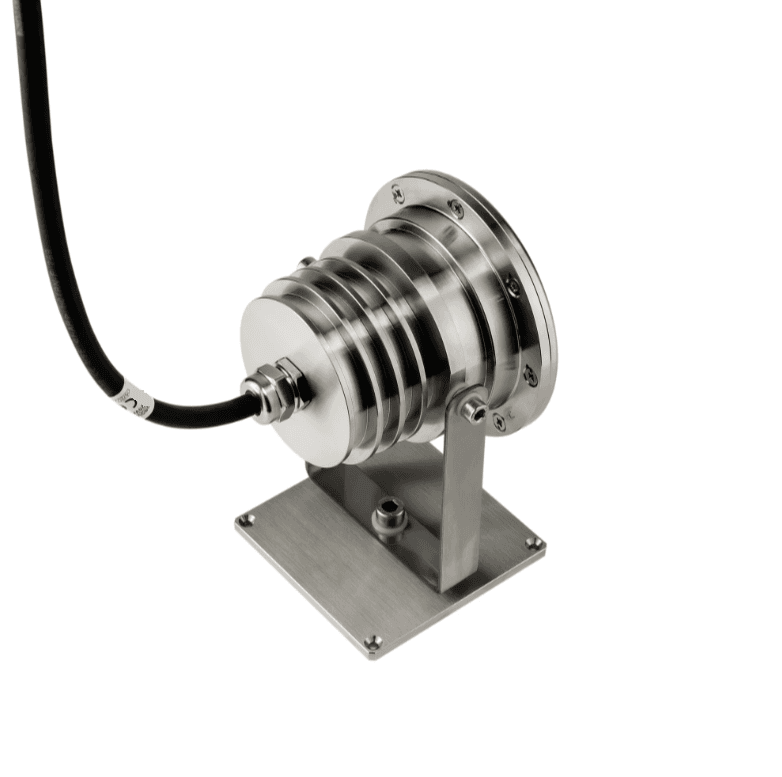

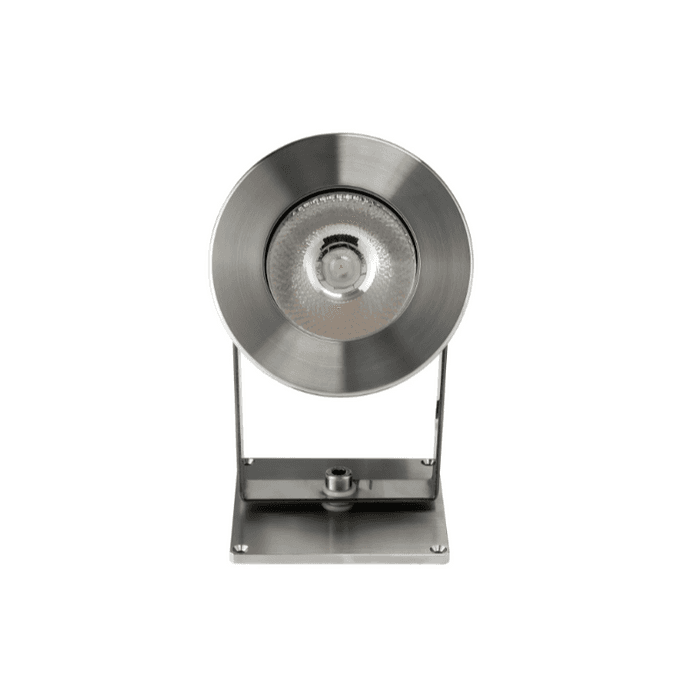

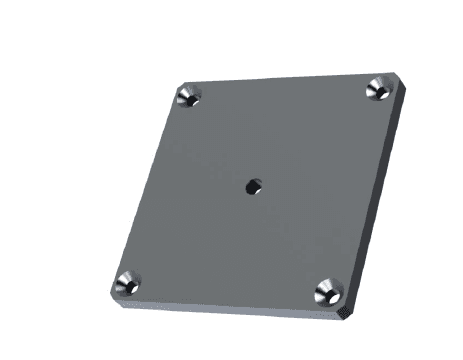

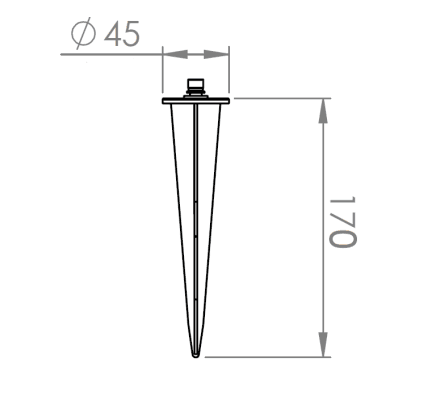

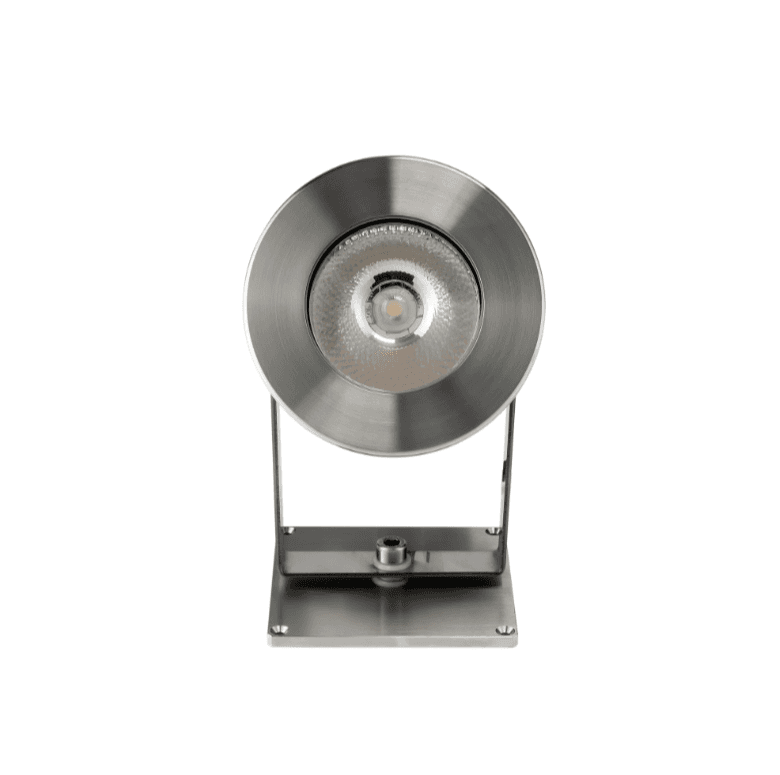

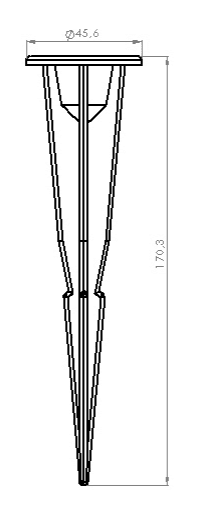

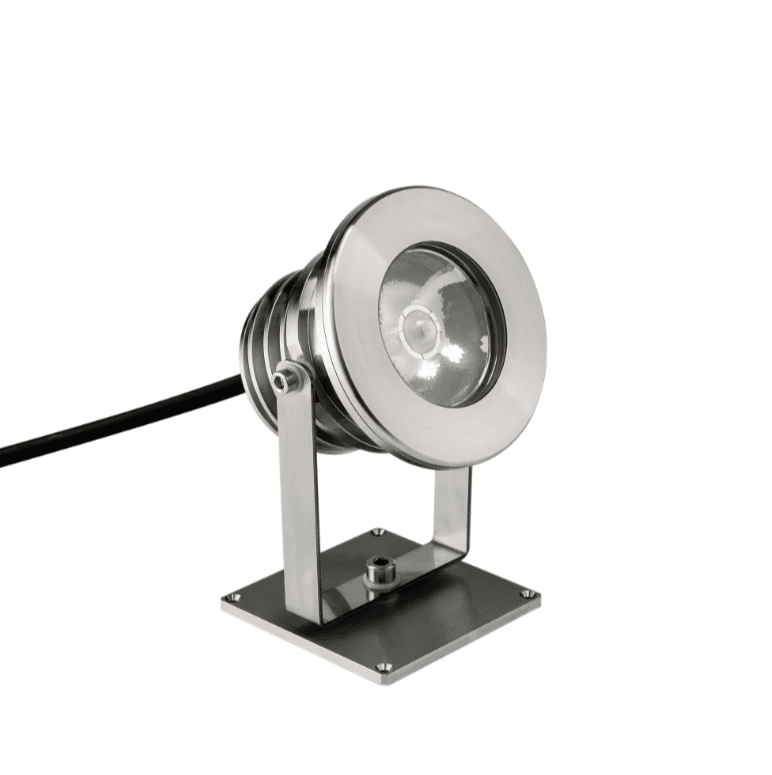

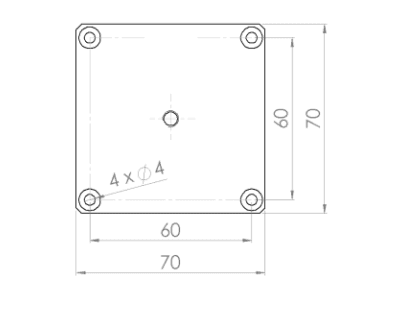

Nodus Standard is made of 316L steel. The projector comes in a version on a mounting plate or on a spike (for mounting to the ground). Power of 7W. Nodus Standard luminaire can be used to illuminate many places and objects, such as. parks, gardens, exterior walls, monuments, premises, plants.

Key Advantages:

Variety of light distribution beam angles, power options W, shape designs and dimming options.

Downloads:

Datasheet:

Technical illustrations:

Mounting instructions:

Certificates:

Photometric data:

General data

Application	FLOODLIGHTS
Key Advantages	Variety of light distribution beam angles, power options W, shape designs and dimming options.
Product Shape	Round
Type	Illumination
Mounting	BRACKET

Electrical data

Main Feed AC [V]	230VAC ~ 12/24 VDC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	6
IEC Protection Class	III
Connector Type	0.5m
Wiring	H05RN-F 2X0.5

Optics

Diffuser Material	Tempered glass
CONTROL SYSTEM	ON-OFF, PWM
LED LIFETIME Ta25 [h]	≥ 60 000h

Technical data

Total Consumption [W]	6
Lumen Output [LM]	460 – 700
Efficacy lm/W	77 – 117
Diffuser Material	Tempered glass
Body Material	SS316L,Aluminium
Beam Angle [°]	10, 20, 45
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2700/3000/4000/5000
Color Rendering Index [CRI]	80
MacAdam step	<3
LED LIFETIME Ta25 [h]	≥ 60 000h
Body Color	SST
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Main Feed AC [V]	230VAC ~ 12/24 VDC
Diameter ø [mm]	72

Housing

Body Material	SS316L,Aluminium
Body Color	SST

Light technical data

Light Source	LED
Total Consumption [W]	6
Lumen Output [LM]	460 – 700
Efficacy lm/W	77 – 117
LED Color Temperature CCT [K]	2700/3000/4000/5000
Color Rendering Index [CRI]	80
MacAdam step	<3
Beam Angle [°]	10, 20, 45
Light Distribution DIR/IND	DIR

Technical data

TA [°C]	-20 to +55
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Corrosion Class	C3, C4

Dimensions

Diameter ø [mm]	72

Variations

Item	Code	Lenght	Width	Height	Diameter	W	Lumen Output lm	Efficacy lm/W	Diffuser	Beam Angle	CRI	Color K	IP	Color
GLASS 460lm 6W 822 72 79 SS IP67	MI2270569	79	72	132	72	6	460	77	GLASS	10	80	2200	67	SST
GLASS 460lm 6W 822 72 79 SS IP67	MI9486376	79	72	132	72	6	460	77	GLASS	20	80	2200	67	SST
GLASS 460lm 6W 822 72 79 SS IP67	MI4212880	79	72	132	72	6	460	77	GLASS	10	80	2200	67	SST
GLASS 460lm 6W 822 72 79 SS IP67	MI8870294	79	72	132	72	6	460	77	GLASS	20	80	2200	67	SST
GLASS 510lm 6W 827 72 79 SS IP67	MI9408936	79	72	132	72	6	510	85	GLASS	10	80	2700	67	SST
GLASS 510lm 6W 827 72 79 SS IP67	MI5599800	79	72	132	72	6	510	85	GLASS	20	80	2700	67	SST
GLASS 510lm 6W 827 72 79 SS IP67	MI847412	79	72	132	72	6	510	85	GLASS	10	80	2700	67	SST
GLASS 510lm 6W 827 72 79 SS IP67	MI6977736	79	72	132	72	6	510	85	GLASS	20	80	2700	67	SST
GLASS 570lm 6W 830 72 79 SS IP67	MI3882120	79	72	132	72	6	570	95	GLASS	10	80	3000	67	SST
GLASS 570lm 6W 830 72 79 SS IP67	MI497484	79	72	132	72	6	570	95	GLASS	20	80	3000	67	SST
GLASS 570lm 6W 830 72 79 SS IP67	MI255017	79	72	132	72	6	570	95	GLASS	10	80	3000	67	SST
GLASS 570lm 6W 830 72 79 SS IP67	MI2034109	79	72	132	72	6	570	95	GLASS	20	80	3000	67	SST
GLASS 630lm 6W 840 72 79 SS IP67	MI9732084	79	72	132	72	6	630	105	GLASS	10	80	4000	67	SST
GLASS 630lm 6W 840 72 79 SS IP67	MI9009224	79	72	132	72	6	630	105	GLASS	20	80	4000	67	SST
GLASS 630lm 6W 840 72 79 SS IP67	MI7287769	79	72	132	72	6	630	105	GLASS	10	80	4000	67	SST
GLASS 630lm 6W 840 72 79 SS IP67	MI9816953	79	72	132	72	6	630	105	GLASS	20	80	4000	67	SST
GLASS 700lm 6W 850 72 79 SS IP67	MI5793236	79	72	132	72	6	700	117	GLASS	10	80	5000	67	SST
GLASS 700lm 6W 850 72 79 SS IP67	MI2863523	79	72	132	72	6	700	117	GLASS	20	80	5000	67	SST
GLASS 700lm 6W 850 72 79 SS IP67	MI9522535	79	72	132	72	6	700	117	GLASS	10	80	5000	67	SST
GLASS 700lm 6W 850 72 79 SS IP67	MI1642557	79	72	132	72	6	700	117	GLASS	20	80	5000	67	SST
