NODUS STANDARD SMOOTH BRASS 220-240V AC 50/60Hz
NODUS STANDARD SMOOTH BRASS 220-240V AC 50/60Hz

General data

Application	FLOODLIGHTS
Key Advantages	Variety of light distribution beam angles, power options W, shape designs and dimming options.
Product Shape	Round
Type	Illumination
Mounting	BRACKET

Electrical data

Main Feed AC [V]	220-240VAC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	7
IEC Protection Class	III
Connector Type	0.5m
Wiring	H05RN-F 2X0.5

Optics

Diffuser Material	Tempered glass
CONTROL SYSTEM	ON-OFF, PWM
LED LIFETIME Ta25 [h]	≥ 60 000h

Technical data

Total Consumption [W]	7
Lumen Output [LM]	540 – 780
Efficacy lm/W	77 – 112
Diffuser Material	Tempered glass
Body Material	BRASS
Beam Angle [°]	10, 20, 45
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2700/3000/4000/5000
Color Rendering Index [CRI]	80
MacAdam step	<3
LED LIFETIME Ta25 [h]	≥ 60 000h
Body Color	BRASS
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Main Feed AC [V]	220-240VAC

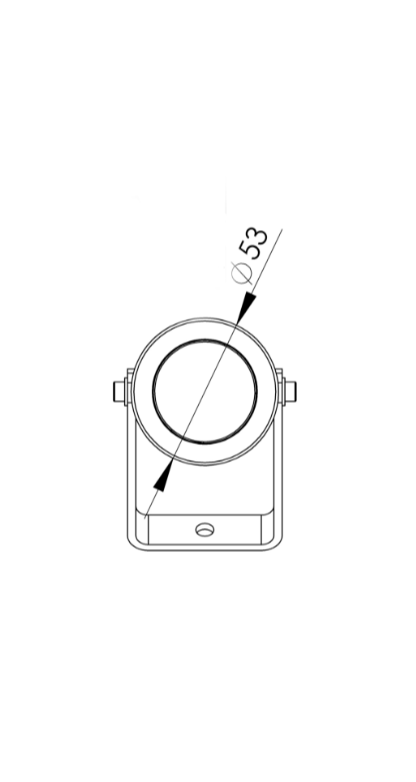

Diameter ø [mm]	53

Description:

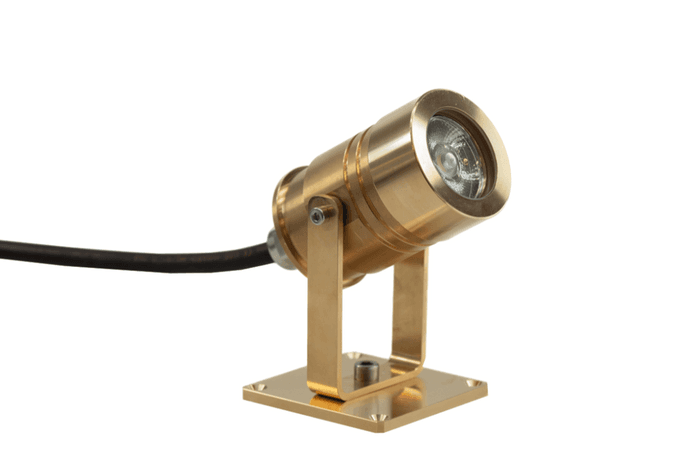

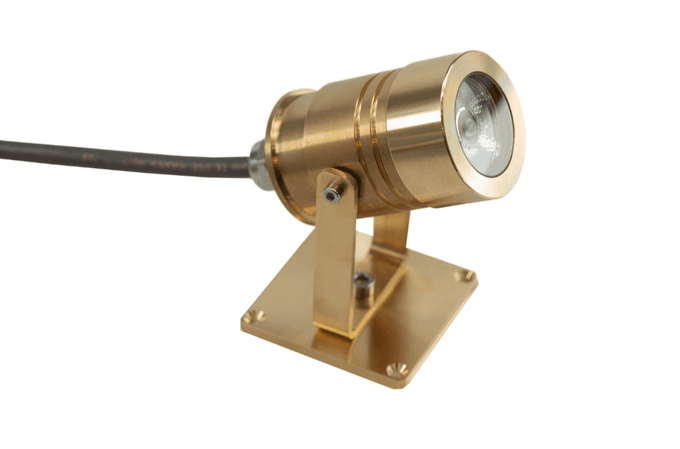

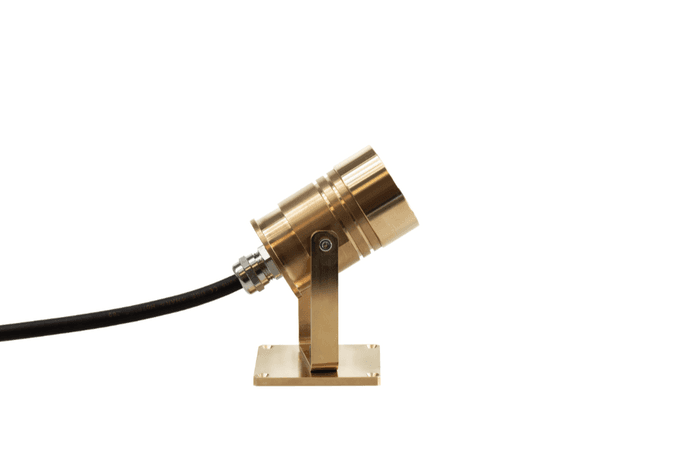

Nodus Standard Brass, as the name suggests, is made of brass. The projector comes in a version on a mounting plate or on a spike (for ground mounting). Power of 7W (IP67). This luminaire is aimed at those who want the destination of these fixtures to look unique. Nodus Standard Brass can be used to illuminate many places and objects, such as. parks, gardens, exterior walls, monuments, premises.

Key Advantages:

Variety of light distribution beam angles, power options W, shape designs and dimming options.

Downloads:

Datasheet:

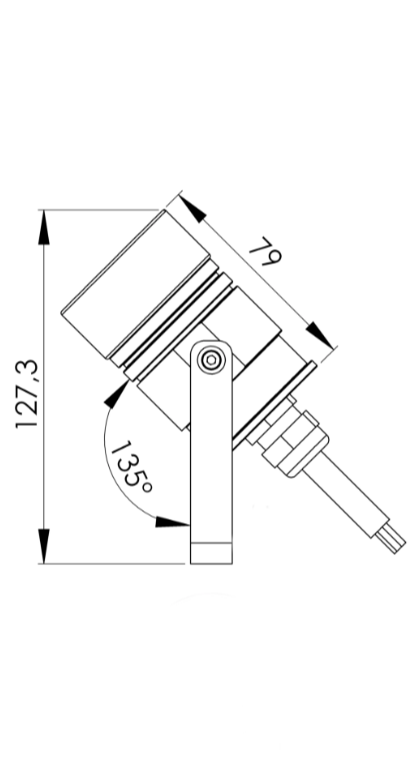

Technical illustrations:

Mounting instructions:

Certificates:

Photometric data:

General data

Application	FLOODLIGHTS
Key Advantages	Variety of light distribution beam angles, power options W, shape designs and dimming options.
Product Shape	Round
Type	Illumination
Mounting	BRACKET

Electrical data

Main Feed AC [V]	220-240VAC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	7
IEC Protection Class	III
Connector Type	0.5m
Wiring	H05RN-F 2X0.5

Optics

Diffuser Material	Tempered glass
CONTROL SYSTEM	ON-OFF, PWM
LED LIFETIME Ta25 [h]	≥ 60 000h

Technical data

Total Consumption [W]	7
Lumen Output [LM]	540 – 780
Efficacy lm/W	77 – 112
Diffuser Material	Tempered glass
Body Material	BRASS
Beam Angle [°]	10, 20, 45
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2700/3000/4000/5000
Color Rendering Index [CRI]	80
MacAdam step	<3
LED LIFETIME Ta25 [h]	≥ 60 000h
Body Color	BRASS
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Main Feed AC [V]	220-240VAC
Diameter ø [mm]	53

Housing

Body Material	BRASS
Body Color	BRASS

Light technical data

Light Source	LED
Total Consumption [W]	7
Lumen Output [LM]	540 – 780
Efficacy lm/W	77 – 112
LED Color Temperature CCT [K]	2700/3000/4000/5000
Color Rendering Index [CRI]	80
MacAdam step	<3
Beam Angle [°]	10, 20, 45
Light Distribution DIR/IND	DIR

Technical data

TA [°C]	-20 to +55
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Corrosion Class	C3, C4

Dimensions

Diameter ø [mm]	53

Variations

Item	Code	Lenght	Width	Height	Diameter	W	Lumen Output lm	Efficacy lm/W	Diffuser	Beam Angle	CRI	Color K	IP	Color
GLASS 540lm 7W 822 53 79 BR IP67	MI697178	79	53	127	53	7	540	77	GLASS	20	80	2200	67	BRASS
GLASS 590lm 7W 827 53 79 BR IP67	MI258471	79	53	127	53	7	590	85	GLASS	10	80	2700	67	BRASS
GLASS 590lm 7W 827 53 79 BR IP67	MI8729747	79	53	127	53	7	590	85	GLASS	20	80	2700	67	BRASS
GLASS 650lm 7W 830 53 79 BR IP67	MI2708740	79	53	127	53	7	650	93	GLASS	10	80	3000	67	BRASS
GLASS 650lm 7W 830 53 79 BR IP67	MI8728619	79	53	127	53	7	650	93	GLASS	20	80	3000	67	BRASS
GLASS 710lm 7W 840 53 79 BR IP67	MI9319231	79	53	127	53	7	710	102	GLASS	10	80	4000	67	BRASS
GLASS 710lm 7W 840 53 79 BR IP67	MI1325059	79	53	127	53	7	710	102	GLASS	20	80	4000	67	BRASS
GLASS 780lm 7W 850 53 79 BR IP67	MI5694568	79	53	127	53	7	780	112	GLASS	10	80	5000	67	BRASS
GLASS 780lm 7W 850 53 79 BR IP67	MI5175190	79	53	127	53	7	780	112	GLASS	20	80	5000	67	BRASS
lm 7W IP	MI513421					7
