NOX
NOX

General data
MountingWall
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]1, 2
IEC Protection ClassI
Optics
CONTROL SYSTEMON/OFF
LED LIFETIME Ta25 [h]L80B50 50.000h
Technical data
Total Consumption [W]1, 2
Lumen Output [LM]140 - 250
Efficacy lm/Wup to 140
Body MaterialAluminium
Beam Angle [°]30°, 40°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]2700, 3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 50.000h
Body ColorWhite , Black , Grey
Ingress Protection [IP]20
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Diameter ø [mm]30
Description:

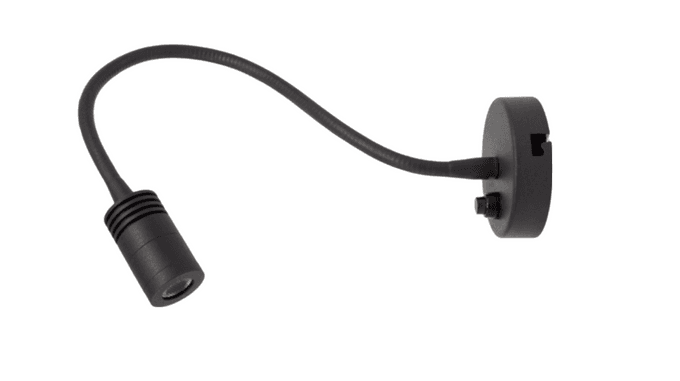

Wall mounted luminaire complete with LED module and driver

Downloads:
Datasheet:
1
Technical illustrations:
1
Mounting instructions:
1
Photometric data:
1
Certificates:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/ON_OFF.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/2700_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/2700_90.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_90.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_90.svg
General data
MountingWall
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]1, 2
IEC Protection ClassI
Optics
CONTROL SYSTEMON/OFF
LED LIFETIME Ta25 [h]L80B50 50.000h
Technical data
Total Consumption [W]1, 2
Lumen Output [LM]140 - 250
Efficacy lm/Wup to 140
Body MaterialAluminium
Beam Angle [°]30°, 40°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]2700, 3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 50.000h
Body ColorWhite , Black , Grey
Ingress Protection [IP]20
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Diameter ø [mm]30
Housing
Body MaterialAluminium
Body ColorWhite , Black , Grey
Light technical data
Light SourceLED
Total Consumption [W]1, 2
Lumen Output [LM]140 - 250
Efficacy lm/Wup to 140
LED Color Temperature CCT [K]2700, 3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
Beam Angle [°]30°, 40°
Light Distribution DIR/INDDIR
Technical data
TA [°C]-20C° / +40C°
Ingress Protection [IP]20
Mechanical Protection [IK]01

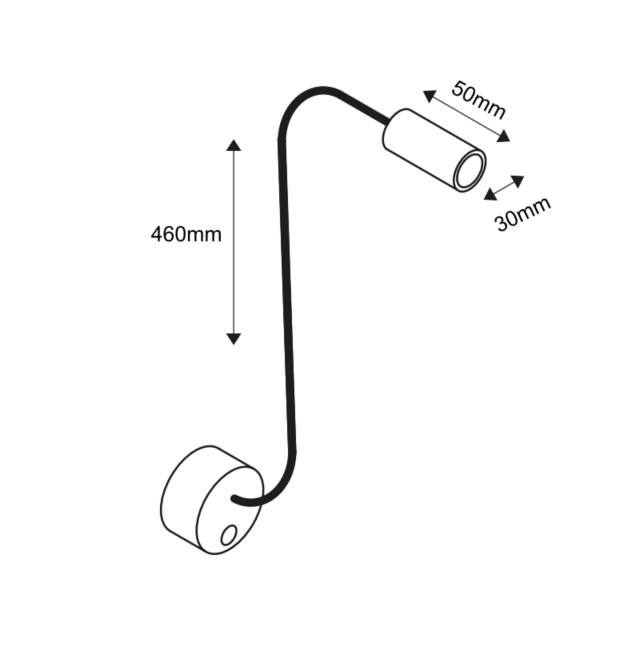

Dimensions
Diameter ø [mm]30
