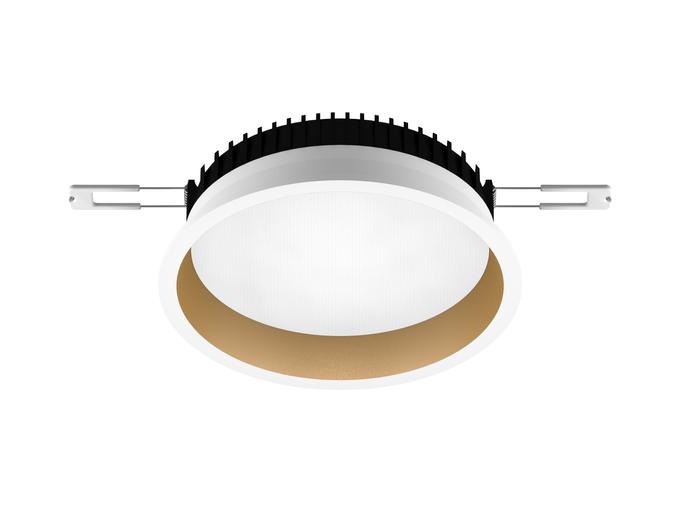

ONYX 175ONYX 175
General data
| Application | A version with a CRI>90 makes the product suitable for use in museums, galleries, premium boutiques and dental offices. |
|---|---|
| Key Advantages | Various optic beam angle versions designed to suit any applications and requirements. |
| Product Shape | Round |
| Type | Downlight |
| Mounting | Recessed |
| Mounting Opening | 160 |
Electrical data
| Main Feed AC [V] | 220-240 |
|---|---|
| Main Feed Frequency [Hz] | 50-60 |
| Total Consumption [W] | 20 |
| IEC Protection Class | I |
Optics
| Diffuser Material | OPAL |
|---|---|
| Diffuser Material Design | PLX |
| TYPE OF CONTROL | ON/OFF, DALI |
| CONTROL SYSTEM | ON/OFF, DALI |
| LED LIFETIME Ta25 [h] | L80B10 60.000h |
Technical data
| Total Consumption [W] | 20 |
|---|---|
| Lumen Output [LM] | 1550 - 1800 |
| Efficacy lm/W | up to 90 |
| Diffuser Material | OPAL |
| Body Material | Anodized aluminium |
| Beam Angle [°] | 74°, 75° |
| Light Distribution DIR/IND | DIR |
| LED Color Temperature CCT [K] | 3000, 4000 |
| Color Rendering Index [CRI] | 90 |
| MacAdam step | 3 |
| LED LIFETIME Ta25 [h] | L80B10 60.000h |
| TYPE OF CONTROL | ON/OFF, DALI |
| Body Color | White 9016, Gold 1036/White 9016, Black 9005/White 9016 |
| Ingress Protection [IP] | 44 |
| Mechanical Protection [IK] | 01 |
| Main Feed AC [V] | 220-240 |
| Diameter ø [mm] | 176 |
Description:
A small, configurable spotlight – recessed downlight for interior lighting. A wide range of technical parameter and luminaire appearance variants for versatile applications. COB technology and a high-performance, metalized, facetted plastic reflector guarantee the optimum construction of the optical system and a high efficiency.
Key Advantages:
Various optic beam angle versions designed to suit any applications and requirements.
Downloads:
Datasheet:
1Technical illustrations:
1Mounting instructions:
1Certificates:
1Photometric data:
1
General data
| Application | A version with a CRI>90 makes the product suitable for use in museums, galleries, premium boutiques and dental offices. |
|---|---|
| Key Advantages | Various optic beam angle versions designed to suit any applications and requirements. |
| Product Shape | Round |
| Type | Downlight |
| Mounting | Recessed |
| Mounting Opening | 160 |
Electrical data
| Main Feed AC [V] | 220-240 |
|---|---|
| Main Feed Frequency [Hz] | 50-60 |
| Total Consumption [W] | 20 |
| IEC Protection Class | I |
Optics
| Diffuser Material | OPAL |
|---|---|
| Diffuser Material Design | PLX |
| TYPE OF CONTROL | ON/OFF, DALI |
| CONTROL SYSTEM | ON/OFF, DALI |
| LED LIFETIME Ta25 [h] | L80B10 60.000h |
Technical data
| Total Consumption [W] | 20 |
|---|---|
| Lumen Output [LM] | 1550 - 1800 |
| Efficacy lm/W | up to 90 |
| Diffuser Material | OPAL |
| Body Material | Anodized aluminium |
| Beam Angle [°] | 74°, 75° |
| Light Distribution DIR/IND | DIR |
| LED Color Temperature CCT [K] | 3000, 4000 |
| Color Rendering Index [CRI] | 90 |
| MacAdam step | 3 |
| LED LIFETIME Ta25 [h] | L80B10 60.000h |
| TYPE OF CONTROL | ON/OFF, DALI |
| Body Color | White 9016, Gold 1036/White 9016, Black 9005/White 9016 |
| Ingress Protection [IP] | 44 |
| Mechanical Protection [IK] | 01 |
| Main Feed AC [V] | 220-240 |
| Diameter ø [mm] | 176 |
Housing
| Body Material | Anodized aluminium |
|---|---|
| Body Color | White 9016, Gold 1036/White 9016, Black 9005/White 9016 |
| Finish | Matt, Gloss |
Light technical data
| Light Source | LED |
|---|---|
| Total Consumption [W] | 20 |
| Lumen Output [LM] | 1550 - 1800 |
| Efficacy lm/W | up to 90 |
| LED Color Temperature CCT [K] | 3000, 4000 |
| Color Rendering Index [CRI] | 90 |
| MacAdam step | 3 |
| Beam Angle [°] | 74°, 75° |
| Light Distribution DIR/IND | DIR |
Technical data
| TA [°C] | 0-25 |
|---|---|
| Ingress Protection [IP] | 44 |
| Mechanical Protection [IK] | 01 |
Dimensions
| Diameter ø [mm] | 176 |
|---|
