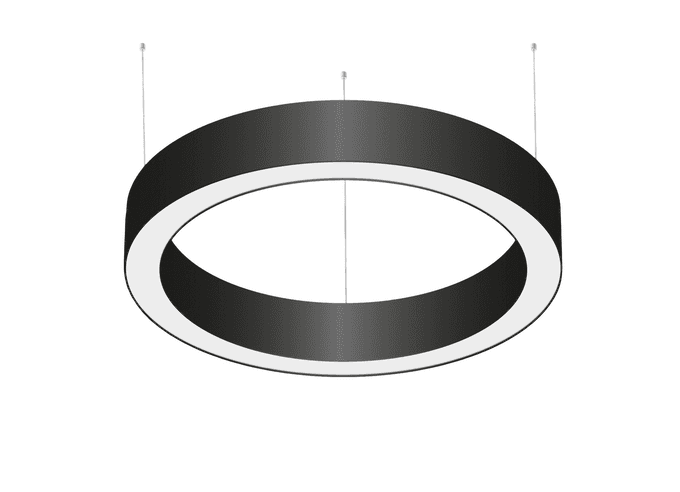

ORA H10 PENDANT
ORA H10 PENDANT

General data

Key Advantages	Various optics versions designed to suit any applications and requirements: Opal, Microprismatic ensuring highest performance, comfort, light uniformity and glare-eliminating reflectors.
Product Shape	Linear, Round
Mounting	Pendant

Electrical data

Main Feed AC [V]	220-240
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	24 - 110
IEC Protection Class	I

Optics

Diffuser Material	OPAL, MPR
Diffuser Material Design	Opal, MPR
TYPE OF CONTROL	ON/OFF, DALI
CONTROL SYSTEM	ON/OFF, DALI, 1-10V, Touch-Dim, Casambi
LED LIFETIME Ta25 [h]	L80B50 100.000h

Technical data

Total Consumption [W]	24 - 110
Lumen Output [LM]	2400 - 11000
Efficacy lm/W	100
Diffuser Material	OPAL, MPR
Body Material	Aluminium
Beam Angle [°]	80, 90
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	3000-6500
Color Rendering Index [CRI]	80
MacAdam step	3
LED LIFETIME Ta25 [h]	L80B50 100.000h
TYPE OF CONTROL	ON/OFF, DALI
Body Color	White , Black , Grey
Ingress Protection [IP]	20
Mechanical Protection [IK]	02
Main Feed AC [V]	220-240
Diameter ø [mm]	400, 600, 900, 1200, 1500

Description:

The ORA series redefines modern lighting with its sleek and minimalist design. Crafted with durable aluminum housing and finished with an antimicrobial powder coating, it combines aesthetics with functionality. Its versatile diffuser options – opal, PMMA, prismatic, or microprismatic – deliver exceptional lighting performance tailored to your needs. Offering advanced dimming and control options, including DALI, Touch-Dim, and Casambi, this luminaire is perfect for creating the ideal ambiance in residential, commercial, or hospitality spaces.

Suspension accessories included.

Key Advantages:

Various optics versions designed to suit any applications and requirements: Opal, Microprismatic ensuring highest performance, comfort, light uniformity and glare-eliminating reflectors.

Downloads:

Datasheet:

Mounting instructions:

Certificates:

Photometric data:

General data

Key Advantages	Various optics versions designed to suit any applications and requirements: Opal, Microprismatic ensuring highest performance, comfort, light uniformity and glare-eliminating reflectors.
Product Shape	Linear, Round
Mounting	Pendant

Electrical data

Main Feed AC [V]	220-240
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	24 - 110
IEC Protection Class	I

Optics

Diffuser Material	OPAL, MPR
Diffuser Material Design	Opal, MPR
TYPE OF CONTROL	ON/OFF, DALI
CONTROL SYSTEM	ON/OFF, DALI, 1-10V, Touch-Dim, Casambi
LED LIFETIME Ta25 [h]	L80B50 100.000h

Technical data

Total Consumption [W]	24 - 110
Lumen Output [LM]	2400 - 11000
Efficacy lm/W	100
Diffuser Material	OPAL, MPR
Body Material	Aluminium
Beam Angle [°]	80, 90
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	3000-6500
Color Rendering Index [CRI]	80
MacAdam step	3
LED LIFETIME Ta25 [h]	L80B50 100.000h
TYPE OF CONTROL	ON/OFF, DALI
Body Color	White , Black , Grey
Ingress Protection [IP]	20
Mechanical Protection [IK]	02
Main Feed AC [V]	220-240
Diameter ø [mm]	400, 600, 900, 1200, 1500

Housing

Body Material	Aluminium
Body Color	White , Black , Grey
RAL	any RAL on request

Light technical data

Light Source	PCB LED
Total Consumption [W]	24 - 110
Lumen Output [LM]	2400 - 11000
Efficacy lm/W	100
LED Color Temperature CCT [K]	3000-6500
Color Rendering Index [CRI]	80
UGR	<19
MacAdam step	3
Beam Angle [°]	80, 90
Light Distribution DIR/IND	DIR

Technical data

TA [°C]	-25 - +35
Ingress Protection [IP]	20
Mechanical Protection [IK]	02

Dimensions

Diameter ø [mm]	400, 600, 900, 1200, 1500

Variations

Item	Code	Width	Height	Diameter	W	Lumen Output lm	Efficacy lm/W	Diffuser	Beam Angle	CRI	Color K	Type of Control	IP	Color
ORA H10 PENDANT OPAL 2400lm 24W 830 400 WH IP20 ON/OFF	MI113500393	100	100	400	24	2400	100	OPAL	90°	80	3000	ON/OFF	20	WHITE
ORA H10 PENDANT OPAL 2400lm 24W 830 400 BL IP20 ON/OFF	MI119852386	100	100	400	24	2400	100	OPAL	90°	80	3000	ON/OFF	20	BLACK
ORA H10 PENDANT OPAL 2400lm 24W 830 400 GR IP20 ON/OFF	MI118604914	100	100	400	24	2400	100	OPAL	90°	80	3000	ON/OFF	20	GREY
ORA H10 PENDANT OPAL 2400lm 24W 840 400 WH IP20 ON/OFF	MI117325423	100	100	400	24	2400	100	OPAL	90°	80	4000	ON/OFF	20	WHITE
ORA H10 PENDANT OPAL 2400lm 24W 840 400 BL IP20 ON/OFF	MI111929187	100	100	400	24	2400	100	OPAL	90°	80	4000	ON/OFF	20	BLACK
ORA H10 PENDANT OPAL 2400lm 24W 840 400 GR IP20 ON/OFF	MI118306763	100	100	400	24	2400	100	OPAL	90°	80	4000	ON/OFF	20	GREY
ORA H10 PENDANT OPAL 2400lm 24W 850 400 WH IP20 ON/OFF	MI111319423	100	100	400	24	2400	100	OPAL	90°	80	5000	ON/OFF	20	WHITE
ORA H10 PENDANT OPAL 2400lm 24W 850 400 BL IP20 ON/OFF	MI112597018	100	100	400	24	2400	100	OPAL	90°	80	5000	ON/OFF	20	BLACK
ORA H10 PENDANT OPAL 2400lm 24W 850 400 GR IP20 ON/OFF	MI111193579	100	100	400	24	2400	100	OPAL	90°	80	5000	ON/OFF	20	GREY
ORA H10 PENDANT OPAL 2400lm 24W 830 400 WH IP20 DALI	MI114364459	100	100	400	24	2400	100	OPAL	90°	80	3000	DALI	20	WHITE
ORA H10 PENDANT OPAL 2400lm 24W 830 400 BL IP20 DALI	MI11798554	100	100	400	24	2400	100	OPAL	90°	80	3000	DALI	20	BLACK
ORA H10 PENDANT OPAL 2400lm 24W 830 400 GR IP20 DALI	MI118383181	100	100	400	24	2400	100	OPAL	90°	80	3000	DALI	20	GREY
ORA H10 PENDANT OPAL 2400lm 24W 840 400 WH IP20 DALI	MI114028203	100	100	400	24	2400	100	OPAL	90°	80	4000	DALI	20	WHITE
ORA H10 PENDANT OPAL 2400lm 24W 840 400 BL IP20 DALI	MI119151437	100	100	400	24	2400	100	OPAL	90°	80	4000	DALI	20	BLACK
ORA H10 PENDANT OPAL 2400lm 24W 840 400 GR IP20 DALI	MI114656498	100	100	400	24	2400	100	OPAL	90°	80	4000	DALI	20	GREY
ORA H10 PENDANT OPAL 2400lm 24W 850 400 WH IP20 DALI	MI112076740	100	100	400	24	2400	100	OPAL	90°	80	5000	DALI	20	WHITE
ORA H10 PENDANT OPAL 2400lm 24W 850 400 BL IP20 DALI	MI117429596	100	100	400	24	2400	100	OPAL	90°	80	5000	DALI	20	BLACK
ORA H10 PENDANT OPAL 2400lm 24W 850 400 GR IP20 DALI	MI113527040	100	100	400	24	2400	100	OPAL	90°	80	5000	DALI	20	GREY
ORA H10 PENDANT MPR 2400lm 24W 830 400 WH IP20 ON/OFF	MI119498249	100	100	400	24	2400	100	MPR	80°	80	3000	ON/OFF	20	WHITE
ORA H10 PENDANT MPR 2400lm 24W 830 400 BL IP20 ON/OFF	MI118222542	100	100	400	24	2400	100	MPR	80°	80	3000	ON/OFF	20	BLACK
ORA H10 PENDANT MPR 2400lm 24W 830 400 GR IP20 ON/OFF	MI117157323	100	100	400	24	2400	100	MPR	80°	80	3000	ON/OFF	20	GREY
ORA H10 PENDANT MPR 2400lm 24W 840 400 WH IP20 ON/OFF	MI112987900	100	100	400	24	2400	100	MPR	80°	80	4000	ON/OFF	20	WHITE
ORA H10 PENDANT MPR 2400lm 24W 840 400 BL IP20 ON/OFF	MI113297761	100	100	400	24	2400	100	MPR	80°	80	4000	ON/OFF	20	BLACK
ORA H10 PENDANT MPR 2400lm 24W 840 400 GR IP20 ON/OFF	MI117535510	100	100	400	24	2400	100	MPR	80°	80	4000	ON/OFF	20	GREY
ORA H10 PENDANT MPR 2400lm 24W 850 400 WH IP20 ON/OFF	MI11748939	100	100	400	24	2400	100	MPR	80°	80	5000	ON/OFF	20	WHITE
