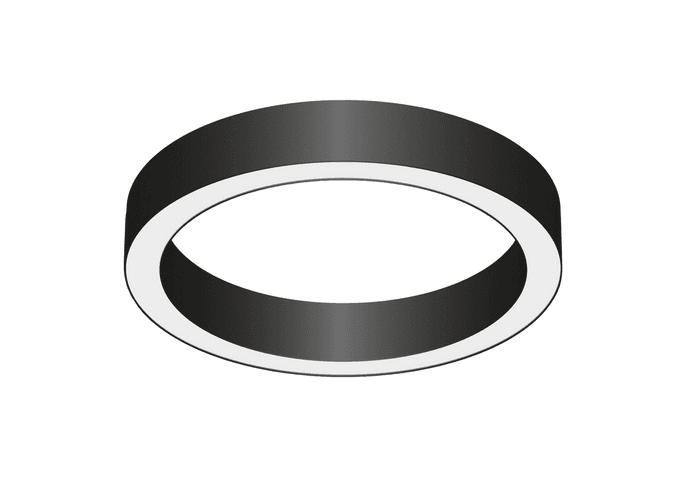

ORA H10 SURFACE
ORA H10 SURFACE

General data

Key Advantages	Various optics versions designed to suit any applications and requirements: Opal, Microprismatic ensuring highest performance, comfort, light uniformity and glare-eliminating reflectors.
Product Shape	Linear, Round
Mounting	Surface

Electrical data

Main Feed AC [V]	220-240
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	24 - 110
IEC Protection Class	I

Optics

Diffuser Material	OPAL, MPR
Diffuser Material Design	Opal, MPR
TYPE OF CONTROL	ON/OFF, DALI
CONTROL SYSTEM	ON/OFF, DALI, 1-10V, Touch-Dim, Casambi
LED LIFETIME Ta25 [h]	L80B50 100.000h

Technical data

Total Consumption [W]	24 - 110
Lumen Output [LM]	2400 - 11000
Efficacy lm/W	100
Diffuser Material	OPAL, MPR
Body Material	Aluminium
Beam Angle [°]	80, 90
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	3000-6500
Color Rendering Index [CRI]	80
MacAdam step	3
LED LIFETIME Ta25 [h]	L80B50 100.000h
TYPE OF CONTROL	ON/OFF, DALI
Body Color	White , Black , Grey
Ingress Protection [IP]	20
Mechanical Protection [IK]	02
Main Feed AC [V]	220-240
Diameter ø [mm]	400, 600, 900, 1200, 1500

Description:

The ORA series redefines modern lighting with its sleek and minimalist design. Crafted with durable aluminum housing and finished with an antimicrobial powder coating, it combines aesthetics with functionality. Its versatile diffuser options – opal, PMMA, prismatic, or microprismatic – deliver exceptional lighting performance tailored to your needs. Offering advanced dimming and control options, including DALI, Touch-Dim, and Casambi, this luminaire is perfect for creating the ideal ambiance in residential, commercial, or hospitality spaces.

Key Advantages:

Various optics versions designed to suit any applications and requirements: Opal, Microprismatic ensuring highest performance, comfort, light uniformity and glare-eliminating reflectors.

Downloads:

Datasheet:

Mounting instructions:

Certificates:

Photometric data:

General data

Key Advantages	Various optics versions designed to suit any applications and requirements: Opal, Microprismatic ensuring highest performance, comfort, light uniformity and glare-eliminating reflectors.
Product Shape	Linear, Round
Mounting	Surface

Electrical data

Main Feed AC [V]	220-240
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	24 - 110
IEC Protection Class	I

Optics

Diffuser Material	OPAL, MPR
Diffuser Material Design	Opal, MPR
TYPE OF CONTROL	ON/OFF, DALI
CONTROL SYSTEM	ON/OFF, DALI, 1-10V, Touch-Dim, Casambi
LED LIFETIME Ta25 [h]	L80B50 100.000h

Technical data

Total Consumption [W]	24 - 110
Lumen Output [LM]	2400 - 11000
Efficacy lm/W	100
Diffuser Material	OPAL, MPR
Body Material	Aluminium
Beam Angle [°]	80, 90
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	3000-6500
Color Rendering Index [CRI]	80
MacAdam step	3
LED LIFETIME Ta25 [h]	L80B50 100.000h
TYPE OF CONTROL	ON/OFF, DALI
Body Color	White , Black , Grey
Ingress Protection [IP]	20
Mechanical Protection [IK]	02
Main Feed AC [V]	220-240
Diameter ø [mm]	400, 600, 900, 1200, 1500

Housing

Body Material	Aluminium
Body Color	White , Black , Grey
RAL	any RAL on request

Light technical data

Light Source	PCB LED
Total Consumption [W]	24 - 110
Lumen Output [LM]	2400 - 11000
Efficacy lm/W	100
LED Color Temperature CCT [K]	3000-6500
Color Rendering Index [CRI]	80
UGR	<19
MacAdam step	3
Beam Angle [°]	80, 90
Light Distribution DIR/IND	DIR

Technical data

TA [°C]	-25 - +35
Ingress Protection [IP]	20
Mechanical Protection [IK]	02

Dimensions

Diameter ø [mm]	400, 600, 900, 1200, 1500

Variations

Item	Code	Width	Height	Diameter	W	Lumen Output lm	Efficacy lm/W	Diffuser	Beam Angle	CRI	Color K	Type of Control	IP	Color
ORA H10 SURFACE OPAL 2400lm 24W 830 400 WH IP20 ON/OFF	MI118241837	100	100	400	24	2400	100	OPAL	90°	80	3000	ON/OFF	20	WHITE
ORA H10 SURFACE OPAL 2400lm 24W 830 400 BL IP20 ON/OFF	MI114248662	100	100	400	24	2400	100	OPAL	90°	80	3000	ON/OFF	20	BLACK
ORA H10 SURFACE OPAL 2400lm 24W 830 400 GR IP20 ON/OFF	MI112910632	100	100	400	24	2400	100	OPAL	90°	80	3000	ON/OFF	20	GREY
ORA H10 SURFACE OPAL 2400lm 24W 840 400 WH IP20 ON/OFF	MI119125593	100	100	400	24	2400	100	OPAL	90°	80	4000	ON/OFF	20	WHITE
ORA H10 SURFACE OPAL 2400lm 24W 840 400 BL IP20 ON/OFF	MI114347840	100	100	400	24	2400	100	OPAL	90°	80	4000	ON/OFF	20	BLACK
ORA H10 SURFACE OPAL 2400lm 24W 840 400 GR IP20 ON/OFF	MI113202227	100	100	400	24	2400	100	OPAL	90°	80	4000	ON/OFF	20	GREY
ORA H10 SURFACE OPAL 2400lm 24W 850 400 WH IP20 ON/OFF	MI119449151	100	100	400	24	2400	100	OPAL	90°	80	5000	ON/OFF	20	WHITE
ORA H10 SURFACE OPAL 2400lm 24W 850 400 BL IP20 ON/OFF	MI112031682	100	100	400	24	2400	100	OPAL	90°	80	5000	ON/OFF	20	BLACK
ORA H10 SURFACE OPAL 2400lm 24W 850 400 GR IP20 ON/OFF	MI11908845	100	100	400	24	2400	100	OPAL	90°	80	5000	ON/OFF	20	GREY
ORA H10 SURFACE OPAL 2400lm 24W 830 400 WH IP20 DALI	MI116357998	100	100	400	24	2400	100	OPAL	90°	80	3000	DALI	20	WHITE
ORA H10 SURFACE OPAL 2400lm 24W 830 400 BL IP20 DALI	MI116561711	100	100	400	24	2400	100	OPAL	90°	80	3000	DALI	20	BLACK
ORA H10 SURFACE OPAL 2400lm 24W 830 400 GR IP20 DALI	MI118145987	100	100	400	24	2400	100	OPAL	90°	80	3000	DALI	20	GREY
ORA H10 SURFACE OPAL 2400lm 24W 840 400 WH IP20 DALI	MI119627518	100	100	400	24	2400	100	OPAL	90°	80	4000	DALI	20	WHITE
ORA H10 SURFACE OPAL 2400lm 24W 840 400 BL IP20 DALI	MI117336925	100	100	400	24	2400	100	OPAL	90°	80	4000	DALI	20	BLACK
ORA H10 SURFACE OPAL 2400lm 24W 840 400 GR IP20 DALI	MI115167464	100	100	400	24	2400	100	OPAL	90°	80	4000	DALI	20	GREY
ORA H10 SURFACE OPAL 2400lm 24W 850 400 WH IP20 DALI	MI113324052	100	100	400	24	2400	100	OPAL	90°	80	5000	DALI	20	WHITE
ORA H10 SURFACE OPAL 2400lm 24W 850 400 BL IP20 DALI	MI114528199	100	100	400	24	2400	100	OPAL	90°	80	5000	DALI	20	BLACK
ORA H10 SURFACE OPAL 2400lm 24W 850 400 GR IP20 DALI	MI112950961	100	100	400	24	2400	100	OPAL	90°	80	5000	DALI	20	GREY
ORA H10 SURFACE MPR 2400lm 24W 830 400 WH IP20 ON/OFF	MI115772971	100	100	400	24	2400	100	MPR	80°	80	3000	ON/OFF	20	WHITE
ORA H10 SURFACE MPR 2400lm 24W 830 400 BL IP20 ON/OFF	MI119090414	100	100	400	24	2400	100	MPR	80°	80	3000	ON/OFF	20	BLACK
ORA H10 SURFACE MPR 2400lm 24W 830 400 GR IP20 ON/OFF	MI115971470	100	100	400	24	2400	100	MPR	80°	80	3000	ON/OFF	20	GREY
ORA H10 SURFACE MPR 2400lm 24W 840 400 WH IP20 ON/OFF	MI115376347	100	100	400	24	2400	100	MPR	80°	80	4000	ON/OFF	20	WHITE
ORA H10 SURFACE MPR 2400lm 24W 840 400 BL IP20 ON/OFF	MI11825846	100	100	400	24	2400	100	MPR	80°	80	4000	ON/OFF	20	BLACK
ORA H10 SURFACE MPR 2400lm 24W 840 400 GR IP20 ON/OFF	MI115625302	100	100	400	24	2400	100	MPR	80°	80	4000	ON/OFF	20	GREY
ORA H10 SURFACE MPR 2400lm 24W 850 400 WH IP20 ON/OFF	MI119601954	100	100	400	24	2400	100	MPR	80°	80	5000	ON/OFF	20	WHITE
