ORBIS 100 SURFACE TRANSPARENT 1850lm 15W 940 180 BL IP20 DALI
Item No. MI107409300
ORBIS 100 SURFACE

ORBIS 100 SURFACE TRANSPARENT 1850lm 15W 940 180 BL IP20 DALI

MI107409300

General data
Key Advantages

Various optic beam angle versions designed to suit any applications and requirements.

Product ShapeRectangular
TypeSpotlight
MountingS
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]15
IEC Protection ClassI
Optics
DiffuserTRANSPARENT
Type of ControlDALI
LED LIFETIME Ta25 [h]L90B10 60.000h
Technical data
Total Consumption [W]15
Lumen Output [LM]1850
Efficacy [lm/W]123
DiffuserTRANSPARENT
Beam Angle [°]60°
Light distributionDIR
CCT [K]4000
CRI90
MacAdam step3
LED LIFETIME Ta25 [h]L90B10 60.000h
Type of ControlDALI
Housing colorBLACK
IP20
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Dimensions (length, width, height)180 x 0 x 0 mm [LxWxH]
Description:

A small, configurable spotlight – surface downlight for interior lighting. A wide range of technical parameter and luminaire appearance variants for versatile applications. COB technology and a high-performance, metalized, facetted plastic reflector guarantee the optimum construction of the optical system and a high efficiency. The tempered transparent glass protects the luminaire against dust, dirt. A ring or frame made of die-cast aluminium or steel sheet, painted white or black as a standard.

Key Advantages:

Various optic beam angle versions designed to suit any applications and requirements.

Downloads:
Datasheet:
1
Mounting instructions:
1
Certificates:
1

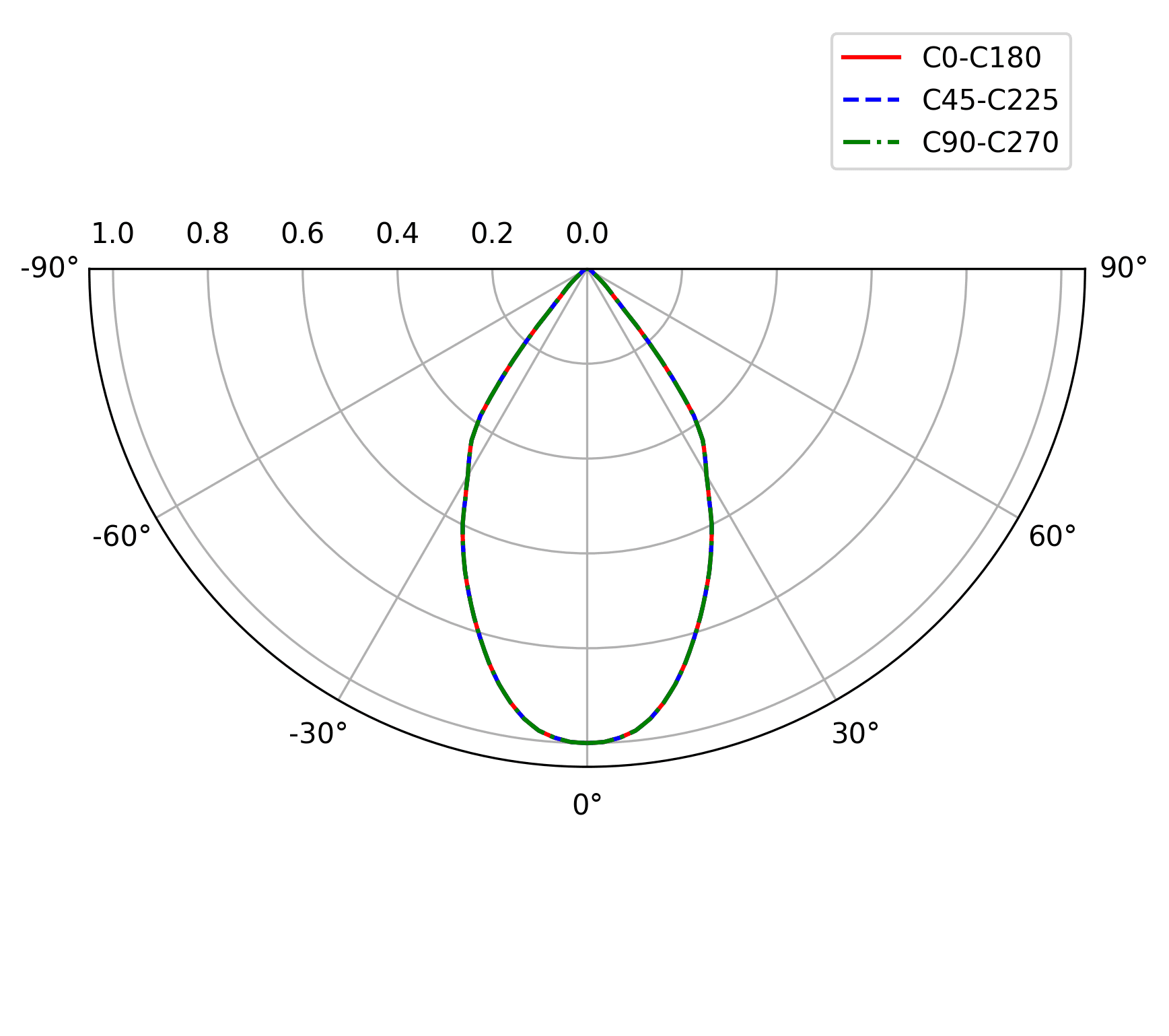

Photometric data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/DALI.svg
/soft4net/img/project/icons/AD - IP/20.svg
/soft4net/img/project/icons/J - MOUNTING/S.svg
/soft4net/img/project/icons/W - HOUSING COLOR/BLACK.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_90.svg
ORBIS 100 SURFACE
General data
Key Advantages

Various optic beam angle versions designed to suit any applications and requirements.

Product ShapeRectangular
TypeSpotlight
MountingS
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]15
IEC Protection ClassI
Optics
DiffuserTRANSPARENT
Type of ControlDALI
LED LIFETIME Ta25 [h]L90B10 60.000h
Technical data
Total Consumption [W]15
Lumen Output [LM]1850
Efficacy [lm/W]123
DiffuserTRANSPARENT
Beam Angle [°]60°
Light distributionDIR
CCT [K]4000
CRI90
MacAdam step3
LED LIFETIME Ta25 [h]L90B10 60.000h
Type of ControlDALI
Housing colorBLACK
IP20
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Dimensions (length, width, height)180 x 0 x 0 mm [LxWxH]
Housing
Housing colorBLACK
FinishMatt, Gloss
Light technical data
Light SourceLED
Total Consumption [W]15
Lumen Output [LM]1850
Efficacy [lm/W]123
CCT [K]4000
CRI90
MacAdam step3
Beam Angle [°]60°
Light distributionDIR
Technical data
IP20
Mechanical Protection [IK]01
Dimensions
Dimensions (length, width, height)180 x 0 x 0 mm [LxWxH]
Generating PDF...

Technical illustrations

ORBIS 100 SURFACE
