POLO 80
POLO 80

General data

Application	Minimalist design seamlessly integrates into various environments, from contemporary homes to stylish commercial interiors.
Product Shape	Round
Mounting	Surface

Electrical data

Main Feed AC [V]	220-240
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	9 – 13
IEC Protection Class	I

Optics

Diffuser Material	PC GLASS
Diffuser Material Design	PC GLASS
TYPE OF CONTROL	ON/OFF
CONTROL SYSTEM	ON/OFF
LED LIFETIME Ta25 [h]	L70B50 60.000h

Technical data

Total Consumption [W]	9 – 13
Lumen Output [LM]	770 – 1200
Efficacy lm/W	85
Diffuser Material	PC GLASS
Body Material	Aluminium
Beam Angle [°]	29°, 57°
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	3000, 4000
Color Rendering Index [CRI]	90
MacAdam step	3
LED LIFETIME Ta25 [h]	L70B50 60.000h
TYPE OF CONTROL	ON/OFF
Body Color	WHITE, BLACK, GRAY
Ingress Protection [IP]	54
Mechanical Protection [IK]	1
Main Feed AC [V]	220-240
Diameter ø [mm]	80

Description:

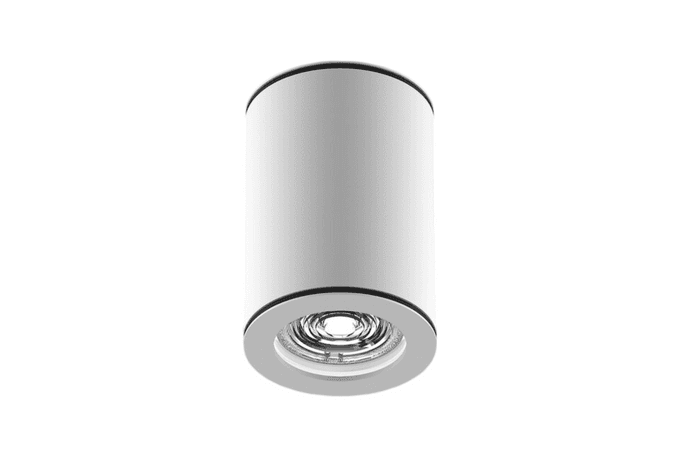

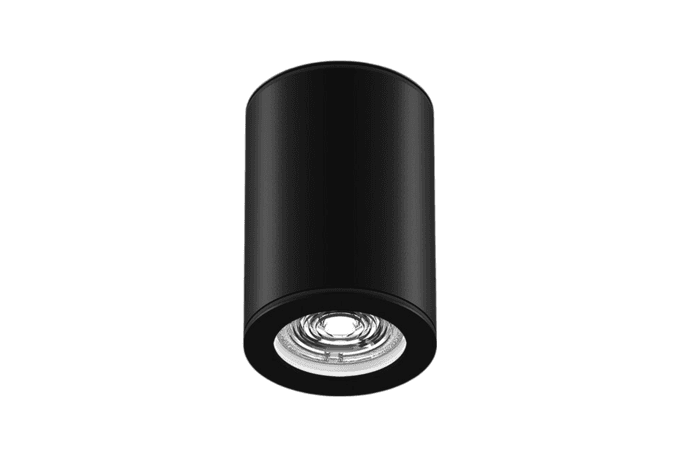

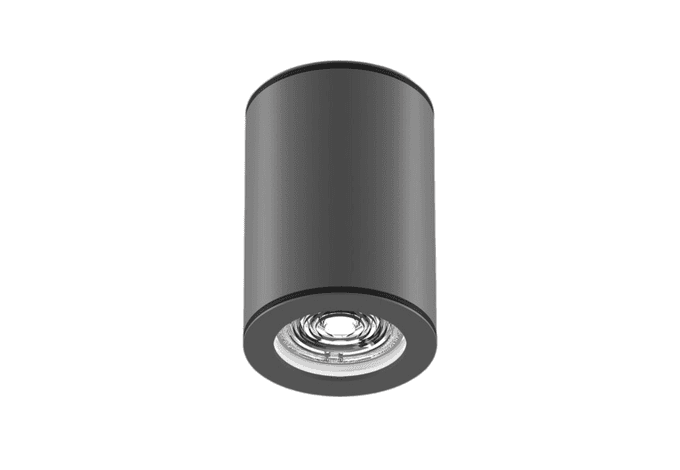

POLO 80 is a surface-mounted luminaire that combines modern design with exceptional functionality. Featuring a clean, cylindrical form in a pristine white, black and grey finish and a contrasting black inner detail. Crafted with high-quality materials and advanced LED technology, the POLO 80 ensures energy-efficient performance and superior lighting output

Downloads:

Datasheet:

Technical illustrations:

Mounting instructions:

Certificates:

Photometric data:

General data

Application	Minimalist design seamlessly integrates into various environments, from contemporary homes to stylish commercial interiors.
Product Shape	Round
Mounting	Surface

Electrical data

Main Feed AC [V]	220-240
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	9 – 13
IEC Protection Class	I

Optics

Diffuser Material	PC GLASS
Diffuser Material Design	PC GLASS
TYPE OF CONTROL	ON/OFF
CONTROL SYSTEM	ON/OFF
LED LIFETIME Ta25 [h]	L70B50 60.000h

Technical data

Total Consumption [W]	9 – 13
Lumen Output [LM]	770 – 1200
Efficacy lm/W	85
Diffuser Material	PC GLASS
Body Material	Aluminium
Beam Angle [°]	29°, 57°
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	3000, 4000
Color Rendering Index [CRI]	90
MacAdam step	3
LED LIFETIME Ta25 [h]	L70B50 60.000h
TYPE OF CONTROL	ON/OFF
Body Color	WHITE, BLACK, GRAY
Ingress Protection [IP]	54
Mechanical Protection [IK]	1
Main Feed AC [V]	220-240
Diameter ø [mm]	80

Housing

Body Material	Aluminium
Body Color	WHITE, BLACK, GRAY

Light technical data

Light Source	LED
Total Consumption [W]	9 – 13
Lumen Output [LM]	770 – 1200
Efficacy lm/W	85
LED Color Temperature CCT [K]	3000, 4000
Color Rendering Index [CRI]	90
MacAdam step	3
Beam Angle [°]	29°, 57°
Light Distribution DIR/IND	DIR

Technical data

TA [°C]	0C° / +35C°
Ingress Protection [IP]	54
Mechanical Protection [IK]	1

Dimensions

Diameter ø [mm]	80

Variations

Item	Code	Height	Diameter	W	Lumen Output lm	Efficacy lm/W	Diffuser	Beam Angle	CRI	Color K	Type of Control	IP	Color
POLO 80 PC GLASS 770lm 9W 930 80 WH IP54 ON/OFF	MI2121353	117	80	9	770	85	PC GLASS	29°	90	3000	ON/OFF	54	WHITE
POLO 80 PC GLASS 770lm 9W 930 80 GR IP54 ON/OFF	MI4637286	117	80	9	770	85	PC GLASS	29°	90	3000	ON/OFF	54	GRAY
POLO 80 PC GLASS 770lm 9W 930 80 BL IP54 ON/OFF	MI4721128	117	80	9	770	85	PC GLASS	29°	90	3000	ON/OFF	54	BLACK
POLO 80 PC GLASS 1050lm 13W 930 80 WH IP54 ON/OFF	MI7614602	117	80	13	1050	85	PC GLASS	29°	90	3000	ON/OFF	54	WHITE
POLO 80 PC GLASS 1050lm 13W 930 80 GR IP54 ON/OFF	MI6459995	117	80	13	1050	85	PC GLASS	29°	90	3000	ON/OFF	54	GRAY
POLO 80 PC GLASS 1050lm 13W 930 80 BL IP54 ON/OFF	MI4163988	117	80	13	1050	85	PC GLASS	29°	90	3000	ON/OFF	54	BLACK
POLO 80 PC GLASS 870lm 9W 930 80 WH IP54 ON/OFF	MI9304228	117	80	9	870	85	PC GLASS	57°	90	3000	ON/OFF	54	WHITE
POLO 80 PC GLASS 870lm 9W 930 80 GR IP54 ON/OFF	MI7348958	117	80	9	870	85	PC GLASS	57°	90	3000	ON/OFF	54	GRAY
POLO 80 PC GLASS 870lm 9W 930 80 BL IP54 ON/OFF	MI1730000	117	80	9	870	85	PC GLASS	57°	90	3000	ON/OFF	54	BLACK
POLO 80 PC GLASS 1150lm 13W 930 80 WH IP54 ON/OFF	MI6398644	117	80	13	1150	85	PC GLASS	57°	90	3000	ON/OFF	54	WHITE
POLO 80 PC GLASS 1150lm 13W 930 80 GR IP54 ON/OFF	MI6455542	117	80	13	1150	85	PC GLASS	57°	90	3000	ON/OFF	54	GRAY
POLO 80 PC GLASS 1150lm 13W 930 80 BL IP54 ON/OFF	MI2996067	117	80	13	1150	85	PC GLASS	57°	90	3000	ON/OFF	54	BLACK
POLO 80 PC GLASS 790lm 9W 940 80 WH IP54 ON/OFF	MI3141773	117	80	9	790	85	PC GLASS	29°	90	4000	ON/OFF	54	WHITE
POLO 80 PC GLASS 790lm 9W 940 80 GR IP54 ON/OFF	MI5227735	117	80	9	790	85	PC GLASS	29°	90	4000	ON/OFF	54	GRAY
POLO 80 PC GLASS 790lm 9W 940 80 BL IP54 ON/OFF	MI2854045	117	80	9	790	85	PC GLASS	29°	90	4000	ON/OFF	54	BLACK
POLO 80 PC GLASS 1100lm 13W 940 80 WH IP54 ON/OFF	MI2167922	117	80	13	1100	85	PC GLASS	29°	90	4000	ON/OFF	54	WHITE
POLO 80 PC GLASS 1100lm 13W 940 80 GR IP54 ON/OFF	MI1506574	117	80	13	1100	85	PC GLASS	29°	90	4000	ON/OFF	54	GRAY
POLO 80 PC GLASS 1100lm 13W 940 80 BL IP54 ON/OFF	MI4024341	117	80	13	1100	85	PC GLASS	29°	90	4000	ON/OFF	54	BLACK
POLO 80 PC GLASS 890lm 9W 940 80 WH IP54 ON/OFF	MI364298	117	80	9	890	85	PC GLASS	57°	90	4000	ON/OFF	54	WHITE
POLO 80 PC GLASS 890lm 9W 940 80 GR IP54 ON/OFF	MI3898265	117	80	9	890	85	PC GLASS	57°	90	4000	ON/OFF	54	GRAY
POLO 80 PC GLASS 890lm 9W 940 80 BL IP54 ON/OFF	MI5019422	117	80	9	890	85	PC GLASS	57°	90	4000	ON/OFF	54	BLACK
POLO 80 PC GLASS 1200lm 13W 940 80 WH IP54 ON/OFF	MI5502409	117	80	13	1200	85	PC GLASS	57°	90	4000	ON/OFF	54	WHITE
POLO 80 PC GLASS 1200lm 13W 940 80 GR IP54 ON/OFF	MI9438926	117	80	13	1200	85	PC GLASS	57°	90	4000	ON/OFF	54	GRAY
POLO 80 PC GLASS 1200lm 13W 940 80 BL IP54 ON/OFF	MI1243860	117	80	13	1200	85	PC GLASS	57°	90	4000	ON/OFF	54	BLACK
