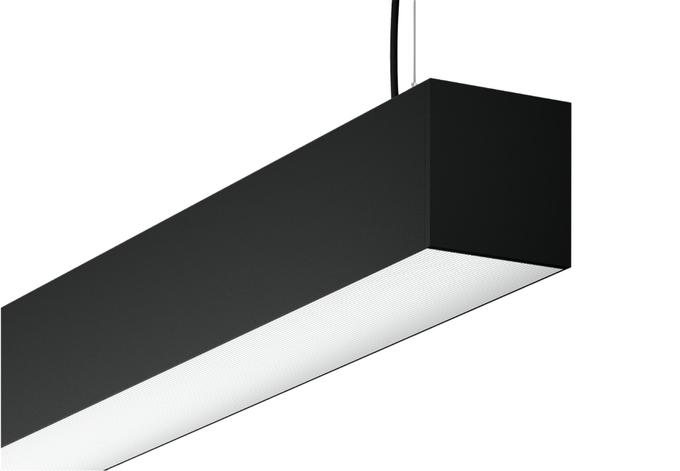

PROLINE 100 PENDANT
PROLINE 100 PENDANT

General data
Key Advantages

Various optics versions designed to suit any applications and requirements: Opal, Microprismatic ensuring highest performance, comfort, light uniformity and glare-eliminating reflectors.

Product ShapeLinear, Rectangular
MountingPendant
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]9 - 200
IEC Protection ClassI
Optics
Diffuser MaterialAcrylic glass
Diffuser Material DesignOpal, MPR
TYPE OF CONTROLON/OFF
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 100.000h
Technical data
Total Consumption [W]9 - 200
Lumen Output [LM]730 - 19150
Efficacy lm/Wup to 170
Diffuser MaterialAcrylic glass
Body MaterialAnodized, Alu
Beam Angle [°]Depending on a diffuser application
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000, 2700 - 6500
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 100.000h
TYPE OF CONTROLON/OFF
Body ColorWhite 9016, Black 9005, Gray 9006
Ingress Protection [IP]20
Mechanical Protection [IK]07
Main Feed AC [V]220-240
Description:

PROLINE family is an elegant and timeless linear system that allows to create captivating arrangements in any interior. It’s modern design and simple construction make it a great choice for general as well as decorative lighting in any interiors from residential to any public areas.

Key Advantages:

Various optics versions designed to suit any applications and requirements: Opal, Microprismatic ensuring highest performance, comfort, light uniformity and glare-eliminating reflectors.

Downloads:
Datasheet:
1
Technical illustrations:
1
Mounting instructions:
1
Certificates:
1
Photometric data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/DALI.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/ON_OFF.svg
/soft4net/img/project/icons/AD - IP/20.svg
/soft4net/img/project/icons/J - MOUNTING/P.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_90.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_90.svg
General data
Key Advantages

Various optics versions designed to suit any applications and requirements: Opal, Microprismatic ensuring highest performance, comfort, light uniformity and glare-eliminating reflectors.

Product ShapeLinear, Rectangular
MountingPendant
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]9 - 200
IEC Protection ClassI
Optics
Diffuser MaterialAcrylic glass
Diffuser Material DesignOpal, MPR
TYPE OF CONTROLON/OFF
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 100.000h
Technical data
Total Consumption [W]9 - 200
Lumen Output [LM]730 - 19150
Efficacy lm/Wup to 170
Diffuser MaterialAcrylic glass
Body MaterialAnodized, Alu
Beam Angle [°]Depending on a diffuser application
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000, 2700 - 6500
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 100.000h
TYPE OF CONTROLON/OFF
Body ColorWhite 9016, Black 9005, Gray 9006
Ingress Protection [IP]20
Mechanical Protection [IK]07
Main Feed AC [V]220-240
Housing
Body MaterialAnodized, Alu
Body ColorWhite 9016, Black 9005, Gray 9006
RALAny upon request
FinishMatt, Gloss
Light technical data
Light SourcePCB LED
Total Consumption [W]9 - 200
Lumen Output [LM]730 - 19150
Efficacy lm/Wup to 170
LED Color Temperature CCT [K]3000, 4000, 2700 - 6500
Color Rendering Index [CRI]80, 90
UGR<19
MacAdam step3
Beam Angle [°]Depending on a diffuser application
Light Distribution DIR/INDDIR
Technical data
TA [°C]0-25
Ingress Protection [IP]20
Mechanical Protection [IK]07
Corrosion ClassC3
Generating PDF...

Variations

Item
Code
Lenght
Width
Height
Diameter
W
Lumen
Output lm
Efficacy
lm/W
Diffuser
Beam
Angle
CRI
Color K
Type of
Control
IP
Color
PROLINE 100 PENDANT OPAL 860lm 9W 830 561 WH IP20 ON/OFFMI112149168561102102986096OPAL90°803000ON/OFF20WHITE
PROLINE 100 PENDANT OPAL 910lm 9W 840 561 WH IP20 ON/OFFMI1142719825611021029910101OPAL90°804000ON/OFF20WHITE
PROLINE 100 PENDANT OPAL 800lm 9W 830 561 GR IP20 ON/OFFMI117649561561102102980089OPAL90°803000ON/OFF20GREY
PROLINE 100 PENDANT OPAL 840lm 9W 840 561 GR IP20 ON/OFFMI112730790561102102984093OPAL90°804000ON/OFF20GREY
PROLINE 100 PENDANT OPAL 730lm 9W 830 561 BL IP20 ON/OFFMI119923533561102102973081OPAL90°803000ON/OFF20BLACK
PROLINE 100 PENDANT OPAL 770lm 9W 840 561 BL IP20 ON/OFFMI119072988561102102977086OPAL90°804000ON/OFF20BLACK
PROLINE 100 PENDANT OPAL 1350lm 14W 830 841 WH IP20 ON/OFFMI11925957084110210214135096OPAL90°803000ON/OFF20WHITE
PROLINE 100 PENDANT OPAL 1400lm 14W 840 841 WH IP20 ON/OFFMI111993162841102102141400100OPAL90°804000ON/OFF20WHITE
PROLINE 100 PENDANT OPAL 1250lm 14W 830 841 GR IP20 ON/OFFMI11113913584110210214125089OPAL90°803000ON/OFF20GREY
PROLINE 100 PENDANT OPAL 1300lm 14W 840 841 GR IP20 ON/OFFMI11529425784110210214130093OPAL90°804000ON/OFF20GREY
PROLINE 100 PENDANT OPAL 1150lm 14W 830 841 BL IP20 ON/OFFMI11605183484110210214115082OPAL90°803000ON/OFF20BLACK
PROLINE 100 PENDANT OPAL 1200lm 14W 840 841 BL IP20 ON/OFFMI11245801484110210214120086OPAL90°804000ON/OFF20BLACK
PROLINE 100 PENDANT OPAL 1750lm 18W 830 1121 WH IP20 ON/OFFMI112789369112110210218175097OPAL90°803000ON/OFF20WHITE
PROLINE 100 PENDANT OPAL 1850lm 18W 840 1121 WH IP20 ON/OFFMI1187701811121102102181850103OPAL90°804000ON/OFF20WHITE
PROLINE 100 PENDANT OPAL 1600lm 18W 830 1121 GR IP20 ON/OFFMI110271890112110210218160089OPAL90°803000ON/OFF20GREY
PROLINE 100 PENDANT OPAL 1700lm 18W 840 1121 GR IP20 ON/OFFMI117811702112110210218170094OPAL90°804000ON/OFF20GREY
PROLINE 100 PENDANT OPAL 1500lm 18W 830 1121 BL IP20 ON/OFFMI111738229112110210218150083OPAL90°803000ON/OFF20BLACK
PROLINE 100 PENDANT OPAL 1550lm 18W 840 1121 BL IP20 ON/OFFMI110985985112110210218155086OPAL90°804000ON/OFF20BLACK
PROLINE 100 PENDANT OPAL 2300lm 23W 830 1401 WH IP20 ON/OFFMI1194861791401102102232300100OPAL90°803000ON/OFF20WHITE
PROLINE 100 PENDANT OPAL 2450lm 23W 840 1401 WH IP20 ON/OFFMI1167305031401102102232450107OPAL90°804000ON/OFF20WHITE
PROLINE 100 PENDANT OPAL 2150lm 23W 830 1401 GR IP20 ON/OFFMI112484620140110210223215093OPAL90°803000ON/OFF20GREY
PROLINE 100 PENDANT OPAL 2250lm 23W 840 1401 GR IP20 ON/OFFMI113301208140110210223225098OPAL90°804000ON/OFF20GREY
PROLINE 100 PENDANT OPAL 1950lm 23W 830 1401 BL IP20 ON/OFFMI114907321140110210223195085OPAL90°803000ON/OFF20BLACK
PROLINE 100 PENDANT OPAL 2100lm 23W 840 1401 BL IP20 ON/OFFMI110224708140110210223210091OPAL90°804000ON/OFF20BLACK
PROLINE 100 PENDANT OPAL 2700lm 26W 830 1681 WH IP20 ON/OFFMI1116228901681102102262700104OPAL90°803000ON/OFF20WHITE
Show per page: 25 / 50 / 75 / 100 | Page 1 of 19

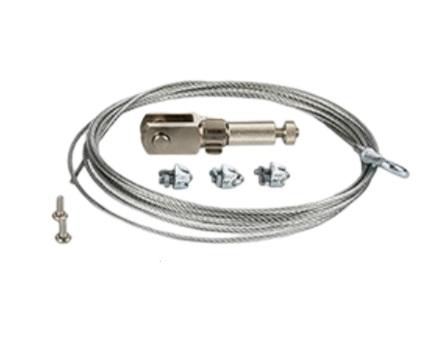

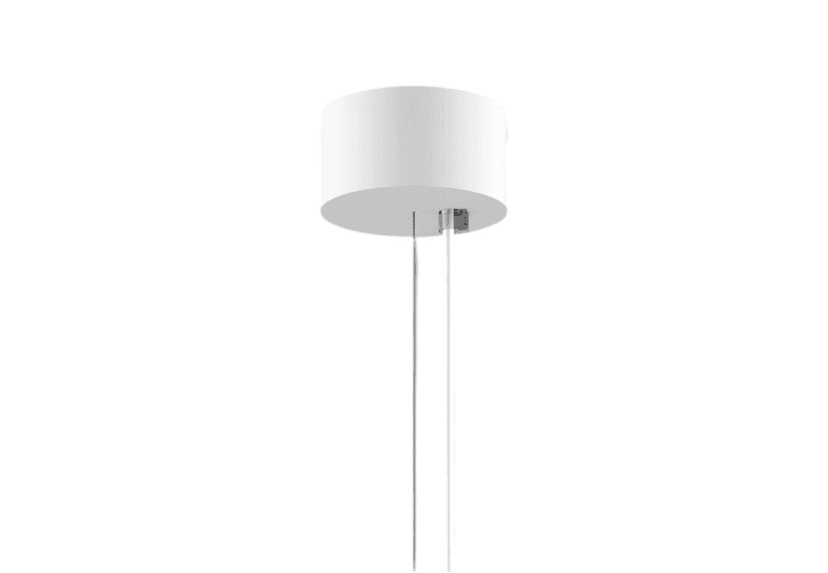

Product accessories
