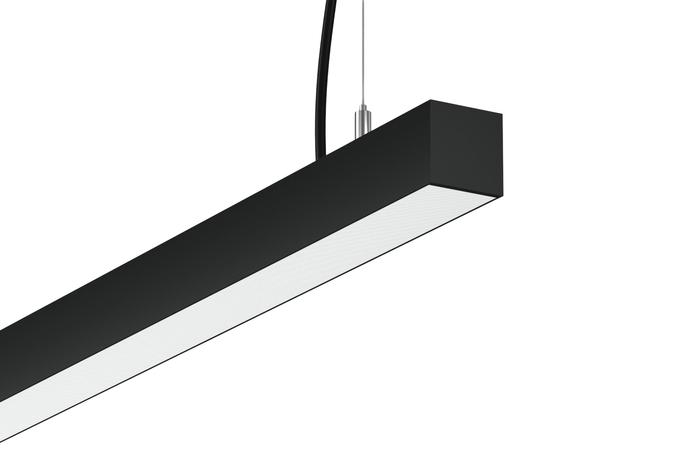

PROLINE 45 PENDANT
PROLINE 45 PENDANT

General data

Key Advantages	Various optics versions designed to suit any applications and requirements: Opal, Microprismatic, Frost, Black, Louvre, Dark Points, White Points ensuring highest performance, comfort, light uniformity and glare-eliminating reflectors.
Product Shape	Linear, Rectangular
Mounting	Pendant

Electrical data

Main Feed AC [V]	220-240
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	9 - 200
IEC Protection Class	I

Optics

Diffuser Material	Acrylic glass
Diffuser Material Design	Opal, MPR, Black, Louvre, DK Points, WH Points, Lens
TYPE OF CONTROL	ON/OFF, DALI
CONTROL SYSTEM	ON/OFF, DALI
LED LIFETIME Ta25 [h]	L80B50 100.000h

Technical data

Total Consumption [W]	9 - 200
Lumen Output [LM]	940 - 23600
Efficacy lm/W	up to 170
Diffuser Material	Acrylic glass
Body Material	Anodized Alu
Beam Angle [°]	Depending on a diffuser application
Light Distribution DIR/IND	DIR, IND
LED Color Temperature CCT [K]	3000, 4000, 2700 - 6500
Color Rendering Index [CRI]	80, 90
MacAdam step	3
LED LIFETIME Ta25 [h]	L80B50 100.000h
TYPE OF CONTROL	ON/OFF, DALI
Body Color	White 9016, Black 9005, Gray 9006
Ingress Protection [IP]	20
Mechanical Protection [IK]	07
Main Feed AC [V]	220-240

Description:

PROLINE family is an elegant and timeless linear system that allows to create captivating arrangements in any interior. It’s modern design and simple construction make it a great choice for general as well as decorative lighting in any interiors from residential to any public areas.

Key Advantages:

Various optics versions designed to suit any applications and requirements: Opal, Microprismatic, Frost, Black, Louvre, Dark Points, White Points ensuring highest performance, comfort, light uniformity and glare-eliminating reflectors.

Downloads:

Datasheet:

Technical illustrations:

Mounting instructions:

Certificates:

Photometric data:

General data

Key Advantages	Various optics versions designed to suit any applications and requirements: Opal, Microprismatic, Frost, Black, Louvre, Dark Points, White Points ensuring highest performance, comfort, light uniformity and glare-eliminating reflectors.
Product Shape	Linear, Rectangular
Mounting	Pendant

Electrical data

Main Feed AC [V]	220-240
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	9 - 200
IEC Protection Class	I

Optics

Diffuser Material	Acrylic glass
Diffuser Material Design	Opal, MPR, Black, Louvre, DK Points, WH Points, Lens
TYPE OF CONTROL	ON/OFF, DALI
CONTROL SYSTEM	ON/OFF, DALI
LED LIFETIME Ta25 [h]	L80B50 100.000h

Technical data

Total Consumption [W]	9 - 200
Lumen Output [LM]	940 - 23600
Efficacy lm/W	up to 170
Diffuser Material	Acrylic glass
Body Material	Anodized Alu
Beam Angle [°]	Depending on a diffuser application
Light Distribution DIR/IND	DIR, IND
LED Color Temperature CCT [K]	3000, 4000, 2700 - 6500
Color Rendering Index [CRI]	80, 90
MacAdam step	3
LED LIFETIME Ta25 [h]	L80B50 100.000h
TYPE OF CONTROL	ON/OFF, DALI
Body Color	White 9016, Black 9005, Gray 9006
Ingress Protection [IP]	20
Mechanical Protection [IK]	07
Main Feed AC [V]	220-240

Housing

Body Material	Anodized Alu
Body Color	White 9016, Black 9005, Gray 9006
RAL	Any upon request
Finish	Matt, Gloss

Light technical data

Light Source	PCB LED
Total Consumption [W]	9 - 200
Lumen Output [LM]	940 - 23600
Efficacy lm/W	up to 170
LED Color Temperature CCT [K]	3000, 4000, 2700 - 6500
Color Rendering Index [CRI]	80, 90
UGR	<19
MacAdam step	3
Beam Angle [°]	Depending on a diffuser application
Light Distribution DIR/IND	DIR, IND

Technical data

TA [°C]	0-25
Ingress Protection [IP]	20
Mechanical Protection [IK]	07
Corrosion Class	C3

Variations

Item	Code	Lenght	Width	Height	W	Lumen Output lm	Efficacy lm/W	Diffuser	Beam Angle	CRI	Color K	Type of Control	IP	Color
PROLINE 45 PENDANT OPAL 1100lm 9W 830 561 WH IP20 ON/OFF	MI110772799	561	45	45	9	1100	122	OPAL	90°	80	3000	ON/OFF	20	WHITE
PROLINE 45 PENDANT OPAL 1100lm 9W 830 561 WH IP20 DALI	MI115142354	561	45	45	9	1100	122	OPAL	90°	80	3000	DALI	20	WHITE
PROLINE 45 PENDANT OPAL 1150lm 9W 840 561 WH IP20 ON/OFF	MI116844545	561	45	45	9	1150	128	OPAL	90°	80	4000	ON/OFF	20	WHITE
PROLINE 45 PENDANT OPAL 1150lm 9W 840 561 WH IP20 DALI	MI117423330	561	45	45	9	1150	128	OPAL	90°	80	4000	DALI	20	WHITE
PROLINE 45 PENDANT OPAL 1000lm 9W 830 561 GR IP20 ON/OFF	MI116938743	561	45	45	9	1000	111	OPAL	90°	80	3000	ON/OFF	20	GREY
PROLINE 45 PENDANT OPAL 1000lm 9W 830 561 GR IP20 DALI	MI111360792	561	45	45	9	1000	111	OPAL	90°	80	3000	DALI	20	GREY
PROLINE 45 PENDANT OPAL 1050lm 9W 840 561 GR IP20 ON/OFF	MI110915252	561	45	45	9	1050	117	OPAL	90°	80	4000	ON/OFF	20	GREY
PROLINE 45 PENDANT OPAL 1050lm 9W 840 561 GR IP20 DALI	MI114004406	561	45	45	9	1050	117	OPAL	90°	80	4000	DALI	20	GREY
PROLINE 45 PENDANT OPAL 950lm 9W 830 561 BL IP20 ON/OFF	MI118762064	561	45	45	9	950	106	OPAL	90°	80	3000	ON/OFF	20	BLACK
PROLINE 45 PENDANT OPAL 950lm 9W 830 561 BL IP20 DALI	MI117880760	561	45	45	9	950	106	OPAL	90°	80	3000	DALI	20	BLACK
PROLINE 45 PENDANT OPAL 1000lm 9W 840 561 BL IP20 ON/OFF	MI116366697	561	45	45	9	1000	111	OPAL	90°	80	4000	ON/OFF	20	BLACK
PROLINE 45 PENDANT OPAL 1000lm 9W 840 561 BL IP20 DALI	MI114942323	561	45	45	9	1000	111	OPAL	90°	80	4000	DALI	20	BLACK
PROLINE 45 PENDANT OPAL 1700lm 14W 830 841 WH IP20 ON/OFF	MI112703886	841	45	45	14	1700	121	OPAL	90°	80	3000	ON/OFF	20	WHITE
PROLINE 45 PENDANT OPAL 1700lm 14W 830 841 WH IP20 DALI	MI118029986	841	45	45	14	1700	121	OPAL	90°	80	3000	DALI	20	WHITE
PROLINE 45 PENDANT OPAL 1800lm 14W 840 841 WH IP20 ON/OFF	MI111102298	841	45	45	14	1800	129	OPAL	90°	80	4000	ON/OFF	20	WHITE
PROLINE 45 PENDANT OPAL 1800lm 14W 840 841 WH IP20 DALI	MI118560102	841	45	45	14	1800	129	OPAL	90°	80	4000	DALI	20	WHITE
PROLINE 45 PENDANT OPAL 1550lm 14W 830 841 GR IP20 ON/OFF	MI119425836	841	45	45	14	1550	111	OPAL	90°	80	3000	ON/OFF	20	GREY
PROLINE 45 PENDANT OPAL 1550lm 14W 830 841 GR IP20 DALI	MI115576405	841	45	45	14	1550	111	OPAL	90°	80	3000	DALI	20	GREY
PROLINE 45 PENDANT OPAL 1650lm 14W 840 841 GR IP20 ON/OFF	MI112982045	841	45	45	14	1650	118	OPAL	90°	80	4000	ON/OFF	20	GREY
PROLINE 45 PENDANT OPAL 1650lm 14W 840 841 GR IP20 DALI	MI114099276	841	45	45	14	1650	118	OPAL	90°	80	4000	DALI	20	GREY
PROLINE 45 PENDANT OPAL 1450lm 14W 830 841 BL IP20 ON/OFF	MI111227353	841	45	45	14	1450	104	OPAL	90°	80	3000	ON/OFF	20	BLACK
PROLINE 45 PENDANT OPAL 1450lm 14W 830 841 BL IP20 DALI	MI111281450	841	45	45	14	1450	104	OPAL	90°	80	3000	DALI	20	BLACK
PROLINE 45 PENDANT OPAL 1550lm 14W 840 841 BL IP20 ON/OFF	MI119234921	841	45	45	14	1550	111	OPAL	90°	80	4000	ON/OFF	20	BLACK
PROLINE 45 PENDANT OPAL 1550lm 14W 840 841 BL IP20 DALI	MI113037443	841	45	45	14	1550	111	OPAL	90°	80	4000	DALI	20	BLACK
PROLINE 45 PENDANT OPAL 2200lm 18W 830 1121 WH IP20 ON/OFF	MI116826914	1121	45	45	18	2200	122	OPAL	90°	80	3000	ON/OFF	20	WHITE
