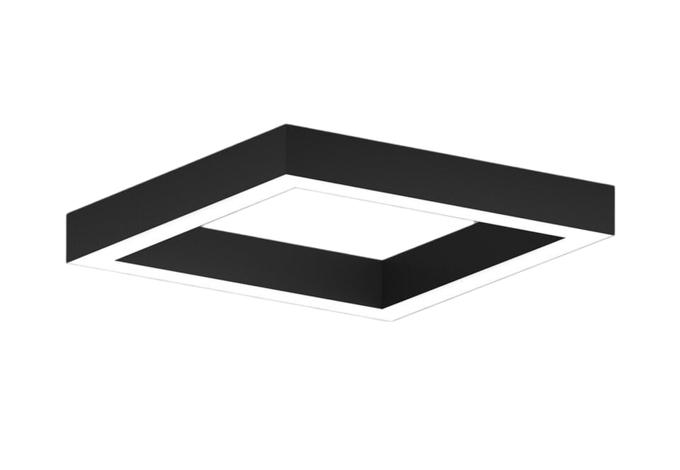

PROLINE 60 QUADRA SURFACE
PROLINE 60 QUADRA SURFACE

General data

Key Advantages	Various optics versions designed to suit any applications and requirements: OPAL, MICROPRISMATIC, FROST, BLACK, LOUVRE, DARK POINT, WHITE POINT ensuring highest performance, comfort, light uniformity and glare-eliminating reflectors.
Product Shape	Square
Mounting	Surface

Electrical data

Main Feed AC [V]	220-240
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	36 - 226
IEC Protection Class	I

Optics

Diffuser Material	Acrylic glass
Diffuser Material Design	Opal, MPR
TYPE OF CONTROL	ON/OFF, DALI
CONTROL SYSTEM	ON/OFF, DALI
LED LIFETIME Ta25 [h]	L80B50 100.000h

Technical data

Total Consumption [W]	36 - 226
Lumen Output [LM]	3550 - 27000
Efficacy lm/W	up to 170
Diffuser Material	Acrylic glass
Body Material	Anodized, Alu
Beam Angle [°]	Depending on a diffuser application
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	3000, 4000, 2700 - 6500
Color Rendering Index [CRI]	80, 90
MacAdam step	3
LED LIFETIME Ta25 [h]	L80B50 100.000h
TYPE OF CONTROL	ON/OFF, DALI
Body Color	White 9016, Black 9005, Gray 9006
Ingress Protection [IP]	40
Mechanical Protection [IK]	07
Main Feed AC [V]	220-240

Description:

PROLINE family is an elegant and timeless linear system that allows to create captivating arrangements in any interior. It’s modern design and simple construction make it a great choice for general as well as decorative lighting in any interiors from residential to any public areas.

Key Advantages:

Various optics versions designed to suit any applications and requirements: OPAL, MICROPRISMATIC, FROST, BLACK, LOUVRE, DARK POINT, WHITE POINT ensuring highest performance, comfort, light uniformity and glare-eliminating reflectors.

Downloads:

Datasheet:

Technical illustrations:

Mounting instructions:

Certificates:

Photometric data:

General data

Key Advantages	Various optics versions designed to suit any applications and requirements: OPAL, MICROPRISMATIC, FROST, BLACK, LOUVRE, DARK POINT, WHITE POINT ensuring highest performance, comfort, light uniformity and glare-eliminating reflectors.
Product Shape	Square
Mounting	Surface

Electrical data

Main Feed AC [V]	220-240
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	36 - 226
IEC Protection Class	I

Optics

Diffuser Material	Acrylic glass
Diffuser Material Design	Opal, MPR
TYPE OF CONTROL	ON/OFF, DALI
CONTROL SYSTEM	ON/OFF, DALI
LED LIFETIME Ta25 [h]	L80B50 100.000h

Technical data

Total Consumption [W]	36 - 226
Lumen Output [LM]	3550 - 27000
Efficacy lm/W	up to 170
Diffuser Material	Acrylic glass
Body Material	Anodized, Alu
Beam Angle [°]	Depending on a diffuser application
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	3000, 4000, 2700 - 6500
Color Rendering Index [CRI]	80, 90
MacAdam step	3
LED LIFETIME Ta25 [h]	L80B50 100.000h
TYPE OF CONTROL	ON/OFF, DALI
Body Color	White 9016, Black 9005, Gray 9006
Ingress Protection [IP]	40
Mechanical Protection [IK]	07
Main Feed AC [V]	220-240

Housing

Body Material	Anodized, Alu
Body Color	White 9016, Black 9005, Gray 9006
RAL	Any upon request
Finish	Matt, Gloss

Light technical data

Light Source	PCB LED
Total Consumption [W]	36 - 226
Lumen Output [LM]	3550 - 27000
Efficacy lm/W	up to 170
LED Color Temperature CCT [K]	3000, 4000, 2700 - 6500
Color Rendering Index [CRI]	80, 90
UGR	<19
MacAdam step	3
Beam Angle [°]	Depending on a diffuser application
Light Distribution DIR/IND	DIR

Technical data

TA [°C]	0-25
Ingress Protection [IP]	40
Mechanical Protection [IK]	07
Corrosion Class	C3

Variations

Item	Code	Lenght	Width	Height	W	Lumen Output lm	Efficacy lm/W	Diffuser	Beam Angle	CRI	Color K	Type of Control	IP	Color
PROLINE 60 QUADRA SURFACE OPAL 4200lm 36W 830 630 WH IP40 ON/OFF	MI116088337	630	61	83	36	4200	117	OPAL	90°	80	3000	ON/OFF	40	WHITE
PROLINE 60 QUADRA SURFACE OPAL 4200lm 36W 830 630 WH IP40 DALI	MI116599650	630	61	83	36	4200	117	OPAL	90°	80	3000	DALI	40	WHITE
PROLINE 60 QUADRA SURFACE OPAL 4400lm 36W 840 630 WH IP40 ON/OFF	MI115143681	630	61	83	36	4400	122	OPAL	90°	80	4000	ON/OFF	40	WHITE
PROLINE 60 QUADRA SURFACE OPAL 4400lm 36W 840 630 WH IP40 DALI	MI110906348	630	61	83	36	4400	122	OPAL	90°	80	4000	DALI	40	WHITE
PROLINE 60 QUADRA SURFACE OPAL 3900lm 36W 830 630 GR IP40 ON/OFF	MI117938902	630	61	83	36	3900	108	OPAL	90°	80	3000	ON/OFF	40	GREY
PROLINE 60 QUADRA SURFACE OPAL 3900lm 36W 830 630 GR IP40 DALI	MI112533141	630	61	83	36	3900	108	OPAL	90°	80	3000	DALI	40	GREY
PROLINE 60 QUADRA SURFACE OPAL 4050lm 36W 840 630 GR IP40 ON/OFF	MI114402955	630	61	83	36	4050	113	OPAL	90°	80	4000	ON/OFF	40	GREY
PROLINE 60 QUADRA SURFACE OPAL 4050lm 36W 840 630 GR IP40 DALI	MI119557072	630	61	83	36	4050	113	OPAL	90°	80	4000	DALI	40	GREY
PROLINE 60 QUADRA SURFACE OPAL 3550lm 36W 830 630 BL IP40 ON/OFF	MI116263739	630	61	83	36	3550	99	OPAL	90°	80	3000	ON/OFF	40	BLACK
PROLINE 60 QUADRA SURFACE OPAL 3550lm 36W 830 630 BL IP40 DALI	MI110313569	630	61	83	36	3550	99	OPAL	90°	80	3000	DALI	40	BLACK
PROLINE 60 QUADRA SURFACE OPAL 3750lm 36W 840 630 BL IP40 ON/OFF	MI110040252	630	61	83	36	3750	104	OPAL	90°	80	4000	ON/OFF	40	BLACK
PROLINE 60 QUADRA SURFACE OPAL 3750lm 36W 840 630 BL IP40 DALI	MI119398210	630	61	83	36	3750	104	OPAL	90°	80	4000	DALI	40	BLACK
PROLINE 60 QUADRA SURFACE OPAL 7450lm 64W 830 630 WH IP40 ON/OFF	MI118997210	630	61	83	64	7450	116	OPAL	90°	80	3000	ON/OFF	40	WHITE
PROLINE 60 QUADRA SURFACE OPAL 7450lm 64W 830 630 WH IP40 DALI	MI110337293	630	61	83	64	7450	116	OPAL	90°	80	3000	DALI	40	WHITE
PROLINE 60 QUADRA SURFACE OPAL 7850lm 64W 840 630 WH IP40 ON/OFF	MI116971084	630	61	83	64	7850	123	OPAL	90°	80	4000	ON/OFF	40	WHITE
PROLINE 60 QUADRA SURFACE OPAL 7850lm 64W 840 630 WH IP40 DALI	MI111545928	630	61	83	64	7850	123	OPAL	90°	80	4000	DALI	40	WHITE
PROLINE 60 QUADRA SURFACE OPAL 6900lm 64W 830 630 GR IP40 ON/OFF	MI118656204	630	61	83	64	6900	108	OPAL	90°	80	3000	ON/OFF	40	GREY
PROLINE 60 QUADRA SURFACE OPAL 6900lm 64W 830 630 GR IP40 DALI	MI115043696	630	61	83	64	6900	108	OPAL	90°	80	3000	DALI	40	GREY
PROLINE 60 QUADRA SURFACE OPAL 7250lm 64W 840 630 GR IP40 ON/OFF	MI115903231	630	61	83	64	7250	113	OPAL	90°	80	4000	ON/OFF	40	GREY
PROLINE 60 QUADRA SURFACE OPAL 7250lm 64W 840 630 GR IP40 DALI	MI117258336	630	61	83	64	7250	113	OPAL	90°	80	4000	DALI	40	GREY
PROLINE 60 QUADRA SURFACE OPAL 6350lm 64W 830 630 BL IP40 ON/OFF	MI111344608	630	61	83	64	6350	99	OPAL	90°	80	3000	ON/OFF	40	BLACK
PROLINE 60 QUADRA SURFACE OPAL 6350lm 64W 830 630 BL IP40 DALI	MI117384587	630	61	83	64	6350	99	OPAL	90°	80	3000	DALI	40	BLACK
PROLINE 60 QUADRA SURFACE OPAL 6650lm 64W 840 630 BL IP40 ON/OFF	MI113167930	630	61	83	64	6650	104	OPAL	90°	80	4000	ON/OFF	40	BLACK
PROLINE 60 QUADRA SURFACE OPAL 6650lm 64W 840 630 BL IP40 DALI	MI112784797	630	61	83	64	6650	104	OPAL	90°	80	4000	DALI	40	BLACK
PROLINE 60 QUADRA SURFACE OPAL 12550lm 113W 830 630 WH IP40 ON/OFF	MI116527298	630	61	83	113	12550	111	OPAL	90°	80	3000	ON/OFF	40	WHITE
