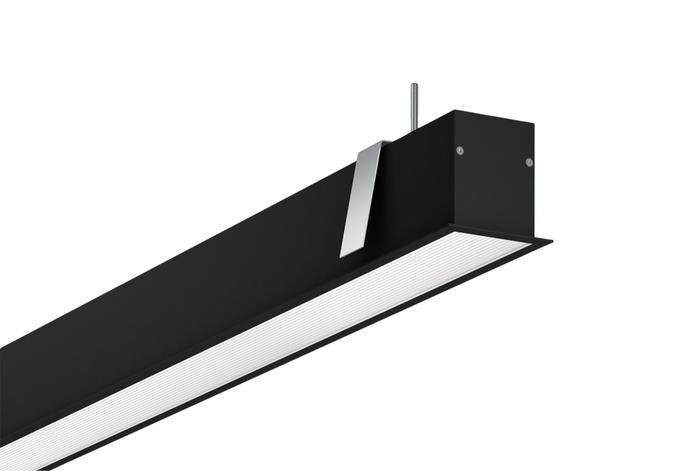

PROLINE 60 RECESSED
PROLINE 60 RECESSED

General data

Key Advantages	Various optics versions designed to suit any applications and requirements: OPAL, MICROPRISMATIC, FROST, BLACK, LOUVRE, DARK POINT, WHITE POINT ensuring highest performance, comfort, light uniformity and glare-eliminating reflectors.
Product Shape	Rectangular
Mounting	Recessed

Electrical data

Main Feed AC [V]	220-240
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	6 - 200
IEC Protection Class	I

Optics

Diffuser Material	Acrylic glass
Diffuser Material Design	Opal, MPR, Frost, Black, Louvre, DK Points, WH Points
TYPE OF CONTROL	ON/OFF
CONTROL SYSTEM	ON/OFF, DALI
LED LIFETIME Ta25 [h]	L80B50 100.000h

Technical data

Total Consumption [W]	6 - 200
Lumen Output [LM]	280 - 23650
Efficacy lm/W	up to 170
Diffuser Material	Acrylic glass
Body Material	Anodized, Alu
Beam Angle [°]	Depending on a diffuser application
Light Distribution DIR/IND	DIR, IND
LED Color Temperature CCT [K]	3000, 4000, RGB, 2700 - 6500
Color Rendering Index [CRI]	80, 90
MacAdam step	3
LED LIFETIME Ta25 [h]	L80B50 100.000h
TYPE OF CONTROL	ON/OFF
Body Color	White 9016, Black 9005, Gray 9006
Ingress Protection [IP]	40
Mechanical Protection [IK]	07
Main Feed AC [V]	220-240

Description:

PROLINE family is an elegant and timeless linear system that allows to create captivating arrangements in any interior. It’s modern design and simple construction make it a great choice for general as well as decorative lighting in any interiors from residential to any public areas.

Key Advantages:

Various optics versions designed to suit any applications and requirements: OPAL, MICROPRISMATIC, FROST, BLACK, LOUVRE, DARK POINT, WHITE POINT ensuring highest performance, comfort, light uniformity and glare-eliminating reflectors.

Downloads:

Datasheet:

Technical illustrations:

Mounting instructions:

Certificates:

Photometric data:

General data

Key Advantages	Various optics versions designed to suit any applications and requirements: OPAL, MICROPRISMATIC, FROST, BLACK, LOUVRE, DARK POINT, WHITE POINT ensuring highest performance, comfort, light uniformity and glare-eliminating reflectors.
Product Shape	Rectangular
Mounting	Recessed

Electrical data

Main Feed AC [V]	220-240
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	6 - 200
IEC Protection Class	I

Optics

Diffuser Material	Acrylic glass
Diffuser Material Design	Opal, MPR, Frost, Black, Louvre, DK Points, WH Points
TYPE OF CONTROL	ON/OFF
CONTROL SYSTEM	ON/OFF, DALI
LED LIFETIME Ta25 [h]	L80B50 100.000h

Technical data

Total Consumption [W]	6 - 200
Lumen Output [LM]	280 - 23650
Efficacy lm/W	up to 170
Diffuser Material	Acrylic glass
Body Material	Anodized, Alu
Beam Angle [°]	Depending on a diffuser application
Light Distribution DIR/IND	DIR, IND
LED Color Temperature CCT [K]	3000, 4000, RGB, 2700 - 6500
Color Rendering Index [CRI]	80, 90
MacAdam step	3
LED LIFETIME Ta25 [h]	L80B50 100.000h
TYPE OF CONTROL	ON/OFF
Body Color	White 9016, Black 9005, Gray 9006
Ingress Protection [IP]	40
Mechanical Protection [IK]	07
Main Feed AC [V]	220-240

Housing

Body Material	Anodized, Alu
Body Color	White 9016, Black 9005, Gray 9006
RAL	Any upon request
Finish	Matt, Gloss

Light technical data

Light Source	PCB LED
Total Consumption [W]	6 - 200
Lumen Output [LM]	280 - 23650
Efficacy lm/W	up to 170
LED Color Temperature CCT [K]	3000, 4000, RGB, 2700 - 6500
Color Rendering Index [CRI]	80, 90
UGR	<19
MacAdam step	3
Beam Angle [°]	Depending on a diffuser application
Light Distribution DIR/IND	DIR, IND

Technical data

TA [°C]	0-25
Ingress Protection [IP]	40
Mechanical Protection [IK]	07
Corrosion Class	C3

Variations

Item	Code	Lenght	Width	Height	W	Lumen Output lm	Efficacy lm/W	Diffuser	Beam Angle	CRI	Color K	Type of Control	IP	Color
PROLINE 60 RECESSED OPAL 1050lm 9W 830 561 WH IP40 ON/OFF	MI118626309	561	60	83	9	1050	117	OPAL	90°	80	3000	ON/OFF	40	WHITE
PROLINE 60 RECESSED OPAL 1100lm 9W 840 561 WH IP40 ON/OFF	MI110518390	561	60	83	9	1100	122	OPAL	90°	80	4000	ON/OFF	40	WHITE
PROLINE 60 RECESSED OPAL 970lm 9W 830 561 GR IP40 ON/OFF	MI113654385	561	60	83	9	970	108	OPAL	90°	80	3000	ON/OFF	40	GREY
PROLINE 60 RECESSED OPAL 1000lm 9W 840 561 GR IP40 ON/OFF	MI110893149	561	60	83	9	1000	111	OPAL	90°	80	4000	ON/OFF	40	GREY
PROLINE 60 RECESSED OPAL 890lm 9W 830 561 BL IP40 ON/OFF	MI116079179	561	60	83	9	890	99	OPAL	90°	80	3000	ON/OFF	40	BLACK
PROLINE 60 RECESSED OPAL 940lm 9W 840 561 BL IP40 ON/OFF	MI111826597	561	60	83	9	940	104	OPAL	90°	80	4000	ON/OFF	40	BLACK
PROLINE 60 RECESSED OPAL 1600lm 14W 830 841 WH IP40 ON/OFF	MI112453797	841	60	83	14	1600	114	OPAL	90°	80	3000	ON/OFF	40	WHITE
PROLINE 60 RECESSED OPAL 1700lm 14W 840 841 WH IP40 ON/OFF	MI118314084	841	60	83	14	1700	121	OPAL	90°	80	4000	ON/OFF	40	WHITE
PROLINE 60 RECESSED OPAL 1500lm 14W 830 841 GR IP40 ON/OFF	MI110961734	841	60	83	14	1500	107	OPAL	90°	80	3000	ON/OFF	40	GREY
PROLINE 60 RECESSED OPAL 1550lm 14W 840 841 GR IP40 ON/OFF	MI110329297	841	60	83	14	1550	111	OPAL	90°	80	4000	ON/OFF	40	GREY
PROLINE 60 RECESSED OPAL 1350lm 14W 830 841 BL IP40 ON/OFF	MI113179705	841	60	83	14	1350	96	OPAL	90°	80	3000	ON/OFF	40	BLACK
PROLINE 60 RECESSED OPAL 1450lm 14W 840 841 BL IP40 ON/OFF	MI111797780	841	60	83	14	1450	104	OPAL	90°	80	4000	ON/OFF	40	BLACK
PROLINE 60 RECESSED OPAL 2100lm 18W 830 1121 WH IP40 ON/OFF	MI112680083	1121	60	83	18	2100	117	OPAL	90°	80	3000	ON/OFF	40	WHITE
PROLINE 60 RECESSED OPAL 2200lm 18W 840 1121 WH IP40 ON/OFF	MI114715775	1121	60	83	18	2200	122	OPAL	90°	80	4000	ON/OFF	40	WHITE
PROLINE 60 RECESSED OPAL 1950lm 18W 830 1121 GR IP40 ON/OFF	MI113622718	1121	60	83	18	1950	108	OPAL	90°	80	3000	ON/OFF	40	GREY
PROLINE 60 RECESSED OPAL 2050lm 18W 840 1121 GR IP40 ON/OFF	MI117489832	1121	60	83	18	2050	114	OPAL	90°	80	4000	ON/OFF	40	GREY
PROLINE 60 RECESSED OPAL 1800lm 18W 830 1121 BL IP40 ON/OFF	MI116284676	1121	60	83	18	1800	100	OPAL	90°	80	3000	ON/OFF	40	BLACK
PROLINE 60 RECESSED OPAL 1850lm 18W 840 1121 BL IP40 ON/OFF	MI112065867	1121	60	83	18	1850	103	OPAL	90°	80	4000	ON/OFF	40	BLACK
PROLINE 60 RECESSED OPAL 2800lm 23W 830 1401 WH IP40 ON/OFF	MI114827613	1401	60	83	23	2800	122	OPAL	90°	80	3000	ON/OFF	40	WHITE
PROLINE 60 RECESSED OPAL 2950lm 23W 840 1401 WH IP40 ON/OFF	MI115071926	1401	60	83	23	2950	128	OPAL	90°	80	4000	ON/OFF	40	WHITE
PROLINE 60 RECESSED OPAL 2600lm 23W 830 1401 GR IP40 ON/OFF	MI114403636	1401	60	83	23	2600	113	OPAL	90°	80	3000	ON/OFF	40	GREY
PROLINE 60 RECESSED OPAL 2750lm 23W 840 1401 GR IP40 ON/OFF	MI119326786	1401	60	83	23	2750	120	OPAL	90°	80	4000	ON/OFF	40	GREY
PROLINE 60 RECESSED OPAL 2400lm 23W 830 1401 BL IP40 ON/OFF	MI117406353	1401	60	83	23	2400	104	OPAL	90°	80	3000	ON/OFF	40	BLACK
PROLINE 60 RECESSED OPAL 2500lm 23W 840 1401 BL IP40 ON/OFF	MI118520920	1401	60	83	23	2500	109	OPAL	90°	80	4000	ON/OFF	40	BLACK
PROLINE 60 RECESSED OPAL 3250lm 26W 830 1681 WH IP40 ON/OFF	MI119960704	1681	60	83	26	3250	125	OPAL	90°	80	3000	ON/OFF	40	WHITE
