PROLINE HS
PROLINE HS

General data
Application

Retail spaces requiring adaptable lighting configurations Offices and coworking spaces needing efficient and stylish illumination Galleries and museums where precise lighting control is essential Hospitality environments such as hotels, restaurants, and cafés

MountingTrack
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]15- 88
IEC Protection ClassI
Optics
Diffuser MaterialOPAL, MPR, LOW UGR
TYPE OF CONTROLON/OFF
CONTROL SYSTEMON/OFF, DALI
Technical data
Total Consumption [W]15- 88
Lumen Output [LM]855 – 9558
Efficacy lm/Wup to 112
Diffuser MaterialOPAL, MPR, LOW UGR
Body MaterialAluminium
Light Distribution DIR/INDDIR
Color Rendering Index [CRI]80
MacAdam step3
TYPE OF CONTROLON/OFF
Body ColorWHITE, BLACK, GRAY
Ingress Protection [IP]20
Mechanical Protection [IK]1
Main Feed AC [V]220-240
Description:

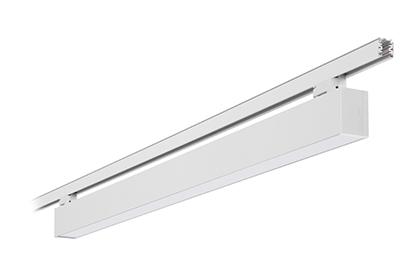

The Proline HS is a luminaire designed for a 3-phase track system. It is available in white, black, and grey. Upon request, it can be painted in any color from the RAL palette. The profile is made of aluminum. Available diffusers: opal, micro-prismatic, and low UGR. Additional options: Custom luminaire color from the RAL palette – available upon request Option to paint the luminaire with a wood effect finish Light intensity control via CASAMBI / DALI system Option to use Tunable White modules

Downloads:
Datasheet:
1
Mounting instructions:
1
Certificates:
1
Photometric data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/DALI.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/ON_OFF.svg
/soft4net/img/project/icons/AD - IP/20.svg
/soft4net/img/project/icons/W - HOUSING COLOR/BLACK.svg
/soft4net/img/project/icons/W - HOUSING COLOR/GREY.svg
/soft4net/img/project/icons/W - HOUSING COLOR/WHITE.svg
General data
Application

Retail spaces requiring adaptable lighting configurations Offices and coworking spaces needing efficient and stylish illumination Galleries and museums where precise lighting control is essential Hospitality environments such as hotels, restaurants, and cafés

MountingTrack
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]15- 88
IEC Protection ClassI
Optics
Diffuser MaterialOPAL, MPR, LOW UGR
TYPE OF CONTROLON/OFF
CONTROL SYSTEMON/OFF, DALI
Technical data
Total Consumption [W]15- 88
Lumen Output [LM]855 – 9558
Efficacy lm/Wup to 112
Diffuser MaterialOPAL, MPR, LOW UGR
Body MaterialAluminium
Light Distribution DIR/INDDIR
Color Rendering Index [CRI]80
MacAdam step3
TYPE OF CONTROLON/OFF
Body ColorWHITE, BLACK, GRAY
Ingress Protection [IP]20
Mechanical Protection [IK]1
Main Feed AC [V]220-240
Housing
Body MaterialAluminium
Body ColorWHITE, BLACK, GRAY
Light technical data
Light SourceLED
Total Consumption [W]15- 88
Lumen Output [LM]855 – 9558
Efficacy lm/Wup to 112
Color Rendering Index [CRI]80
MacAdam step3
Light Distribution DIR/INDDIR
Technical data
TA [°C]0 to +30
Ingress Protection [IP]20
Mechanical Protection [IK]1
Generating PDF...

Variations

Item
Code
Lenght
Width
Height
Diameter
W
Lumen
Output lm
Efficacy
lm/W
Beam
Angle
CRI
Color K
CCT [K]
type
Type of
Control
IP
Color
PROLINE HS OPAL 1801lm 21W 8 576 GR IP20 ON/OFFMI29918795765810521180186803000ON/OFF20GREY
PROLINE HS OPAL 2702lm 29W 8 856 GR IP20 ON/OFFMI77550768565810529270293803000ON/OFF20GREY
PROLINE HS OPAL 3603lm 38W 8 1136 GR IP20 ON/OFFMI71824411365810538360395803000ON/OFF20GREY
PROLINE HS OPAL 4504lm 46W 8 1416 GR IP20 ON/OFFMI822134114165810546450498803000ON/OFF20GREY
PROLINE HS OPAL 5405lm 54W 8 1696 GR IP20 ON/OFFMI1715112169658105545405100803000ON/OFF20GREY
PROLINE HS OPAL 6306lm 63W 8 1976 GR IP20 ON/OFFMI5660567197658105636306100803000ON/OFF20GREY
PROLINE HS OPAL 7207lm 71W 8 2256 GR IP20 ON/OFFMI5574810225658105717207102803000ON/OFF20GREY
PROLINE HS OPAL 8108lm 80W 8 2536 GR IP20 ON/OFFMI5759159253658105808108101803000ON/OFF20GREY
PROLINE HS OPAL 9009lm 88W 8 2816 GR IP20 ON/OFFMI7950892281658105889009102803000ON/OFF20GREY
PROLINE HS OPAL 1801lm 21W 8 576 BL IP20 ON/OFFMI33540665765810521180186803000ON/OFF20BLACK
PROLINE HS OPAL 2702lm 29W 8 856 BL IP20 ON/OFFMI14902238565810529270293803000ON/OFF20BLACK
PROLINE HS OPAL 3603lm 38W 8 1136 BL IP20 ON/OFFMI987580811365810538360395803000ON/OFF20BLACK
PROLINE HS OPAL 4504lm 46W 8 1416 BL IP20 ON/OFFMI17410514165810546450498803000ON/OFF20BLACK
PROLINE HS OPAL 5405lm 54W 8 1696 BL IP20 ON/OFFMI2497268169658105545405100803000ON/OFF20BLACK
PROLINE HS OPAL 6306lm 63W 8 1976 BL IP20 ON/OFFMI3905771197658105636306100803000ON/OFF20BLACK
PROLINE HS OPAL 7207lm 71W 8 2256 BL IP20 ON/OFFMI429216225658105717207102803000ON/OFF20BLACK
PROLINE HS OPAL 8108lm 80W 8 2536 BL IP20 ON/OFFMI1549207253658105808108101803000ON/OFF20BLACK
PROLINE HS OPAL 9009lm 88W 8 2816 BL IP20 ON/OFFMI6135077281658105889009102803000ON/OFF20BLACK
PROLINE HS OPAL 1801lm 21W 8 576 WH IP20 ON/OFFMI16057215765810521180186803000ON/OFF20WHITE
PROLINE HS OPAL 2702lm 29W 8 856 WH IP20 ON/OFFMI64902328565810529270293803000ON/OFF20WHITE
PROLINE HS OPAL 3603lm 38W 8 1136 WH IP20 ON/OFFMI391831211365810538360395803000ON/OFF20WHITE
PROLINE HS OPAL 4504lm 46W 8 1416 WH IP20 ON/OFFMI619307314165810546450498803000ON/OFF20WHITE
PROLINE HS OPAL 5405lm 54W 8 1696 WH IP20 ON/OFFMI129762169658105545405100803000ON/OFF20WHITE
PROLINE HS OPAL 6306lm 63W 8 1976 WH IP20 ON/OFFMI8502426197658105636306100803000ON/OFF20WHITE
PROLINE HS OPAL 7207lm 71W 8 2256 WH IP20 ON/OFFMI8520791225658105717207102803000ON/OFF20WHITE
