SLIDER N 3429lm 27W 830 100 15° GR IP20 ON/OFF
Item No. MI102412325
SLIDER N

SLIDER N 3429lm 27W 830 100 15° GR IP20 ON/OFF

MI102412325

Electrical data
Total Consumption [W]27
IEC Protection Class1
Optics
Type of ControlON/OFF
LED LIFETIME Ta25 [h]64000
Technical data
Total Consumption [W]27
Lumen Output [LM]3429
Efficacy [lm/W]127
Beam Angle [°]15°
Light distributionDIR
CCT [K]3000
CRI80
LED LIFETIME Ta25 [h]64000
Type of ControlON/OFF
Housing colorGREY
IP20
Dimensions (length, width, height)100 x 100 x 195 mm [LxWxH]
Diameter ø [mm]100
Weight [KG]0.66 kg
Description:

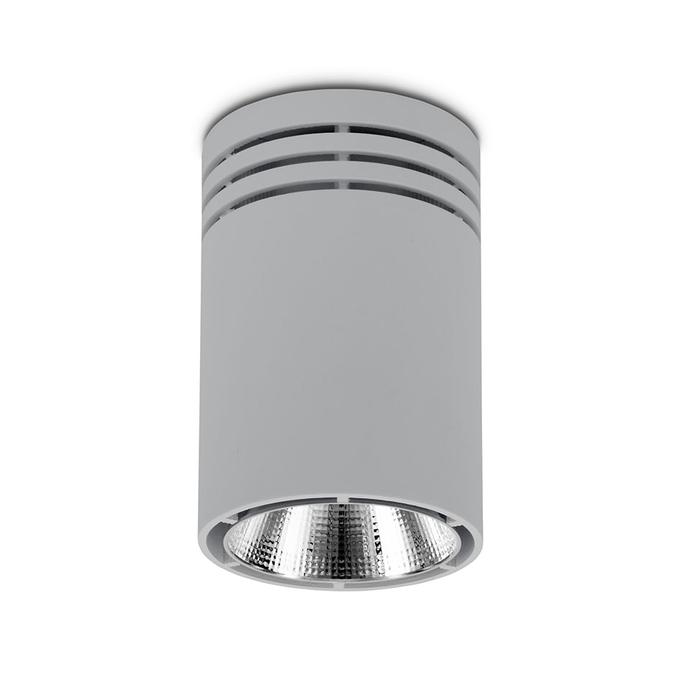

Surface mounted LED downlight. Aluminium housing. Plastic cover included. Available in white, black and grey. Any RAL palette colour available on enquiry. Reflector beam available: 15°, 23°, 38° 45° and 60°. Maximum power is 31W.

RAL colours on inquiry, Casambi on inquiry, DALI on inquiry, Phase-cut dimming on inquiry.

Downloads:
Datasheet:
1
Mounting instructions:
1
Certificates:
1
Photometric data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AD - IP/20.svg
/soft4net/img/project/icons/W - HOUSING COLOR/GREY.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_80.svg
Electrical data
Total Consumption [W]27
IEC Protection Class1
Optics
Type of ControlON/OFF
LED LIFETIME Ta25 [h]64000
Technical data
Total Consumption [W]27
Lumen Output [LM]3429
Efficacy [lm/W]127
Beam Angle [°]15°
Light distributionDIR
CCT [K]3000
CRI80
LED LIFETIME Ta25 [h]64000
Type of ControlON/OFF
Housing colorGREY
IP20
Dimensions (length, width, height)100 x 100 x 195 mm [LxWxH]
Diameter ø [mm]100
Weight [KG]0.66 kg
Housing
Housing colorGREY
Light technical data
Total Consumption [W]27
Lumen Output [LM]3429
Efficacy [lm/W]127
CCT [K]3000
CRI80
Beam Angle [°]15°
Light distributionDIR
Technical data
TA [°C]30.00 C
IP20
Dimensions
Dimensions (length, width, height)100 x 100 x 195 mm [LxWxH]
Diameter ø [mm]100
Weight [KG]0.66 kg
