SOLUS 100 LENS 930lm 11W 930 WH IP20 DALI
Item No. MI105715538
SOLUS 100

SOLUS 100 LENS 930lm 11W 930 WH IP20 DALI

MI105715538

General data
Key Advantages

Various optic beam angle versions designed to suit any applications and requirements.

Product ShapeRound
TypeDownlight
MountingR
Mounting Opening90
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]11
IEC Protection ClassI
Optics
DiffuserLENS
Type of ControlDALI
LED LIFETIME Ta25 [h]L80B10 60.000h
Technical data
Total Consumption [W]11
Lumen Output [LM]930
Efficacy [lm/W]85
DiffuserLENS
Beam Angle [°]36°
Light distributionDIR
CCT [K]3000
CRI90
MacAdam step3
LED LIFETIME Ta25 [h]L80B10 60.000h
Type of ControlDALI
Housing colorWHITE
IP20
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Description:

A small, configurable spotlight – recessed downlight for interior lighting. A wide range of technical parameter and luminaire appearance variants for versatile applications. COB technology and a high-performance, metalized, facetted plastic reflector guarantee the optimum construction of the optical system and a high efficiency.

Key Advantages:

Various optic beam angle versions designed to suit any applications and requirements.

Downloads:
Datasheet:
1
Mounting instructions:
1
Certificates:
1

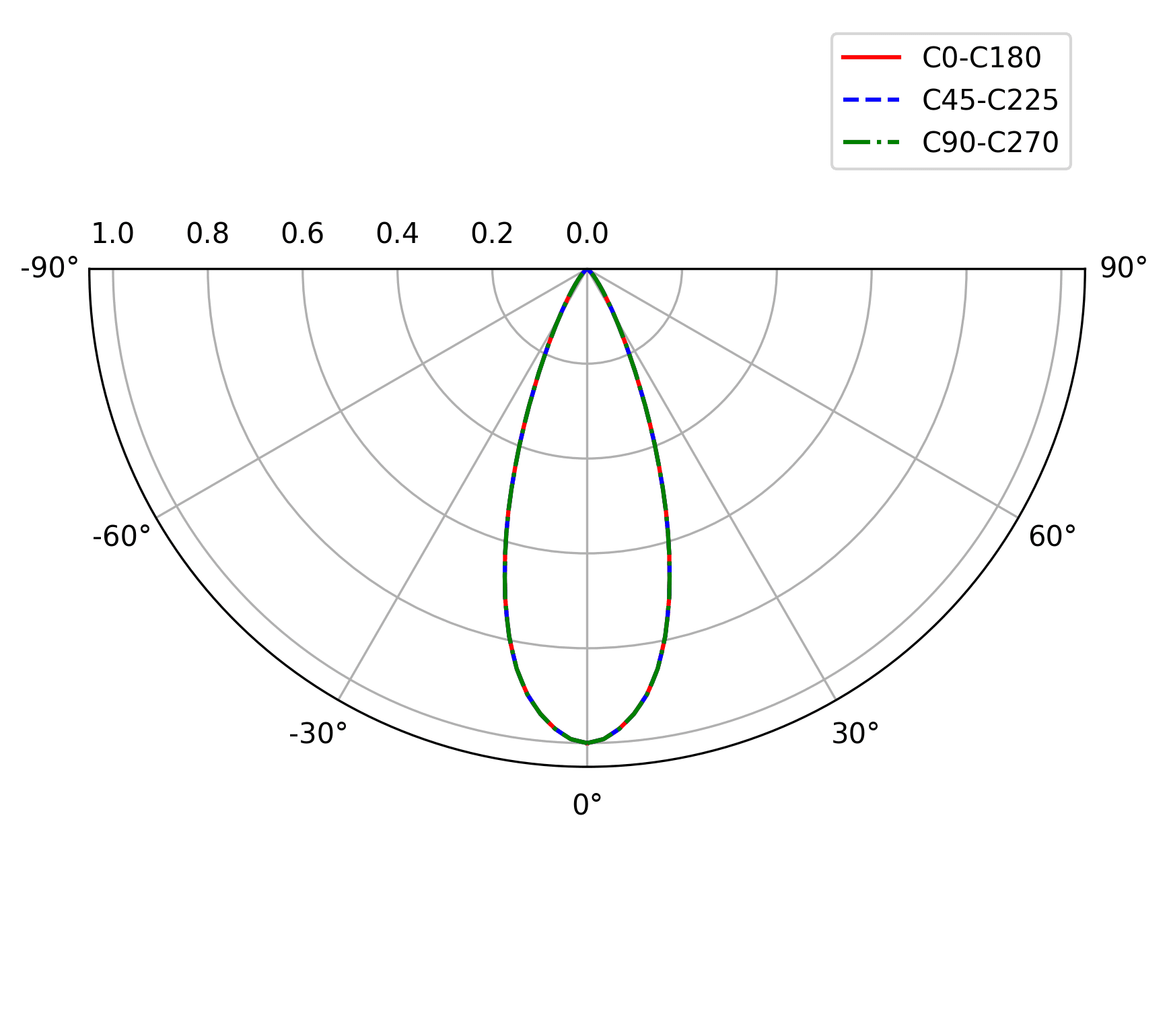

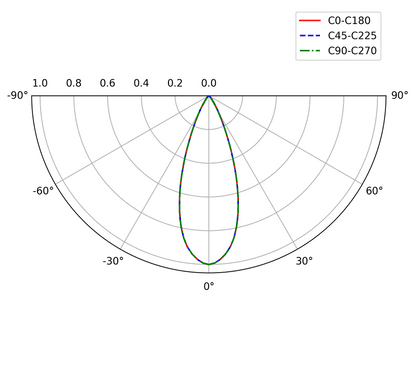

Photometric data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/DALI.svg
/soft4net/img/project/icons/AD - IP/20.svg
/soft4net/img/project/icons/J - MOUNTING/R.svg
/soft4net/img/project/icons/W - HOUSING COLOR/WHITE.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_90.svg
SOLUS 100
General data
Key Advantages

Various optic beam angle versions designed to suit any applications and requirements.

Product ShapeRound
TypeDownlight
MountingR
Mounting Opening90
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]11
IEC Protection ClassI
Optics
DiffuserLENS
Type of ControlDALI
LED LIFETIME Ta25 [h]L80B10 60.000h
Technical data
Total Consumption [W]11
Lumen Output [LM]930
Efficacy [lm/W]85
DiffuserLENS
Beam Angle [°]36°
Light distributionDIR
CCT [K]3000
CRI90
MacAdam step3
LED LIFETIME Ta25 [h]L80B10 60.000h
Type of ControlDALI
Housing colorWHITE
IP20
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Housing
Housing colorWHITE
FinishMatt, Gloss
Light technical data
Light SourceLED
Total Consumption [W]11
Lumen Output [LM]930
Efficacy [lm/W]85
CCT [K]3000
CRI90
MacAdam step3
Beam Angle [°]36°
Light distributionDIR
Technical data
IP20
Mechanical Protection [IK]01
Generating PDF...

Technical illustrations

SOLUS 100
