SOLUS 200 MPR 3700lm 40W 940 WH IP20 PHASE CUT / TRIAC
Item No. MI108765118
SOLUS 200

SOLUS 200 MPR 3700lm 40W 940 WH IP20 PHASE CUT / TRIAC

MI108765118

General data
Key Advantages

Various optic beam angle versions designed to suit any applications and requirements.

Product ShapeRound
TypeDownlight
MountingR
Mounting Opening200
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]40
IEC Protection ClassI
Optics
DiffuserMPR
Type of ControlPHASE CUT / TRIAC
LED LIFETIME Ta25 [h]L80B10 60.000h
Technical data
Total Consumption [W]40
Lumen Output [LM]3700
Efficacy [lm/W]93
DiffuserMPR
Beam Angle [°]22°
Light distributionDIR
CCT [K]4000
CRI90
MacAdam step3
LED LIFETIME Ta25 [h]L80B10 60.000h
Type of ControlPHASE CUT / TRIAC
Housing colorWHITE
IP20
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Description:

A small, configurable spotlight – recessed downlight for interior lighting. A wide range of technical parameter and luminaire appearance variants for versatile applications. COB technology and a high-performance, metalized, facetted plastic reflector guarantee the optimum construction of the optical system and a high efficiency.

Key Advantages:

Various optic beam angle versions designed to suit any applications and requirements.

Downloads:
Datasheet:
1
Mounting instructions:
1
Certificates:
1

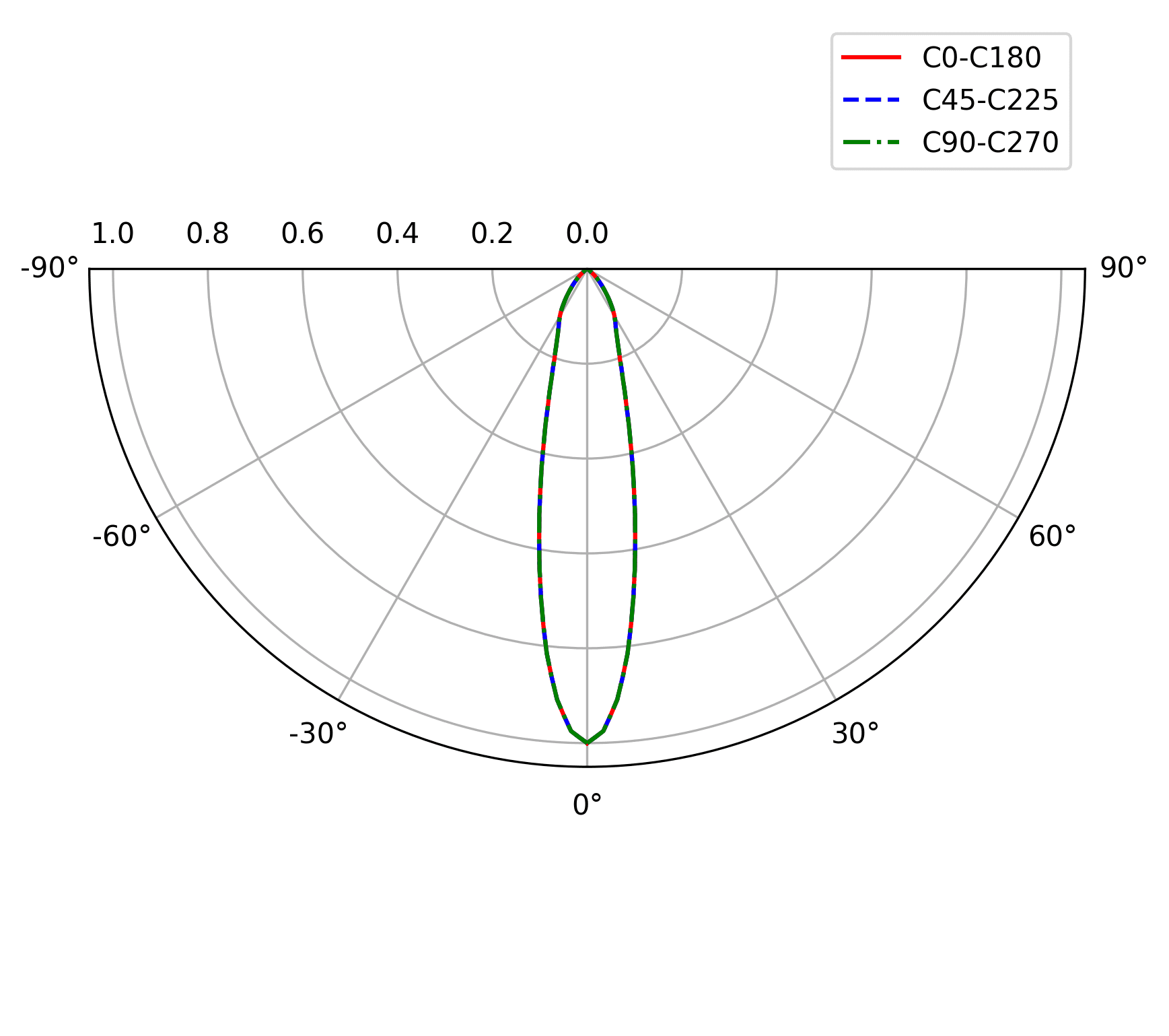

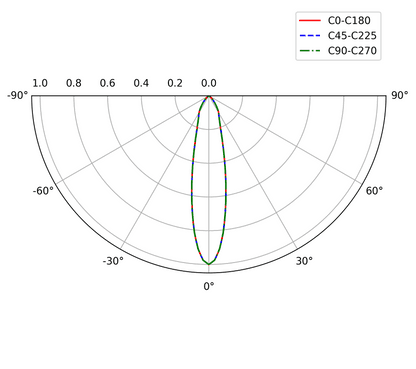

Photometric data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AD - IP/20.svg
/soft4net/img/project/icons/J - MOUNTING/R.svg
/soft4net/img/project/icons/W - HOUSING COLOR/WHITE.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_90.svg
General data
Key Advantages

Various optic beam angle versions designed to suit any applications and requirements.

Product ShapeRound
TypeDownlight
MountingR
Mounting Opening200
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]40
IEC Protection ClassI
Optics
DiffuserMPR
Type of ControlPHASE CUT / TRIAC
LED LIFETIME Ta25 [h]L80B10 60.000h
Technical data
Total Consumption [W]40
Lumen Output [LM]3700
Efficacy [lm/W]93
DiffuserMPR
Beam Angle [°]22°
Light distributionDIR
CCT [K]4000
CRI90
MacAdam step3
LED LIFETIME Ta25 [h]L80B10 60.000h
Type of ControlPHASE CUT / TRIAC
Housing colorWHITE
IP20
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Housing
Housing colorWHITE
FinishMatt, Gloss
Light technical data
Light SourceLED
Total Consumption [W]40
Lumen Output [LM]3700
Efficacy [lm/W]93
CCT [K]4000
CRI90
MacAdam step3
Beam Angle [°]22°
Light distributionDIR
Technical data
IP20
Mechanical Protection [IK]01
