SPECTO 60 SURFACE IP65
SPECTO 60 SURFACE IP65

General data
Application

Application offices, shops, entrance halls, parking areas.

Key Advantages

Easy installation to surface, ceiling.

Product ShapeTube
TypeDustproof
MountingSurface celing
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]9 - 45
IEC Protection ClassI
Optics
Diffuser MaterialPMMA
Diffuser Material DesignTransparent
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L90B10 60.000h
Technical data
Total Consumption [W]9 - 45
Lumen Output [LM]1050 - 5050
Efficacy lm/Wup to 122
Diffuser MaterialPMMA
Body MaterialAluminium
Beam Angle [°]70°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80
MacAdam step3
LED LIFETIME Ta25 [h]L90B10 60.000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWhite 9016, Black 9005, Gray 9006
Ingress Protection [IP]65
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Diameter ø [mm]60
Description:

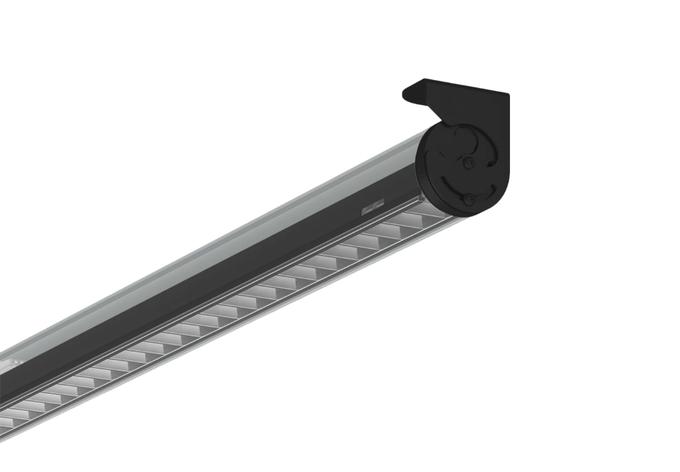

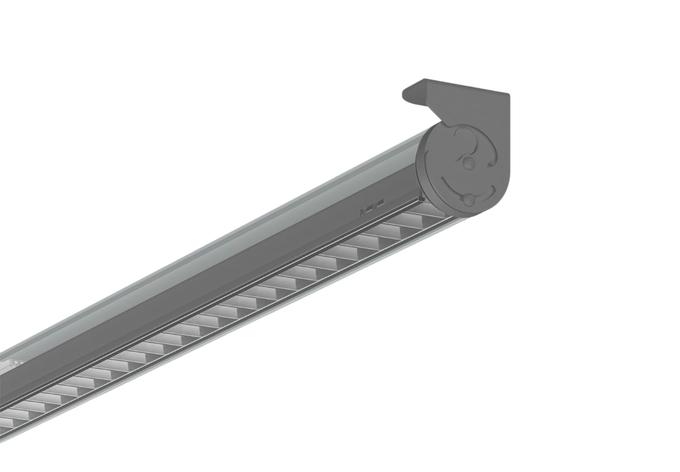

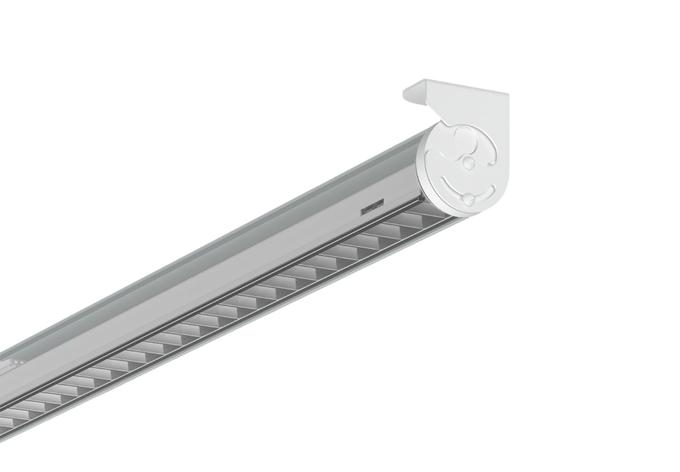

A versatile tube shaped luminaire with IP65 suitable for a wide range of applications. The diffuser made of UV-stabilized PMMA and aluminium endcaps. Suspension accessories to be ordered separately.

Key Advantages:

Easy installation to surface, ceiling.

Downloads:
Datasheet:
1
Technical illustrations:
1
Mounting instructions:
1
Certificates:
1
Photometric data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/DALI.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/ON_OFF.svg
/soft4net/img/project/icons/AD - IP/65.svg
/soft4net/img/project/icons/J - MOUNTING/S.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_80.svg
General data
Application

Application offices, shops, entrance halls, parking areas.

Key Advantages

Easy installation to surface, ceiling.

Product ShapeTube
TypeDustproof
MountingSurface celing
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]9 - 45
IEC Protection ClassI
Optics
Diffuser MaterialPMMA
Diffuser Material DesignTransparent
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L90B10 60.000h
Technical data
Total Consumption [W]9 - 45
Lumen Output [LM]1050 - 5050
Efficacy lm/Wup to 122
Diffuser MaterialPMMA
Body MaterialAluminium
Beam Angle [°]70°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80
MacAdam step3
LED LIFETIME Ta25 [h]L90B10 60.000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWhite 9016, Black 9005, Gray 9006
Ingress Protection [IP]65
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Diameter ø [mm]60
Housing
Body MaterialAluminium
Body ColorWhite 9016, Black 9005, Gray 9006
Light technical data
Light SourceLED
Total Consumption [W]9 - 45
Lumen Output [LM]1050 - 5050
Efficacy lm/Wup to 122
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80
MacAdam step3
Beam Angle [°]70°
Light Distribution DIR/INDDIR
Technical data
TA [°C]0-25
Ingress Protection [IP]65
Mechanical Protection [IK]01
Dimensions
Diameter ø [mm]60
Generating PDF...

Variations

Item
Code
Lenght
Width
Height
Diameter
W
Lumen
Output lm
Efficacy
lm/W
Diffuser
Beam
Angle
CRI
Color K
Type of
Control
IP
Color
SPECTO 60 SURFACE IP65 TRANSPARENT 1050lm 9W 830 612 WH IP65 ON/OFFMI11190713056127991050117TRANSPARENT70°803000ON/OFF65WHITE
SPECTO 60 SURFACE IP65 TRANSPARENT 1050lm 9W 830 612 WH IP65 DALIMI11174723176127991050117TRANSPARENT70°803000DALI65WHITE
SPECTO 60 SURFACE IP65 TRANSPARENT 1100lm 9W 840 612 WH IP65 ON/OFFMI11137096546127991100122TRANSPARENT70°804000ON/OFF65WHITE
SPECTO 60 SURFACE IP65 TRANSPARENT 1100lm 9W 840 612 WH IP65 DALIMI11178843526127991100122TRANSPARENT70°804000DALI65WHITE
SPECTO 60 SURFACE IP65 TRANSPARENT 1050lm 9W 830 612 GR IP65 ON/OFFMI11168851196127991050117TRANSPARENT70°803000ON/OFF65GREY
SPECTO 60 SURFACE IP65 TRANSPARENT 1050lm 9W 830 612 GR IP65 DALIMI11161984176127991050117TRANSPARENT70°803000DALI65GREY
SPECTO 60 SURFACE IP65 TRANSPARENT 1100lm 9W 840 612 GR IP65 ON/OFFMI11155833256127991100122TRANSPARENT70°804000ON/OFF65GREY
SPECTO 60 SURFACE IP65 TRANSPARENT 1100lm 9W 840 612 GR IP65 DALIMI11173791536127991100122TRANSPARENT70°804000DALI65GREY
SPECTO 60 SURFACE IP65 TRANSPARENT 1050lm 9W 830 612 BL IP65 ON/OFFMI11137676546127991050117TRANSPARENT70°803000ON/OFF65BLACK
SPECTO 60 SURFACE IP65 TRANSPARENT 1050lm 9W 830 612 BL IP65 DALIMI11109922346127991050117TRANSPARENT70°803000DALI65BLACK
SPECTO 60 SURFACE IP65 TRANSPARENT 1100lm 9W 840 612 BL IP65 ON/OFFMI11167998446127991100122TRANSPARENT70°804000ON/OFF65BLACK
SPECTO 60 SURFACE IP65 TRANSPARENT 1100lm 9W 840 612 BL IP65 DALIMI11136429346127991100122TRANSPARENT70°804000DALI65BLACK
SPECTO 60 SURFACE IP65 TRANSPARENT 1700lm 16W 830 612 WH IP65 ON/OFFMI111170373061279161700106TRANSPARENT70°803000ON/OFF65WHITE
SPECTO 60 SURFACE IP65 TRANSPARENT 1700lm 16W 830 612 WH IP65 DALIMI111691401161279161700106TRANSPARENT70°803000DALI65WHITE
SPECTO 60 SURFACE IP65 TRANSPARENT 1850lm 16W 840 612 WH IP65 ON/OFFMI111170104361279161850116TRANSPARENT70°804000ON/OFF65WHITE
SPECTO 60 SURFACE IP65 TRANSPARENT 1850lm 16W 840 612 WH IP65 DALIMI111042085261279161850116TRANSPARENT70°804000DALI65WHITE
SPECTO 60 SURFACE IP65 TRANSPARENT 1700lm 16W 830 612 GR IP65 ON/OFFMI111556010061279161700106TRANSPARENT70°803000ON/OFF65GREY
SPECTO 60 SURFACE IP65 TRANSPARENT 1700lm 16W 830 612 GR IP65 DALIMI111862832861279161700106TRANSPARENT70°803000DALI65GREY
SPECTO 60 SURFACE IP65 TRANSPARENT 1850lm 16W 840 612 GR IP65 ON/OFFMI111665055861279161850116TRANSPARENT70°804000ON/OFF65GREY
SPECTO 60 SURFACE IP65 TRANSPARENT 1850lm 16W 840 612 GR IP65 DALIMI111577918161279161850116TRANSPARENT70°804000DALI65GREY
SPECTO 60 SURFACE IP65 TRANSPARENT 1700lm 16W 830 612 BL IP65 ON/OFFMI111857519161279161700106TRANSPARENT70°803000ON/OFF65BLACK
SPECTO 60 SURFACE IP65 TRANSPARENT 1700lm 16W 830 612 BL IP65 DALIMI111046800961279161700106TRANSPARENT70°803000DALI65BLACK
SPECTO 60 SURFACE IP65 TRANSPARENT 1850lm 16W 840 612 BL IP65 ON/OFFMI111139065261279161850116TRANSPARENT70°804000ON/OFF65BLACK
SPECTO 60 SURFACE IP65 TRANSPARENT 1850lm 16W 840 612 BL IP65 DALIMI111277075661279161850116TRANSPARENT70°804000DALI65BLACK
SPECTO 60 SURFACE IP65 TRANSPARENT 2000lm 18W 830 1172 WH IP65 ON/OFFMI1118486493117279182000111TRANSPARENT70°803000ON/OFF65WHITE
