TALIO TRACK DK POINT 1800lm 23W 930 BL IP20 ON/OFF
Item No. MI108520111_7959
TALIO TRACK

TALIO TRACK DK POINT 1800lm 23W 930 BL IP20 ON/OFF

MI108520111_7959

General data
Product ShapeLinear, Rectangular
TypeLinear track
MountingT
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]23
IEC Protection ClassI
Optics
DiffuserDK POINT
Type of ControlON/OFF
LED LIFETIME Ta25 [h]L70B50 60.000h
Technical data
Total Consumption [W]23
Lumen Output [LM]1800
Efficacy [lm/W]78
DiffuserDK POINT
Beam Angle [°]32°
Light distributionDIR
CCT [K]3000
CRI90
MacAdam step3
LED LIFETIME Ta25 [h]L70B50 60.000h
Type of ControlON/OFF
Housing colorBLACK
IP20
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Description:

Subtle LED spotlight with driver integrated in track mount delivering an extreme slim design without compromises.

Downloads:
Datasheet:
1
Mounting instructions:
1
Certificates:
1

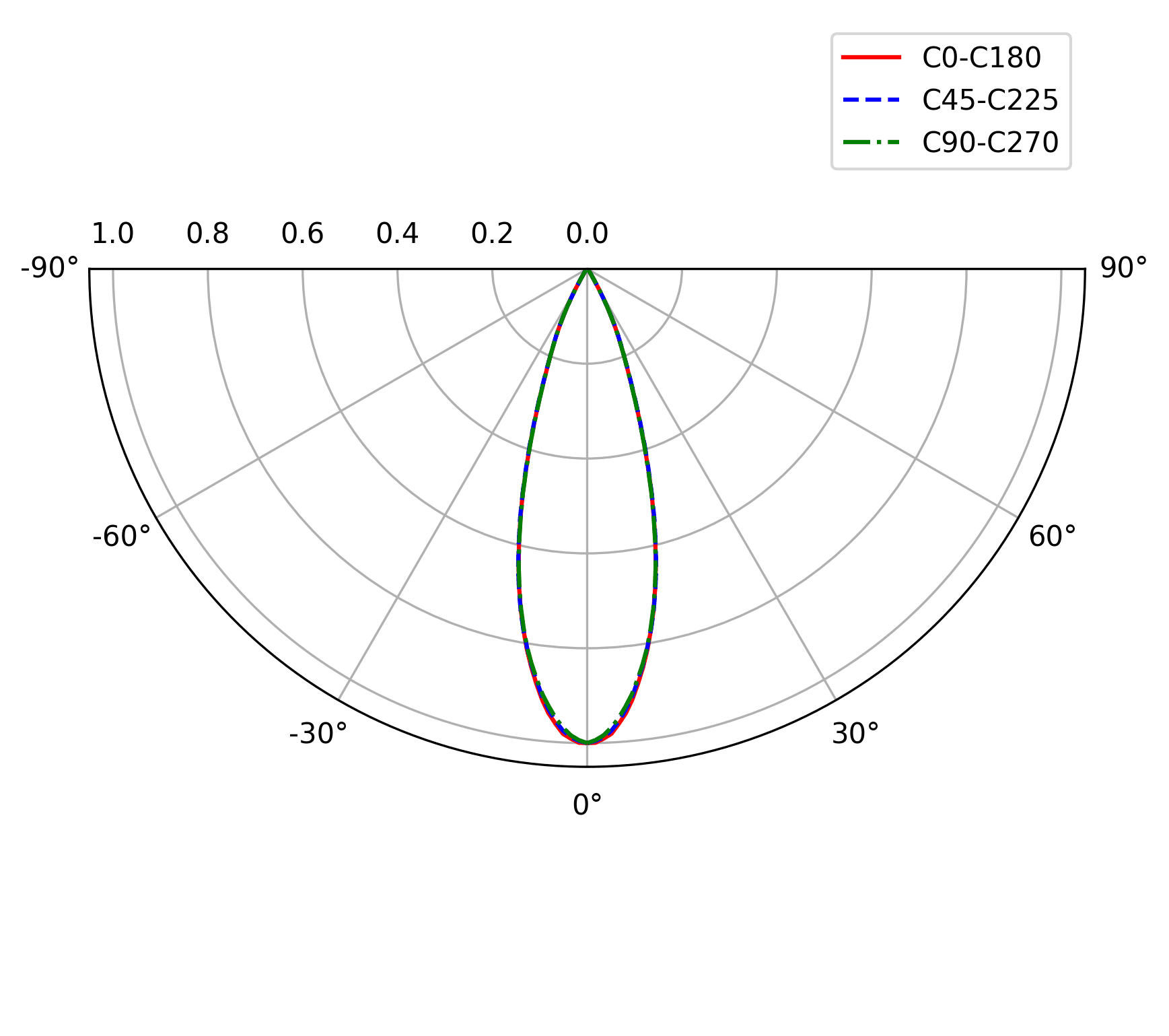

Photometric data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AD - IP/20.svg
/soft4net/img/project/icons/J - MOUNTING/T.svg
/soft4net/img/project/icons/W - HOUSING COLOR/BLACK.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_90.svg
TALIO TRACK
General data
Product ShapeLinear, Rectangular
TypeLinear track
MountingT
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]23
IEC Protection ClassI
Optics
DiffuserDK POINT
Type of ControlON/OFF
LED LIFETIME Ta25 [h]L70B50 60.000h
Technical data
Total Consumption [W]23
Lumen Output [LM]1800
Efficacy [lm/W]78
DiffuserDK POINT
Beam Angle [°]32°
Light distributionDIR
CCT [K]3000
CRI90
MacAdam step3
LED LIFETIME Ta25 [h]L70B50 60.000h
Type of ControlON/OFF
Housing colorBLACK
IP20
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Housing
Housing colorBLACK
RALAny upon request
FinishMatt, Gloss
Light technical data
Light SourceLED
Total Consumption [W]23
Lumen Output [LM]1800
Efficacy [lm/W]78
CCT [K]3000
CRI90
UGR<19
MacAdam step3
Beam Angle [°]32°
Light distributionDIR
Technical data
IP20
Mechanical Protection [IK]01
Corrosion ClassC3
Generating PDF...

Technical illustrations

TALIO TRACK
