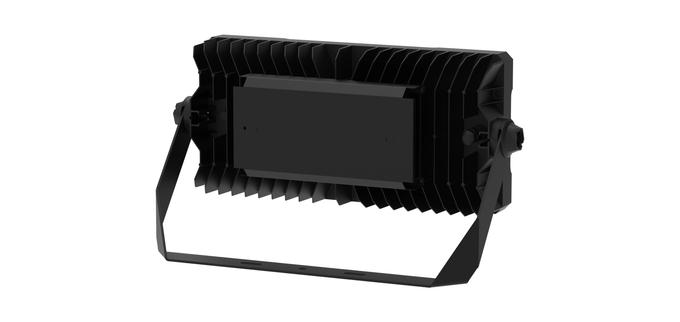

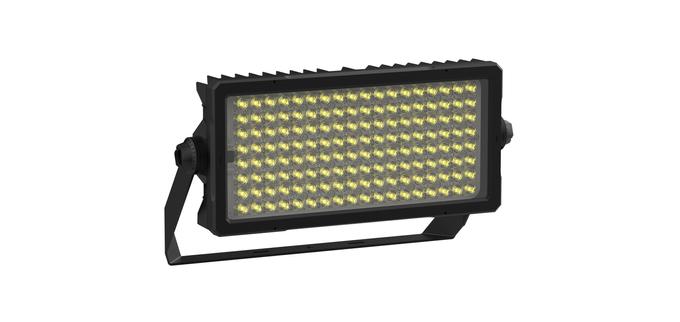

TOKO I
TOKO I

General data

Application	All-around sport applications, manufactories, logistic facilities and large outdoor areas, parking lots
Key Advantages	6 different symmetric and asymmetric beam angle options
Product Shape	RECTANGULAR
Type	FLOODLIGHT
Mounting	POLE, SURFACE

Electrical data

Main Feed AC [V]	90 - 305
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	240 - 500
IEC Protection Class	I, II
Connector Type	SPD IP68 Connector optional

Optics

Optic Name	Lens
Diffuser Material	4mm tempered glass
Diffuser Material Design	PMMA UV resistant LENS
TYPE OF CONTROL	ON/OFF
LED LIFETIME Ta25 [h]	100 000h

Technical data

Total Consumption [W]	240 - 500
Lumen Output [LM]	28800 - 65000
Efficacy lm/W	130
Diffuser Material	4mm tempered glass
Body Material	Aluminium injection body
Beam Angle [°]	15°, 18°, 30°, 40°, 60°, 90°, 86x105° asym
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	3000, 4000, 6500
Color Rendering Index [CRI]	70
MacAdam step	3
LED LIFETIME Ta25 [h]	100 000h
TYPE OF CONTROL	ON/OFF
Body Color	Black, Grey, White
Ingress Protection [IP]	66
Mechanical Protection [IK]	08
Main Feed AC [V]	90 - 305
Weight [KG]	8.30 kg, 12.00 kg, 12.50 kg

Description:

Powerful and long-lasting maintenance free floodlight combining efficient LED technology and design in a single product with various power options and beam angles options
BODY
Aluminium injection body, electrostatic powder coated
4mm tempered glass, ventilation plug
LED
100.000 hours LED lifetime according to LM-80 and TM-21 report
DRIVER
Constant current output, With 90% efficiency, Effective power factor regulation that is not affected by fluctuations in grid voltage, dimmable-programmable ENEC certificated IP67 Driver
LENS
Resistant to UV rays, 93% optically efficient PMMA material lens
PCB
Aluminum PCB, Aluminum Base Layer / Thickness: 1L / 1.6mm
Copper Thickness: 1 OZ,HASL surface coating
OPTIONS
SPD, IP68 Connector

Key Advantages:

6 different symmetric and asymmetric beam angle options

Downloads:

Datasheet:

Mounting instructions:

Certificates:

Photometric data:

General data

Application	All-around sport applications, manufactories, logistic facilities and large outdoor areas, parking lots
Key Advantages	6 different symmetric and asymmetric beam angle options
Product Shape	RECTANGULAR
Type	FLOODLIGHT
Mounting	POLE, SURFACE

Electrical data

Main Feed AC [V]	90 - 305
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	240 - 500
IEC Protection Class	I, II
Connector Type	SPD IP68 Connector optional

Optics

Optic Name	Lens
Diffuser Material	4mm tempered glass
Diffuser Material Design	PMMA UV resistant LENS
TYPE OF CONTROL	ON/OFF
LED LIFETIME Ta25 [h]	100 000h

Technical data

Total Consumption [W]	240 - 500
Lumen Output [LM]	28800 - 65000
Efficacy lm/W	130
Diffuser Material	4mm tempered glass
Body Material	Aluminium injection body
Beam Angle [°]	15°, 18°, 30°, 40°, 60°, 90°, 86x105° asym
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	3000, 4000, 6500
Color Rendering Index [CRI]	70
MacAdam step	3
LED LIFETIME Ta25 [h]	100 000h
TYPE OF CONTROL	ON/OFF
Body Color	Black, Grey, White
Ingress Protection [IP]	66
Mechanical Protection [IK]	08
Main Feed AC [V]	90 - 305
Weight [KG]	8.30 kg, 12.00 kg, 12.50 kg

Housing

Body Material	Aluminium injection body
Body Color	Black, Grey, White
RAL	9005, 9022, 9016
Finish	Electrostatic powder coated

Light technical data

Light Source	LED
Total Consumption [W]	240 - 500
Lumen Output [LM]	28800 - 65000
Efficacy lm/W	130
LED Color Temperature CCT [K]	3000, 4000, 6500
Color Rendering Index [CRI]	70
MacAdam step	3
Beam Angle [°]	15°, 18°, 30°, 40°, 60°, 90°, 86x105° asym
Light Distribution DIR/IND	DIR

Technical data

TA [°C]	-20 to +40
Ingress Protection [IP]	66
Mechanical Protection [IK]	08
Corrosion Class	C3, C4

Dimensions

Weight [KG]	8.30 kg, 12.00 kg, 12.50 kg

Variations

Item	Code	Lenght	Width	Height	W	Lumen Output lm	Efficacy lm/W	Diffuser	Beam Angle	CRI	Color K	Type of Control	IP	Color
TOKO I 240W 31200lm Tempered glass 31200lm 240W 730 563 BL GR WH IP66 ON/OFF	MI29-12403120	563	209	300	240	31200	130	TEMPERED GLASS	15°,18°,30°,40°,60°,90°,86X105°	70	3000 4000 6500	ON/OFF	66	BLACK GREY WHITE
TOKO I 320W 41600lm Tempered glass 41600lm 320W 730 563 BL GR WH IP66 ON/OFF	MI29-13204160	563	209	300	320	41600	130	TEMPERED GLASS	15°,18°,30°,40°,60°,90°,86X105°	70	3000 4000 6500	ON/OFF	66	BLACK GREY WHITE
TOKO I 240W 28800lm Tempered glass 28800lm 240W 730 563 BL GR WH IP66 ON/OFF	MI29-12402880	563	209	300	240	28800	130	TEMPERED GLASS	15°,18°,30°,40°,60°,90°,86X105°	70	3000 4000 6500	ON/OFF	66	BLACK GREY WHITE
TOKO I 320W 38400lm Tempered glass 38400lm 320W 730 563 BL GR WH IP66 ON/OFF	MI29-13203840	563	209	300	320	38400	130	TEMPERED GLASS	15°,18°,30°,40°,60°,90°,86X105°	70	3000 4000 6500	ON/OFF	66	BLACK GREY WHITE
TOKO I 400W 52000lm Tempered glass 52000lm 400W 730 621 BL GR WH IP66 ON/OFF	MI29-14005200	621	255	345	400	52000	130	TEMPERED GLASS	15°,18°,30°,40°,60°,90°,86X105°	70	3000 4000 6500	ON/OFF	66	BLACK GREY WHITE
TOKO I 500W 65000lm Tempered glass 65000lm 500W 730 554 BL GR WH IP66 ON/OFF	MI29-15006500	554	215	332	500	65000	130	TEMPERED GLASS	15°,18°,30°,40°,60°,90°,86X105°	70	3000 4000 6500	ON/OFF	66	BLACK GREY WHITE
TOKO I 400W 48000lm Tempered glass 48000lm 400W 730 554 BL GR WH IP66 ON/OFF	MI29-14004800	554	215	332	400	48000	130	TEMPERED GLASS	15°,18°,30°,40°,60°,90°,86X105°	70	3000 4000 6500	ON/OFF	66	BLACK GREY WHITE
TOKO I 500W 60000lm Tempered glass 60000lm 500W 730 554 BL GR WH IP66 ON/OFF	MI29-15006000	554	215	332	500	60000	130	TEMPERED GLASS	15°,18°,30°,40°,60°,90°,86X105°	70	3000 4000 6500	ON/OFF	66	BLACK GREY WHITE
