URO BIG PREMIUM RD 12/24VDC
URO BIG PREMIUM RD 12/24VDC

General data

Application	In-ground
Key Advantages	Variety of light distribution beam angles, power options W, shape designs and dimming options.
Product Shape	Round
Type	Illumination
Mounting	In-ground

Electrical data

Main Feed AC [V]	230VAC ~ 12/24 VDC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	30
IEC Protection Class	III
Connector Type	0.5m
Wiring	H07RN-F 2X1.5

Optics

Diffuser Material	Tempered glass
CONTROL SYSTEM	ON-OFF, PWM
LED LIFETIME Ta25 [h]	≥ 60 000h

Technical data

Total Consumption [W]	30
Lumen Output [LM]	3450 – 4370
Efficacy lm/W	115 – 146
Diffuser Material	Tempered glass
Body Material	SS316L, ALU
Beam Angle [°]	10, 20, 30, 45
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2700, 3000, 4000, 5000
Color Rendering Index [CRI]	80
MacAdam step	<3
LED LIFETIME Ta25 [h]	≥ 60 000h
Body Color	SST
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Main Feed AC [V]	230VAC ~ 12/24 VDC
Diameter ø [mm]	176.5

Description:

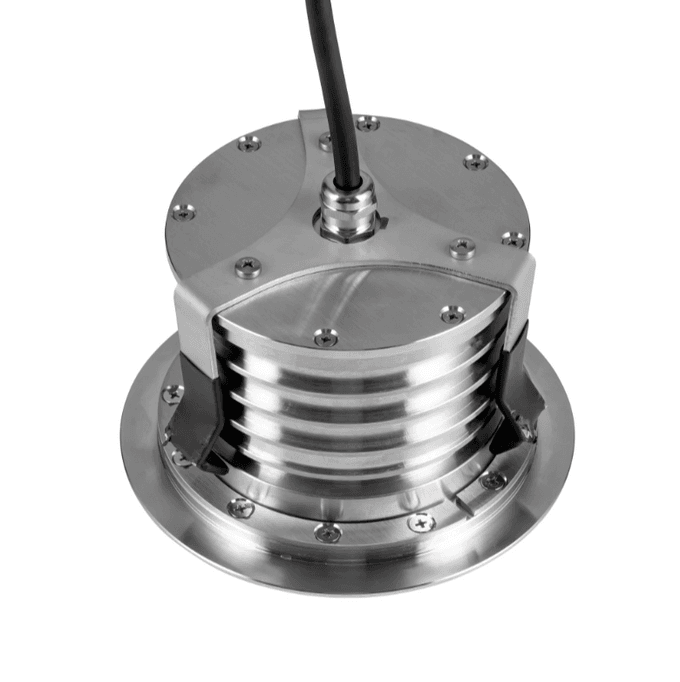

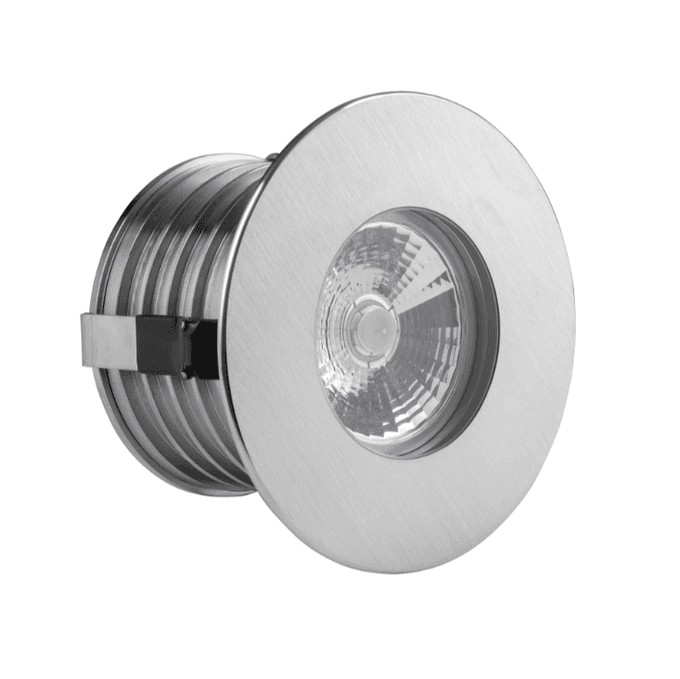

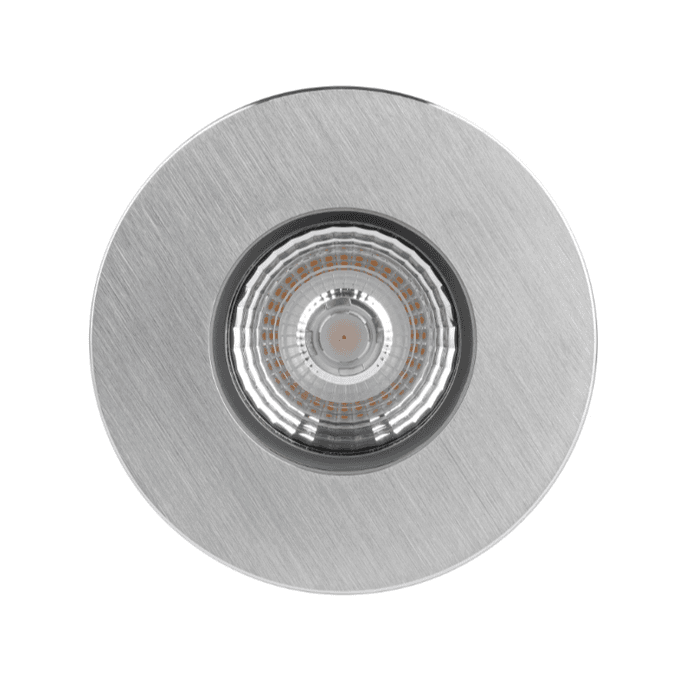

URO BIG PREMIUM series of max 30W is designed to achieve the best visual effect by having no screws on the front. Made of the highest quality materials such as marine steel, high purity glass and modern CREE LED®. MILIA BIG PREMIUM luminaire can be used to illuminate a wide range of places and objects, such as: landscape, parks, gardens, terraces, squares, plants.

Key Advantages:

Variety of light distribution beam angles, power options W, shape designs and dimming options.

Downloads:

Datasheet:

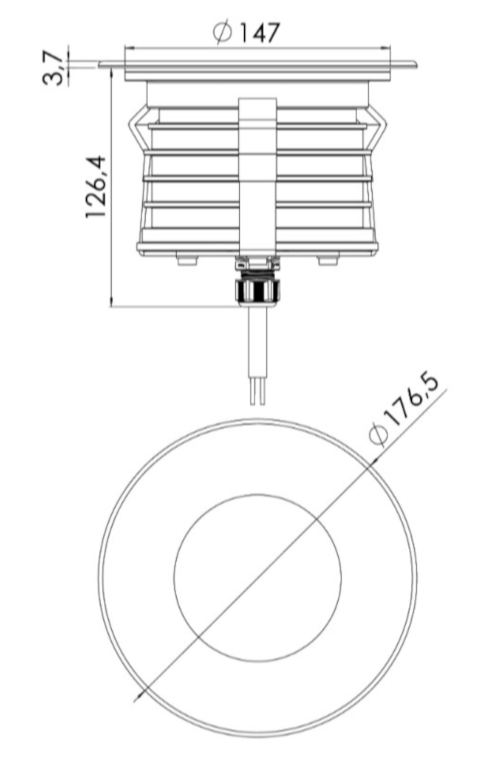

Technical illustrations:

Mounting instructions:

Certificates:

Photometric data:

General data

Application	In-ground
Key Advantages	Variety of light distribution beam angles, power options W, shape designs and dimming options.
Product Shape	Round
Type	Illumination
Mounting	In-ground

Electrical data

Main Feed AC [V]	230VAC ~ 12/24 VDC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	30
IEC Protection Class	III
Connector Type	0.5m
Wiring	H07RN-F 2X1.5

Optics

Diffuser Material	Tempered glass
CONTROL SYSTEM	ON-OFF, PWM
LED LIFETIME Ta25 [h]	≥ 60 000h

Technical data

Total Consumption [W]	30
Lumen Output [LM]	3450 – 4370
Efficacy lm/W	115 – 146
Diffuser Material	Tempered glass
Body Material	SS316L, ALU
Beam Angle [°]	10, 20, 30, 45
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2700, 3000, 4000, 5000
Color Rendering Index [CRI]	80
MacAdam step	<3
LED LIFETIME Ta25 [h]	≥ 60 000h
Body Color	SST
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Main Feed AC [V]	230VAC ~ 12/24 VDC
Diameter ø [mm]	176.5

Housing

Body Material	SS316L, ALU
Body Color	SST

Light technical data

Light Source	LED
Total Consumption [W]	30
Lumen Output [LM]	3450 – 4370
Efficacy lm/W	115 – 146
LED Color Temperature CCT [K]	2700, 3000, 4000, 5000
Color Rendering Index [CRI]	80
MacAdam step	<3
Beam Angle [°]	10, 20, 30, 45
Light Distribution DIR/IND	DIR

Technical data

TA [°C]	-20 to +55
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Corrosion Class	C3, C4

Dimensions

Diameter ø [mm]	176.5

Variations

Item	Code	Height	Diameter	W	Lumen Output lm	Efficacy lm/W	Diffuser	Beam Angle	CRI	Color K	IP	Color
GLASS 3450lm 30W 827 176.5 SS IP67	MI2342375	126	176.5	30	3450	115	GLASS	10	80	2700	67	SST
GLASS 3450lm 30W 827 176.5 SS IP67	MI1313611	126	176.5	30	3450	115	GLASS	20	80	2700	67	SST
GLASS 3450lm 30W 827 176.5 SS IP67	MI4099984	126	176.5	30	3450	115	GLASS	30	80	2700	67	SST
GLASS 3450lm 30W 827 176.5 SS IP67	MI4609666	126	176.5	30	3450	115	GLASS	10	80	2700	67	SST
GLASS 3450lm 30W 827 176.5 SS IP67	MI727694	126	176.5	30	3450	115	GLASS	20	80	2700	67	SST
GLASS 3450lm 30W 827 176.5 SS IP67	MI6364337	126	176.5	30	3450	115	GLASS	30	80	2700	67	SST
GLASS 3850lm 30W 830 176.5 SS IP67	MI9055454	126	176.5	30	3850	128	GLASS	10	80	3000	67	SST
GLASS 3850lm 30W 830 176.5 SS IP67	MI1477107	126	176.5	30	3850	128	GLASS	20	80	3000	67	SST
GLASS 3850lm 30W 830 176.5 SS IP67	MI6225748	126	176.5	30	3850	128	GLASS	30	80	3000	67	SST
GLASS 3850lm 30W 830 176.5 SS IP67	MI441489	126	176.5	30	3850	128	GLASS	10	80	3000	67	SST
GLASS 3850lm 30W 830 176.5 SS IP67	MI275994	126	176.5	30	3850	128	GLASS	20	80	3000	67	SST
GLASS 3850lm 30W 830 176.5 SS IP67	MI354472	126	176.5	30	3850	128	GLASS	30	80	3000	67	SST
GLASS 4370lm 30W 840 176.5 SS IP67	MI6735705	126	176.5	30	4370	146	GLASS	10	80	4000	67	SST
GLASS 4370lm 30W 840 176.5 SS IP67	MI149135	126	176.5	30	4370	146	GLASS	20	80	4000	67	SST
GLASS 4370lm 30W 840 176.5 SS IP67	MI7553074	126	176.5	30	4370	146	GLASS	30	80	4000	67	SST
GLASS 4370lm 30W 840 176.5 SS IP67	MI5538351	126	176.5	30	4370	146	GLASS	10	80	4000	67	SST
GLASS 4370lm 30W 840 176.5 SS IP67	MI9826047	126	176.5	30	4370	146	GLASS	20	80	4000	67	SST
GLASS 4370lm 30W 840 176.5 SS IP67	MI2967116	126	176.5	30	4370	146	GLASS	30	80	4000	67	SST
GLASS 4370lm 30W 850 176.5 SS IP67	MI8641665	126	176.5	30	4370	146	GLASS	10	80	5000	67	SST
GLASS 4370lm 30W 850 176.5 SS IP67	MI7347300	126	176.5	30	4370	146	GLASS	20	80	5000	67	SST
GLASS 4370lm 30W 850 176.5 SS IP67	MI4562393	126	176.5	30	4370	146	GLASS	30	80	5000	67	SST
GLASS 4370lm 30W 850 176.5 SS IP67	MI4493549	126	176.5	30	4370	146	GLASS	10	80	5000	67	SST
GLASS 4370lm 30W 850 176.5 SS IP67	MI194068	126	176.5	30	4370	146	GLASS	20	80	5000	67	SST
GLASS 4370lm 30W 850 176.5 SS IP67	MI1019024	126	176.5	30	4370	146	GLASS	30	80	5000	67	SST
