URO MEDIUM BRASS RD 12/24VDC
URO MEDIUM BRASS RD 12/24VDC

General data

Application	In-ground
Key Advantages	Variety of light distribution beam angles, power options W, shape designs and dimming options.
Product Shape	Round
Type	Illumination
Mounting	In-ground

Electrical data

Main Feed AC [V]	230VAC ~ 12/24 VDC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	18
IEC Protection Class	III
Connector Type	0.5m
Wiring	H07RN-F 2X1.5

Optics

Diffuser Material	Tempered glass
CONTROL SYSTEM	ON-OFF, PWM
LED LIFETIME Ta25 [h]	≥ 60 000h

Technical data

Total Consumption [W]	18
Lumen Output [LM]	1450 – 1760
Efficacy lm/W	80 – 98
Diffuser Material	Tempered glass
Body Material	Brass
Beam Angle [°]	10, 20, 30, 45
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2700, 3000, 4000, 5000
Color Rendering Index [CRI]	80
MacAdam step	<3
LED LIFETIME Ta25 [h]	≥ 60 000h
Body Color	Brass
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Main Feed AC [V]	230VAC ~ 12/24 VDC
Diameter ø [mm]	148

Description:

URO MEDIUM BRASS series is designed for the most discerning customers who expect more from their lighting. MILLIA’s URO MEDIUM BRASS unique combination of brass, passion and experience makes the BRASS series our most luxurious version of ground and garden products. We're not afraid to say that we've created a work of art for lighting luxurious indoor and outdoor spaces. The MILLIA URO MEDIUM BRASS series can be used to illuminate a wide range of places and objects, such as: parks, gardens, terraces, squares, premises. .

Key Advantages:

Variety of light distribution beam angles, power options W, shape designs and dimming options.

Downloads:

Datasheet:

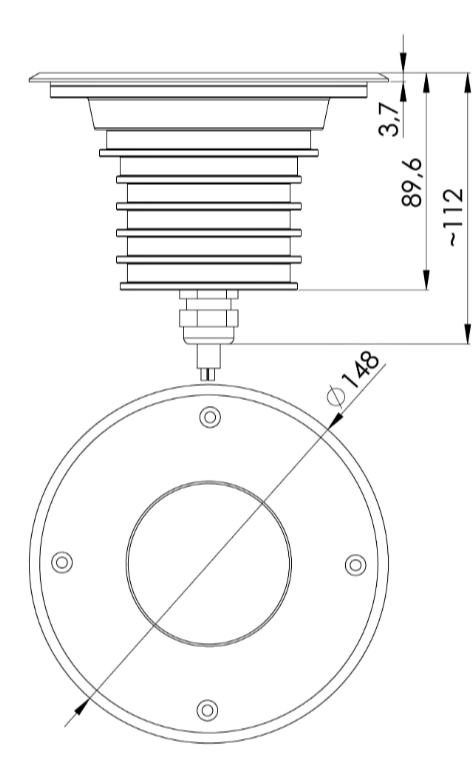

Technical illustrations:

Mounting instructions:

Certificates:

Photometric data:

General data

Application	In-ground
Key Advantages	Variety of light distribution beam angles, power options W, shape designs and dimming options.
Product Shape	Round
Type	Illumination
Mounting	In-ground

Electrical data

Main Feed AC [V]	230VAC ~ 12/24 VDC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	18
IEC Protection Class	III
Connector Type	0.5m
Wiring	H07RN-F 2X1.5

Optics

Diffuser Material	Tempered glass
CONTROL SYSTEM	ON-OFF, PWM
LED LIFETIME Ta25 [h]	≥ 60 000h

Technical data

Total Consumption [W]	18
Lumen Output [LM]	1450 – 1760
Efficacy lm/W	80 – 98
Diffuser Material	Tempered glass
Body Material	Brass
Beam Angle [°]	10, 20, 30, 45
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2700, 3000, 4000, 5000
Color Rendering Index [CRI]	80
MacAdam step	<3
LED LIFETIME Ta25 [h]	≥ 60 000h
Body Color	Brass
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Main Feed AC [V]	230VAC ~ 12/24 VDC
Diameter ø [mm]	148

Housing

Body Material	Brass
Body Color	Brass

Light technical data

Light Source	LED
Total Consumption [W]	18
Lumen Output [LM]	1450 – 1760
Efficacy lm/W	80 – 98
LED Color Temperature CCT [K]	2700, 3000, 4000, 5000
Color Rendering Index [CRI]	80
MacAdam step	<3
Beam Angle [°]	10, 20, 30, 45
Light Distribution DIR/IND	DIR

Technical data

TA [°C]	-20 to +55
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Corrosion Class	C3, C4

Dimensions

Diameter ø [mm]	148

Variations

Item	Code	Height	Diameter	W	Lumen Output lm	Efficacy lm/W	Diffuser	Beam Angle	CRI	Color K	IP	Color
URO GROUND MEDIUM BRASS RD 12/24VDC GLASS 1450lm 18W 827 148 Br IP67	MI41506156	112	148	18	1450	80	GLASS	10	80	2700	67	BRASS
URO GROUND MEDIUM BRASS RD 12/24VDC GLASS 1450lm 18W 827 148 Br IP67	MI47531857	112	148	18	1450	80	GLASS	20	80	2700	67	BRASS
URO GROUND MEDIUM BRASS RD 12/24VDC GLASS 1450lm 18W 827 148 Br IP67	MI47824360	112	148	18	1450	80	GLASS	30	80	2700	67	BRASS
URO GROUND MEDIUM BRASS RD 12/24VDC GLASS 1500lm 18W 830 148 Br IP67	MI45017972	112	148	18	1500	83	GLASS	20	80	3000	67	BRASS
URO GROUND MEDIUM BRASS RD 12/24VDC GLASS 1500lm 18W 830 148 Br IP67	MI47087949	112	148	18	1500	83	GLASS	10	80	3000	67	BRASS
URO GROUND MEDIUM BRASS RD 12/24VDC GLASS 1500lm 18W 830 148 Br IP67	MI49672721	112	148	18	1500	83	GLASS	30	80	3000	67	BRASS
URO GROUND MEDIUM BRASS RD 12/24VDC GLASS 1660lm 18W 840 148 Br IP67	MI41638524	112	148	18	1660	92	GLASS	10	80	4000	67	BRASS
URO GROUND MEDIUM BRASS RD 12/24VDC GLASS 1660lm 18W 840 148 Br IP67	MI47642691	112	148	18	1660	92	GLASS	30	80	4000	67	BRASS
URO GROUND MEDIUM BRASS RD 12/24VDC GLASS 1660lm 18W 840 148 Br IP67	MI48148530	112	148	18	1660	92	GLASS	20	80	4000	67	BRASS
URO GROUND MEDIUM BRASS RD 12/24VDC GLASS 1760lm 18W 850 148 Br IP67	MI48675839	112	148	18	1760	98	GLASS	10	80	5000	67	BRASS
URO GROUND MEDIUM BRASS RD 12/24VDC GLASS 1760lm 18W 850 148 Br IP67	MI42184561	112	148	18	1760	98	GLASS	20	80	5000	67	BRASS
URO GROUND MEDIUM BRASS RD 12/24VDC GLASS 1760lm 18W 850 148 Br IP67	MI46751959	112	148	18	1760	98	GLASS	30	80	5000	67	BRASS
