URO NANO 25 2W RD
URO NANO 25 2W RD

General data

Application	In-ground
Key Advantages	Variety of light distribution beam angles, power options W, shape designs and dimming options.
Product Shape	Round
Type	Illumination
Mounting	In-ground

Electrical data

Main Feed AC [V]	230VAC ~3V, max. 700mA CC
Main Feed Frequency [Hz]	50-60
IEC Protection Class	III
Connector Type	0.3m

Optics

Diffuser Material	Tempered glass
CONTROL SYSTEM	ON-OFF, PWM
LED LIFETIME Ta25 [h]	≥ 60 000h

Technical data

Lumen Output [LM]	215 – 245
Efficacy lm/W	108 – 123
Diffuser Material	Tempered glass
Body Material	SS316L
Beam Angle [°]	15, 30, 60
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2700, 3000, 4000, 5000
Color Rendering Index [CRI]	80
MacAdam step	<3
LED LIFETIME Ta25 [h]	≥ 60 000h
Body Color	SST
Ingress Protection [IP]	65/67
Mechanical Protection [IK]	10
Main Feed AC [V]	230VAC ~3V, max. 700mA CC
Diameter ø [mm]	25

Description:

URO GROUND NANO RD, is the smallest luminaire in the Millia in-ground family.
Power from 1W to 2W, depending on the current you apply directly to the LED, from 350mA to 700mA.
Full stainless steel housing, IP67 front and IP65 body provide many installation options, such as saunas or spas, bathrooms, kitchens, stair lighting, terraces, gardens.

Key Advantages:

Variety of light distribution beam angles, power options W, shape designs and dimming options.

Downloads:

Datasheet:

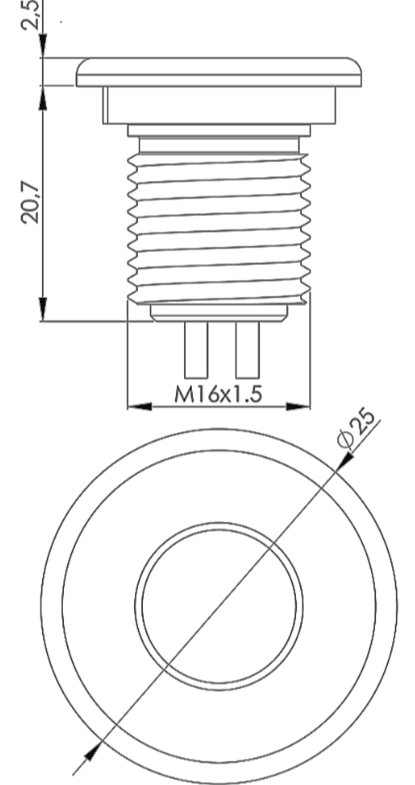

Technical illustrations:

Mounting instructions:

Certificates:

Photometric data:

General data

Application	In-ground
Key Advantages	Variety of light distribution beam angles, power options W, shape designs and dimming options.
Product Shape	Round
Type	Illumination
Mounting	In-ground

Electrical data

Main Feed AC [V]	230VAC ~3V, max. 700mA CC
Main Feed Frequency [Hz]	50-60
IEC Protection Class	III
Connector Type	0.3m

Optics

Diffuser Material	Tempered glass
CONTROL SYSTEM	ON-OFF, PWM
LED LIFETIME Ta25 [h]	≥ 60 000h

Technical data

Lumen Output [LM]	215 – 245
Efficacy lm/W	108 – 123
Diffuser Material	Tempered glass
Body Material	SS316L
Beam Angle [°]	15, 30, 60
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2700, 3000, 4000, 5000
Color Rendering Index [CRI]	80
MacAdam step	<3
LED LIFETIME Ta25 [h]	≥ 60 000h
Body Color	SST
Ingress Protection [IP]	65/67
Mechanical Protection [IK]	10
Main Feed AC [V]	230VAC ~3V, max. 700mA CC
Diameter ø [mm]	25

Housing

Body Material	SS316L
Body Color	SST

Light technical data

Light Source	LED
Lumen Output [LM]	215 – 245
Efficacy lm/W	108 – 123
LED Color Temperature CCT [K]	2700, 3000, 4000, 5000
Color Rendering Index [CRI]	80
MacAdam step	<3
Beam Angle [°]	15, 30, 60
Light Distribution DIR/IND	DIR

Technical data

TA [°C]	-20 to +55
Ingress Protection [IP]	65/67
Mechanical Protection [IK]	10
Corrosion Class	C3, C4

Dimensions

Diameter ø [mm]	25

Variations

Item	Code	Lenght	Width	Height	Diameter	W	Lumen Output lm	Efficacy lm/W	Diffuser	Beam Angle	CRI	Color K	Type of Control	IP	Color
undefined lm W IP
undefined lm W IP
undefined lm W IP
undefined lm W IP
undefined lm W IP
undefined lm W IP
undefined lm W IP
undefined lm W IP
undefined lm W IP
undefined lm W IP
undefined lm W IP
undefined lm W IP
