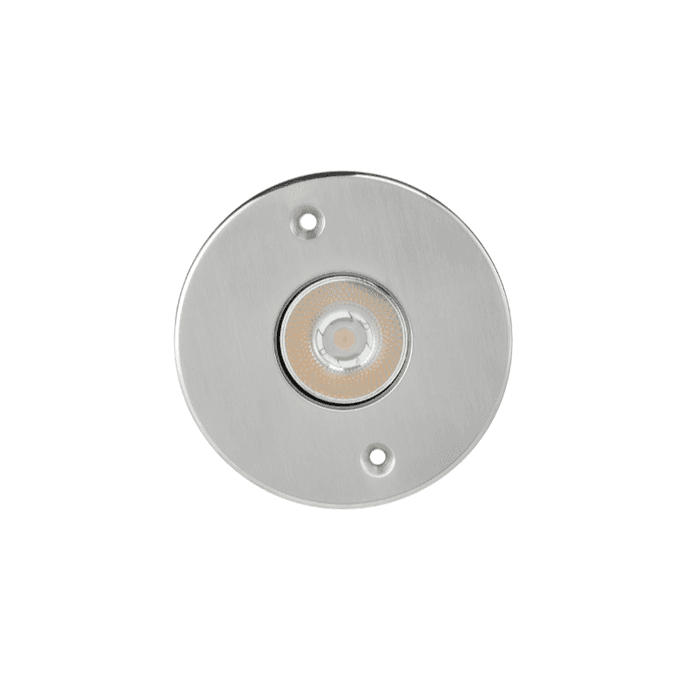

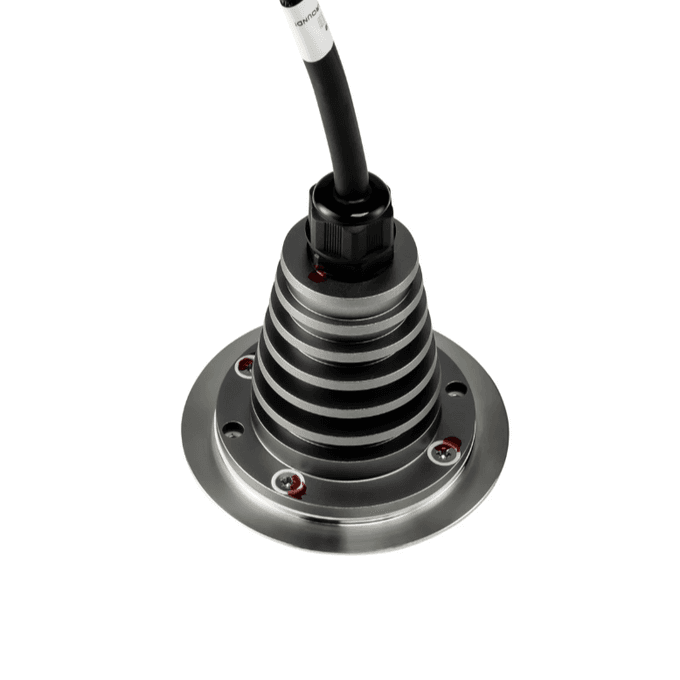

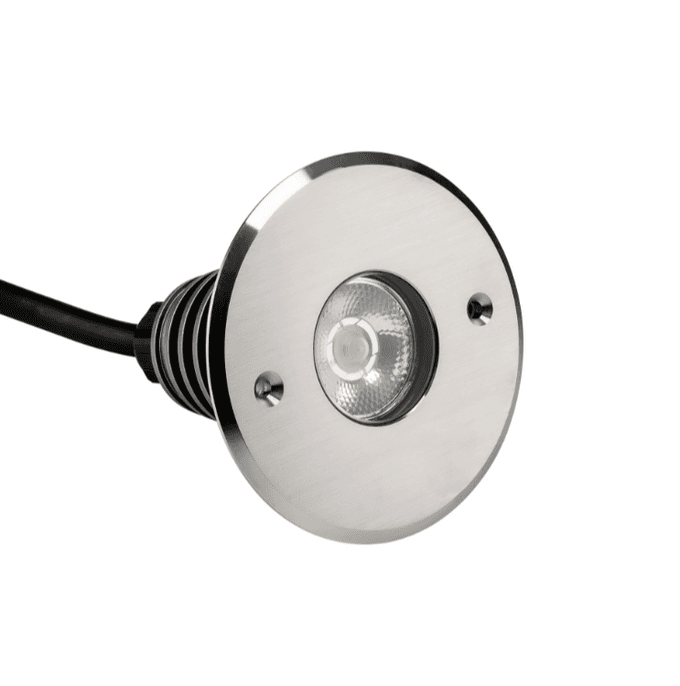

URO POOL STANDARD RD 12/24VDC
URO POOL STANDARD RD 12/24VDC

General data

Application	Pool
Key Advantages	Variety of light distribution beam angles, power options W, shape designs and dimming options.
Product Shape	Round
Type	Illumination
Mounting	Pool

Electrical data

Main Feed AC [V]	230VAC ~ 12/24 VDC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	6
IEC Protection Class	III
Connector Type	1.5m
Wiring	SIHF 2X1.5

Optics

Diffuser Material	Tempered glass
CONTROL SYSTEM	ON-OFF, PWM
LED LIFETIME Ta25 [h]	≥ 60 000h

Technical data

Total Consumption [W]	6
Lumen Output [LM]	540 – 710
Efficacy lm/W	90 – 118
Diffuser Material	Tempered glass
Body Material	SS316L, ALU
Beam Angle [°]	10, 20, 45˚ (multilens)
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2200, 2700, 3000, 4000, 5000
Color Rendering Index [CRI]	80
MacAdam step	<3
LED LIFETIME Ta25 [h]	≥ 60 000h
Body Color	SST
Ingress Protection [IP]	68
Mechanical Protection [IK]	10
Main Feed AC [V]	230VAC ~ 12/24 VDC
Diameter ø [mm]	96

Description:

URO POOL STANDARD with a maximum power of 6W was designed with passion using modern technologies. The lamp is made of the highest quality 316L stainless steel, and the light source is LEDs from the american company CREE. Pool Standard can be used in such places as pools, ponds, fountains, plazas, gardens, wharves.

Key Advantages:

Variety of light distribution beam angles, power options W, shape designs and dimming options.

Downloads:

Datasheet:

Technical illustrations:

Mounting instructions:

Certificates:

Photometric data:

General data

Application	Pool
Key Advantages	Variety of light distribution beam angles, power options W, shape designs and dimming options.
Product Shape	Round
Type	Illumination
Mounting	Pool

Electrical data

Main Feed AC [V]	230VAC ~ 12/24 VDC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	6
IEC Protection Class	III
Connector Type	1.5m
Wiring	SIHF 2X1.5

Optics

Diffuser Material	Tempered glass
CONTROL SYSTEM	ON-OFF, PWM
LED LIFETIME Ta25 [h]	≥ 60 000h

Technical data

Total Consumption [W]	6
Lumen Output [LM]	540 – 710
Efficacy lm/W	90 – 118
Diffuser Material	Tempered glass
Body Material	SS316L, ALU
Beam Angle [°]	10, 20, 45˚ (multilens)
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2200, 2700, 3000, 4000, 5000
Color Rendering Index [CRI]	80
MacAdam step	<3
LED LIFETIME Ta25 [h]	≥ 60 000h
Body Color	SST
Ingress Protection [IP]	68
Mechanical Protection [IK]	10
Main Feed AC [V]	230VAC ~ 12/24 VDC
Diameter ø [mm]	96

Housing

Body Material	SS316L, ALU
Body Color	SST

Light technical data

Light Source	LED
Total Consumption [W]	6
Lumen Output [LM]	540 – 710
Efficacy lm/W	90 – 118
LED Color Temperature CCT [K]	2200, 2700, 3000, 4000, 5000
Color Rendering Index [CRI]	80
MacAdam step	<3
Beam Angle [°]	10, 20, 45˚ (multilens)
Light Distribution DIR/IND	DIR

Technical data

TA [°C]	-20 to +55
Ingress Protection [IP]	68
Mechanical Protection [IK]	10
Corrosion Class	C3, C4

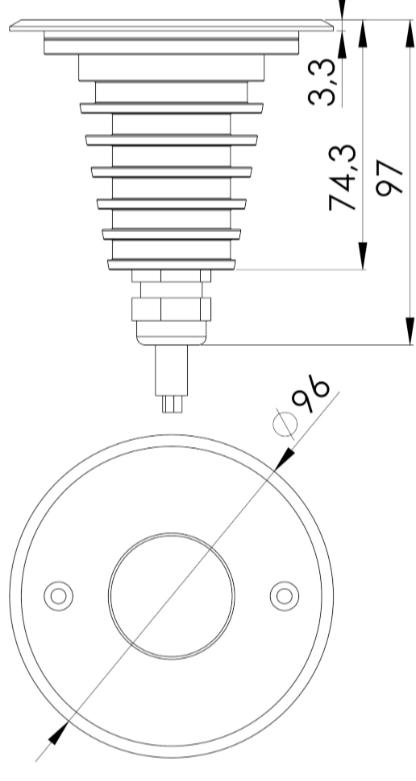

Dimensions

Diameter ø [mm]	96

Variations

Item	Code	Height	Diameter	W	Lumen Output lm	Efficacy lm/W	Diffuser	Beam Angle	CRI	Color K	IP	Color
URO POOL STANDARD RD 12/24VDC GLASS 540lm 6W 822 96 SS IP68	MI4060602	97	96	6	540	90	GLASS	10	80	2200	68	SST
URO POOL STANDARD RD 12/24VDC GLASS 540lm 6W 822 96 SS IP68	MI8712464	97	96	6	540	90	GLASS	20	80	2200	68	SST
URO POOL STANDARD RD 12/24VDC GLASS 540lm 6W 822 96 SS IP68	MI8077320	97	96	6	540	90	GLASS	10	80	2200	68	SST
URO POOL STANDARD RD 12/24VDC GLASS 540lm 6W 822 96 SS IP68	MI9364003	97	96	6	540	90	GLASS	20	80	2200	68	SST
URO POOL STANDARD RD 12/24VDC GLASS 650lm 6W 827 96 SS IP68	MI9849245	97	96	6	650	108	GLASS	10	80	2700	68	SST
URO POOL STANDARD RD 12/24VDC GLASS 650lm 6W 827 96 SS IP68	MI2526470	97	96	6	650	108	GLASS	20	80	2700	68	SST
URO POOL STANDARD RD 12/24VDC GLASS 650lm 6W 827 96 SS IP68	MI8389159	97	96	6	650	108	GLASS	10	80	2700	68	SST
URO POOL STANDARD RD 12/24VDC GLASS 650lm 6W 827 96 SS IP68	MI3721874	97	96	6	650	108	GLASS	20	80	2700	68	SST
URO POOL STANDARD RD 12/24VDC GLASS 650lm 6W 830 96 SS IP68	MI933959	97	96	6	650	108	GLASS	10	80	3000	68	SST
URO POOL STANDARD RD 12/24VDC GLASS 650lm 6W 830 96 SS IP68	MI6598311	97	96	6	650	108	GLASS	20	80	3000	68	SST
