VIGO 80 SURFACE TRANSPARENT 2350lm 24W 930 WH IP20 DALI
Item No. MI103918627
VIGO 80 SURFACE

VIGO 80 SURFACE TRANSPARENT 2350lm 24W 930 WH IP20 DALI

MI103918627

General data
Product ShapeTube
MountingS
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]24
IEC Protection ClassI
Optics
DiffuserTRANSPARENT
Type of ControlDALI
LED LIFETIME Ta25 [h]L80B10 60.000h
Technical data
Total Consumption [W]24
Lumen Output [LM]2350
Efficacy [lm/W]98
DiffuserTRANSPARENT
Beam Angle [°]18°
Light distributionDIR
CCT [K]3000
CRI90
MacAdam step3
LED LIFETIME Ta25 [h]L80B10 60.000h
Type of ControlDALI
Housing colorWHITE
IP20
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Description:

Subtle LED spotlight with driver integrated in track mount delivering an extreme slim design without compromises.

Downloads:
Datasheet:
1
Mounting instructions:
1
Certificates:
1

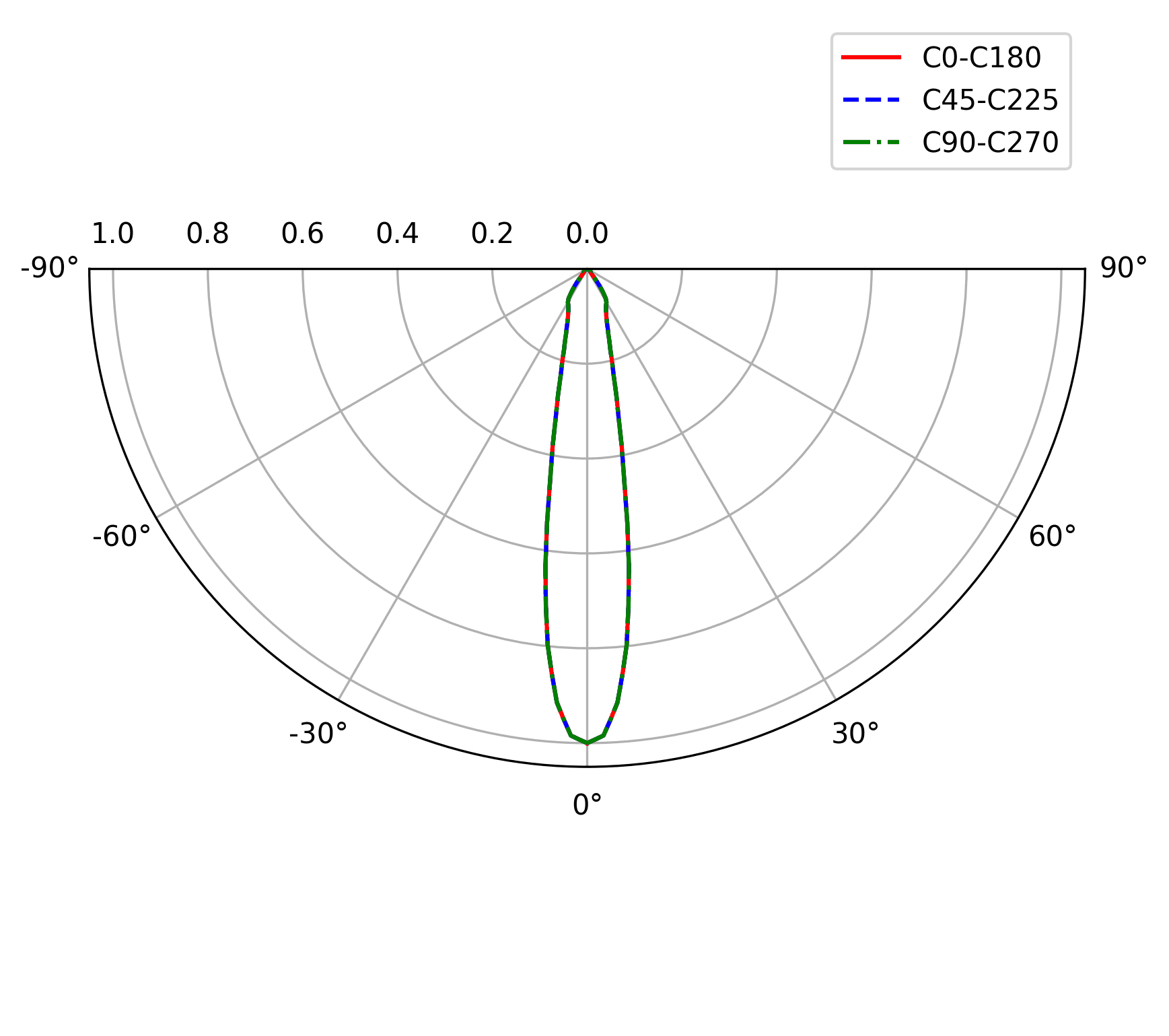

Photometric data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/DALI.svg
/soft4net/img/project/icons/AD - IP/20.svg
/soft4net/img/project/icons/J - MOUNTING/S.svg
/soft4net/img/project/icons/W - HOUSING COLOR/WHITE.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_90.svg
VIGO 80 SURFACE
General data
Product ShapeTube
MountingS
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]24
IEC Protection ClassI
Optics
DiffuserTRANSPARENT
Type of ControlDALI
LED LIFETIME Ta25 [h]L80B10 60.000h
Technical data
Total Consumption [W]24
Lumen Output [LM]2350
Efficacy [lm/W]98
DiffuserTRANSPARENT
Beam Angle [°]18°
Light distributionDIR
CCT [K]3000
CRI90
MacAdam step3
LED LIFETIME Ta25 [h]L80B10 60.000h
Type of ControlDALI
Housing colorWHITE
IP20
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Housing
Housing colorWHITE
RALAny upon request
FinishMatt, Gloss
Light technical data
Light SourceCOB LED
Total Consumption [W]24
Lumen Output [LM]2350
Efficacy [lm/W]98
CCT [K]3000
CRI90
UGR<19
MacAdam step3
Beam Angle [°]18°
Light distributionDIR
Technical data
IP20
Mechanical Protection [IK]01
Corrosion ClassC3
Generating PDF...

Technical illustrations

VIGO 80 SURFACE
